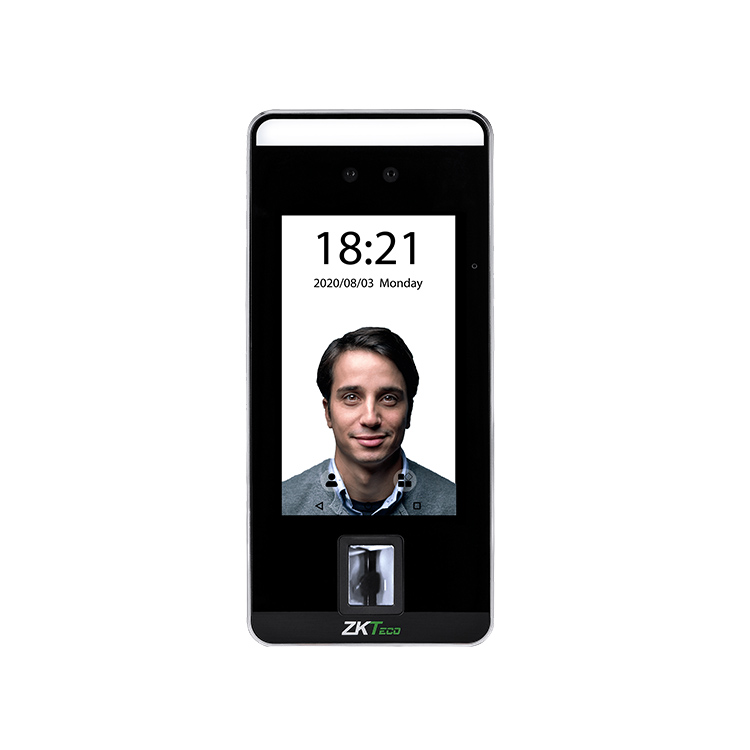

SF1005-V Face and Fingerprint Recognition Access Control Reader

Please Login for Pricing

SF1005V recognizes authorized users’ faces from up to 6 feet away while they’re walking. It’s also designed with a 30-degree angle tolerance so users don’t need to stop and stare directly into its camera before attempting door/turnstile access.

  • Reads Faces, Fingerprints, and Proximity Cards
  • Grants access to users based on chosen verification modes
  • Compatible with ZKBio Security Software, Relay Box, Wiegand In/Out



Login or Sign Up

Description

SF1005-V is a high-performance face recognition reader used most commonly in access control applications. SF1005-V can match up to 6,000 faces in less than 0.3 seconds in extreme lighting and severe rain conditions. It detects when a person stands within close proximity and turns on.

Extended read-range reduces foot traffic bottlenecks. SF1005V recognizes authorized users’ faces from up to 6 feet away while they’re walking. It’s also designed with a 30-degree angle tolerance so users don’t need to stop and stare directly into its camera before attempting door/turnstile access.

Data Sheet – SF1005-V

Quick Start Guide – SF1005-V

FEATURES

  • Enhanced Visible Light Facial Recognition with Deep Learning
  • 30-degree angle tolerance for superior facial recognition
  • Recognizes authorized users’ faces from up to 6 feet away while they’re walking
  • 5-inch touchscreen display
  • Supports up to 6,000 faces & 10,000 fingerprints
  • Dual infrared and visible light cameras
  • Powerful anti-spoofing engine
  • Inter-operates with external RS232/485 and Wiegand reader
  • Supports TCP/IP and optional Wi-Fi communication
  • Dimensions: 8″H, 3.6″W, 1″D

* Body temperature accuracy +/- 0.6 ° F when installed in climate-controlled rooms. If the room temperature is variable, ZKTeco recommends recalibrating SpeedFace+ temperature settings accordingly.

SPECIFICATIONS

Capacity:
Faces: 6,000
Users: 10,000
RFID: 10,000
Fingerprints: 10,000
Cards: 200,000

Compatibility:
Wiegand Input Panels
Wiegand Output Readers
EntraPASS Global Software
ZKBioSecurity Software
ZKTeco Security Relay Box (SRB)

Hardware:
Quad-core A17 1.8 GHz
2G RAM/ 16G ROM
5″ Touch Screen Display
2MP dual lens, infrared and visible light
Operating temperature -40 to 140 degrees F

Supported Accessories:
Door/Turnstile Lock Relay Output
Alarm Output/Auxillary Input
Exit Button/Door Sensor

Communication:
TCP/IP
RS485
Wiegand Input/Output
Wi-Fi

Power:
Operating Voltage: 12V DC 3A
Current Draw: <2,000mA



DIMENSIONS

Contact us for a quote



Additional information

Weight 10 lbs
Dimensions 15 × 8 × 8 in
