Description

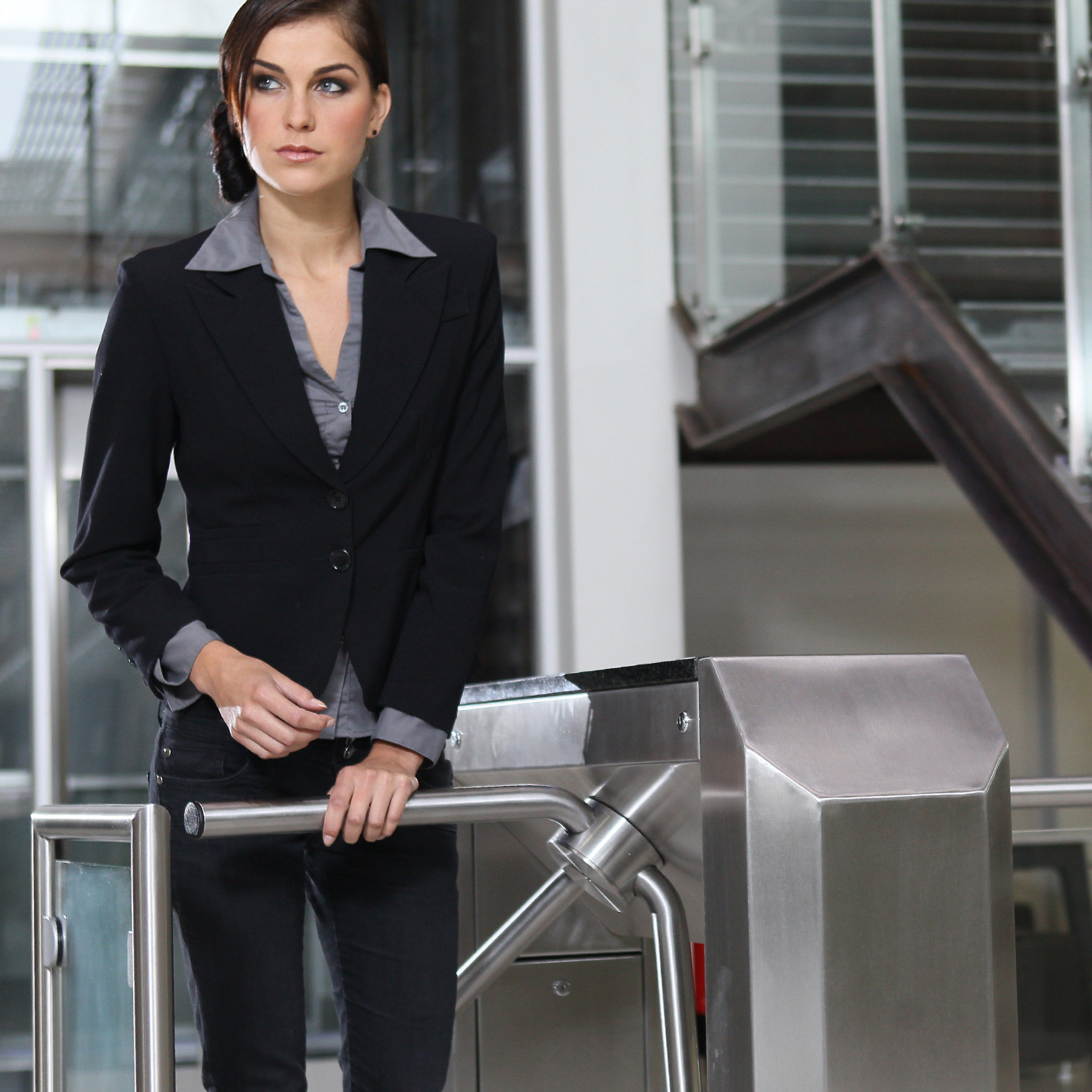

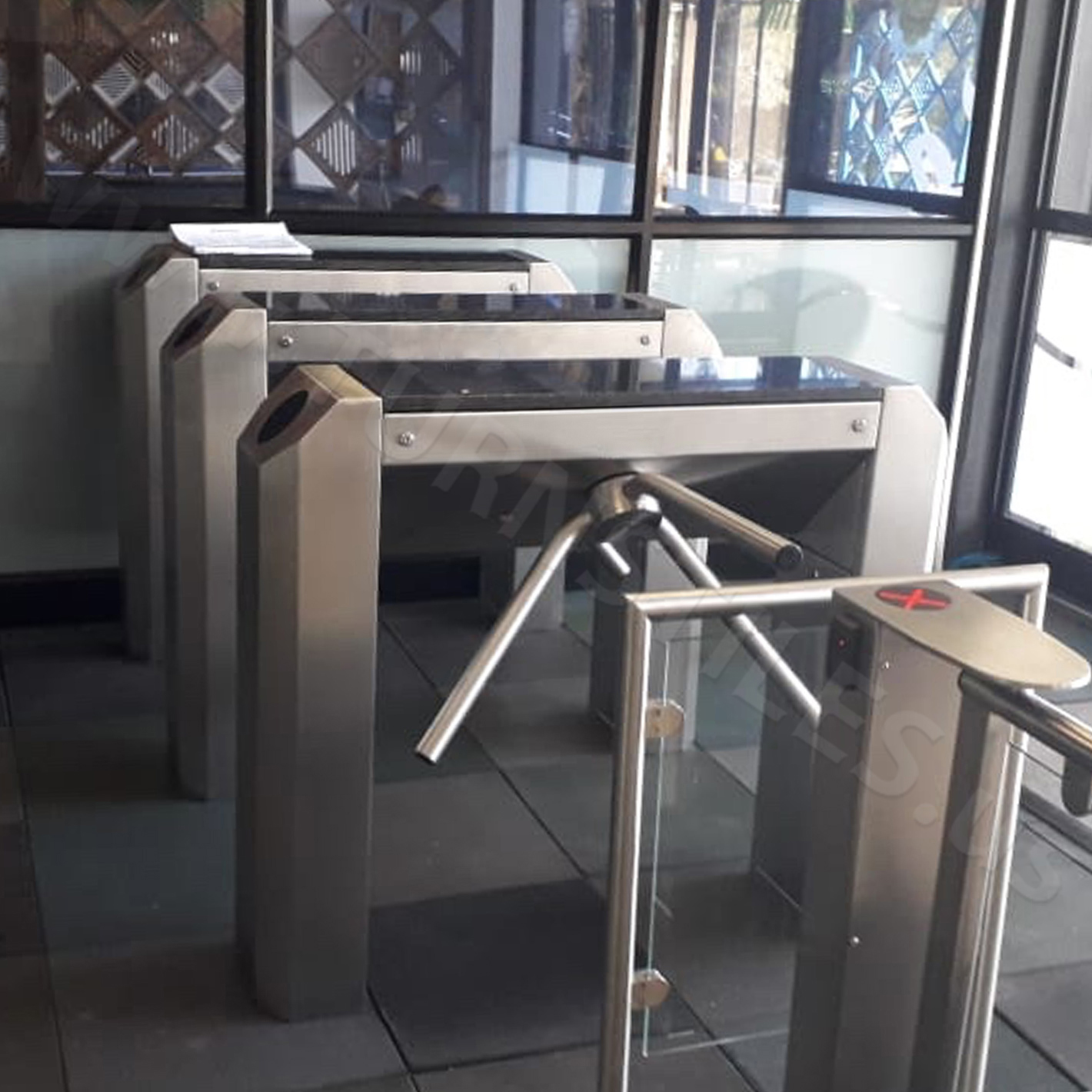

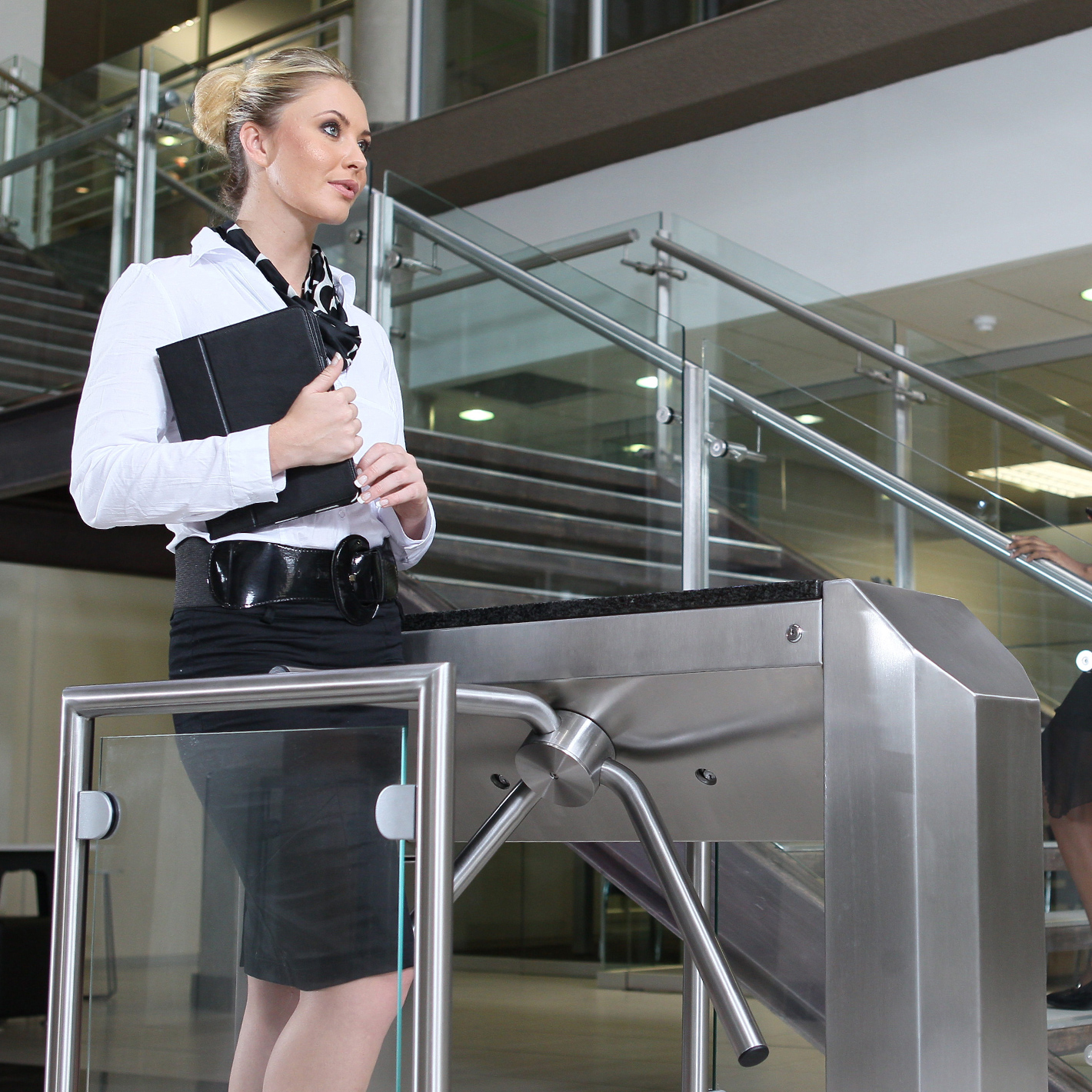

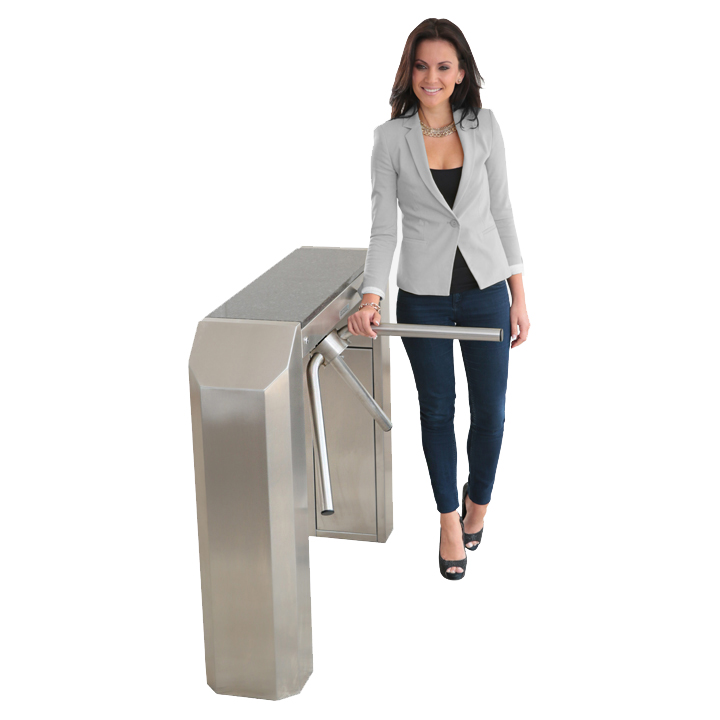

The STREAMLINE Waist-High Turnstile combines elegant architectural styling with industry-proven access control performance. Featuring a distinctive bridge-style design, ultra-quiet operation, and advanced electromechanical controls, the STREAMLINE is equally suited for corporate lobbies, universities, stadiums, recreation facilities, and industrial sites.
At the heart of the STREAMLINE is the exclusive Rotalok® rotation locking mechanism paired with the Rotaslo® hydraulic damping system, delivering smooth, controlled rotation with minimal mechanical stress. The self-centering rotor automatically returns to its home position after each passage, while the Anti-Trap® safety system prevents mid-rotation locking during power interruptions.
The turnstile supports electrically controlled bi-directional operation and integrates easily with virtually any access control, credentialing, or time-and-attendance system through standard dry-contact inputs and transaction outputs. Fail-safe or fail-secure operation can be configured independently for each direction of travel.
Built for long-term reliability, the STREAMLINE features corrosion-resistant components, ultra-quiet 100% duty-cycle buffered solenoids, case-hardened locking elements, and factory-set controls requiring virtually no routine adjustment.
Available in powder-coated steel, 304 stainless steel, or 316 stainless steel finishes, the STREAMLINE can be customized with a wide range of accessories, reader mounting options, indicators, counters, and architectural finishes to suit virtually any project.
Data Sheet – Streamline Waist High Bridge-Style Turnstile
FEATURES
- Ultra-Reliable Rotation: Self-centering rotor with Anti-Trap safety system
- Smooth, Quiet Operation: Hydraulic damping minimizes mechanical stress
- Bi-Directional Control: Electrically or manually controlled; fail-safe or fail-secure configurable per direction
- Locking Mechanism: Heavy-duty electromechanical rotation locking system
- Low Maintenance Design: Factory-set controls and 100% duty-cycle buffered solenoids
- Universal Integration: Compatible with access control, credentialing, and time & attendance systems
- Modular Construction: Ships broken down for transport through standard doorways
- Tamper Resistant: Lockable top cover, access panel, and reader mounting area
- Mechanical Override: Key override in both directions
- Built for Demanding Environments: Suitable for indoor or outdoor installation
SPECIFICATIONS
- Operating Modes: Bi-directional controlled, uni-directional controlled, or free rotation
- Arm Diameter: 38mm / 1.5in stainless steel fixed tube
- Power: 220V AC (110V optional), 50/60Hz
- Logic Voltage: 24V DC (12V optional)
- Duty Cycle: 100%
FINISH
- Finish Options:
- 304 grade brushed stainless steel
- 316 grade brushed stainless steel
- Powder-Coated Steel (standard color is charcoal blue hammer-tone)
- Other colors are available upon request
- Top Cover Options:
- Stainless Steel
- Rustenburg Granite
APPLICATIONS
- Interior and Exterior installations
- Corporate lobbies and office buildings
- Universities and libraries
- Health clubs and recreation facilities
- Stadiums and arenas
- Industrial and manufacturing facilities
- Controlled pedestrian access points

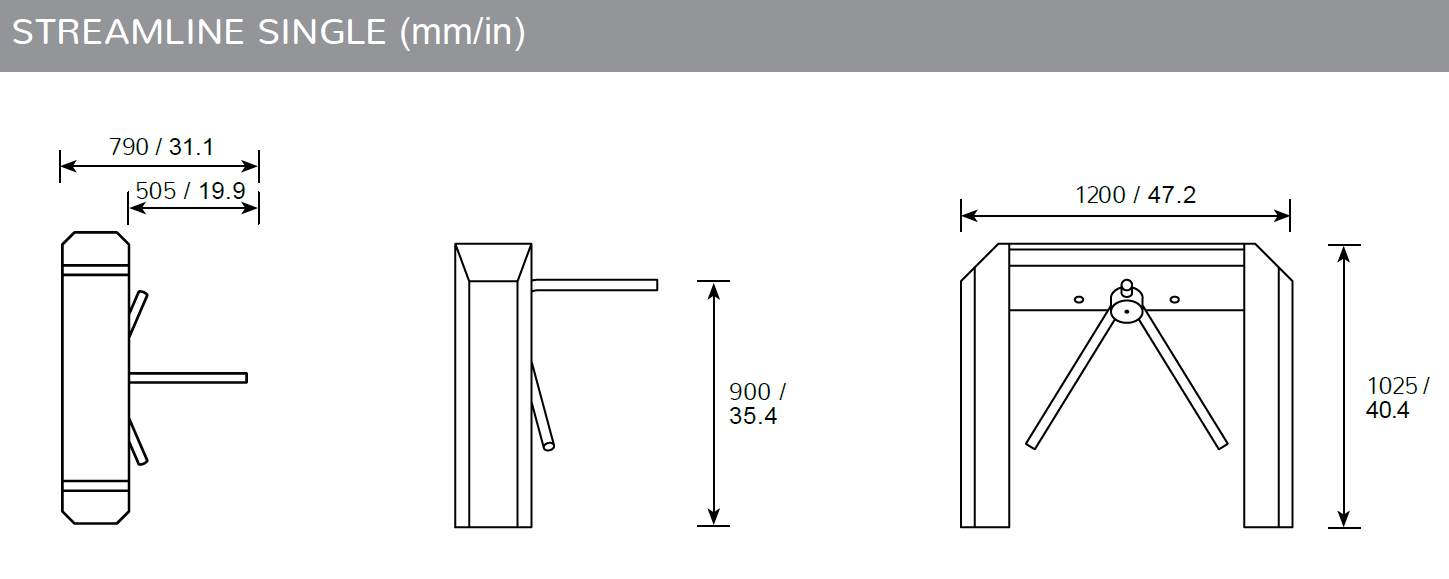

DRAWING & DIMENSIONS
INSTALLATION
Price is Equipment Only. Estimated shipping is calculated at checkout and final amount will be billed separately at time of shipment. Lead times apply.
Final details to be approved by client before fabrication. Contact us with any questions!
Manufactured in our South Africa factory and shipped worldwide.
