Description

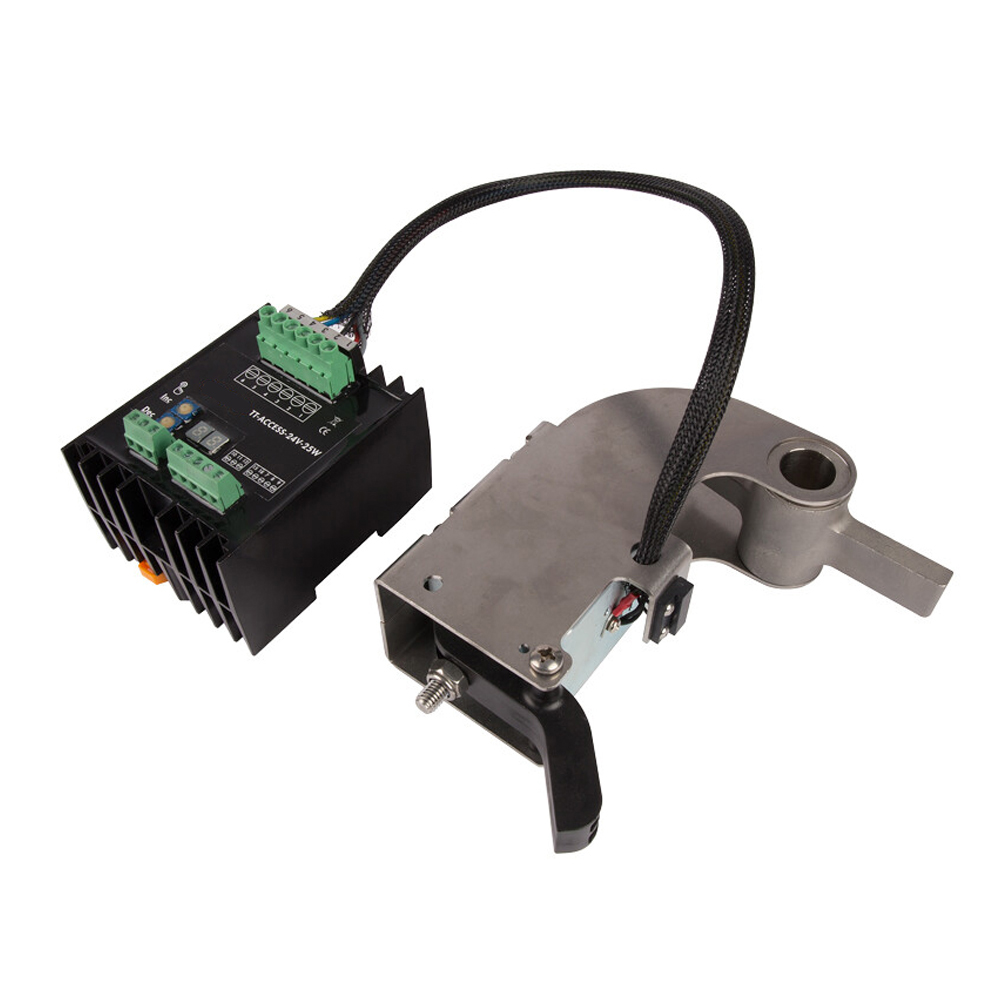

Fail‑Close Electromechanical Locking Module
This electromechanical locking module brings precision locking functionality to waist-high turnstiles. Designed to fail close, it ensures that in the event of power loss, the arm remains locked, ideal for securing entry zones while allowing unrestricted exits. Installation is plug-and-play, compatible with both new base units and retrofit upgrades.
Using powerful electromagnets, an operator can command access or restrict rotation. The module includes a clear digital timer (adjustable 1–99 seconds via push buttons), an automatic reset mechanism after one full rotation, and optional manual key release for emergency override.
Built for return-to-zero reliability, it features a hermetically sealed aluminum housing with heat-dissipation fins, suitable for humidity-prone environments. Rated for up to one million cycles and supporting anti-passback security through a 60° locking mechanism, it offers unmatched longevity and control.
FEATURES
- Locks turnstile arms when power is lost (“fail‑closed”) — secure entry-side control
- Interchangeable with mechanical modules for easy upgrades
- Compatible with left- or right-turn configurations
- Adjustable timer from 1 to 99 seconds; bright display shows selected duration
- Automatic reset after completing full rotation ensures safety and reliability
- Manual key release feature in case of emergencies
- Anti-passback secured by a locking stop at 60° rotation
- Plug-&-play power and module connector for fast installation
- Tested for high endurance—rated beyond one million operations
SPECIFICATIONS
- Durable powder‑coated aluminum housing with thermal fins
- Sealed design offers superior humidity resistance
- Exterior‑grade 24 VDC power supply included with integrated timer
- Input: 220–240VAC
- Output: 24 VDC (power supply integrated)
- Max power draw: ~25 W
APPLICATIONS
Perfect for secure turnstile installations where controlled access must default to locked upon power loss, such as:
- Transit and ticketed entry stations
- Stadium entrances and event gates
- Corporate or institutional entry points
- Facilities requiring precise pedestrian control and safety compliance
This is a fail-safe locking module engineered for robust access control at entry points. With configurable timing, a sealed housing, anti-passback security, and key override, it’s the ideal upgrade for turnstiles where safety and control are paramount, even if power is lost.
