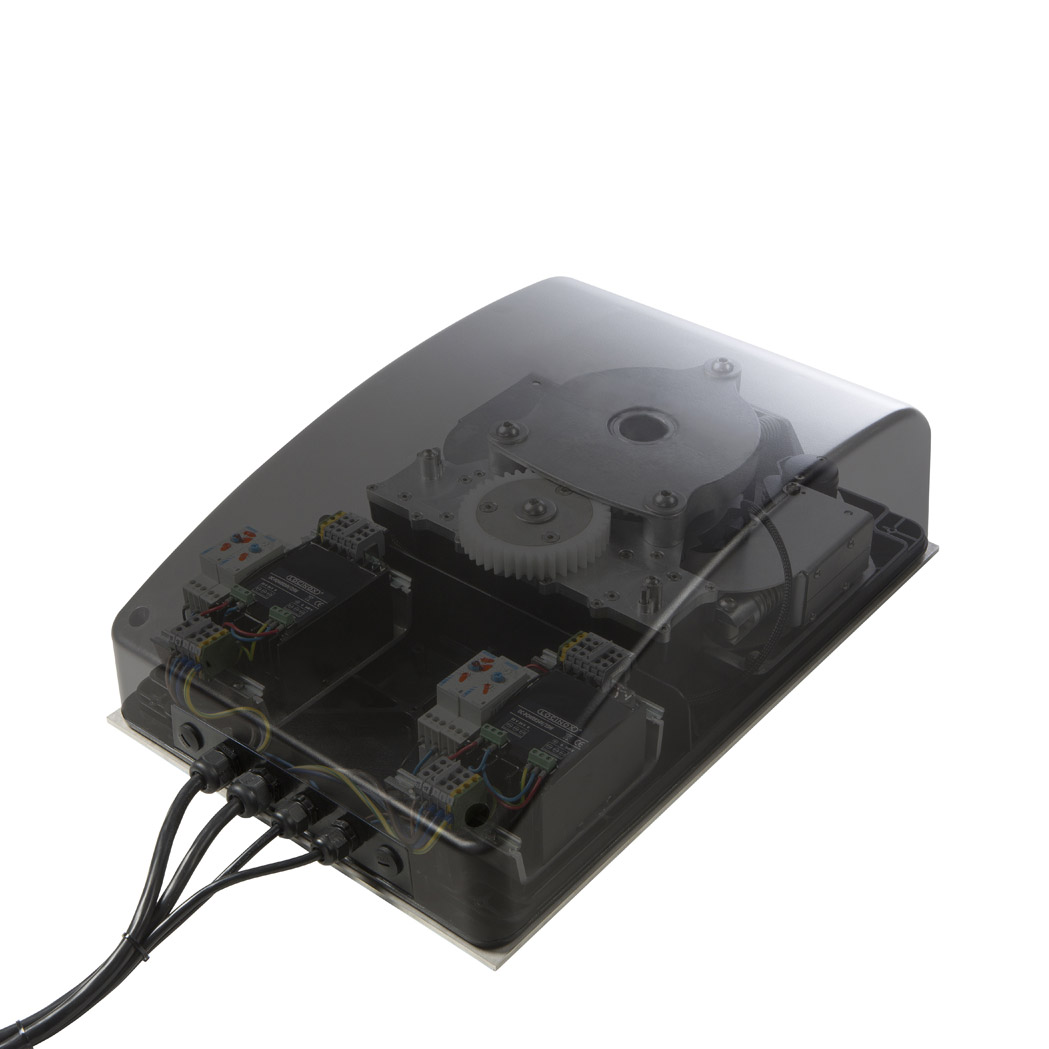

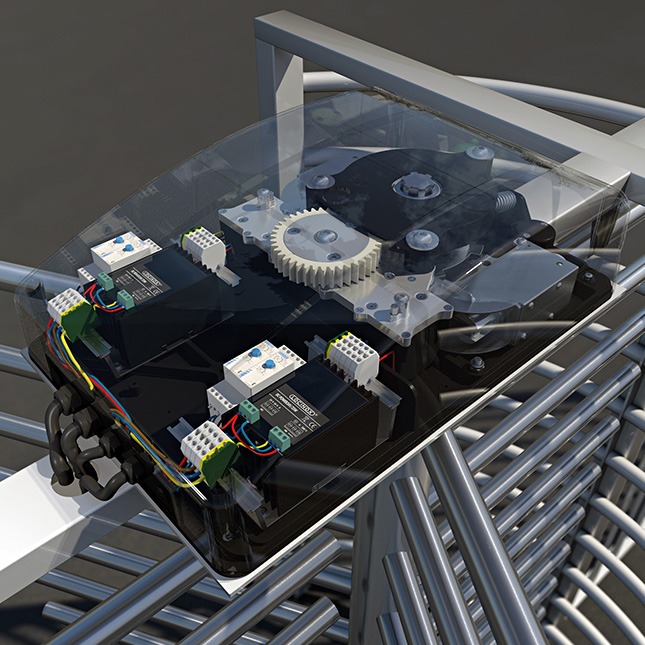

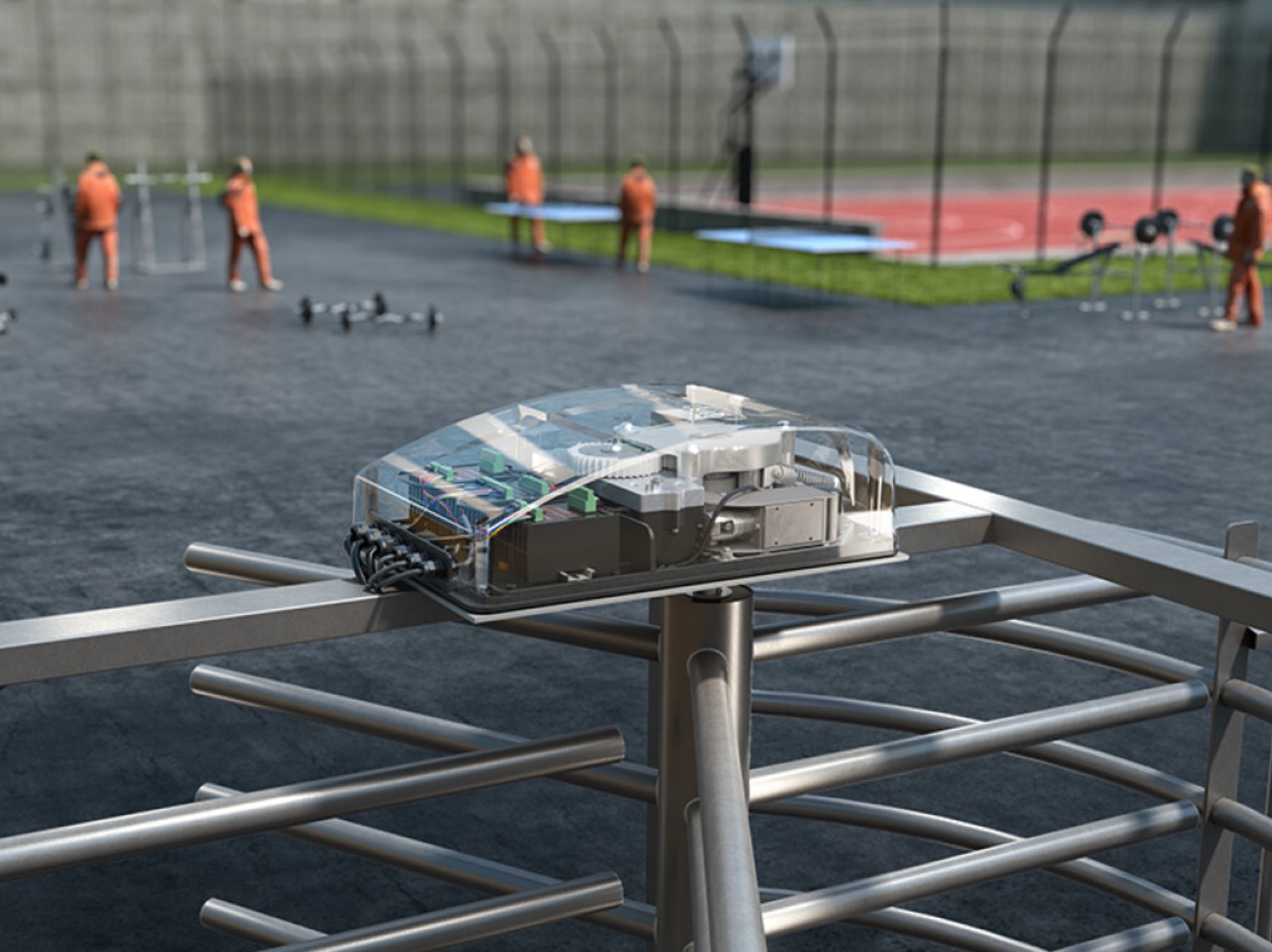

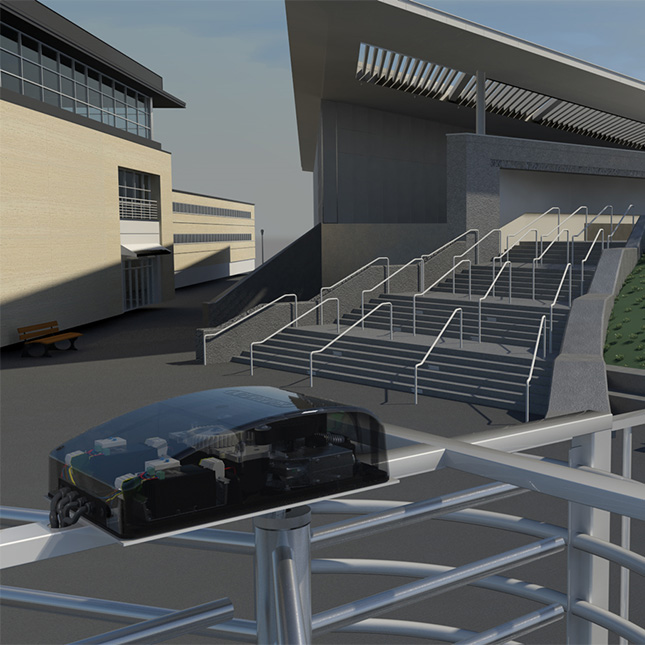

Modular Turnstile Control Head – Full Assembly

Please Login for Pricing

This high-performance controller unit allows our turnstiles to be configured to meet your unique security needs.



Login or Sign Up

Description

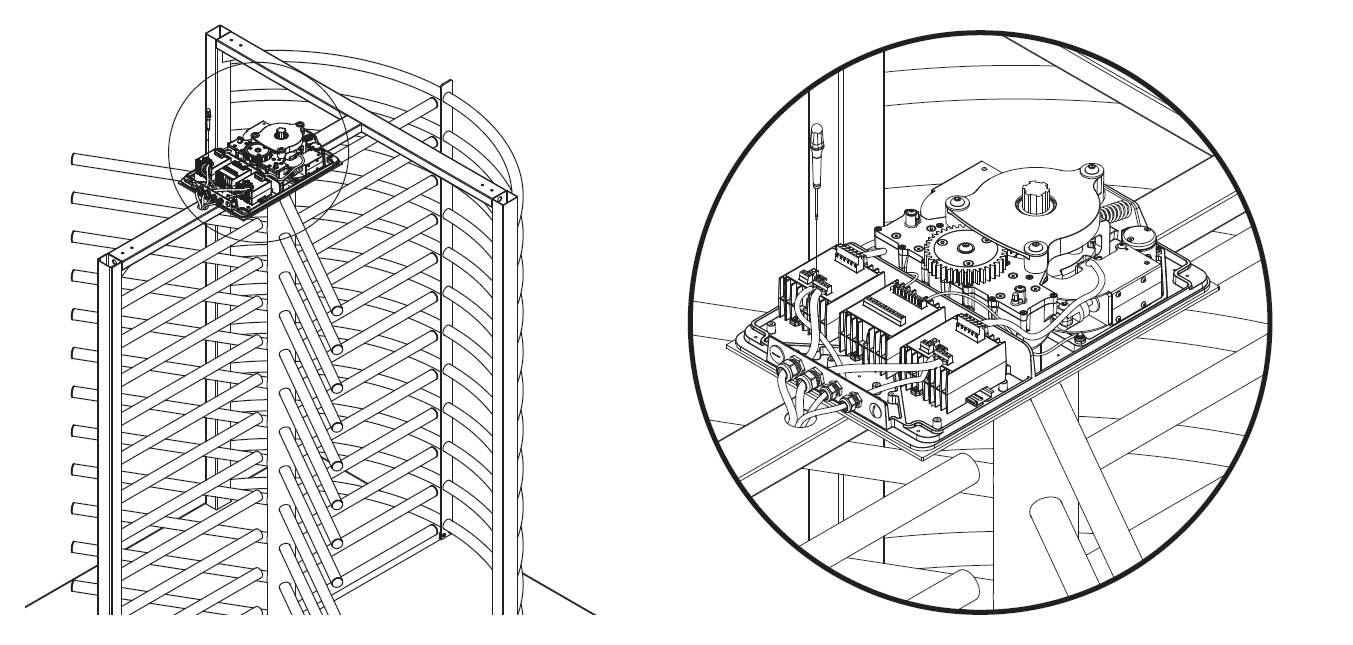

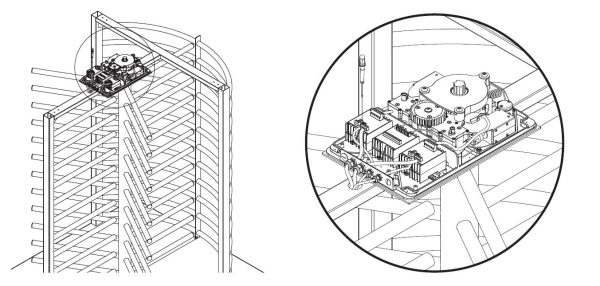

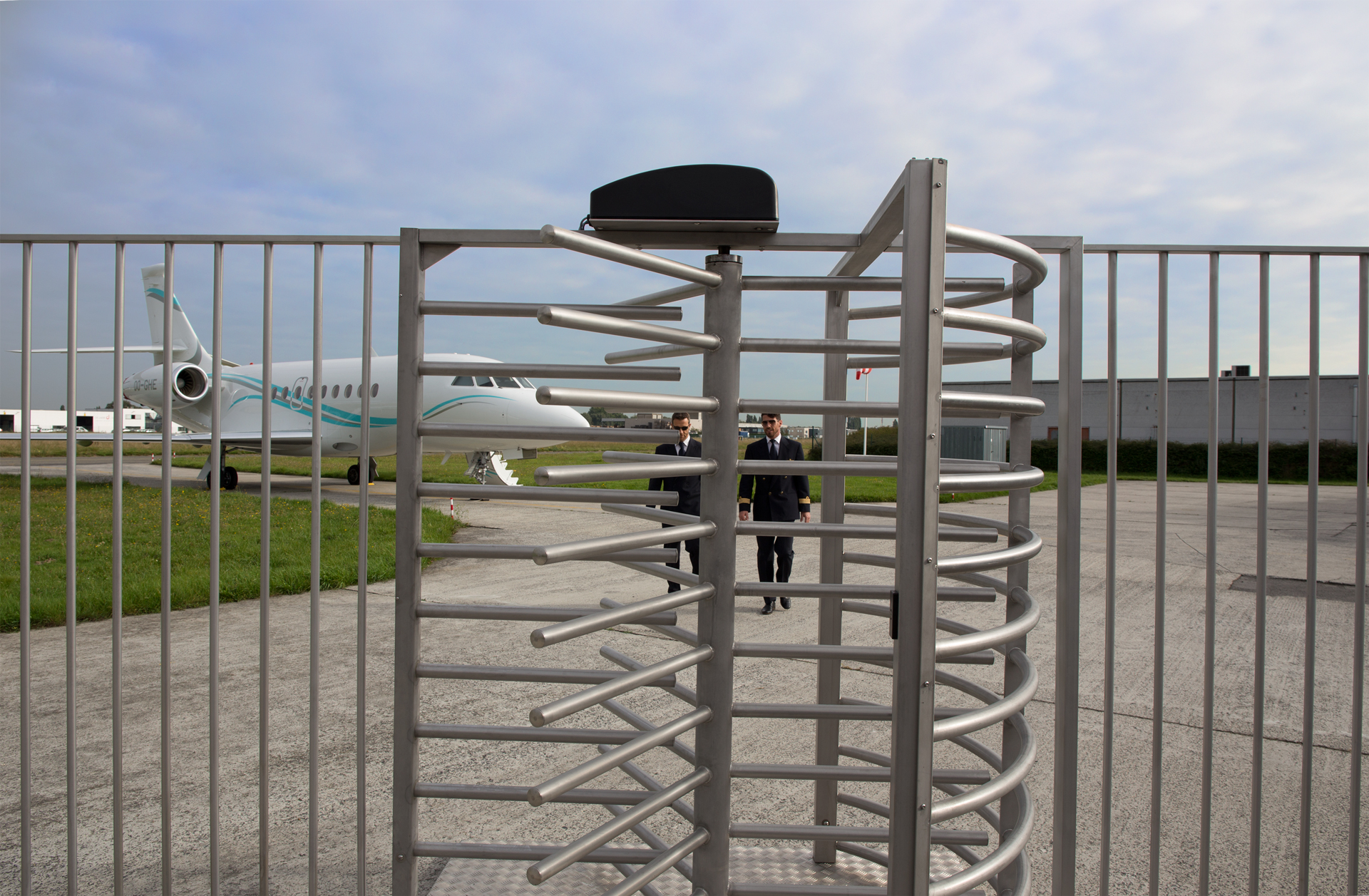

The Modular Turnstile Control Head from TURNSTILES.us is the key to a maintenance-free and high-quality turnstile. This modular mechanism can update or retrofit your existing turnstile or be built into a new full-height industrial turnstile. The mechanism is widely applicable and a quick installation is guaranteed. Thanks to the 100% modular (electro)mechanical design you can adapt the mechanism to your desires. A comfortable and safe operation is guaranteed by the optional damping system that is unaffected by temperature changes.

Data Sheet



Assembly Video



Features

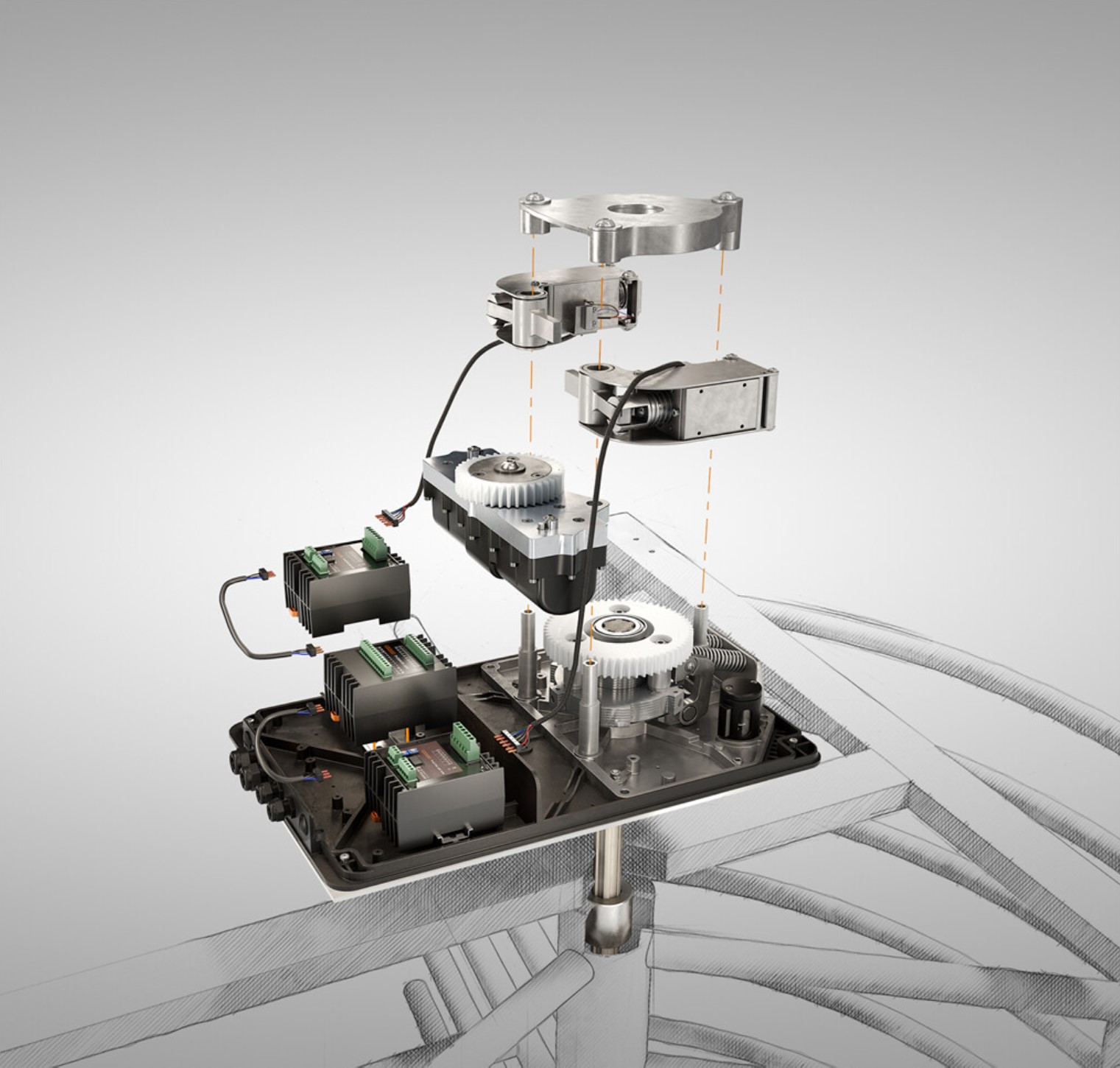

  • 100% modular system: composition according to customers’ desires and expandable at any moment
  • Available for 3-arm (120°) and 4-arm (90°) turnstile
  • Optional interchangeable left/right mechanical or electromechanical modules (Fail Open or Fail Close)
  • Automatic return to starting position (by means of industrial pressure springs) after every passage
  • Anti-passback security (locking after a 60° or 45° rotation): prevents the simultaneous passing of 2 persons
  • Very robust implementation and strong connection with the turnstile by a 1-3/8″ diameter spline axle (length 12-3/4″)
  • Manufactured completely in stainless parts (stainless steel and aluminum)
  • Optional welding plate in black or stainless steel enables an easy mounting on every turnstile
  • Optional damping system guarantees smooth and gradual movements. Damping is continuous and unaffected by temperature changes (patented system)
  • Possible to set signal duration
  • IP55 housing protects the mechanism against water, dirt, wind, dust and vermin

Specifications

Dimensions: 13-5/8″ x 20-3/4″ x 6-3/4″

 QUALITY
• Tested on 500,000 cycles
• Robust system
• Strong connection with the turnstile spindle
• 100% rust free materials
• No exposed components
• IP55 proof housing
• 24V DC power supply

 SAFETY
• Bi-directional access control
• Smooth continuous movement
• Anti-passback security
• Impossible to be trapped in the turnstile
• Manual key-override possible
• Automatic return to start position

 ACCESS CONTROL
• Optional hydraulic damper
• Easy connect of counter and traffic indicator lights
• (Electro) mechanical Fail-Open or Fail-Close solution

 EASE OF INSTALLATION
• Easy to work with compact housing
• Optional pre-drilled welding plate
• Plug&Play electrical connectors
• Modular: units can be swapped out

Notes for KT400 Integration

  • The KT-400 SPI port maximum current draw, when the 12V AUX terminals are not used, is 500 mA.
  • An external power supply (12 VDC, 2 Amps) is required when the total current draw exceeds 500mA on the SPI Port.
  • There are already 4 relays available on the KT-400. Make sure to check the relay number assignments to prevent redundancy unless it has been planned on purpose.
  • Maximum Current Draw: up to 330 mA per module
  • Each relay supports the 2 conditions, NO (Normally Open) and NC (Normally Closed). The C (Common) terminal is +12 VDC.
  • Each relay has its own LED to indicate status, ON for active.
  • Eight (8) programmable relay contacts rated 30 VDC, 3 A
  • Can be mixed with output module KT-MOD-OUT16 in the same group
  • Operating Temperature: -10C to +55C, 0C to 49C for UL Listed product
  • Maximum Humidity: 93% (non condensing), 0 to 85% (non condensing) for UL Listed product
  • IP Class 3X, IK Rating 04 (when mounted in a KT cabinet). IP and IK ratings are not evaluated.

*One unit is needed for a single turnstile, and two for a tandem turnstile.



*Contact us for a personalized quote.



Additional information

Weight 35 lbs
Dimensions 30 × 17 × 12 in
Selection

Full Assembly Control Head for 3-Arm Turnstile, Full Assembly Control Head for 4-Arm Turnstile
