Description
The PUPKIT III Retrofit Kit is a modular upgrade package designed to restore or enhance the internal functionality of waist-high turnstiles. Ideal for replacements, retrofits, or low-voltage system upgrades, this kit provides the core electrical components needed to modernize older units or standardize new installations.
At its core, the kit includes two low-voltage logic control boards capable of managing timed activation, direction control, and power distribution to electromechanical components such as solenoids or locks. These boards are suitable for a single turnstile or one side of a tandem unit, depending on configuration.
An optional light kit module may be added to enable visual signaling—typically red/green indicators—to guide pedestrian flow or display status. The included logic boards are designed to interface cleanly with such modules, providing consistent timing and output control.
This kit is ideal for teams looking to extend the life of existing turnstiles, bring non-powered units into access control systems, or streamline maintenance across multiple installations.
Components

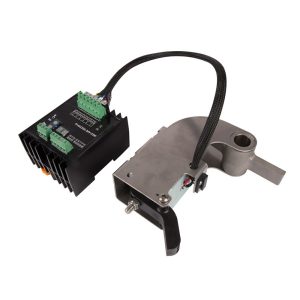

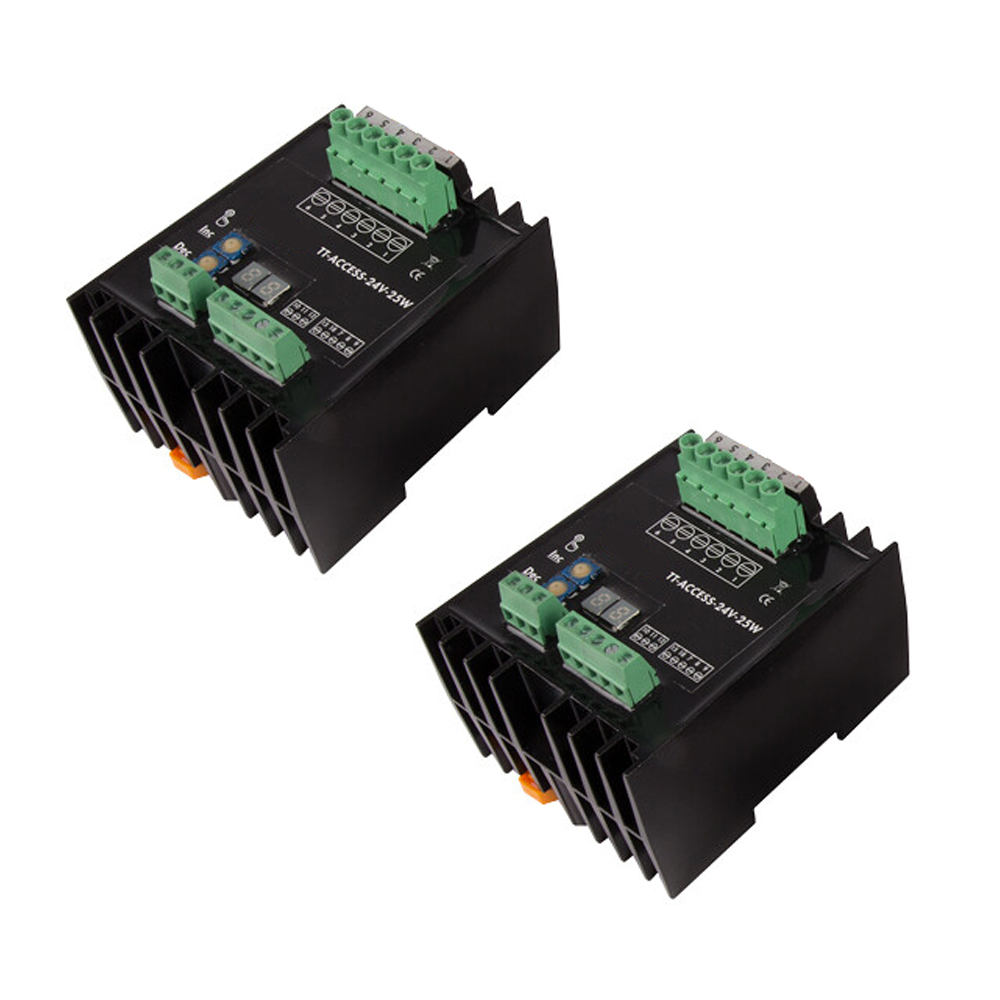

- (2) 24V Logic Control Boards

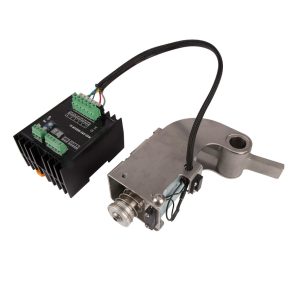

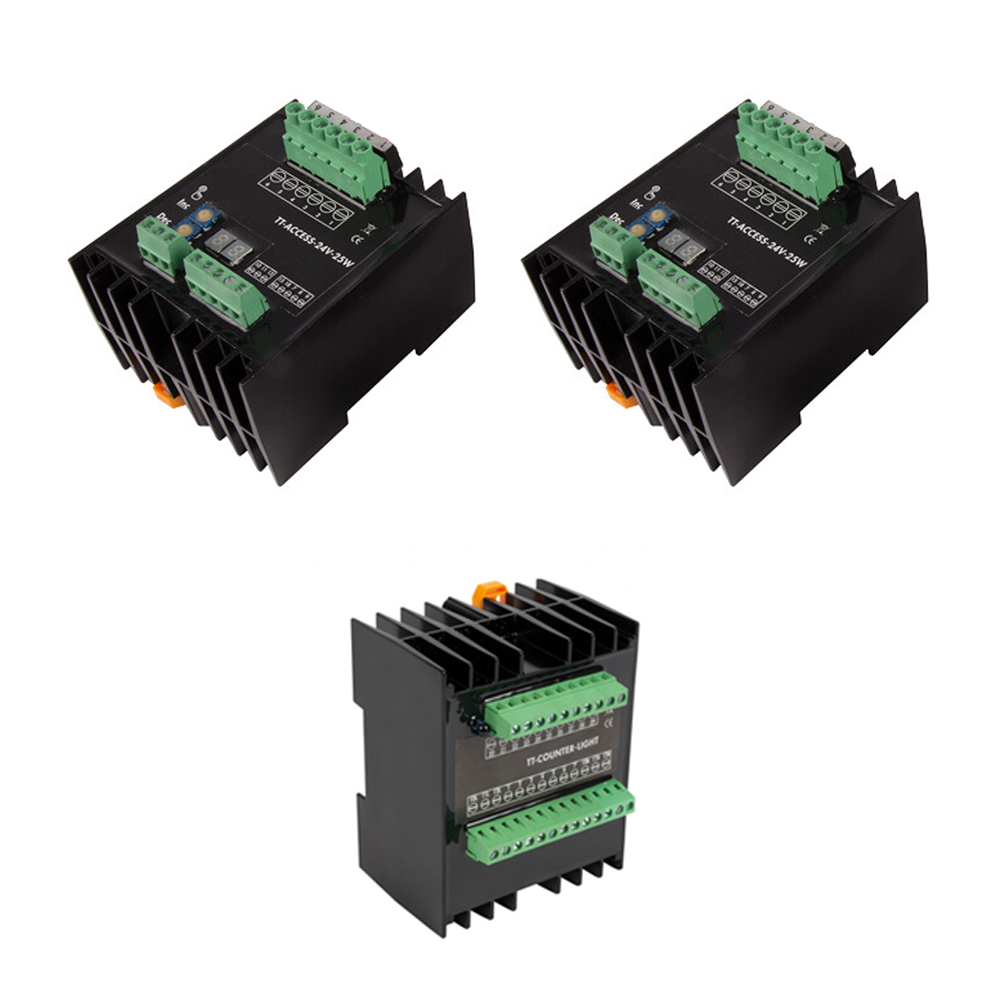

Provide signal timing and low-voltage power output to control turnstile operation (locking, unlocking, delay functions, etc.) - (1) Optional Light Kit Module
Interfaces with control boards to power and manage red/green indicator lights or counters
Applications
- Replacing outdated or failed internal control systems
- Preparing mechanical turnstiles for access control integration
- Adding indicator lights or signal-based user guidance
- Standardizing internal components across mixed equipment
- Designed for ease of installation into a turnstile header or cabinet
- Suitable for new builds or retrofit installations
Installation Documentation
The PUPKIT III system consists of modular control components designed for retrofit applications within turnstile control heads and related access systems.
These modules are integrated within the broader control head assembly and are not standalone systems. Refer to the assembly video for full system context.
Electrical Specifications:
Input Voltage: 110VAC (standard U.S.)
Compatibility: Supports up to 230VAC for international use
Maximum Output Power: 25W
Configurations may vary depending on installation requirements and system design.

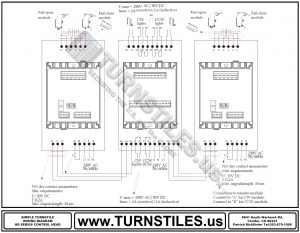

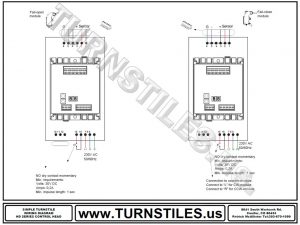

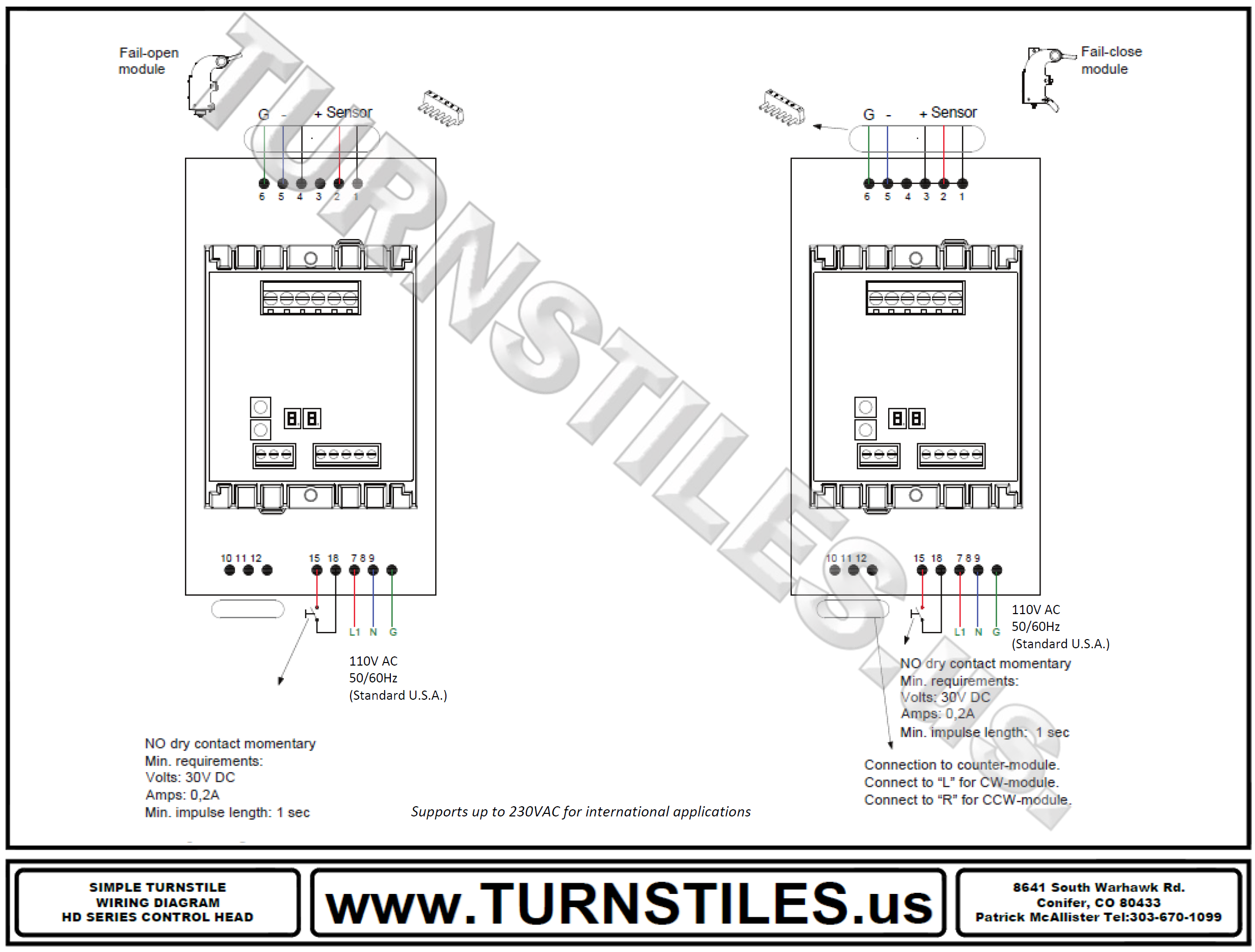

Turnstile Retrofit Kit Wiring Diagram > OPEN PDF

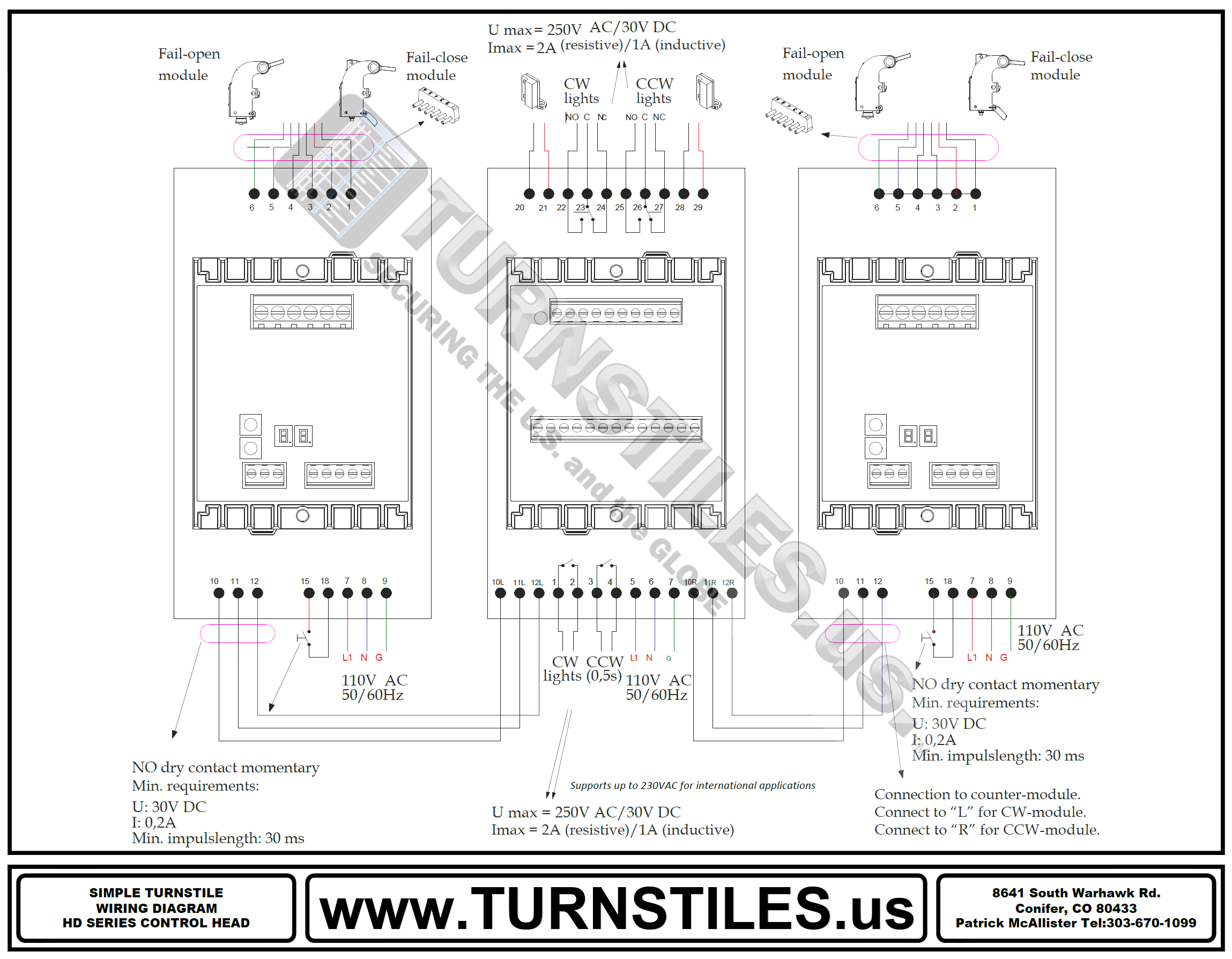

Retrofit Light Kit Diagram > OPEN PDF
CONTROL HEAD ASSEMBLY VIDEO
System Context: The assembly video shown here demonstrates the full control head mechanism.
The PUPKIT modules are components within this system and may be used in various retrofit configurations.
While specific installations may differ, the video provides helpful context for understanding how the modules integrate within the overall control assembly.
