Turnstile Canopy Walkway

Submitted to:
Kraft Heinz Company

Submitted by:
Patrick McAllister
www.TURNSTILES.us, Inc.
April 2020 – Present

AutoCAD Drafting

3D Concept

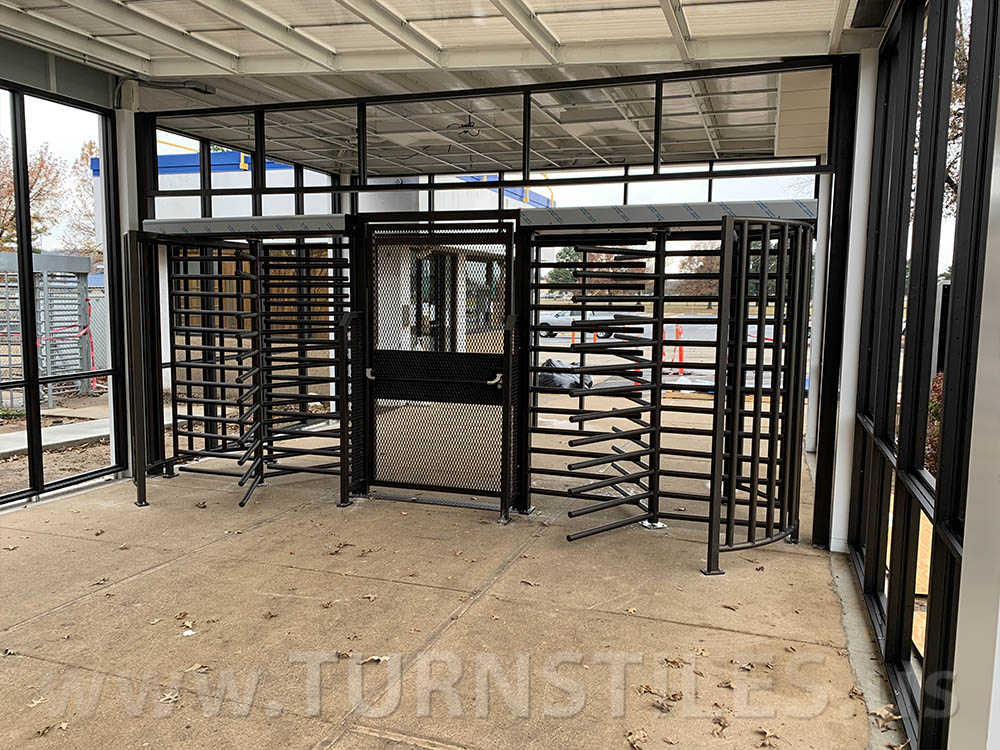

Walkway Entrance with Polycarbonate, 4 fenced sections, 2 separate auto sliding glass doors, tinted front end, steel roof on front end, custom logo etching, air curtain units, heating/cooling passage in frame, Interior Lights, 2 Single Full Height AG-36 Turnstiles, 1 Full Height AG-48-ADA Door. Custom built in the USA.

Column and Caisson Construction Exploded 3D

Column and Caisson Construction Details

Flat Shots

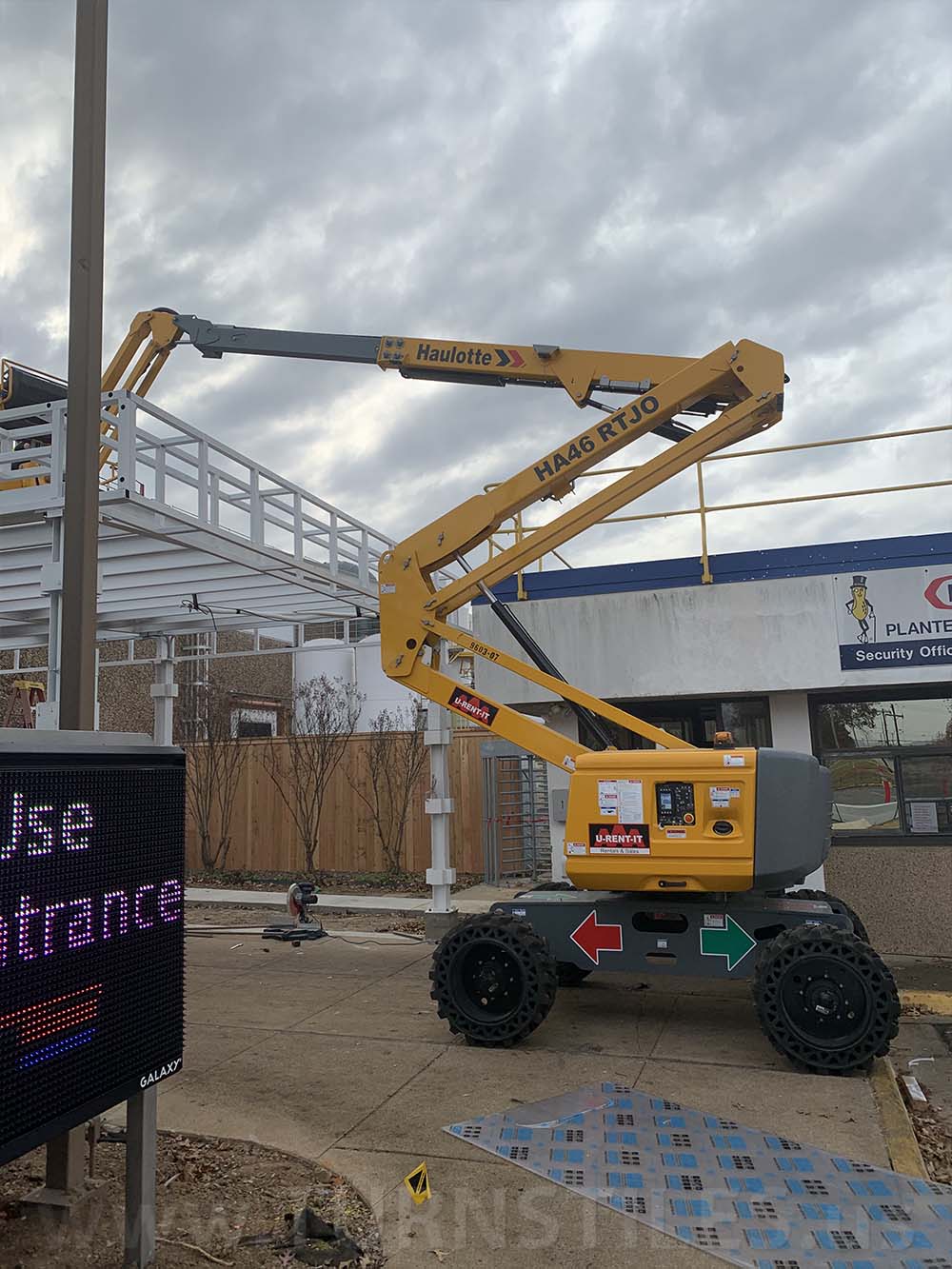

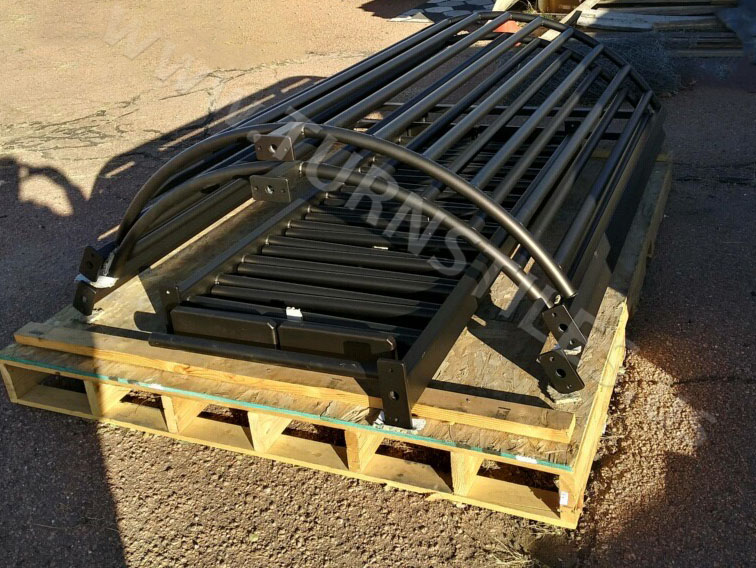

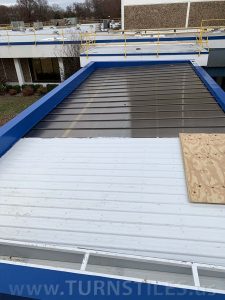

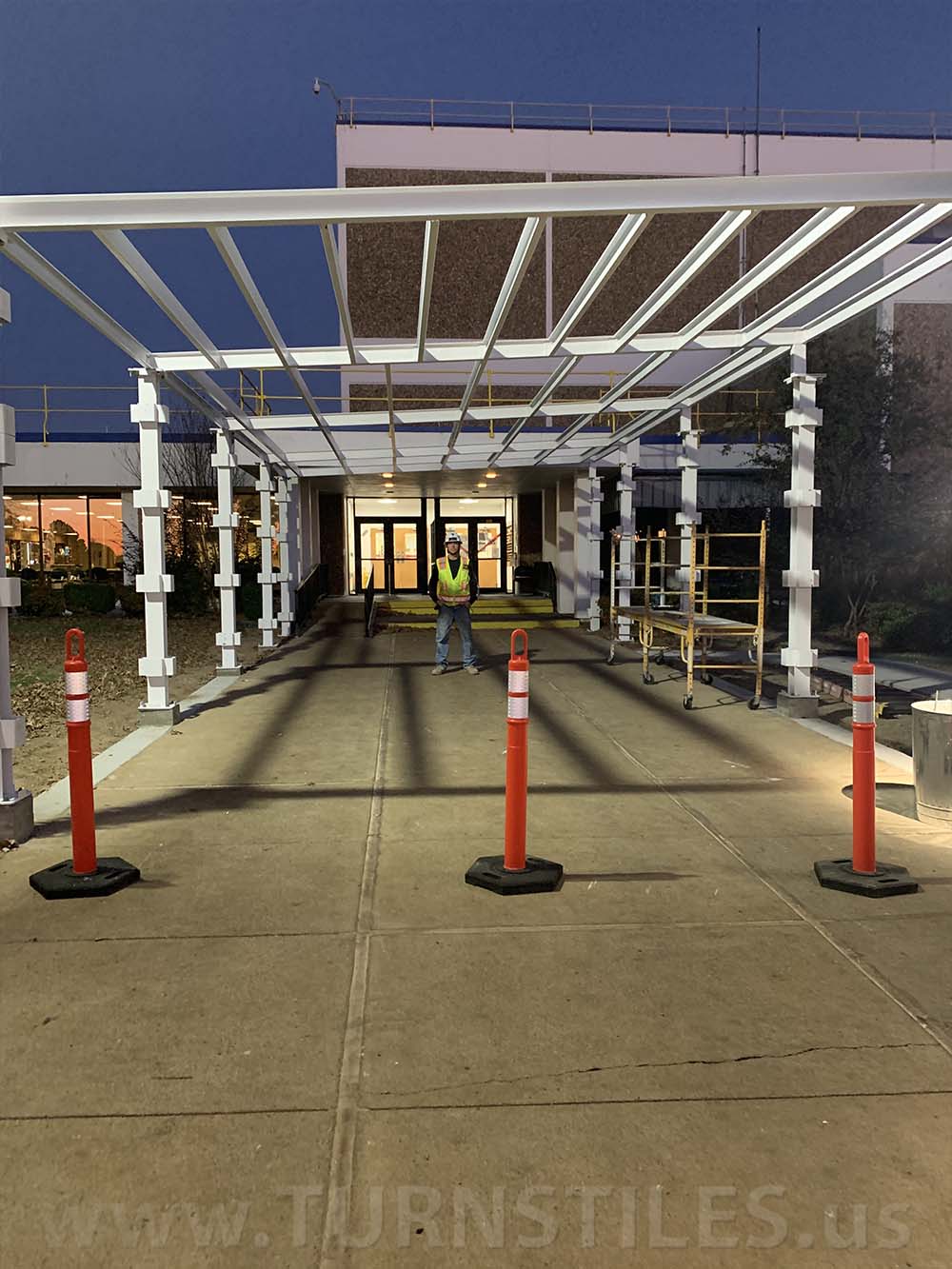

Fabrication In Progress

Thank You Kraft Heinz
