Description

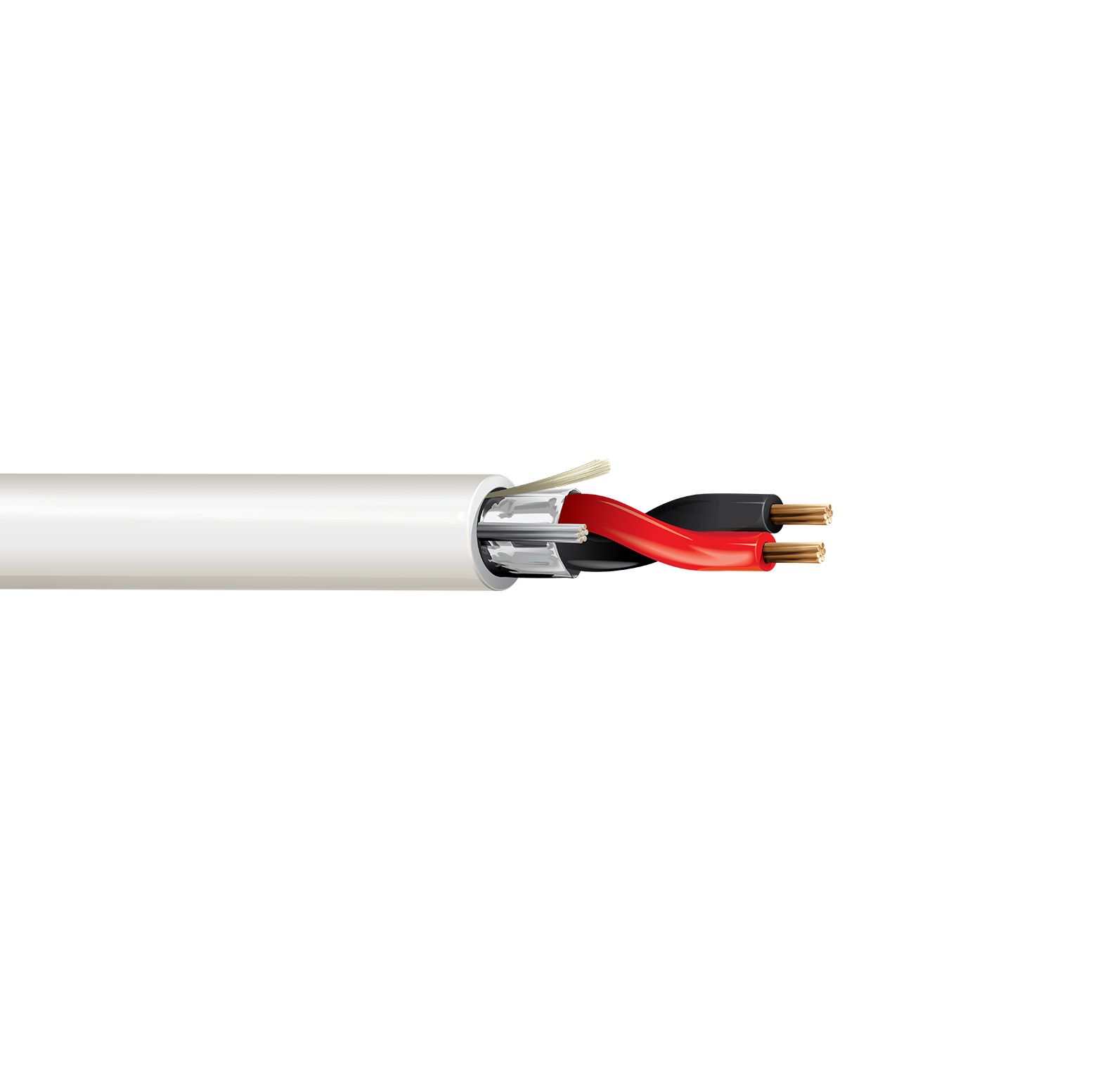

18 AWG 2 Conductor White Foil Shielded CMP Plenum PVC Insulation Security Cable
This professional-grade 18 AWG shielded plenum cable is designed specifically for turnstile and low-voltage control system connections. Featuring stranded copper conductors, an overall foil shield with drain wire, and a CMP plenum-rated jacket, this cable ensures clean signal transmission and code-compliant installation. Best for simple control circuits and basic device connections requiring a single power and signal pair.
- Specifications:
- Conductor size (AWG): 18
- No. of Conductors: 2
- Stranding: 7/26
- Nominal Jacket Thickness (inches): 0.015
- Nominal O.D. (inches): 0.162
- Conductors:
- This fire alarm cable conductor is made of bare copper. Copper is used for this application because of its amazing electrical properties and flexibility.
- Insulation:
- The fire alarm wire has PVC insulation. It can withstand a wide range of temperatures, is resistant to chemicals and water, and is easy to cut.
- Jacket:
- The smoke alarm wiring has a PVC jacket with a rip cord. It is resistant to extreme temperatures, chemicals, and UV light deformations. It is also water-tight and easy to cut.
- Shielding:
- The smoke alarm cable has an overall polyester-supported aluminum foil.
- Operation:
- The maximum operating power for this electrical cable is 300V, and the temperature limit is 75°C.
Compliance Standards:
- CL3P Cable: NEC Article 725 Type CL3P Cable (UL: 75°C, 150V)
- CMP Cable: NEC Article 800 Type CMP Cable (UL: 75°C, 300V)
- UL Listed
- CSA Approved
- Flame test
- California State Fire Marshall
- Restriction on Hazardous Substances (RoHS)
- Construction
Ideal for:
- Turnstile control wiring
- Card reader connections
- Access control systems
- Low-voltage signal transmission
- Security and monitoring equipment
*Data provided on this page is subject to change based on different manufacturers’ variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material comes in a predetermined color or in white
