Description

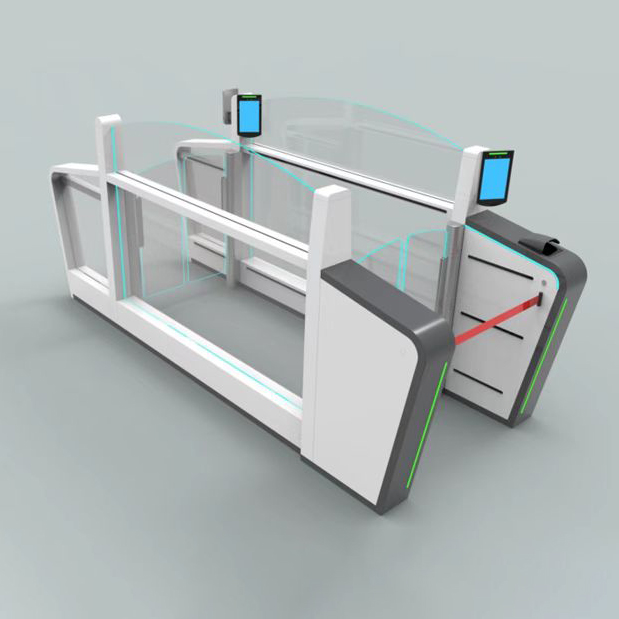

The CPW-181Y is an advanced intelligent optical swing gate turnstile built for high-throughput, high-security environments such as airports, customs facilities, and secure government buildings. With a sleek transparent design and low-profile housing, the CPW-181Y offers smooth integration into modern architectural settings while delivering powerful performance and security.
Equipped with dual interlocking swing gates, this model ensures high verification integrity—both gates must authenticate before passage is granted, minimizing unauthorized entry. It leverages 32 pairs of military-grade infrared sensors to provide precise anti-tailgating, anti-reverse, and anti-clamping protection.
Engineered for integration, the CPW-181Y supports biometric, card-based, and document verification technologies. The unit accepts a wide array of inputs and interfaces—RS485, RS232, TCP/IP, and dry contact signals—making it compatible with virtually any access control system.
The CPW-181Y’s advanced servo vector control and brushless DC motors enable fast, quiet operation with an adjustable passage speed of 0.3–0.6 seconds. A wider lane configuration is available to accommodate luggage or wheelchair users, and emergency override functions ensure safe evacuation under power failure conditions.
Key Features
- Dual-Door Interlock Logic for maximum security validation
- 32 Infrared Sensors for tailgating, reverse-entry, and presence detection
- Biometric-Ready: Supports facial, fingerprint, ID/passport, and card systems
- Fast Throughput: 30–45 persons/min (evacuation mode up to 60)
- Smooth, Quiet Servo Operation with 0.3–0.6 sec door speed
- Infrared, Mechanical & Electric Anti-Clamping Protection
- Automatic Gate Release on Power Failure for emergency egress
- Customizable Materials & Widths: Up to 900mm ADA lanes available
- Integrated Alarm & Access Control Linking (CCTV, VMS, etc.)
- Compact Modern Design: Transparent glass with painted alloy housing
Applications
- International Airports
- Immigration & Customs Halls
- Embassies and Secure State Facilities
- Government and Transit Infrastructure
- VIP Entry Zones and Border Clearance
INSTALLATION
Installation Services Available
See our Portfolio of Work Here
*Please note Freight is Additional Charge. Ships Worldwide.
