Description

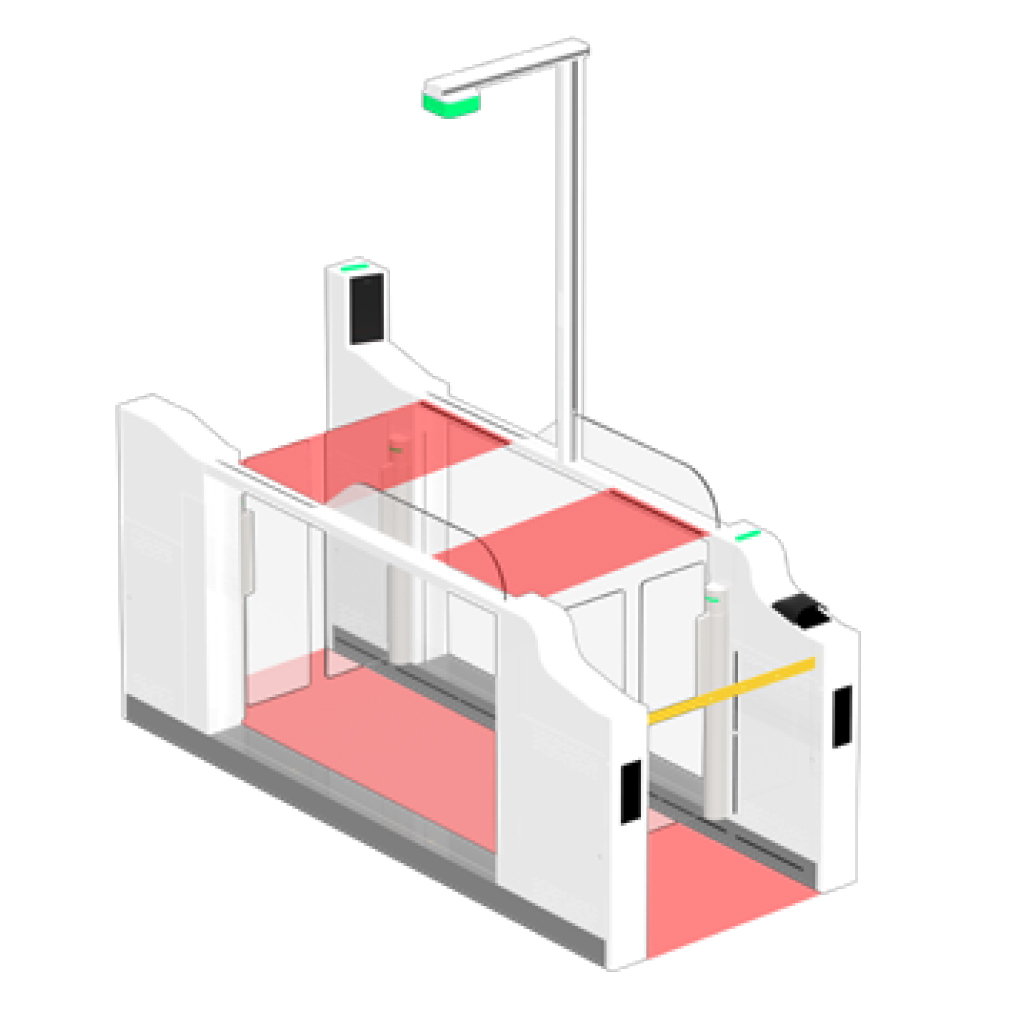

The IMM-SBTL55 is a high-performance Automated Border Control (ABC) gate engineered for international airports, border checkpoints, and high-security customs environments. With a focus on security, speed, and user experience, this gate performs two-step identity verification using passport scanning and facial recognition to ensure “one person, one identity.”
Designed with dual-swing doors, the IMM-SBTL55 uses interlock logic—preventing both doors from opening at once—and incorporates tailgating detection to stop unauthorized entry. The minimalist housing includes tempered glass panels for a modern, low-profile aesthetic and is equipped with clear audio-visual prompts to guide users efficiently through the process.
An overhead optional laser module enhances detection of tailgaters and unattended items. With ultra-stable servo motors, 40-pair infrared sensors, and precision controls, this system balances high throughput with uncompromising safety.
Features
- 2-Step Verification: Passport check before entry, facial recognition inside lane
- Anti-Tailgating Logic: Infrared + optional overhead laser for enhanced detection
- Dual-Door Interlock: One door opens at a time; prevents piggybacking
- Fast Throughput: Supports 20 users per minute at 0.8 second door speed
- Servo Motor Drive: Smooth, responsive, long-life operation
- 40 Infrared Pairs: Wide-area detection for movement, objects, and pinch prevention
- Tempered Glass + Minimalist Design: Sleek, secure, and user-friendly aesthetic
- Audio-Visual Prompting: Voice and light guidance for smooth passage
- Timeout Logic: Automatically re-verifies if user pauses or delays too long
- Optional Overhead Laser Module: Detects abandoned luggage or tailgating attempts
Technical Specifications
- Chassis / Lid: Powder-coated cold-rolled steel (SPCC)
- Door Material: Tempered glass
- Flow Rate: 20 persons/min
- Door Speed: 0.8 seconds
- Lane Width: 750 mm
- MCBF: 30 million cycles
- Interfaces: RS485 / RS232
- Motor: Servo
- Application: Indoor
- Dimensions: 3000 × 1200 × 200 mm
Applications
- High-security facilities
- Jewelry stores
- Banks, Data Centers
- Airports
- Passport control stations
- Customs and border clearance zones
- Seaport and ferry terminal entry points
FINISH
- 304 Stainless Steel
- Clear or Tinted Glass Swing Gates
- Custom Gate Materials and Colors available
INSTALLATION
Installation Services Available
