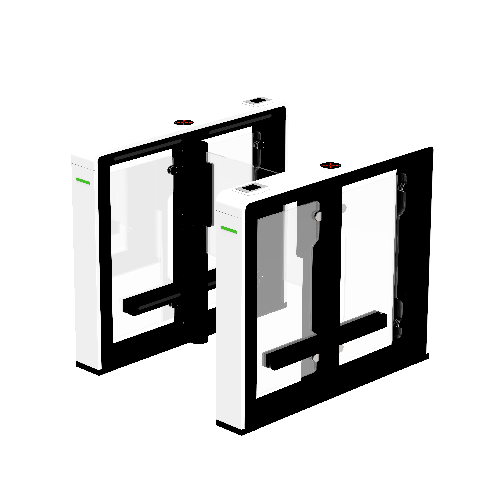

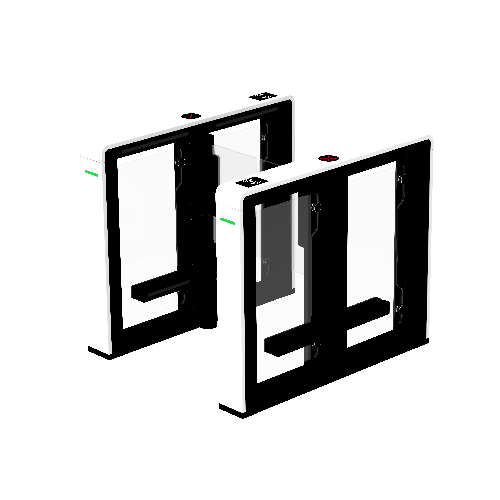

Modern Rectangular Frame Optical Turnstile Lanes

Please Login for Pricing

The SBT7000 series is a group of swing barrier turnstiles that are eye-catching, compact, and designed for smooth & silent operation with very little power draw. The acrylic barriers are normally held in a locked position. Users can be granted access through the turnstile with a choice of readers (sold separately).


Login or Sign Up

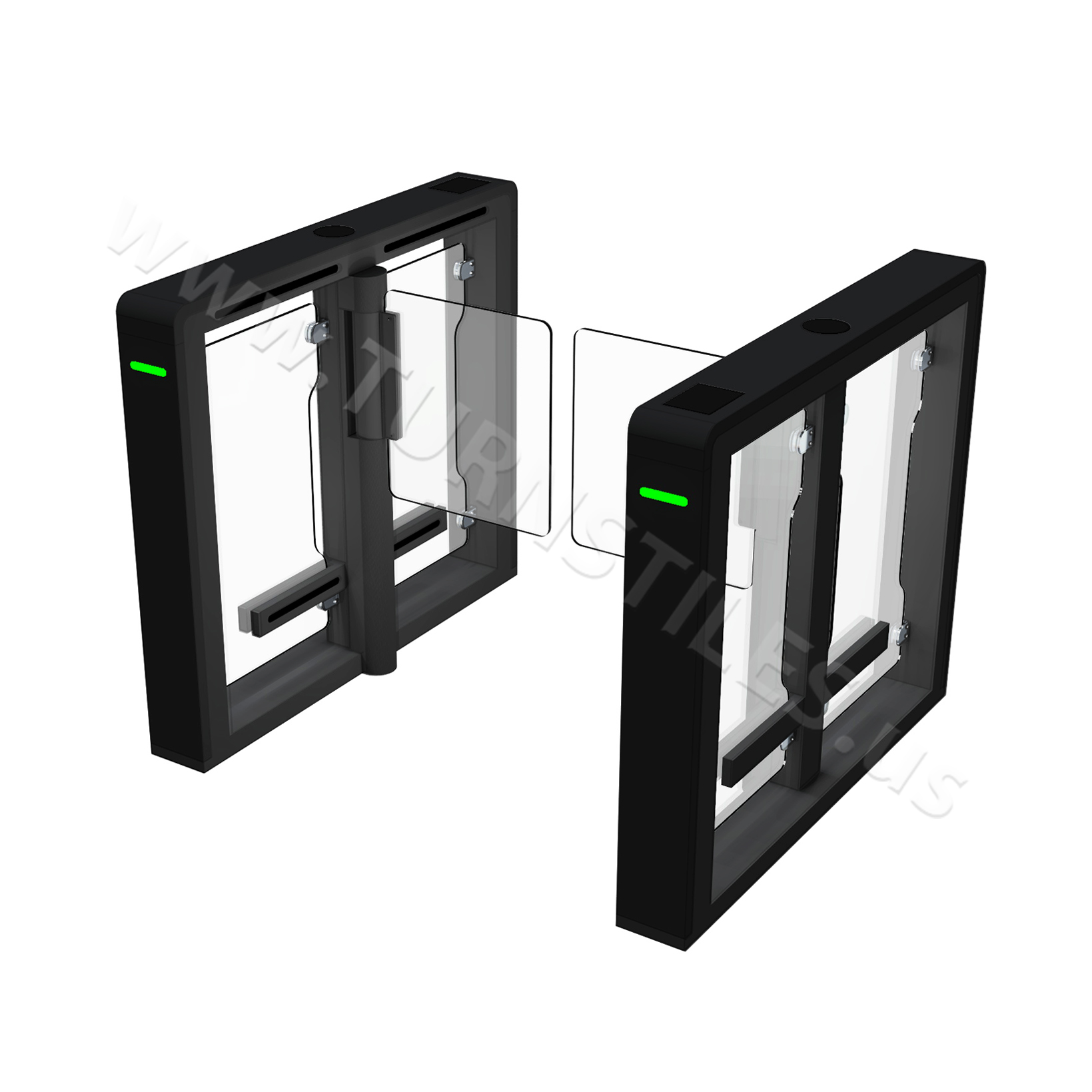

The SBTL7000 is a sleek and modern swing-barrier turnstile series designed for smooth and silent operation and draws very little power. With a compact design, the width of the cabinet is only 15 centimeters.
SBTL7000 barriers are normally held in a locked position, thus denying access to the secured side. Upon SBTL7000’s reader (RFID and/or fingerprint) positively recognizing a user’s valid access card or fingerprint, its barriers swing automatically, thus allowing users passage to the secured side. During a power outage, the user can push through the barrier easily to exit to safety. SBTL7000 provides both security and convenient space, all in a very durable and elegant compact design.

Data Sheet – SBTL7000 Swing Barrier Optical Turnstile

Data Sheet – SBTL7200 (Center Lane Expansion Module)

User Manual – SBTL7000 Series

Installation Guide – SBTL7000



Powder Coated steel casework ensures long-lasting durability.
High-quality brushless motor.
Simplify structure and connection, easy to maintain.

Barriers unlock automatically during power outages.
All smooth finish. No exposed screws.
The ergonomic design makes card and fingerprint authentication fast & simple for users.

SBTL7000 series can ship pre-configured with our customers’ preference for either card or fingerprint access control reader. This greatly reduces installation time & expense.
SBTL7000 series and associated access control readers are all factory-tested prior to shipping.



  • Operating Temperature: -4 °F to 158 °F
  • Power Consumption: 30W running
  • Infrared Sensor: 6 pairs (option 10)
  • Indoor/Outdoor (when sheltered)
  • Lane Width: 26inch (660mm), or 36 inch (900mm)
  • Traffic Throughput: Up to 30 passages per minute

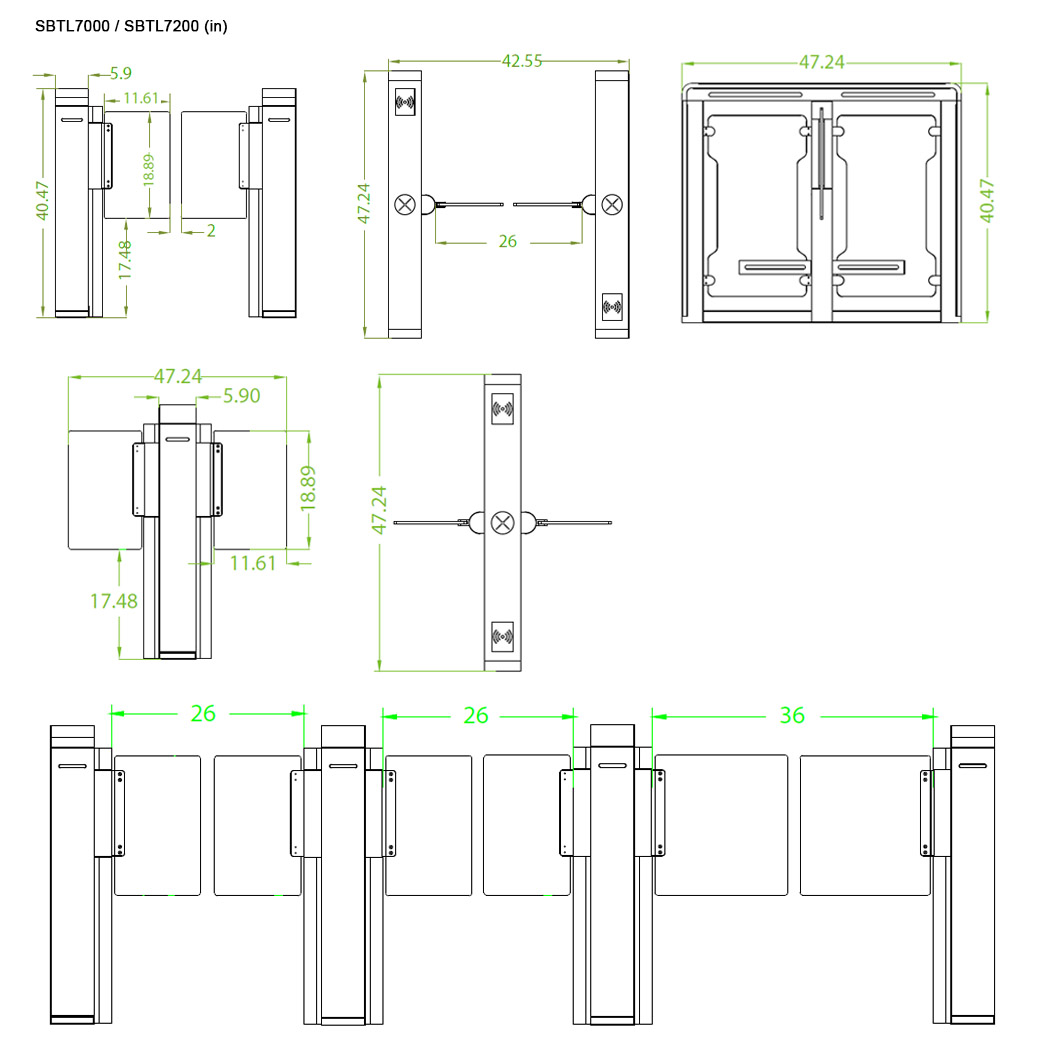

  • Dimensions Per Cabinet (L x W x H)  47 x 6 x 40 inches
  • Packaging Dimensions (L x W x H)  51 x 13 x 47 inches
  • Weight: 265 lbs
  • Weight with Packaging: 353 lbs
  • Material: SUS304 Stainless Steel and acrylic barriers




Installation Services Available
See our portfolio of work Here.

*Please note: Freight is not included and will be billed separately. Contact us for a quote.


Additional information

Weight 353 lbs
Dimensions 51 × 13 × 47 in

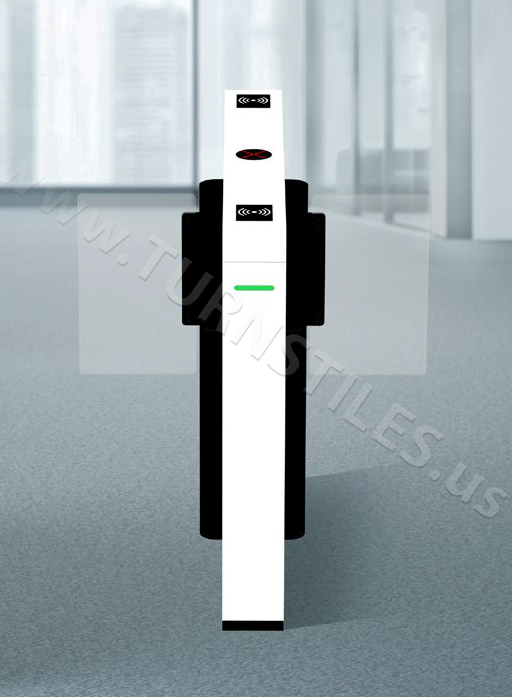

SBTL7000 Single Lane, SBTL7011 Single Lane (with controller and RFID), SBTL7022 Single Lane (with controller, RFID and Fingerprint), SBTL7200 Center Module, SBTL7211 Center Module (with controller and RFID), SBTL7222 Center Module (with controller, RFID and Fingerprint)
