Description
The T36-ADA is a solution for projects requiring an aesthetically pleasing interior security door. This self-closing unit provides wheelchair-accessible 36″ passage width (OD 40″). It is a “heavy-duty” stile and rail door that can withstand high traffic and abuse. Its low-voltage strike lock can be used mechanically or electronically depending on your needs. The T36-ADA Aluminum and Glass Door is frequently paired with the T80-Single, T80-Tandem, P60, and RD70 aluminum-polycarbonate clear turnstile portals.
Data Sheet – T36-ADA
Installation Manual – T-36-ADA
Production Sheet – ADA Swing Gate
- Interior Use
- Reversible electronic strike can be set to lock or open on power failure
- Gate can also be unlocked with no power by configuring the strike to fail lock by using a key
- Gate automatically swings closed with a standard hydraulic door closer
- Voltage for the electronic strike can be taken from a nearby turnstile power supply
- Clear Infill and Silver Frame and Threshold
- Matches our Aluminum and Polycarbonate Lexan Turnstiles
OPTIONS FOR THE T36-ADA ALUMINUM AND GLASS DOOR
- Panic Bar Hardware – Latch Paddle – Adds a latch paddle to the exit side of the gate for free passage (mesh models only)
- Panic Bar Hardware – Full Panic Bar – Adds a panic bar to the exit side of the gate for free passage (mesh models only)
- Panic Bar Upgrade – Signal Monitoring Switch – Adds a SPDT switch to mirror panic bar status with wire transfer kit to feed wires from door to frame
- Panic Bar Upgrade – Battery Powered Alarm
- Motorized Door Opener – Adds 3” to overall height of door
- Magnetic Lock – Can replace the strike lock if requested
- Card Reader Mounting Plate/Enclosure (1 per electronic direction) – For mounting most standard card readers
- Request to Exit ADA Placard Button with Plastic Surface Mount Enclosure – Rectangular or round
- Single Push Button (installed on-site)
- One Channel 900 MHz Wireless Receiver (one per direction) – Must be mounted remotely to gate
- Wireless Key Fob Transmitter (1 or 2 button)
- 24 Volt Power Supply (required if being used electronically and not purchased with a turnstile)
DRAWING & DIMENSIONS

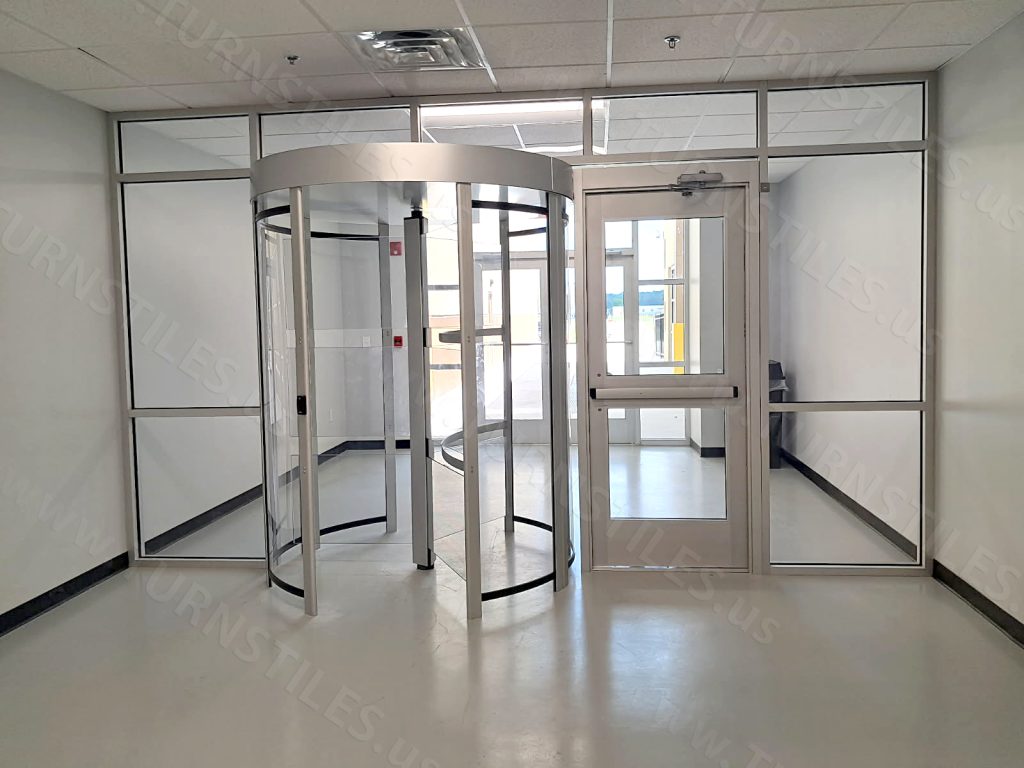

INSTALLATION
See more from this installation: Midsouth Mechanical – LaGrange, PA
See more from this installation: Stop and Shop Full Security Entrance
