Description
TURNSTILES.us introduces a new vision for access control gates – one with continuous flows and normally open doors. dFlow is FREE FLOW, ushering new levels of comfort and security. Instead of obstructing users, they are instead welcomed with a fully open passageway and a distinctive system of visual identification. In the event access is not granted, the gate doors will close in proportion to the proximity and speed of the non-authorized user. All this is thanks to a revolutionary ceiling-mounted imaging system, which monitors the entire gate instead of a limited area.
VIDEO
FEATURES
- Free Flow: The doors are in the normally open position. Traditional locks have their barriers in the normally closed position. It is this inversion of paradigm that differentiates a FREE FLOW block from those still available today. The door closes only when unauthorized people, including hitchhiking users, try to get past the lock. The closing system is fast and accurate, using new sensor systems and sophisticated algorithms.
- Bidirectional Passage: dFlow has flexibility in its width and can be installed in different measures. In the configuration of 900 mm or more, it guarantees greater comfort in the passage of multiple users, in addition to optimizing costs by reducing the amount of equipment and infrastructure. Regardless of the width of the block, access can be unidirectional or bidirectional, according to adjustments.
- Visual Identification with Luminous Windows: Indicative windows composed of LEDs accompany the user during the journey through dFlow, with different colors for different groups of users. In a school application, for example, students can be followed by a green window, educators through a yellow window and family members through a blue window. Unauthorized users will be followed by a red window.
- Imaging System: The dFlow imaging system is equivalent to a virtually unlimited number of traditional IR sensors, bringing a new level of precision in identifying unauthorized users. The algorithms are able to recognize people and ignore objects (suitcases, bags, backpacks, etc.), and can also identify multiple users entering or leaving the passage area.
- Uniqueness: Uniqueness, in access control, is the ability to identify each unique user and assign an untransferable credential to him. The dFlow control software is able to isolate users even in extreme situations, such as trying to ride and pass side by side.
- Identification Technology: DFlow accepts the main traditional identification technologies, including barcode, RFID, MIFARE and biometrics, such as digital printing. It is also ready to receive new contactless biometric technologies.
OVERHEAD DETECTION SYSTEM
The imaging system is equivalent to an almost infinite number of traditional IR sensors, bringing a new level of precision in the identification of unauthorized users. The algorithms are able to accurately identify people and ignore objects such as bags, hats, caps, backpacks, cell phones and others. They can also identify and track multiple users entering or leaving the passage area. The result is very reliable identification of tailgate and/or piggyback attempts. The imaging system can detect unauthorized users in front, behind or even side-by-side of authorized users.

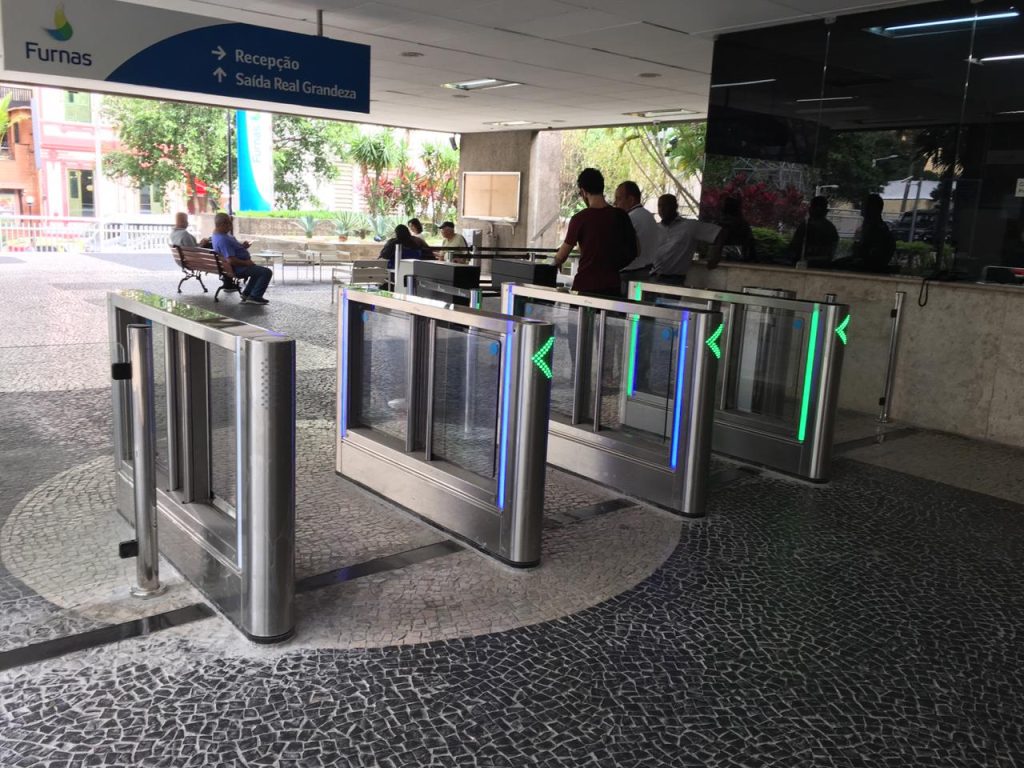

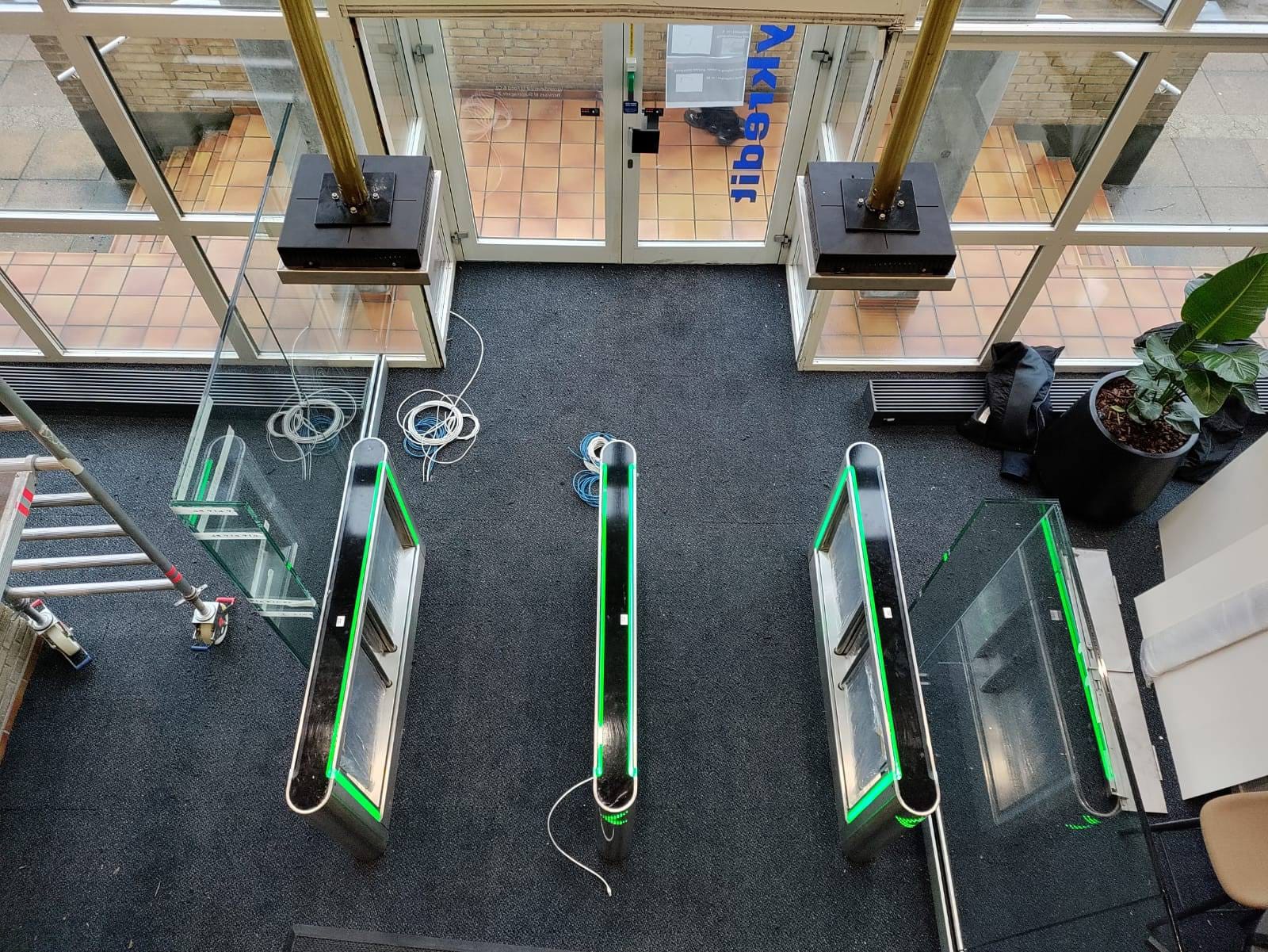

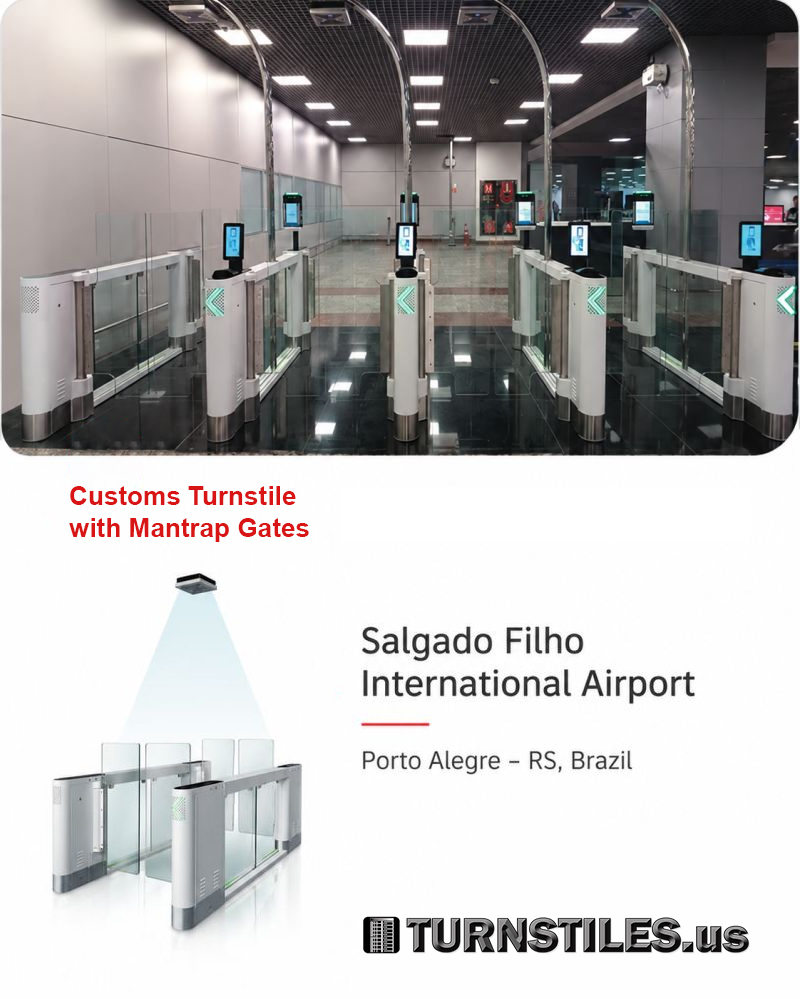

Typically, we recommend mounting the sensor roughly ten feet above the pathway. See photos of installations showing variations on how our dFlow Imaging System Module can become part of the architecture : dFlow Overhead Detection System Installations
DIMENSIONS
The lane size can be between 20 and 36 inches wide. See the dFlow UW Ultra Wide for a larger passageway up to 48 inches.
ACCESS CONTROL OPTIONS
- Access control card model MCA – TCP / IP.
- Barcode reader with a slot for badge pass.
- Multibeam barcode reader – entry approach.
- 2D code reader (two-dimensional).
- Wiegand / Abatrack proximity reader – HID / Indala / Acura.
- Mifare reader.
- Biometric reader, facial recognition
Dip Switches:
INSTALLATION
Installation Services are Available. See our portfolio of work Here.
