This line of optical turnstile swing gates is perfect for implementing entrance control in small areas. With a small footprint and enhanced security, the dTower offers maximum flexibility in minimal space. This line of optical turnstile swing gates is perfect for implementing entrance control in small areas. Operating beautifully, with pivoting clear polycarbonate doors, LED light display, and differentiated design, the dTower reliably provides smooth, comfortable, and quiet passage. These units easily integrate with other onboard security peripherals such as card readers, displays, keyboards, biometric readers, and EntraPASS Access Control. Versatility and a compact sleek design make this the turnstile of choice for discriminating integrators.
FEATURES of the dTower
- Innovative design, part of the dGate and dFlow line
- A robust solution with a variety of configurations
- Motorized system for environments that need control and have little space
- Reinforced structure for floor mounting
- Available in stainless steel or carbon steel painted in epoxy powder (black)
- Doors made of polycarbonate 10 to 12 mm thick- more resistant to impacts
- Doors with fast cycle opening, with different configurations, with single or double door locks
- High-visibility RGB pictograms on the sides and status lights on the top for two-way orientation
- Has beep signaling to indicate access allowed or access denied
- Bidirectional door movement
- Ports for activation sensors to open or close gates

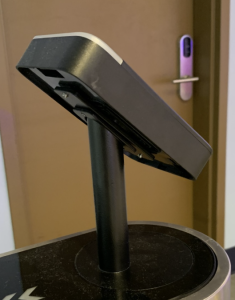

- Allows you to install a reader of your choice on the ends
- Easy integration with Access Control Systems such as EntraPASS
- Polycarbonate doors are available in two widths: Short 250mm and Long 500mm
- Units can be configured as double-door lanes or single-door lanes.
- Optics inside each module performs a different function:
- T = Transmitter sends the optical signal
- R = Receiver gets the optical signal
- T/R = Performs both functions
- Note: The order of modules is important to create the correct ‘signal loop’
ACCESS CONTROL OPTIONS
- Access control card model MCA – TCP / IP.
- Barcode reader with a slot for badge pass.
- Multibeam barcode reader – entry approach.
- 2D code reader (two-dimensional).
- Wiegand / Abatrack proximity reader – HID / Indala / Acura.
- Mifare reader.
- Biometric reader, facial recognition

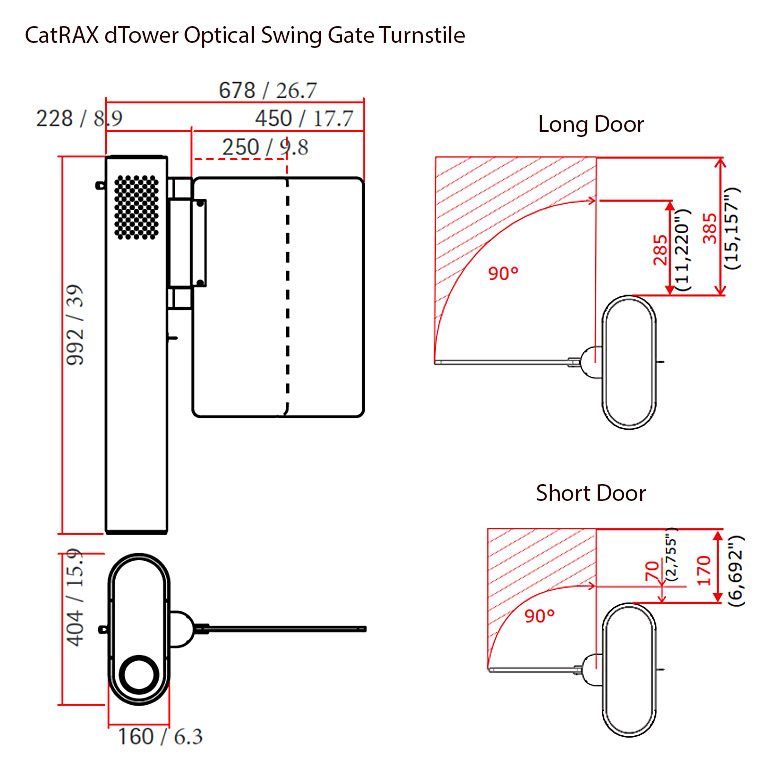

DRAWING & DIMENSIONS
