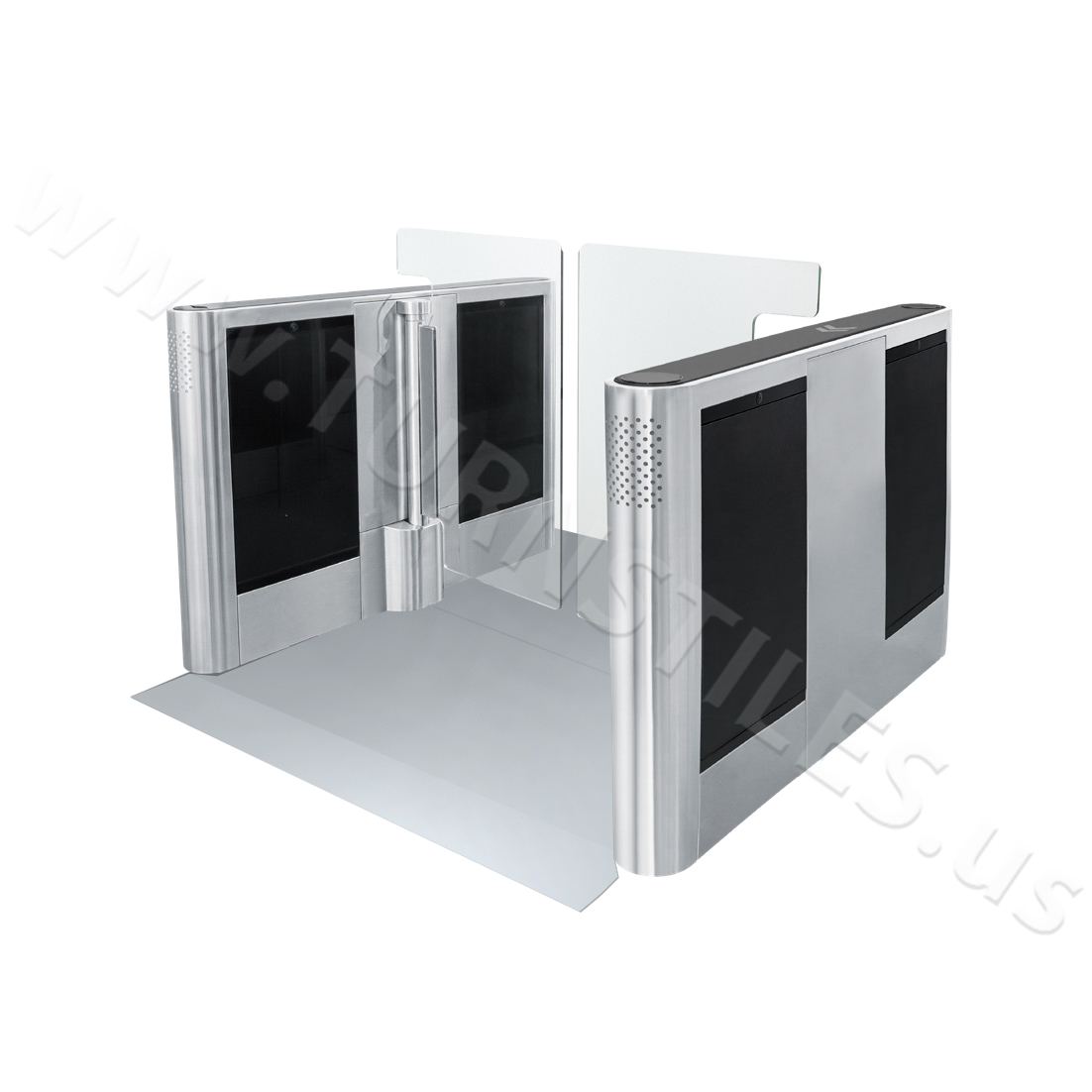

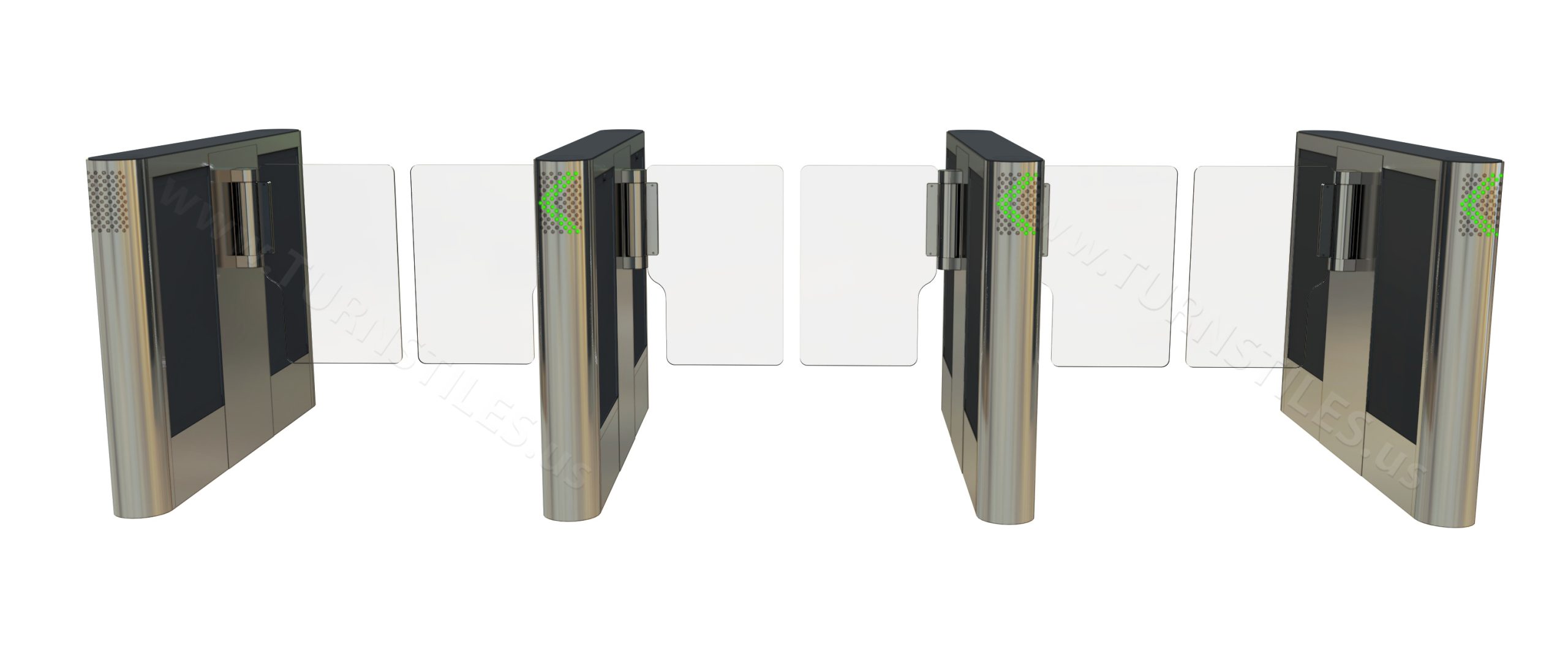

dGate SW/UW Swing Gate Optical Turnstile

Please Login for Pricing

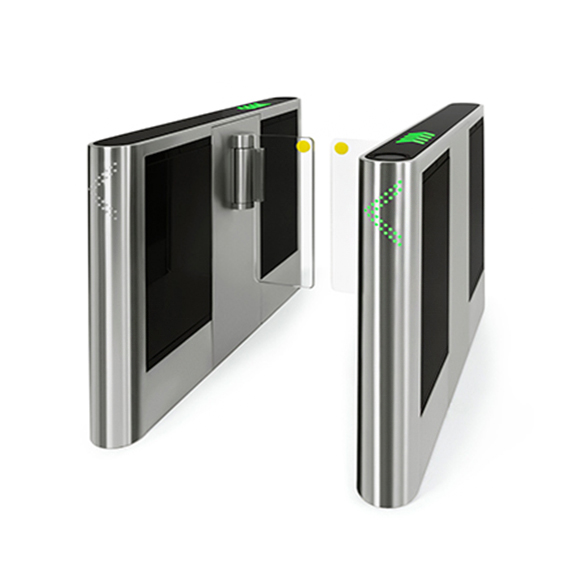

The CatRax dGate SW Swing Gate Optical Turnstile is born as a result of an intense research process in world trends and an exhaustive engineering work. It offers comfort, sophistication and security to the user, and also brings the robustness and reliability that characterize our products. In addition, it also allows customization and facilitates the use of the most varied types of readers and controllers. The dGate SW offers a smooth and beautiful solution, with glass swing doors, active LED light display, and differentiated design. Priced Per Lane. Contact TURNSTILES.us with assistance in building your configuration.



Login or Sign Up

Description

The dGate turnstile entrance device is designed and engineered to the smallest details to bring innovation, quality and design to the access control market. The product is the result of the intense analysis of global architectural and design trends associated with thorough mechanical, electrical, and electronic engineering. This innovative line offers comfort, sophistication and reliability. This elegant product makes customization easy and facilitates the integration of almost any type of card reader and controller. The dGate is designed for a world that is always in motion.

Data Sheet – dGate SW and UW Swing Gate Turnstile



FEATURES of the dGate

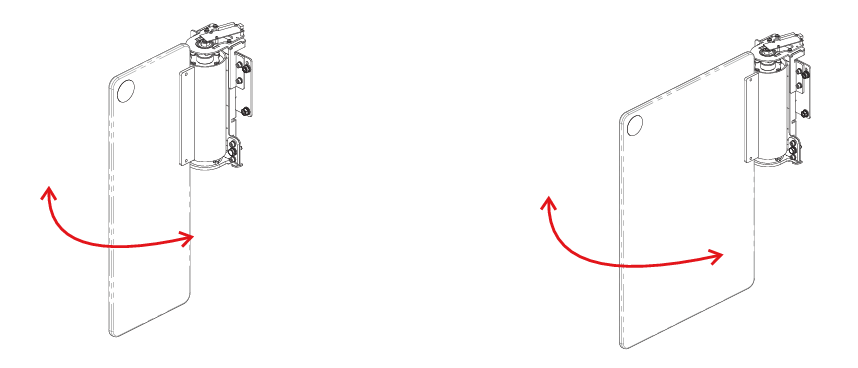

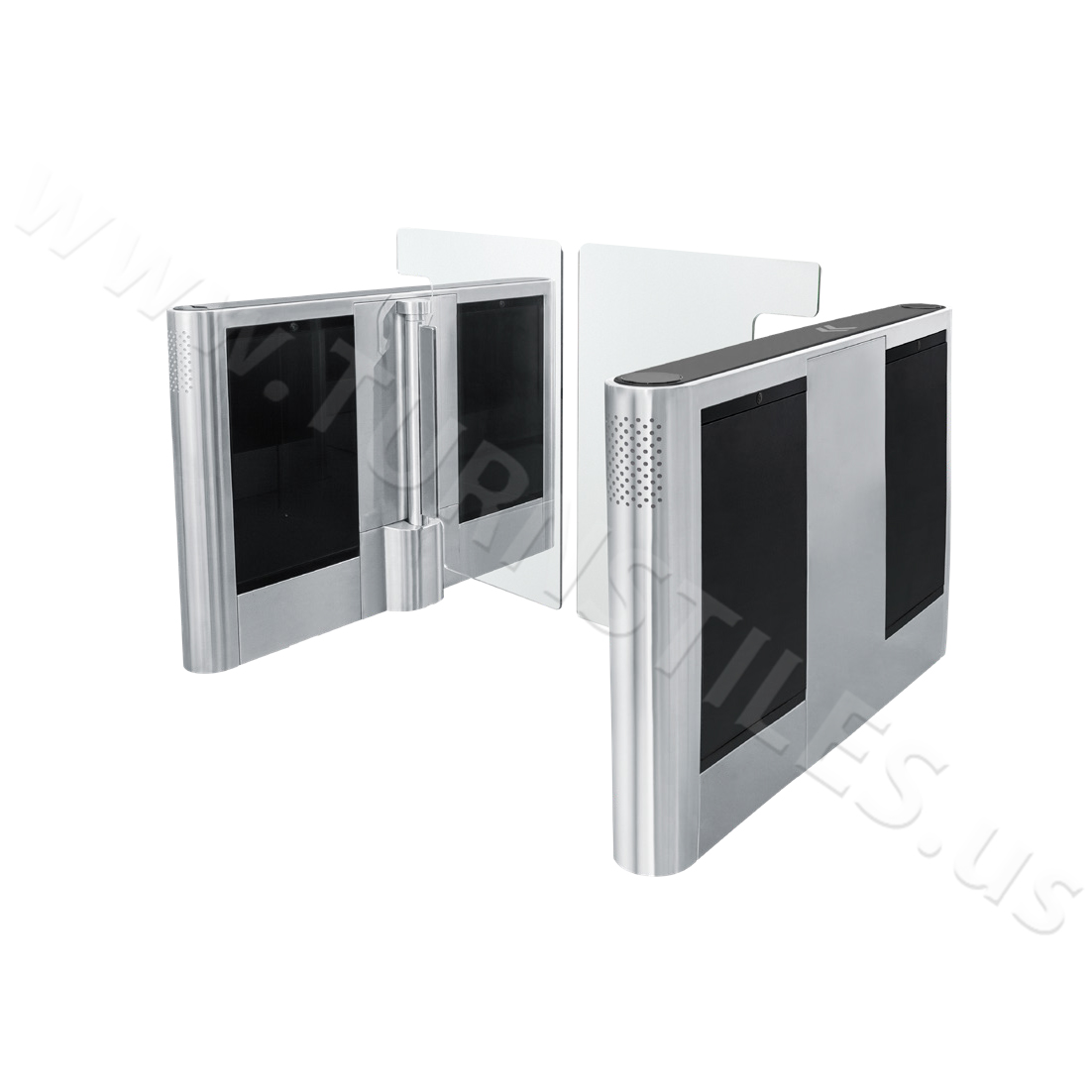

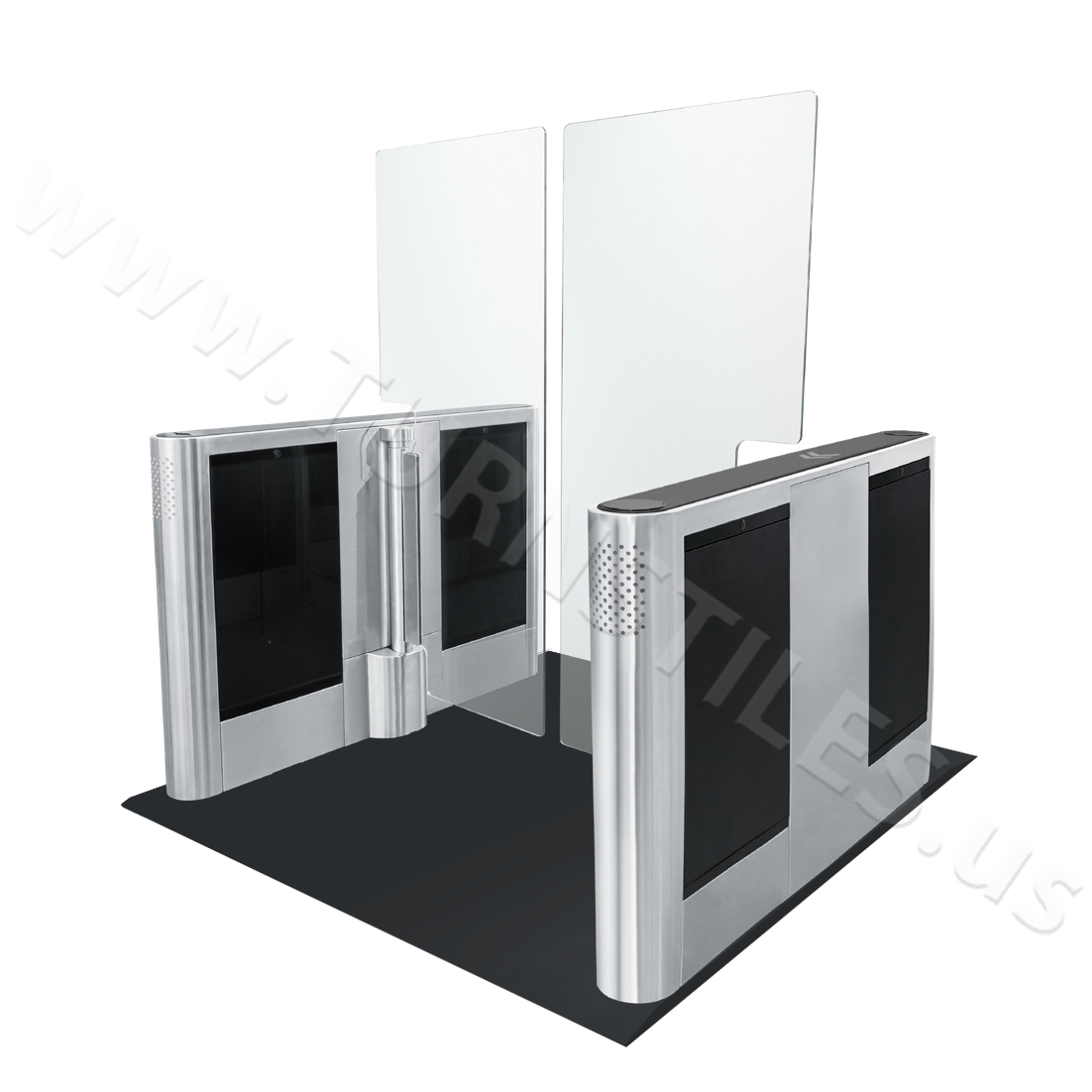

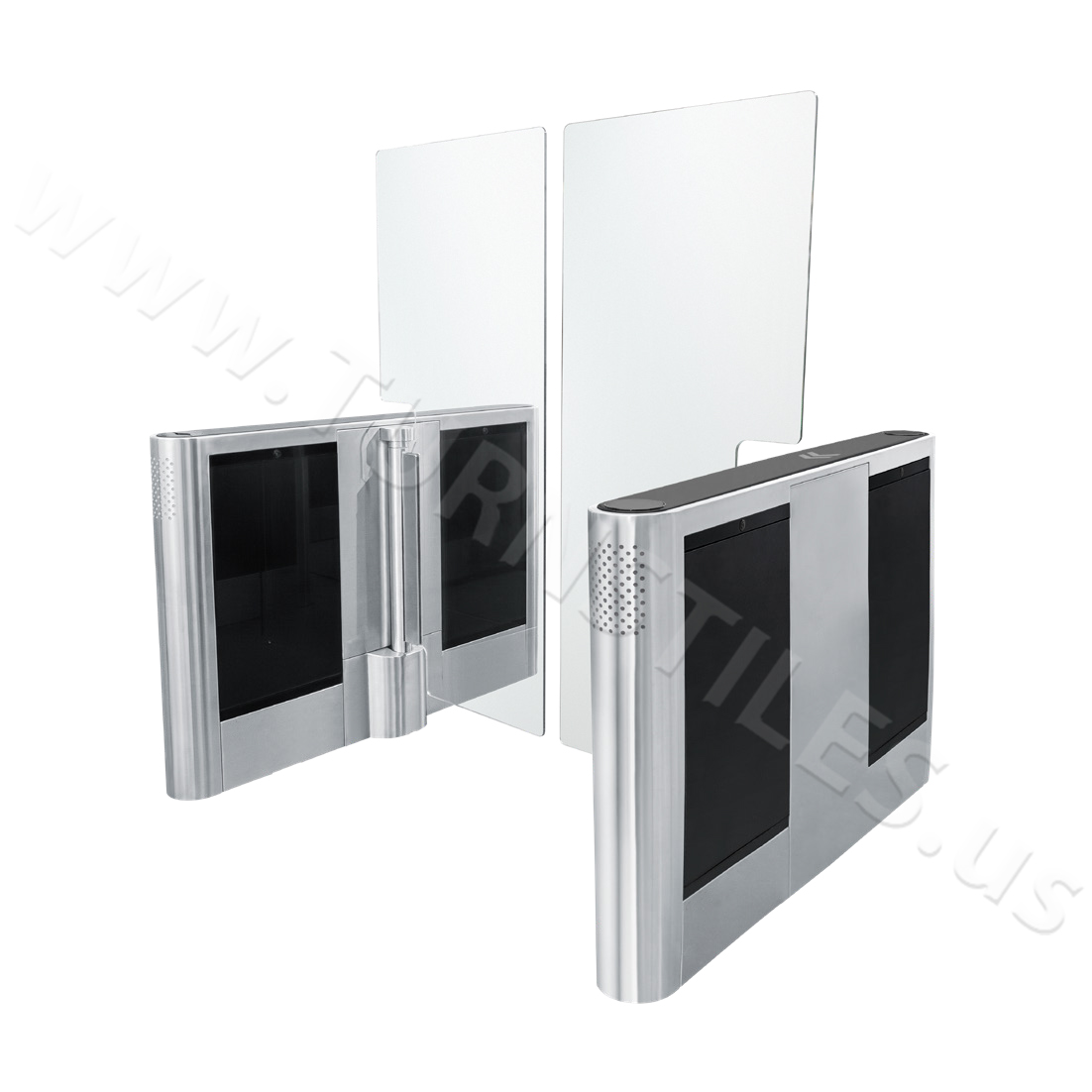

  • Choice of SW Low-Glass, or UW High-Glass panels
  • Swing gate panels in 0.47 inch (12 mm) thick acrylic or polycarbonate.
  • AISI 304 brushed stainless steel cabinet made with a 0.079 inch (2 mm) plate.
  • Internal side doors with lock and key, facilitate access for maintenance and configuration.
  • A dedicated microcomputer controls the acceleration and deceleration of the movement of the doors, optimizing the flow.
  • Silent high-performance power engine.
  • Feedback provides precise positioning.
  • Visual and audible alarm indicators.
  • Safety system for doors without voltage when an obstacle is detected.
  • Anti-fraud detection with an audible alarm for unauthorized access.
  • Direction control that allows bidirectional access.
  • Anti-panic function: in case of emergency (without power), the doors remain voltage-free to ensure free flow for all users.
  • Ample internal space to integrate access controllers.
  • Full range power input (90 to 240 VAC).
  • Consumption 25 W (in standby) and 300 W (in operation).
  • Top pictogram with high brightness RGB LED with individual brightness control for each color.
  • Front pictogram with bicolor LEDs with individual brightness control for each color.
  • Passage control performed by 10 infrared sensors.
  • Door configuration for openings up to 1.10 m
  • Compatible with EntraPASS Access Control and Readers (sold separately)

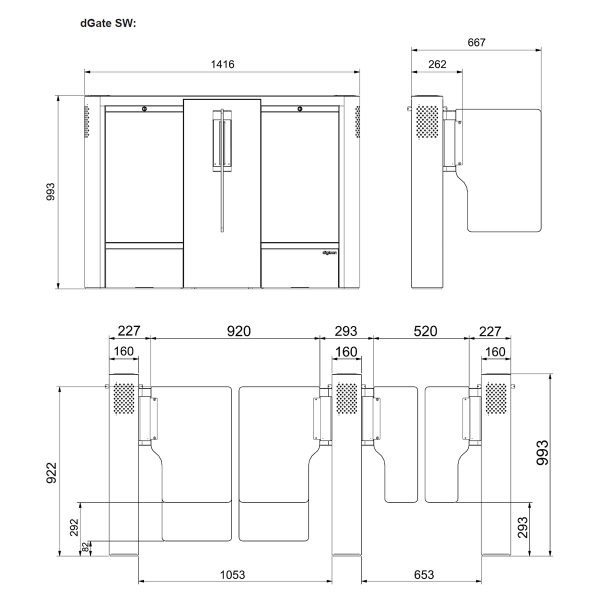

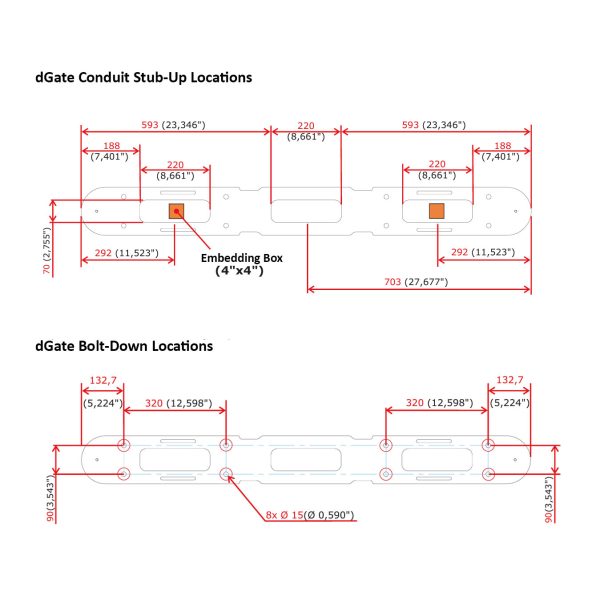

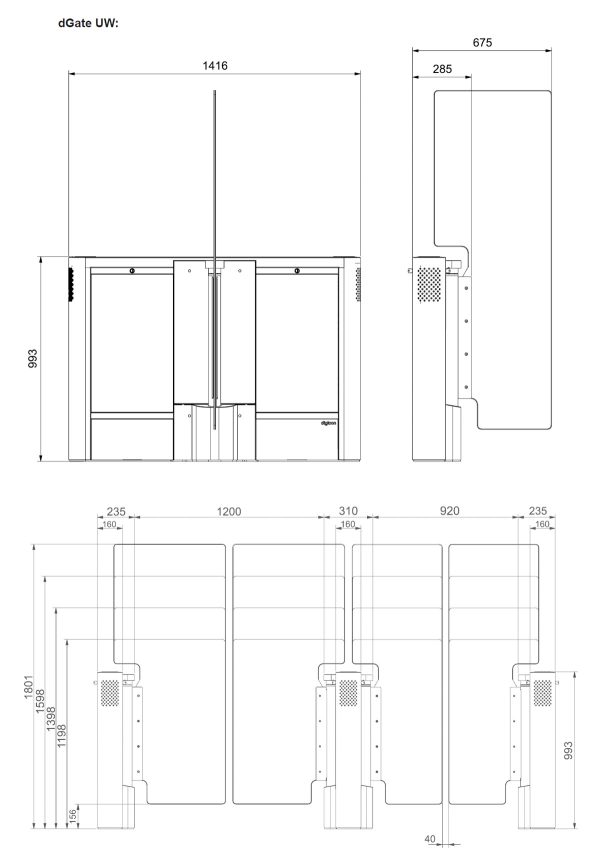

DRAWING & DIMENSIONS

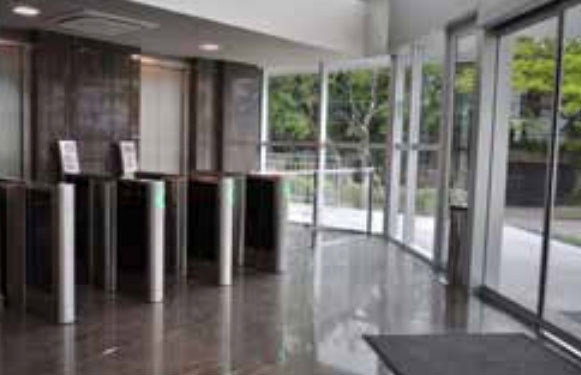

INSTALLATIONS

Trillium Tower – Lima, Peru

Ed Santa Cruz – Lima, Peru

Ed Urbana – Buenos Aires, Argentina

Norlys – Copenhagen, Denmark

Installation Services Available
See our portfolio of work Here

*Please note that freight is not included and has a separate charge. Contact us for a quote!

Additional information

Weight 280 lbs
