mTS1000 Tripod Slim Waist High Turnstile

Please Login for Pricing

The mTS1000 Tripod Slim is a single-lane rotating tripod turnstile that are compact and durable with illuminated striping. Users can be granted access through the turnstile with a choice of readers (RFID, fingerprint, and more).

  • Durable: Body made from SUS304 Stainless Steel
  • Compact: Slim design with smooth and silent operation
  • Convenient: Easily integrate your access control reader of choice for an easy secure entrance experience



Login or Sign Up
SKU: ZK-MTS1000 Categories: , Tag:

Description

Introducing the mTS1000 Bi-directional Tripod Turnstile – the ultimate access control solution for seamless entry and exit management. Crafted with durable SUS304 stainless steel housing, the mTS1000 ensures longevity in any environment, whether indoors or outdoors (if sheltered). Its compact design saves space and offers a cost-efficient solution for various settings. Featuring an LED pictogram, users benefit from clear directional guidance, enhancing ease of use. With a high throughput rate, the mTS1000 enables swift passage, optimizing traffic flow. Installation is a breeze, and emergencies are handled efficiently with the arm drop function, activated via wireless remote control. Customize your access control with additional options like Code/QR Reader, RFID Prox Card Reader, or Fingerprint Reader. Experience unparalleled convenience and security with the mTS1000 Bi-directional Tripod Turnstile – your trusted access control companion.

Data Sheet

Installation Guide

User Manual

FEATURES

  • 304 stainless steel housing
  • Bi-directional tripod turnstile with arm drop function
  • LED pictograms for intuitive user experience
  • High throughput in both directions
  • High quality at an affordable price
  • Low power consumption
  • Wide range of accessories
  • Easy and simple installation process
  • Easy to maintain and monitor



SPECIFICATIONS

Power Requirements: AC110V/220V, 50/60Hz
Power Consumption Running: 40W Standby:10W
Operating Temperature: -18°F to 140°F
Operating Humidity: 5%RH to 80%RH
Operating Environment: Indoor/Outdoor (if sheltered)
Speed of Throughput:
RFID: Maximum 25/minute
Biometrics: Maximum 20/minute
Lane Width: 18 ¾” (478mm)
Arm Length: 18 ¾” (478mm)
Footprint: 9 ¾ (250mm) * 5 ½ “(138mm)
Dimension (L*W*H): 31½ “(798mm) *29 ½” (750mm) *37½” (950mm)
Package Dimension (L*W*H): 15” (380mm) *17¾” (450mm) *45¼” (1150mm)
Net Weight: 798 lbs. (35kg)
Gross Weight with Package: 89 lbs. (40kg)
LED Pictogram Indication: Yes
Control System Input: controlled by dry contact
Cabinet Material: SUS304 (optional SUS316)
Lid Material: Acrylic
Barrier Material: SUS304
Barrier Movement: Rotated
Emergency Mode Support: (power off drop-arm)
Security Level: Medium
MCBF: 2 million
Options/Accessories: Card box, Remote control, QR reader
Certification(s): CE and FCC

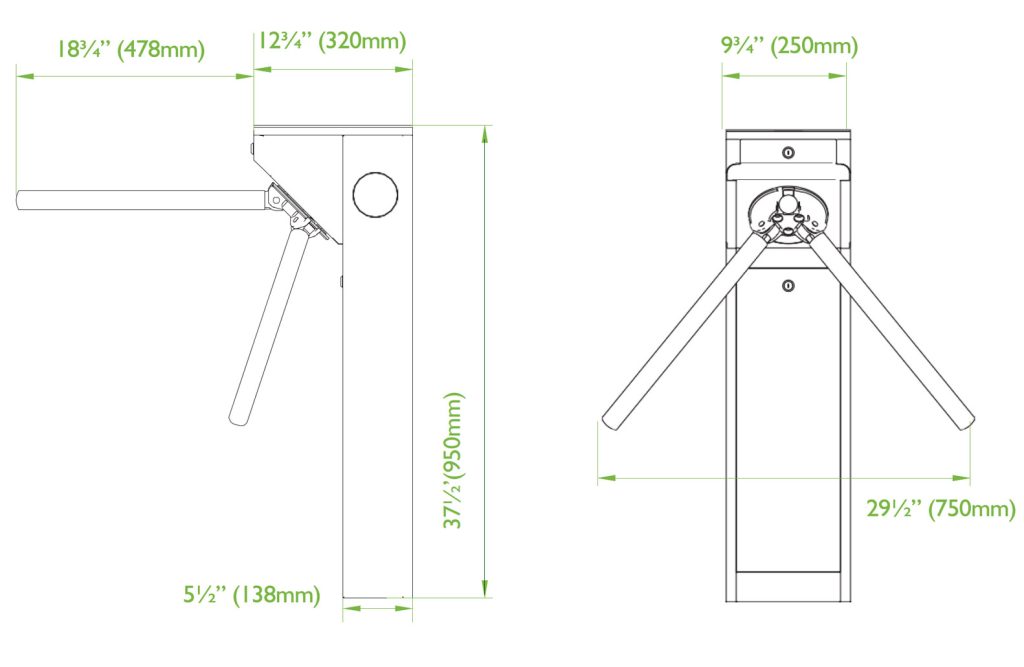

DRAWING & DIMENSIONS

INSTALLATION

Installation Services Are Available!
See our portfolio of work Here





*Please note: Freight is not included and will be billed separately. Contact us for a quote.



Additional information

Weight 90 lbs
Dimensions 46 × 18 × 15 in
Selection

mTS1000 Tripod Turnstile, mTS1011 Tripod Turnstile (w/ controller and RFID reader), mTS1022 Tripod Turnstile (w/ controller RFID, and fingerprint reader)
