Description
TS1000 is a single-lane tripod turnstile series designed for smooth and silent operation and draws very little power. It’s made of stainless steel which makes TS1000 highly durable. It is also surprisingly compact and designed to operate in small workspaces. Tripod arms are normally held in a locked position, thus denying passage to the secured side. Upon the reader (RFID and/or fingerprint optional) positively recognizing a user’s valid access card or fingerprint, its tripod arms unlock, thus allowing users passage to the secured side. The option for a built-in REX button allows users to conveniently exit the secured side without needing to use their access card or fingerprint. During emergencies and power outages, the tripod arms completely collapse into the cabinet, thereby ensuring users a fast, unencumbered exit to safety. TS1000 provides both security and convenience, all in a very durable compact design.
Data Sheet – TS1000 Series Tripod Turnstile
Installation Manual – TS1000/TS2000 Pro Series Tripod Turnstiles

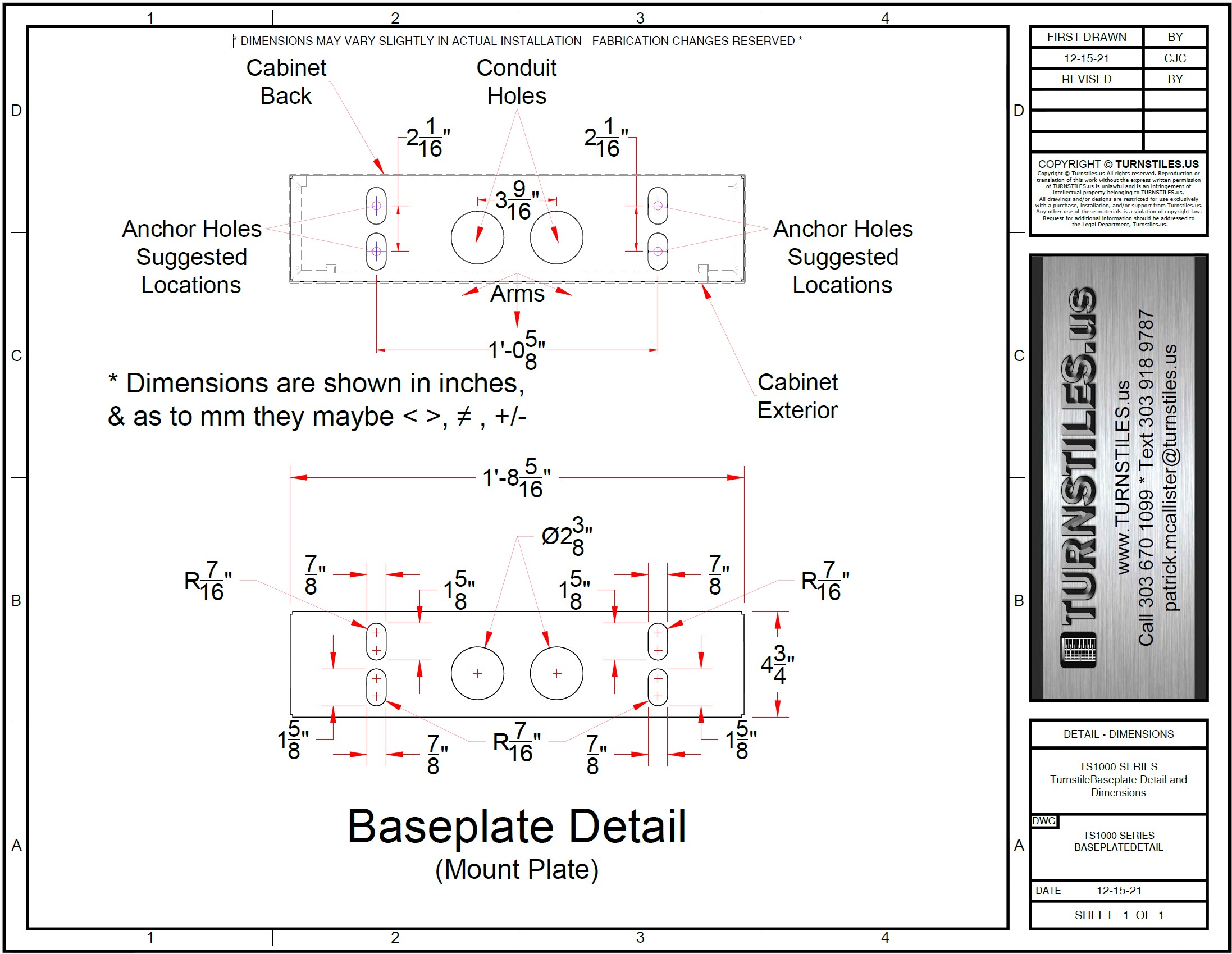

Drawing – TS1000 Series Baseplate Detail
FEATURES
- 304 stainless steel housing
- Bi-directional tripod turnstile with arm drop function
- LED pictograms for intuitive user experience and high throughput in both directions
- High quality at an affordable price
- Low power consumption
- Wide range of accessories
- Easy and simple installation process
- Easy to maintain and monitor
- Drop-arm safety function upon power-off
SPECIFICATIONS TS1000
Power Requirements: AC 110V/220V, 50/60Hz
Power Consumption: Running: 18W; Standby: 6W
Operating Temperature: -28°C to 60°C (-18.4°F to 140°F)
Operating Humidity: 5% to 80%
Operating Environment: Indoor/Outdoor (when sheltered)
Speed of Throughput:
- RFID: Maximum 30 per minute
- Fingerprint: Maximum 25 per minute
Lane Width: 500 mm (19.7”)
Footprint: 520 × 810 mm (20.5” × 31.9”)
Dimensions (L × W × H): 520 × 310 × 1010 mm (20.5” × 12.2” × 39.8”)
Package Dimensions (L × W × H): 570 × 365 × 1080 mm (22.4” × 14.4” × 42.5”)
Net Weight: 36 kg (79.4 lbs)
Weight with Packaging: 50 kg (110.2 lbs)
LED Indicator: Yes
Cabinet Material: SUS304 Stainless Steel
Lid Material: SUS304 Stainless Steel
Barrier Material: SUS304 Stainless Steel
Barrier Movement: Rotating
Emergency Mode: Yes (power-off drop-arm)
Security Level: Medium
MCBF (Mean Cycles Between Failure): 1 million cycles
Options / Accessories: Counter, SUS316 cabinet and lid, remote control

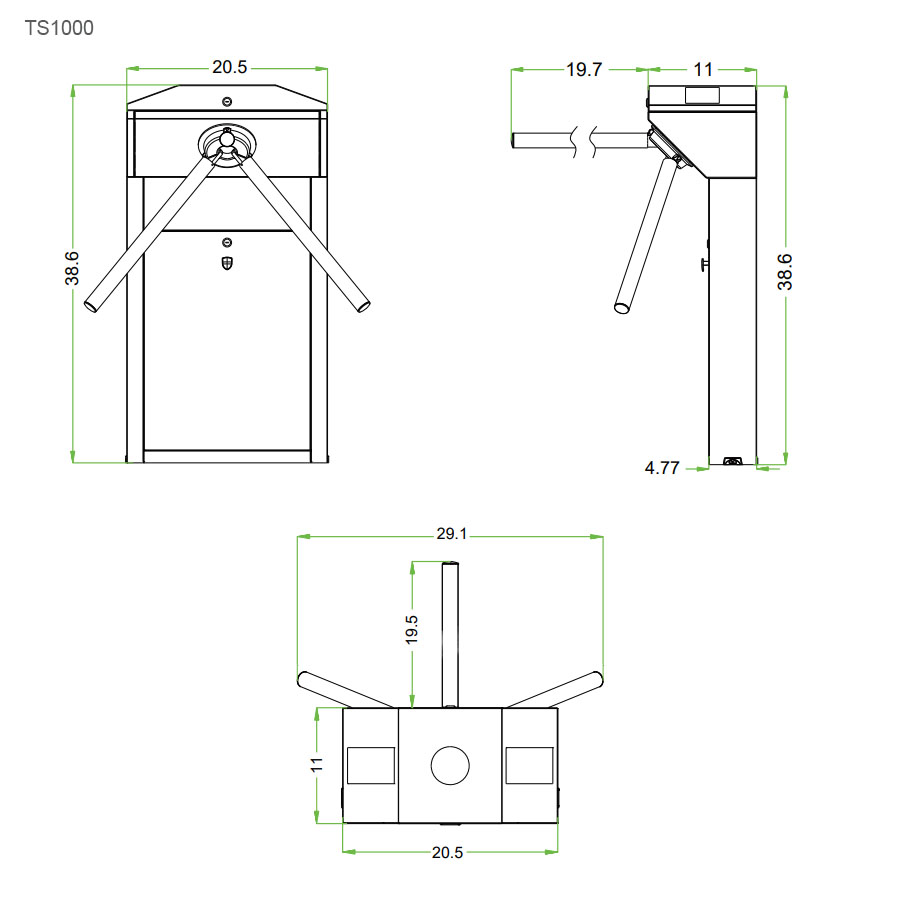

DRAWING & DIMENSIONS
- The barrier arm can automatically drop during a fire alarm. This requires a signal from an external fire control relay, which connects to port J6 on the turnstile control board.
- Both the TS1000 Series and TS2000 Series use the same internal mechanism. When the arm is lowered, it fully retracts within the cabinet’s clearance.
- Fire Control Relay (FCR): The J6 port connects to the fire control relay. The relay can be installed anywhere inside the cabinet, as there is no designated mounting location. Refer to the installation guide for additional details.

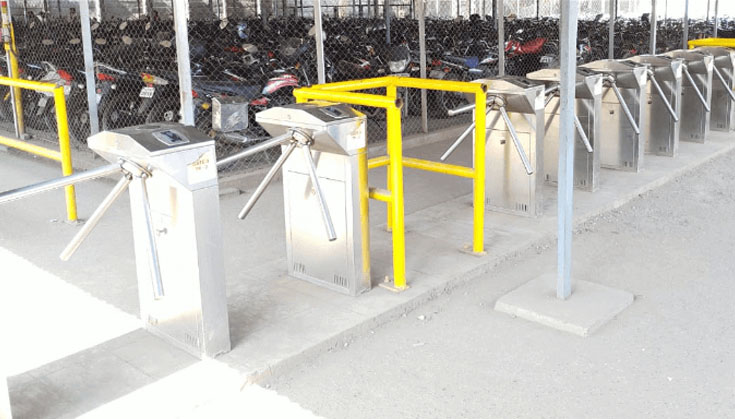

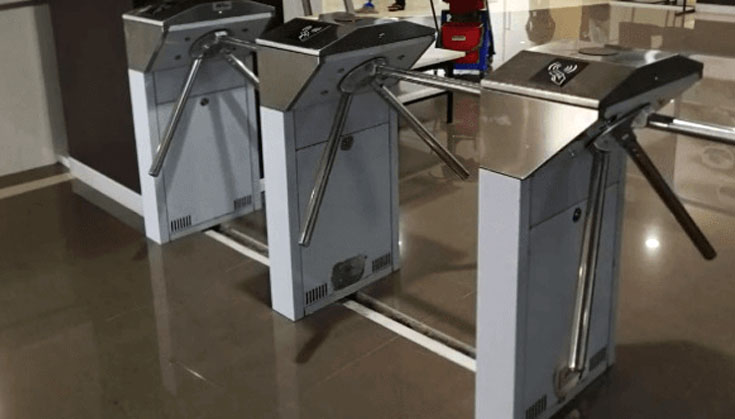

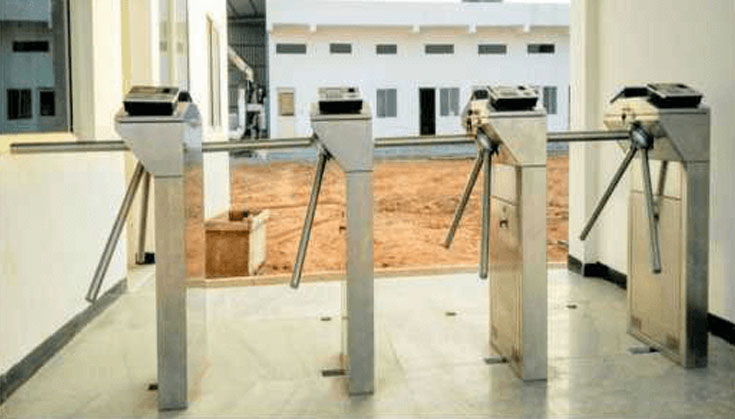

INSTALLATION PHOTOS
