Description

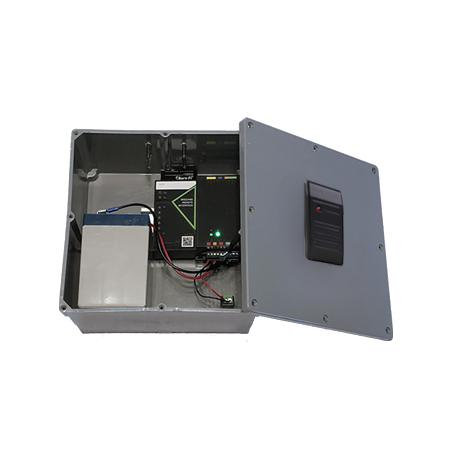

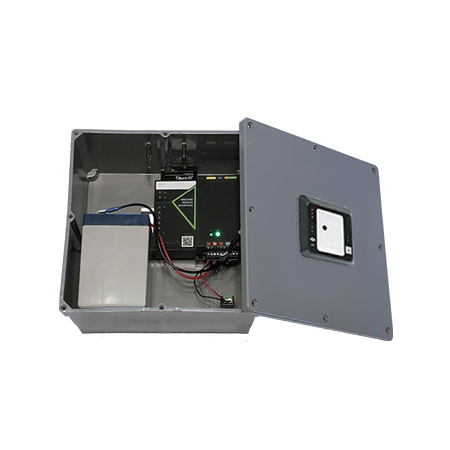

The PAK Wiegand Wireless Portable Access Kit is a ready-to-deploy solution for extending access control to remote or temporary locations – without trenching, hardwiring, or downtime. Housed in a rugged portable enclosure, the kit includes a wireless Wiegand bridge system, 12V power, and your choice of Prox or QR reader.
The wireless bridge transmits both Wiegand data and relay signals up to 1 mile through obstructions, or 50+ miles line-of-sight, offering unmatched flexibility for dynamic job sites, event venues, or remote gate installations. The system runs on a rechargeable battery for all-day operation and recharges easily with standard 120–277 VAC input.
Whether you’re controlling a single turnstile, managing a temporary access point, or replacing a hardwired run with wireless logic, the PAK kit gets you connected.
Data Sheet – Wireless Weigand Bridge
Data Sheet – ProxPoint Plus 6005 Prox Reader
KIT INCLUDES:
- (1) Portable Wiegand Enclosure
- (1) Wireless Wiegand Bridge System (1 Controller + 1 Remote Interface)
- (1) Reader (Prox or QR)
- (1) Rechargeable Battery
- (1) Reader Power Supply
- (2) 12V 2.5A Power Supplies
- (2) 6-foot Power Cords
- (1) Sure-Fi Screwdriver
Features and Benefits
- Wireless Wiegand bridge with controller and interface
- Transmits data and relay signal up to 1 mile (obstructed) / 50+ miles line-of-sight
- Includes either a Proximity or QR code reader
- All-in-one portable enclosure with battery and 12V power supply
- Runs on rechargeable battery during use; plug in overnight
- Connects easily to existing Wiegand-compatible systems
- Ready to deploy in minutes—no trenching or conduit
- Ideal for short-term access control, events, and mobile gates
- Competitive alternative to long cable runs or complex wiring jobs
- Relay outputs support gates, door locks, turnstiles, and more
Specifications
- Works with Any Wiegand protocol up to 64 Bits
- 1 Wiegand inputs
- 2 relay outputs (Wet or Dry)
- Request to exit input (REX)
- Door monitor input (DPS)
- OPERATING VOLTAGE: 12VDC (9VDC tp 15VDC)
- OPERATING CURRENT (@12VDC): 0.08A (idle), 0.3A (transmit)
- OPERATING POWER (@12VDC): 3.6 Watt (peak)
- TRANSMIT POWER: 1 Watt (30dBm)
- FREQUENCY BAND: 902 – 928MHz
- CHANNELS: 72 (Frequency Hopping)
- RECEIVER SENSITIVITY: -133dBm
- LINK BUDGET: 163dB
- RANGE: Up to 1 mile through obstructions and 50+ miles line-of-sight
- ENCRYPTION: AES128
- BATTERY BACKUP CONNECTION: 12V Sealed Lead Acid (SLA) type only
- BATTERY CHARGE VOLTAGE: 13.75V maximum at standby
- RELAYS: 2A 250VAC / 2A 250VDC wet or dry NO, NC, COM (x2)
- OPERATING TEMPERATURE: -40 F to +185 F (-40 C to +85 C)
- STORAGE TEMPERATURE: -67 F to +257 F (-55 C to +125 C)
- MOUNTING OPTIONS: DIN (35mm x 7.5mm) or directly mount with two screws
