L Series Terminal Boxes, Access Control Housings

Please Login for Pricing



Login or Sign Up


For installation according to customer requirements

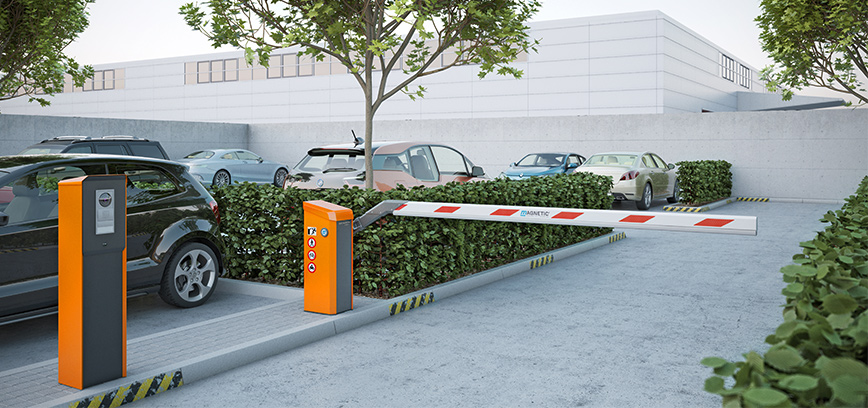

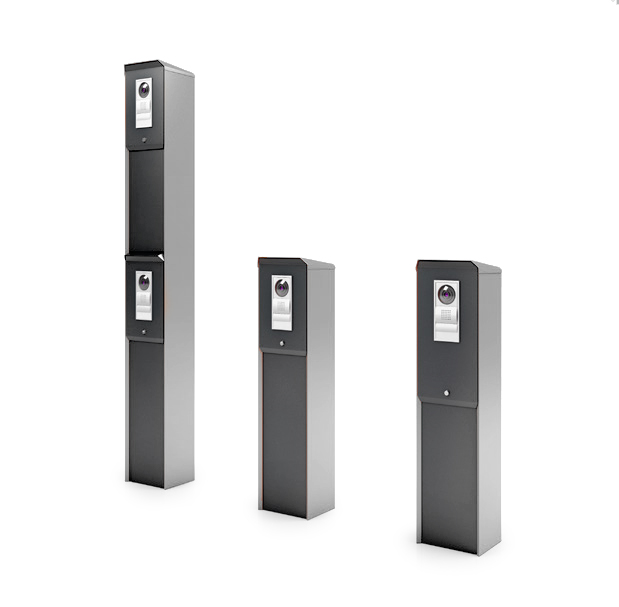

L, XL, and 2XL terminals are the optimum functional and design supplements for all Magnetic barriers. Their large installation dimensions provide a universal platform for all customer-specific equipment – for intercom systems and video monitoring, or for complex access and exit control systems. The terminals are made of aluminum and stainless steel and are thus designed for long service lives. The front consists of a front cover that can be slid out on telescopic rails and a slot-in door that can only be opened with a single key. Service technicians, therefore, have easy access to all installed components. Terminals from Magnetic are available in three versions: with a height of 1.5 m, the L and XL models are intended for use with cars while the 2XL model – with a height of 2.2 m – offers a large individually configurable installation area suitable for all vehicles from compact cars to large articulated trucks.

Data Sheet


  • Freestanding terminal housing
  • Universal platform for a wide variety of equipment
  • Shape and colors based on the prize-winning design of our access barriers
  • Slide-out front cover for simple commissioning and maintenance
  • Maximum protection against corrosion



  • Colors: White or Light Grey. The standard front panel is grey-black.
  • Internal Mounting Plate
  • Key Switch
  • Faceplate Cutout



See the datasheet for more details.



Installation Services Available Now
See our Portfolio of Work Here


*Please note that freight is not included and will be charged separately. Worldwide freight is available by sea/air/ground. Contact TURNSTILES.us for a personalized quote.


Additional information


Terminal 1.5m L, Terminal 1.5m XL, Terminal 2.2m 2XL


White, Light Grey
