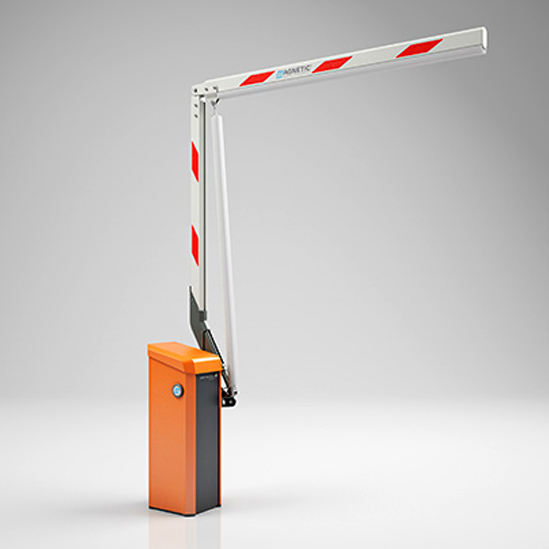

Parking Pro Vehicle Barrier

Please Login for Pricing

Parking Pro barriers are the ideal access control solution for parking lots, garages, driveways, or roads. Rapid 1.3 second opening times and the detection of tailgating vehicles ensure reliable processing for users. The barrier booms are optimized for use in parking applications with a number of special features and functions. Choice of color and barrier length of 10 or 12 feet.



Login or Sign Up
SKU: PARKING-PRO Categories: , Tags: , ,

Description

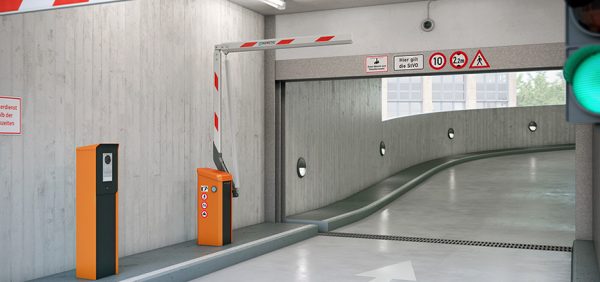

For heavily frequented parking and access control locations
Parking Pro barriers are the ideal solution for car parking, traffic control, and access control applications with lanes up to 12 ft.
Thanks to their configuration and security settings, Parking Pro barriers are designed for use in heavily frequented facilities where interaction with people can be ruled out. Rapid opening times (1.3 s) and the detection of tailgating vehicles ensure reliable processing for users, while low energy consumption, low-maintenance components, and simple servicing keep running costs down permanently. The barrier arms are optimized for use in parking applications: with the breakaway option, for example, the barrier arm is completely detached in the case of a forced unauthorized passage – and it can be re-attached again without any impairment of function. In addition, visibility can be further increased by means of lighting elements and an expansion set. At the heart of the barrier is the innovative motor drive, characterized by its energy efficiency, lack of maintenance, and long service life – the Parking Pro is designed for 10 million opening and closing cycles.

Data Sheet – Parking Pro Barrier

FEATURES

  • Car park barrier boom gates
  • Reliable detection of tailgating vehicles
  • Barrier arm lengths of 10ft or 12ft
  • Low power consumption
  • Easy maintenance
  • Choice of colors
  • Designed for 10 million opening and closing cycles



SPECIFICATIONS



Technical data Parking Pro
Barrier width Max. 3.5 m
Opening/closing time 1.3 s
Power consumption Max. 95 W
Drive technology MHTM™
Voltage 85-264 VAC, 50/60 Hz
Duty cycle 100%
Housing dimensions (W x D x H) 315 x 360 x 915 mm
Enclosure rating IP 54
Temperature range -30 to +55 °C
Weight 40 kg / 88 lbs



Features Parking Pro
Standard colors RAL 2000, 9006, 9007
VarioBoom barrier boom Standard
Control system MGC Pro
Integrated 2-channel detector for induction loops Standard
Modular expansion of control system Standard
Variable I/O assignment Standard
No. of digital inputs 8
No. of relays/digital outputs 6/4
Selectable closing speed Standard
Selectable opening speed Standard



INSTALLATION

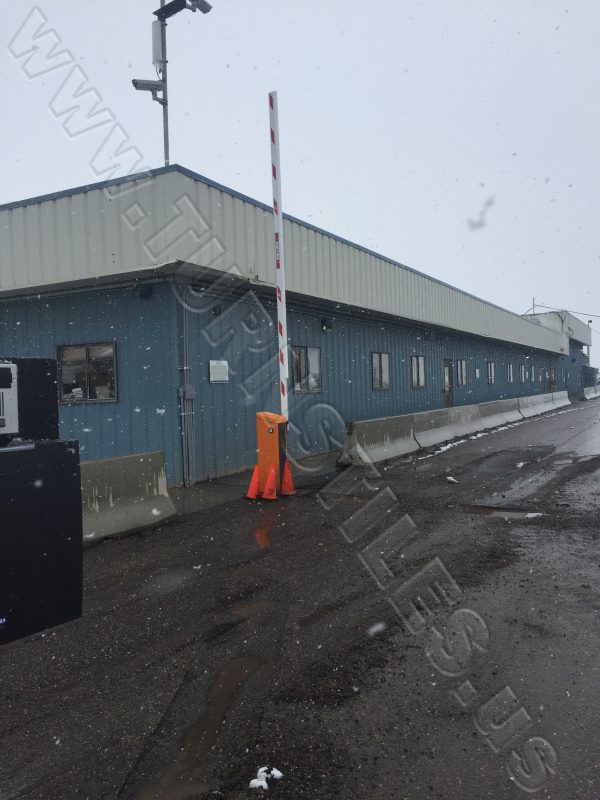

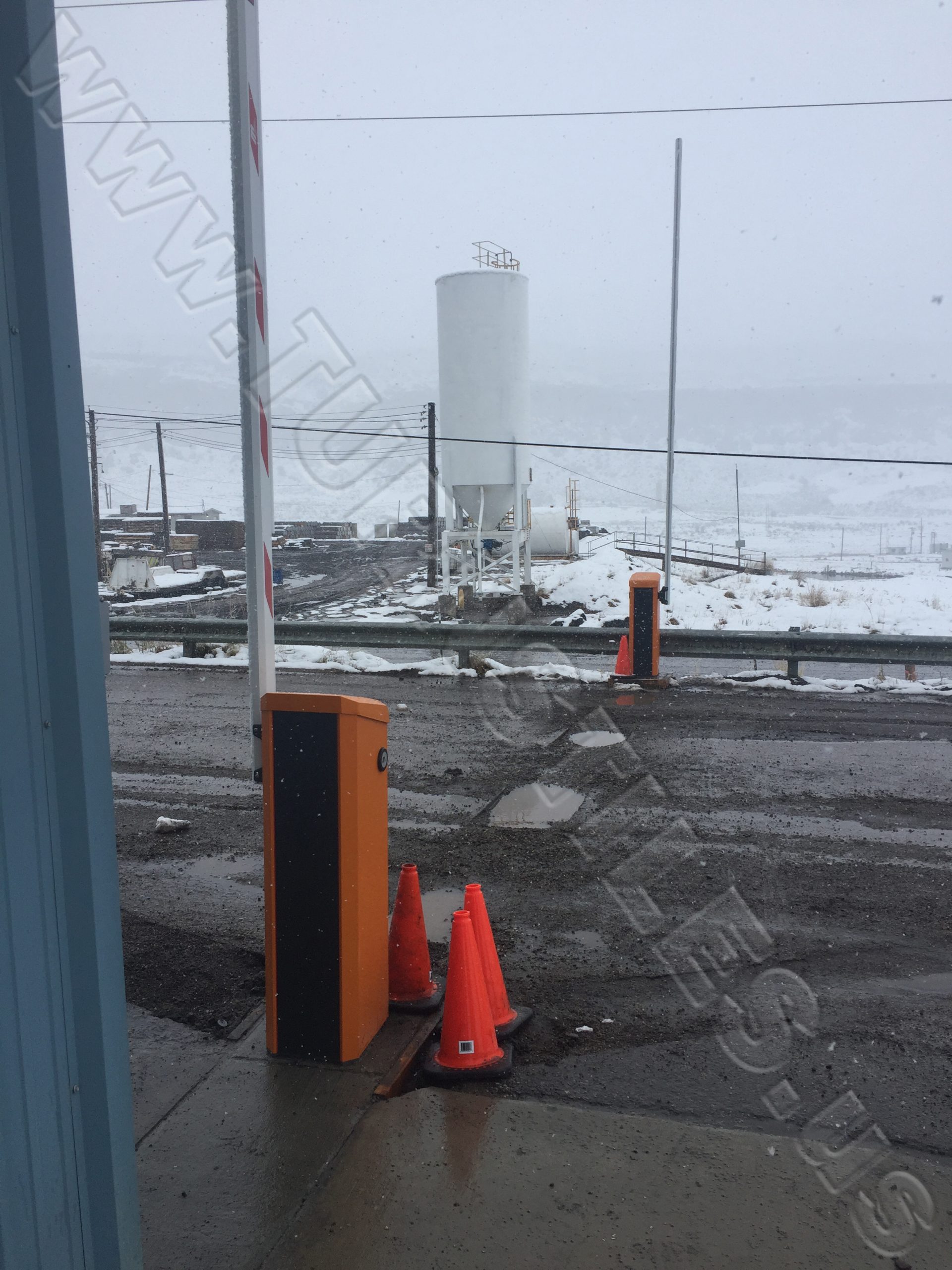

See more photos from this installation: Twenty Mile Mine – Oak Creek, CO

Installation Services Available Now
See our Portfolio of Work Here

*Please note that freight is not included and will be charged separately. Worldwide freight is available by sea/air/ground. Contact TURNSTILES.us for a personalized quote.



Additional information

Weight 100 lbs
Selection

Parking Pro VarioBoom 10 Ft, Parking Pro VarioBoom Breakaway 10 Ft, Parking Pro VarioBoom 12 Ft, Parking Pro VarioBoom Breakaway 12 Ft

Color

White, Orange, Dark Grey, Light Grey
