Description

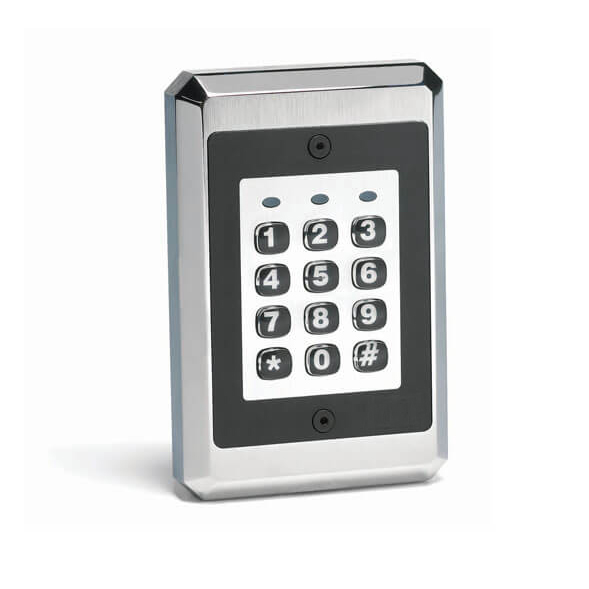

The Weather Resistant Backlit Keypad model 212iLW features a single-relay output to control any device requiring an on/off switch. The output is timed or latched and operated by a user’s PIN number code. Additionally, the Keypad provides basic keyless entry by controlling a door-locking device.
Designed for indoor/outdoor flush mount applications, electronics are conformally coated in the manufacturing process in order to provide application flexibility. In addition, hardened keys assure long-term, high-quality performance. Illuminated clear keys that make operation in low-light situations easy and accurate. Mount to any standard single-gang electrical box, reader mounting plate on turnstile gate frame, or directly to any wall.
Keypad Series Style and Functions
FEATURES
- Flush Mount, Single Gang
- Illuminated Backlit Keys
- Keypad Programmable
- Keypress Feedback via Built-In Sounder
- Bi-Color Red/Green LED Indicates Relay Status
- Yellow LED Indicates Program Mode
- 120 Users
- Panic and Duress Options
- Single Use Codes
- Lockout Users
- Passage/Toggle Codes
- 10 to 30 Volt DC Operation
- 12 to 24 Volt AC Operation
- 2 Amp Main Relay
- Remote Trigger Input (REX)
- Door Monitor Input
- Heavy chrome plated trim
- Indoor/outdoor use
- Architectural style

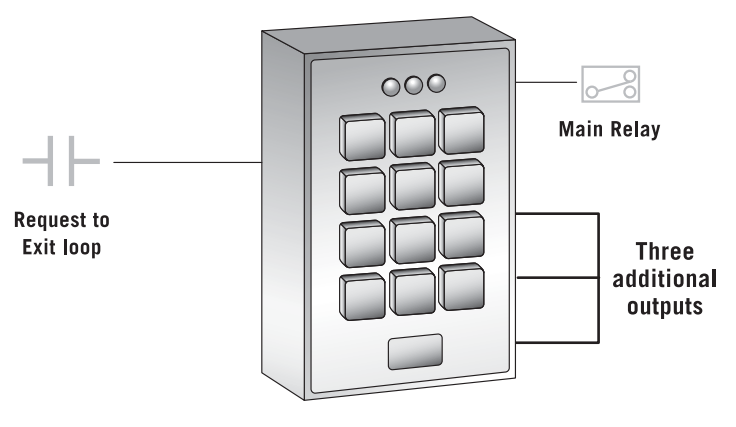

- Functionality mode 212:
SPECIFICATIONS
- Weather Resistant Backlit Keypad model 212iLW
- Operating voltage: 10-30 VDC; 12-24 VAC auto-adjusting
- Dimensions: 3.47″ W x 5.14″ H x .71″ D
- Temperature tolerance: -20F to 130F
