Exterior Secure Entry System
COPT VCC External Turnstiles
with Beaty Palmer Architects
Submitted to:
COPT VCC External Turnstiles project
Beaty Palmer Architects – San Antonio, TX
Submitted by:
www.TURNSTILES.us, Inc.
May 2026 – Current
www.TURNSTILES.us is a professional organization dealing with the physical and electronic securing of building entrances with Turnstiles, Gates, EntraPASS Access Control Hardware, and Software since 1989. We are a U.S. Federal Government Contract Holder (47QSMS25D00B6) and are registered with the U.S. Federal Government System for Award Management (#181428611).
TURNSTILES.us is honored to provide you with our Turnstile and Mantrap Canopy – High Security Entrance. Please find photos and project information below.
Exterior Secure Entry System
with Turnstile, Man Trap Cubicle, and Canopy
EQUIPMENT / SYSTEM COMPONENTS
(1) BTC Basic Turnstile Canopy
– Approx Size 16’ Wide x 20′ Deep x 9’4″ High (center height beneath roof)
– Freestanding Post-Supported
– Single Slope Roof, drains to long side
(1) Chain Link Mantrap
– ADA-Compliant Size, Fully Enclosed
– Approx Size 7’ Wide x 9’6 Deep x 8 High
(2) HS348-ADA Gates
— Galvanized
— 48″ Wide Passage
— Security Mesh Infill
— Reader Mounting Plates (both sides of each gate)
(1) HS439-S Single Turnstile
– Galvanized with included Black End Caps
– 39″ Wide Passage
– Electric 2-Way (Can be used for entry and/or exit)
– Bidirectional Key Override (allows manual key locking)
– Reader Mounting Plates (both sides)
Additional Options/ System Requirements:
(2) Motorized Door Openers for powered opening of gates
– NOTE: Adds 3″ to frame of gates and mantrap height
(4) Canopy Lighting

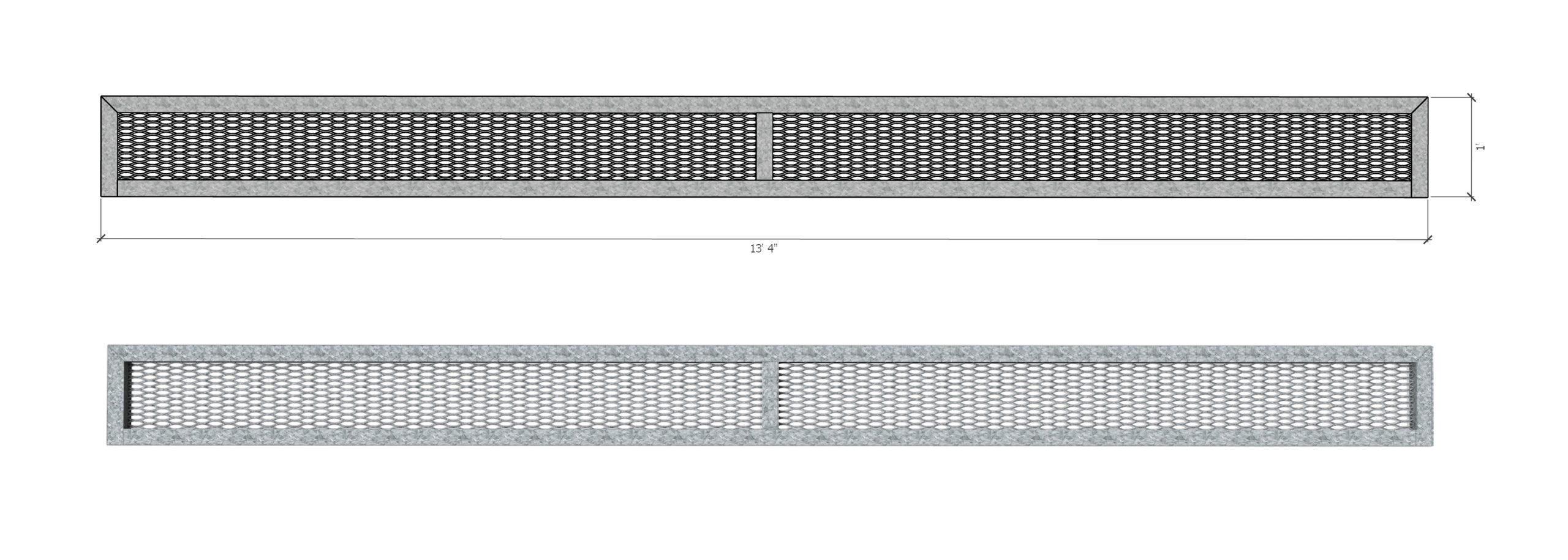

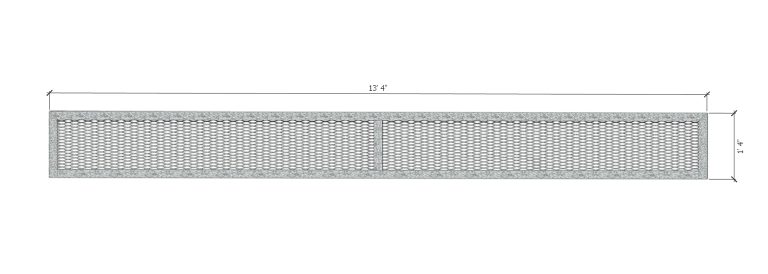

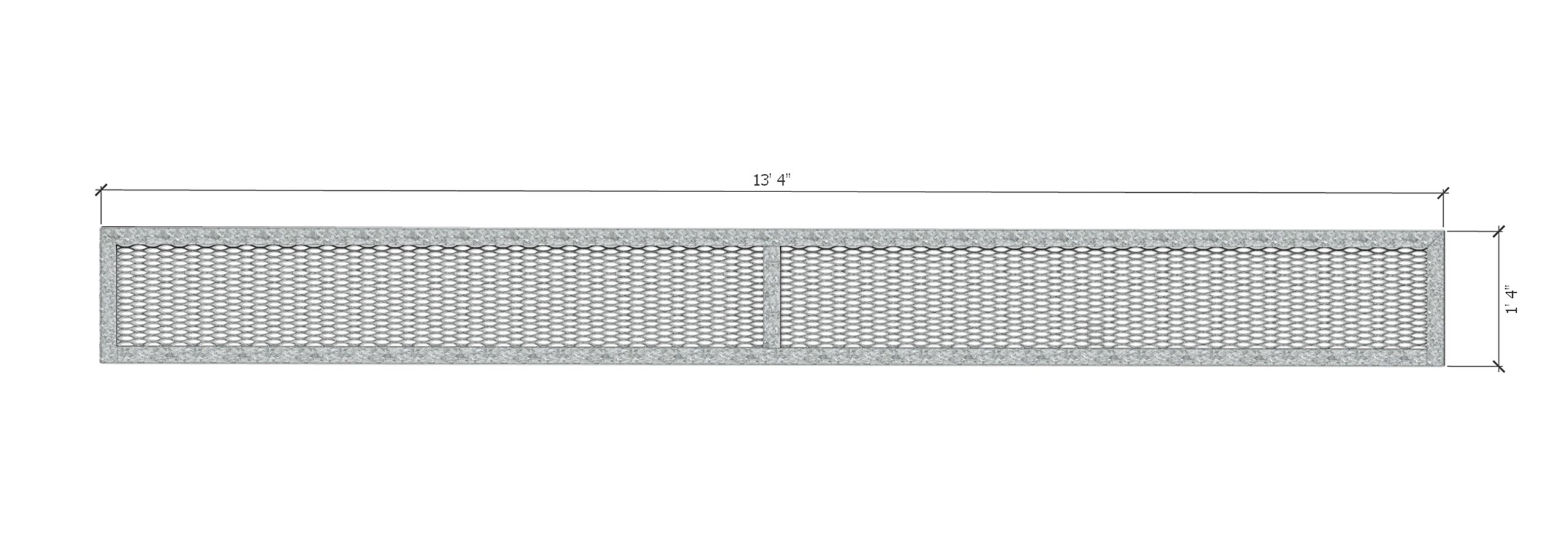

(1) Anti-Climb Security Mesh Filler Barrier (above mantrap/turnstile)

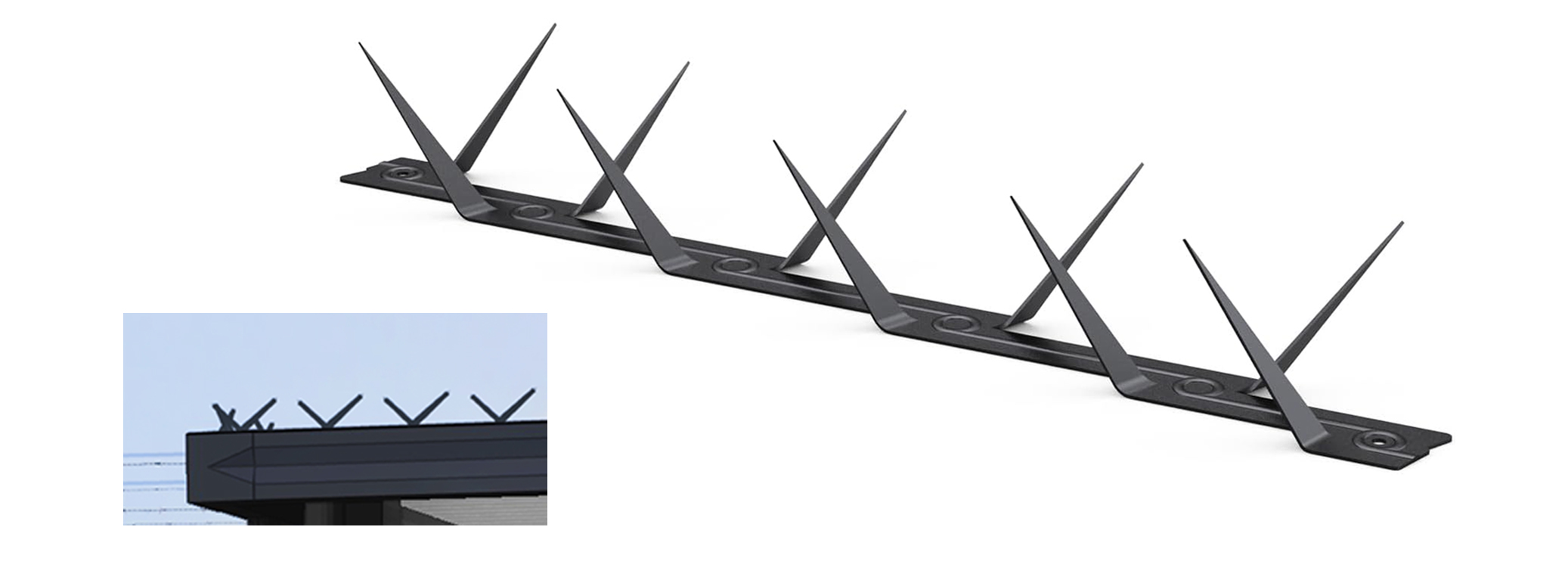

(1) Anti-Climb Spike (roof perimeter)
(1) Access control NEMA enclosure
(2) Security cameras
SERVICES
Concept Illustration
AutoCAD 2D Equipment Dimension Detail
Equipment Crating and Shipping
Installation Option:
(2-3) Technicians
(6) Days On Site Estimated
(2) Days Travel
Scope of Work
Uncrating and removal of debris
Installation of equipment purchased from TURNSTILES.us
*Customer Will Provide:
Conduit and Electrical to site, Electrician Coordination as needed, Level Concrete Pad, Footers prepared for Canopy, Trash disposal area as needed
INSTALLATION NOTES:
- This will be an exterior system
- Placed on a fence line, separating public from secured outdoor spaces
- Security is by owner but need infrastructure provided (ex. Knockout in column for intercom)
- Recommended minimum concrete pad size: 16’6″ x 21′ x 6″

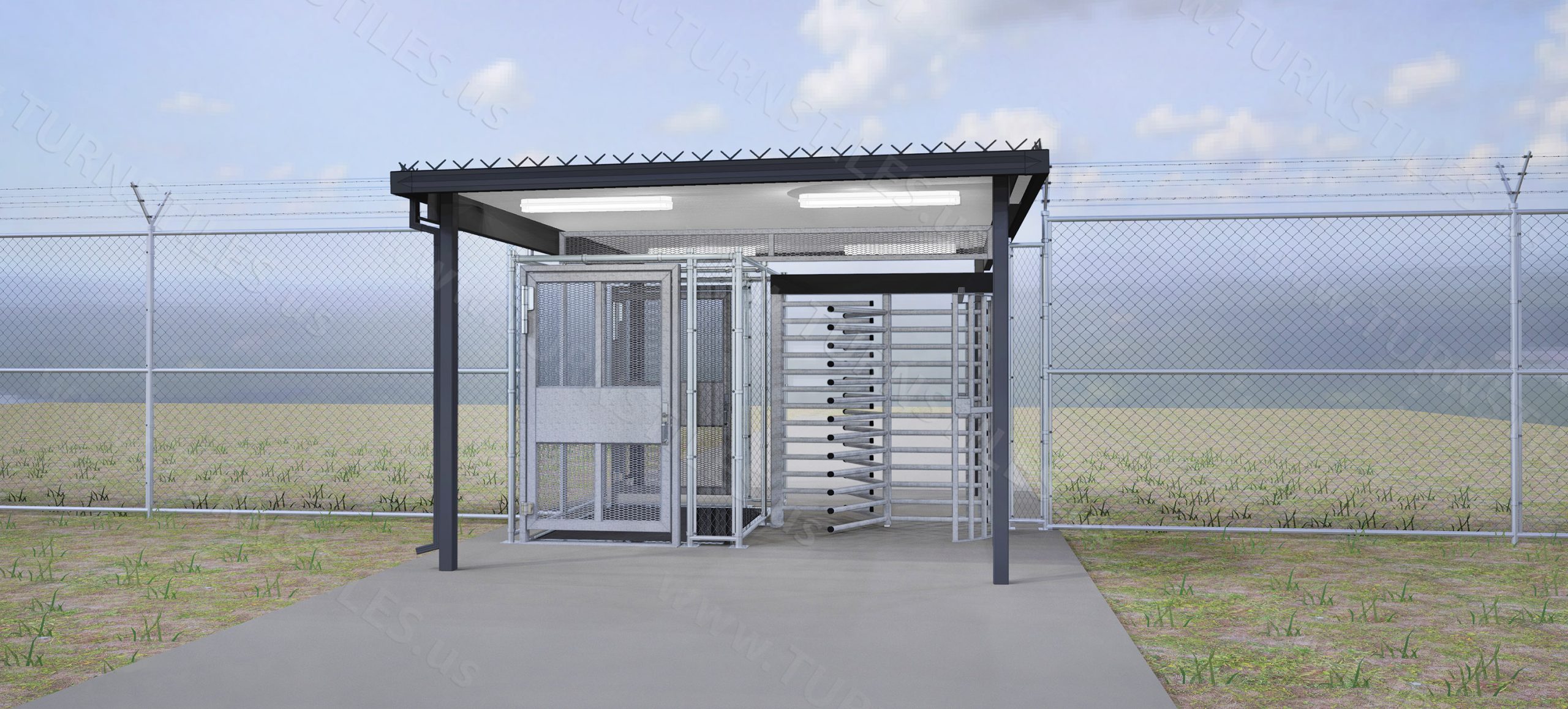

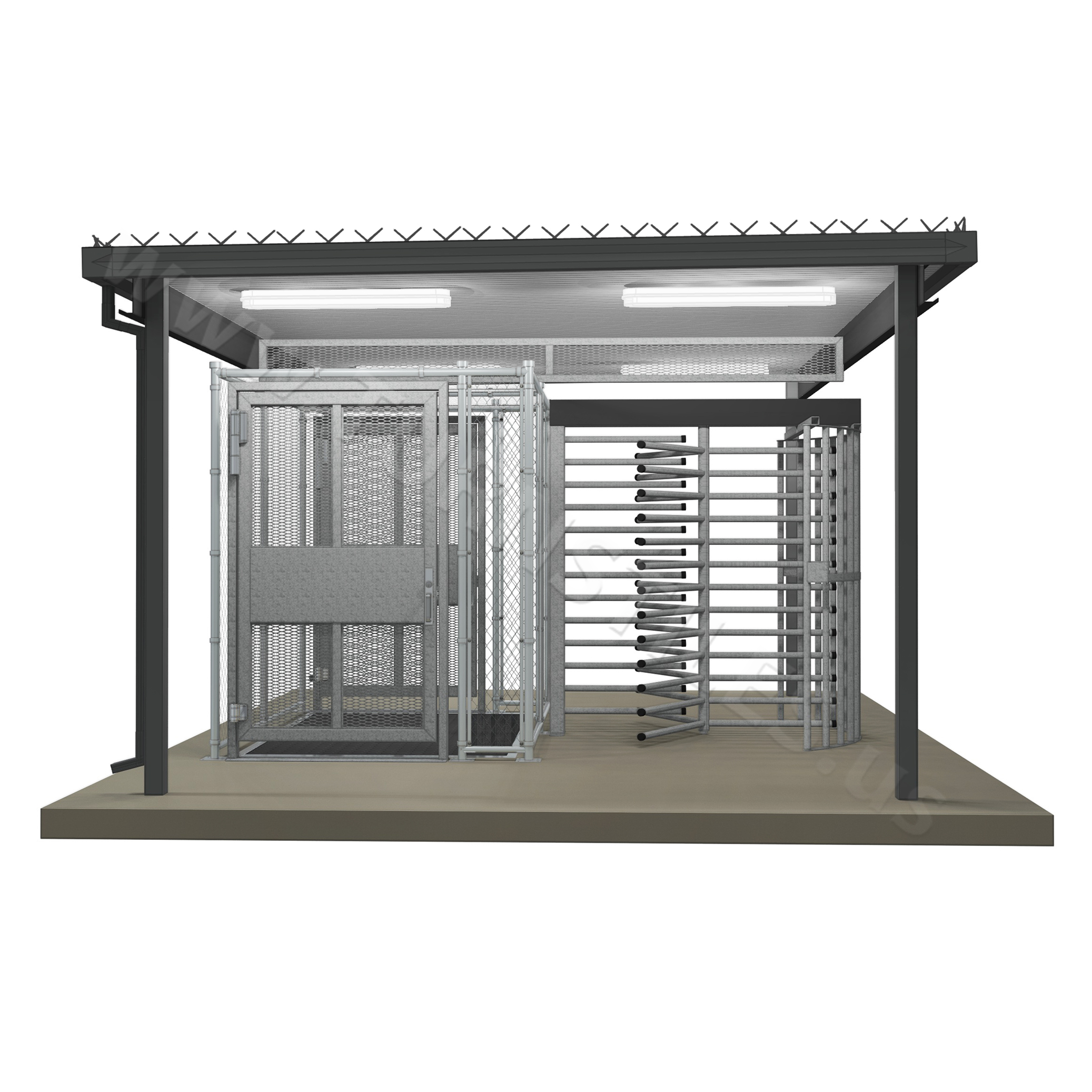

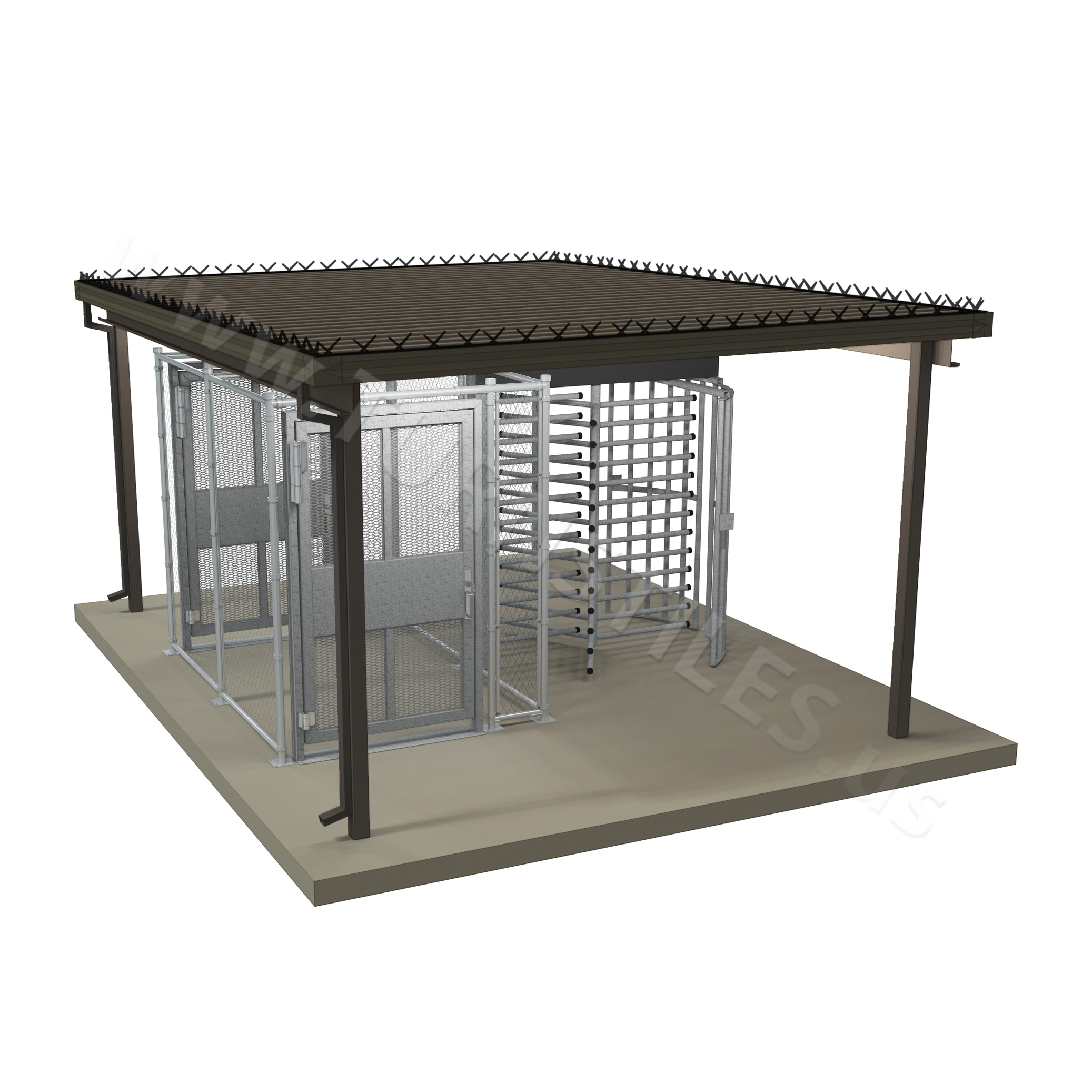

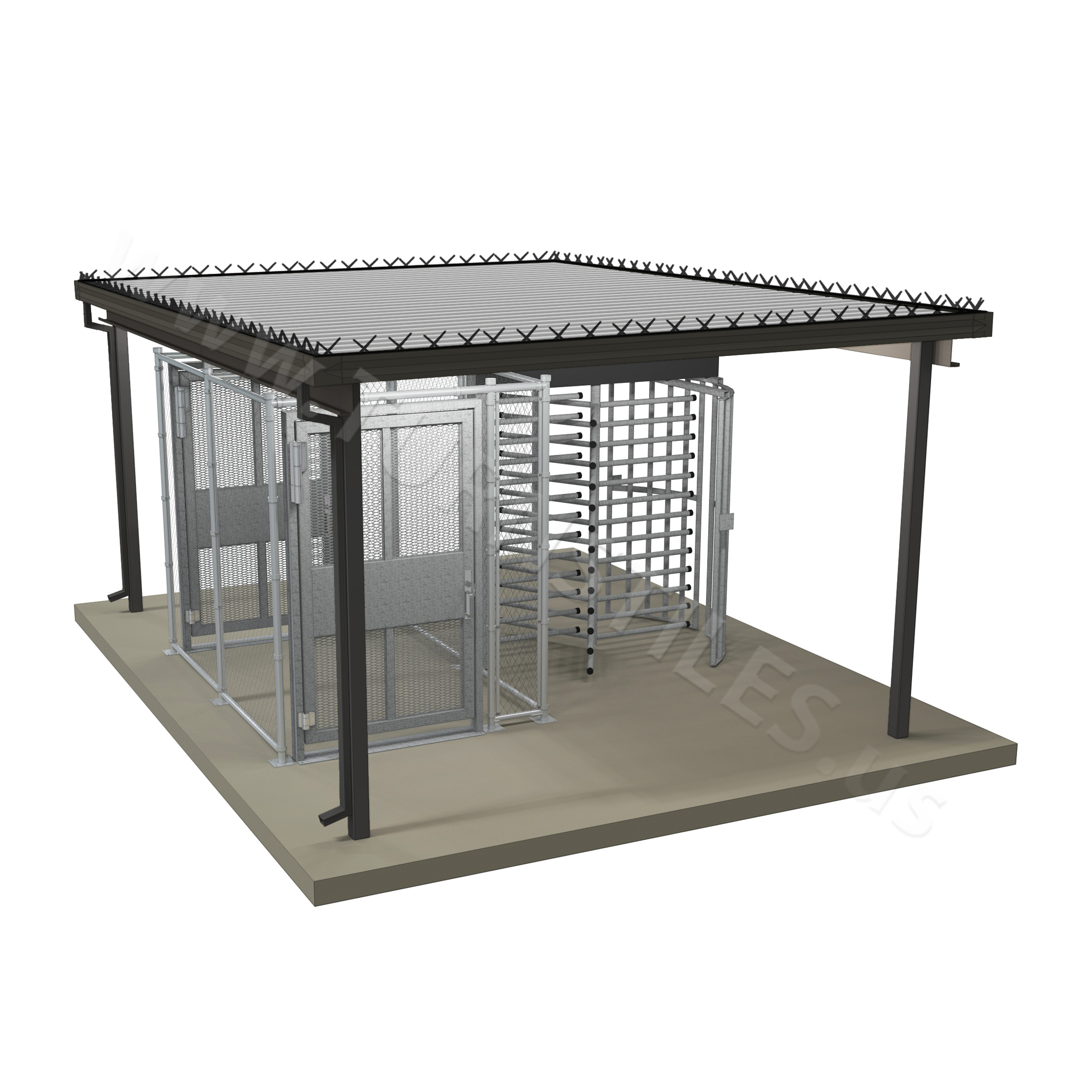

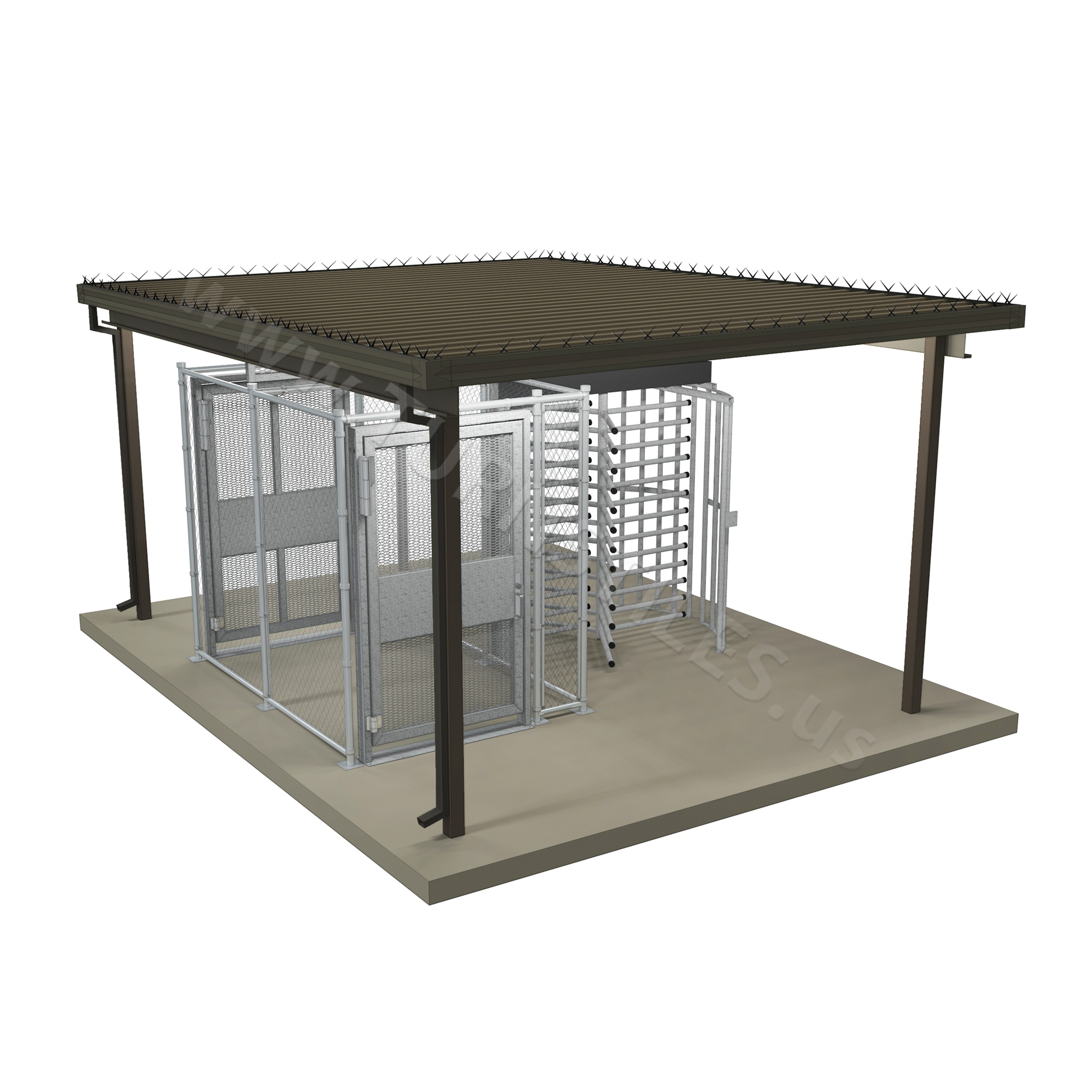

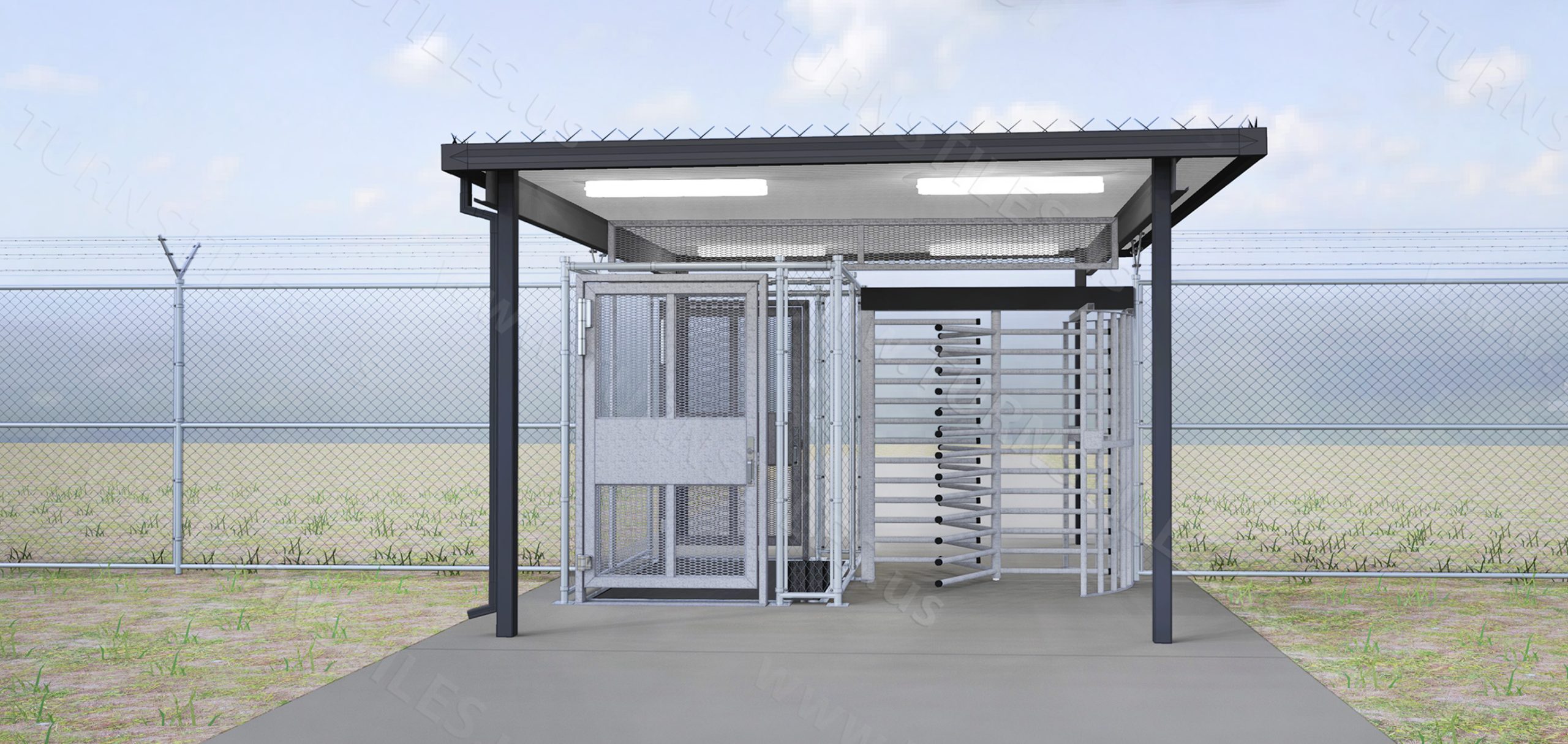

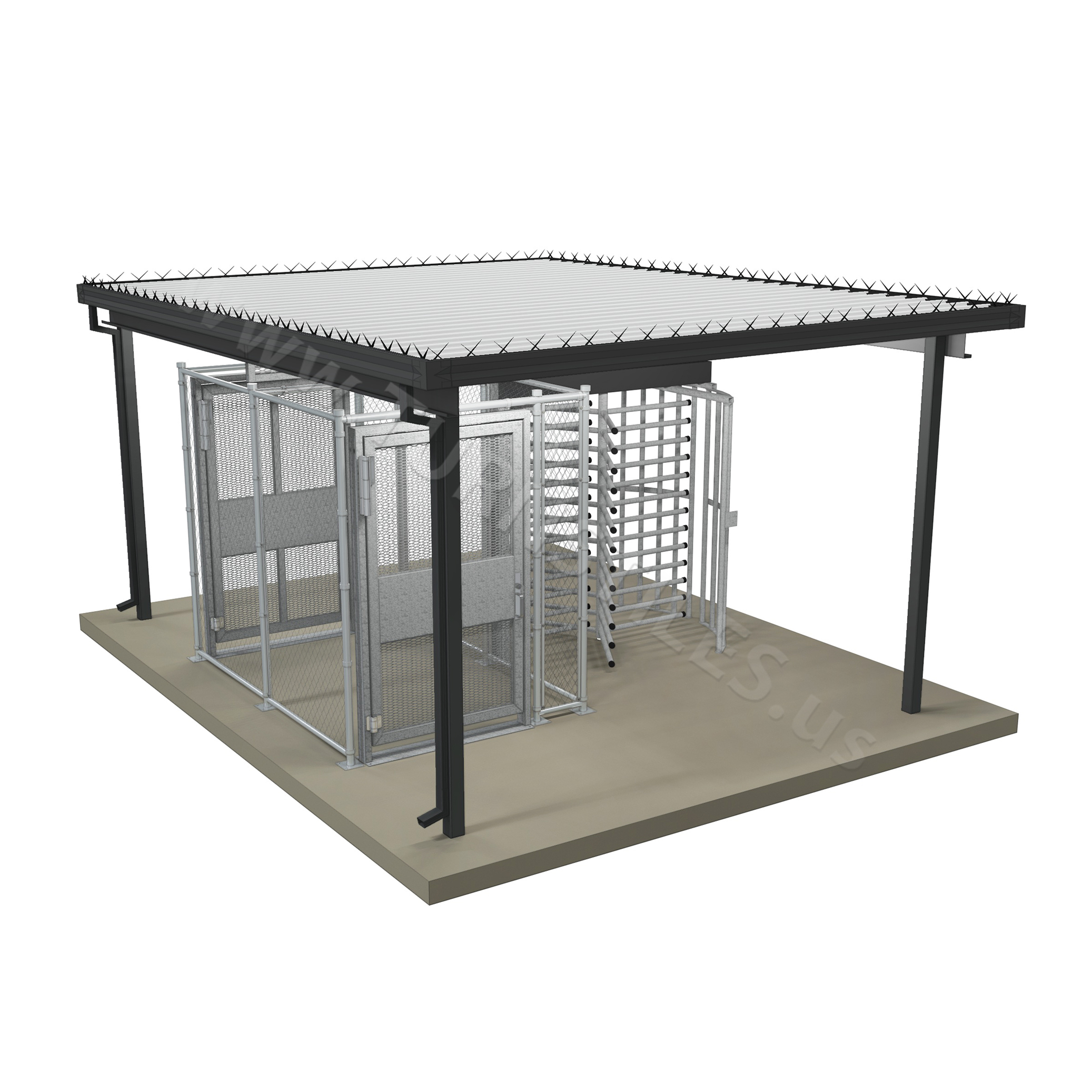

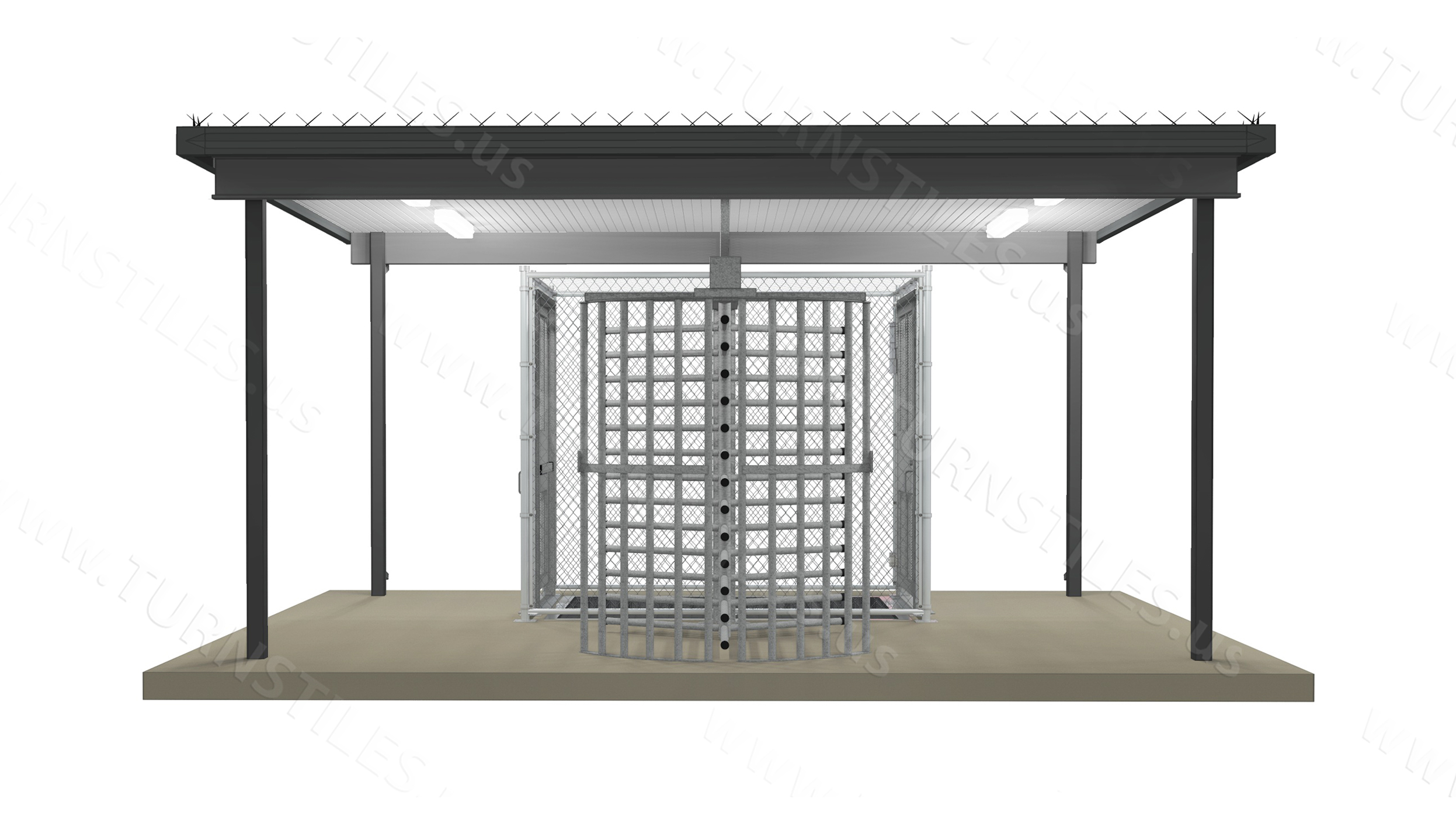

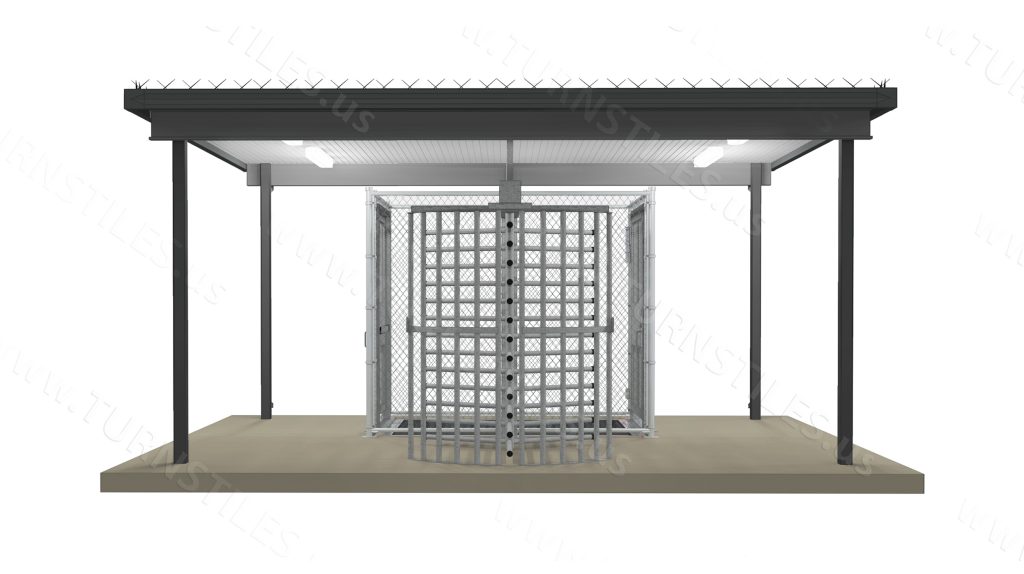

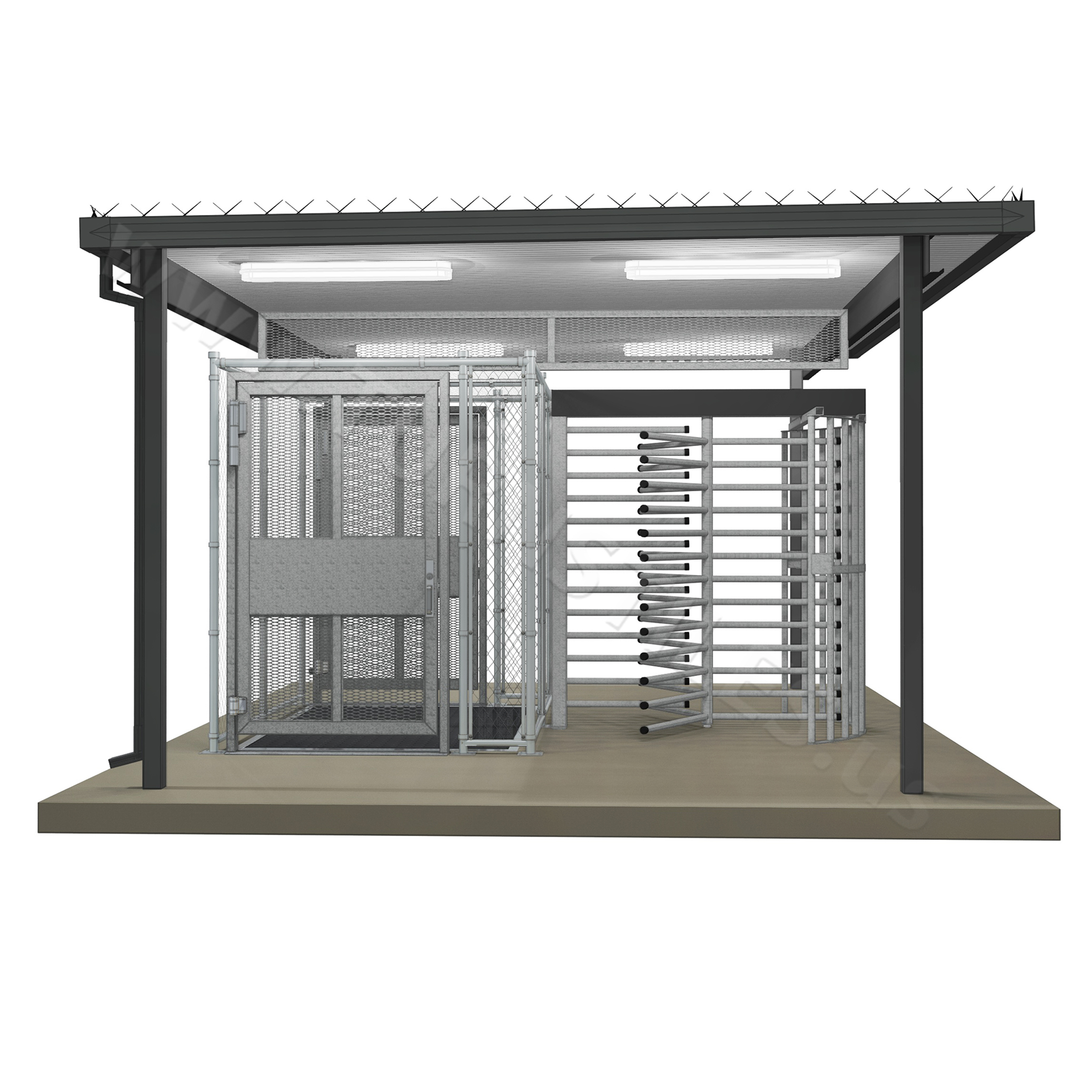

Concept Illustrations

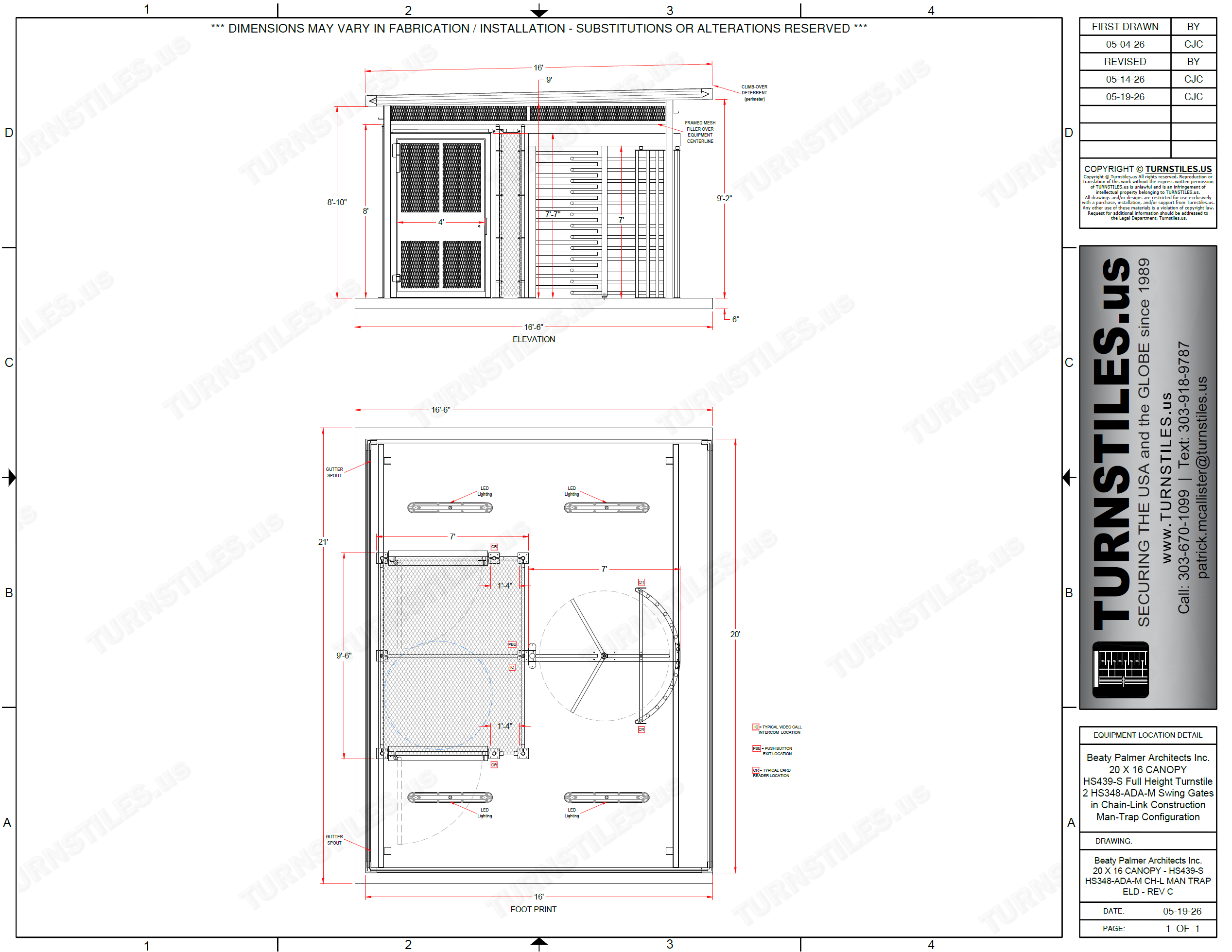

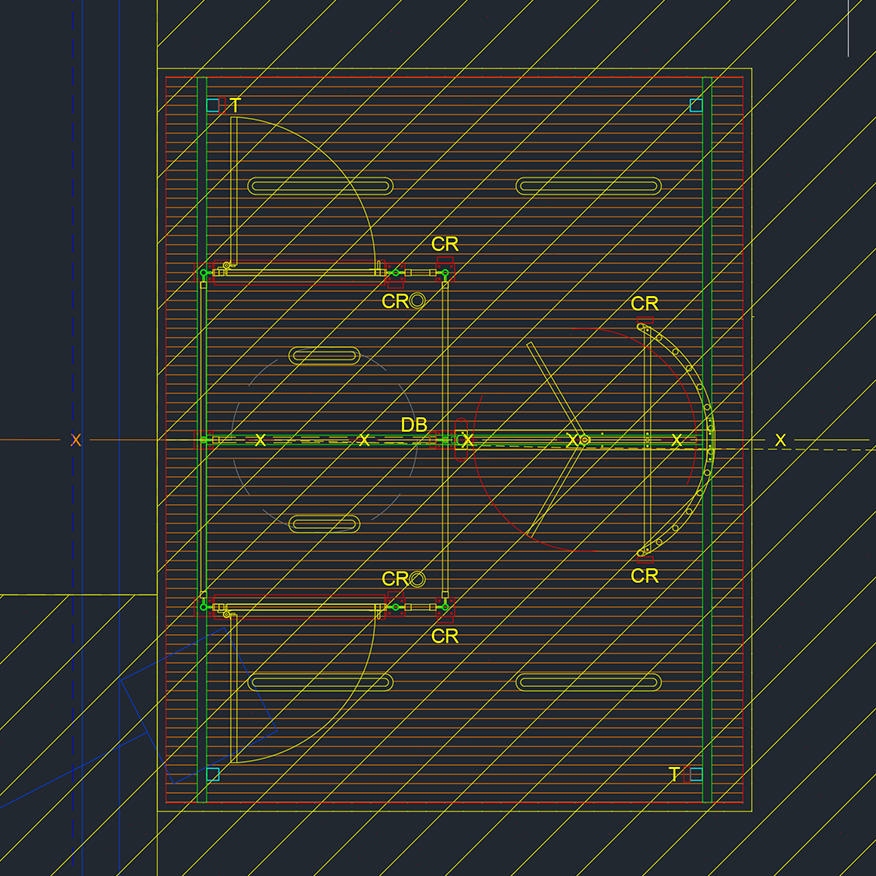

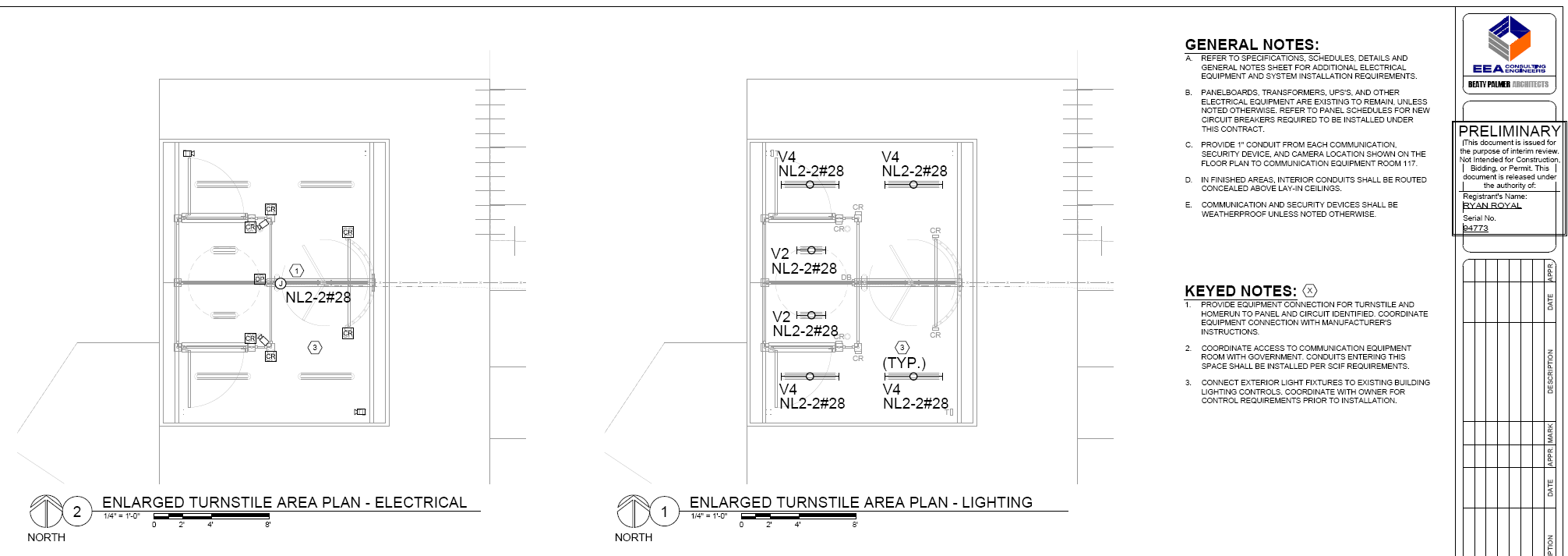

AutoCAD Equipment Location Details
Components & Equipment Documentation

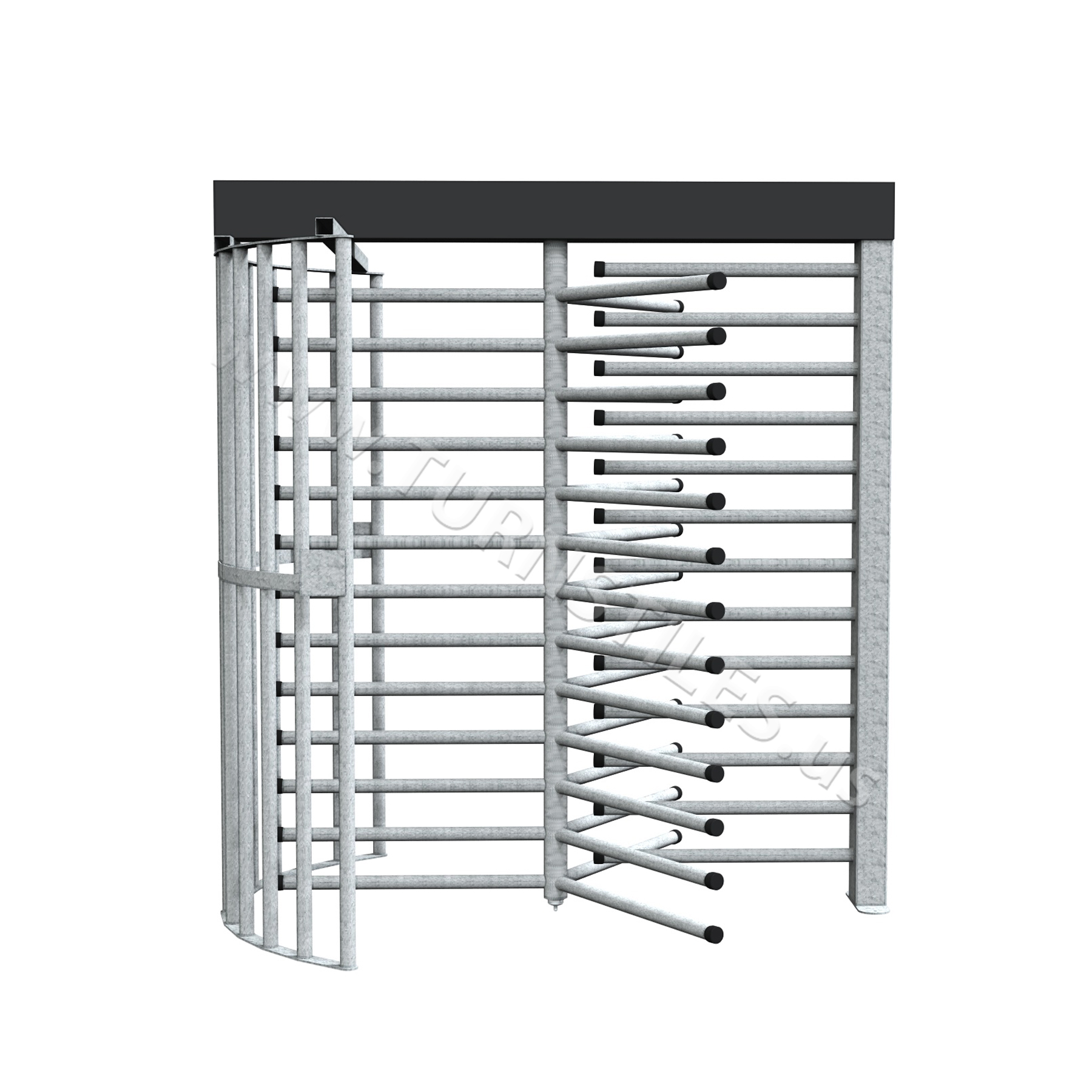

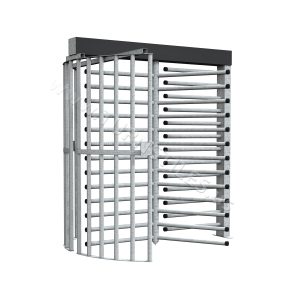

Single Turnstile
39" Passage
ADA Gate
48" Passage
Chain Link Man Trap
with 48" Gates, Fully Enclosed
Turnstile Canopy
16' x 20' Single Slope
