High-Security Turnstile
Entrance with Guard Shack

Brakebush Irving, Inc. –
Irving, TX

We are pleased to present our custom Turnstile Canopy Entrance Solutions for Brakebush Irving, Inc. Please find equipment information listed below. Thank you for choosing TURNSTILES.us.

  • Outlaw Industries Full Height AG30-T Single Turnstiles
  • Outlaw Industries Full Height AG-36-ADA Gate
  • Anti-Climb Over System
  • Custom Guard Shack

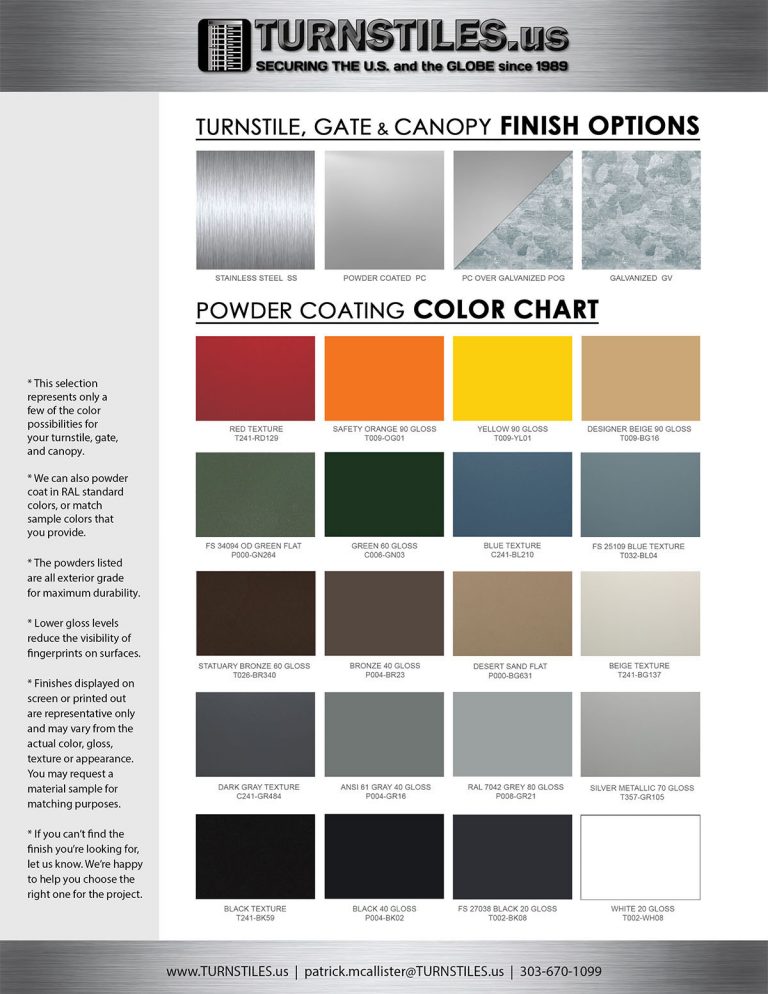

  • Various Finish Options
  • Proximity Card Access Control
  • Concept Art & Design
  • Technical Documentation
  • Made in the U.S.A.

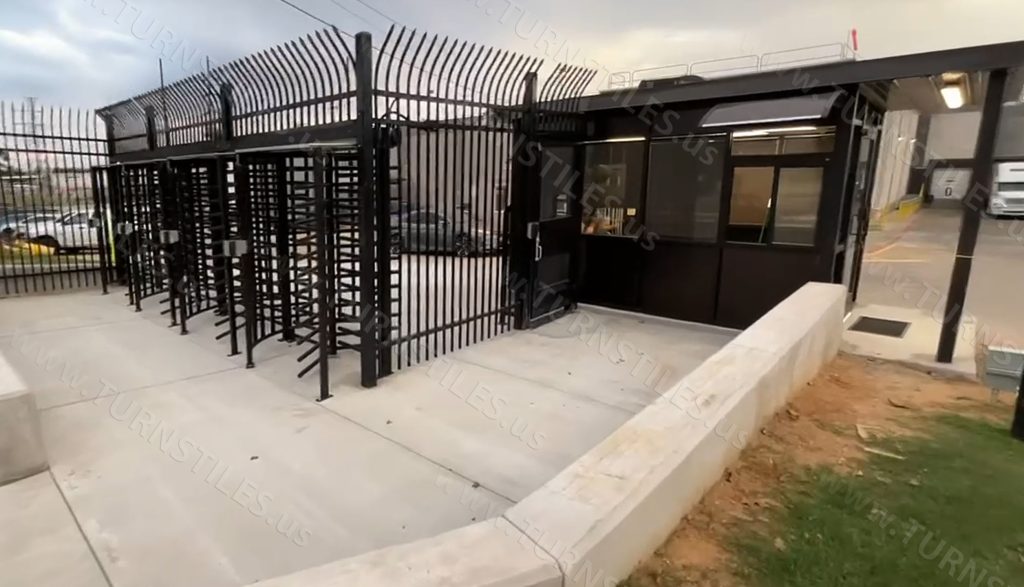

Custom Security Entrance

AG SERIES TURNSTILES, ADA SWING GATE,
& ANTI-CLIMB SYSTEM WITH GUARD SHACK

  • (4) AG-30 Full Height Turnstiles, Powder Coated
  • (1) AG-36 ADA Powder Coated over Galvanized Gate
  • (4) Anti-Climb Over Half-Canopies and Fence Barrier
  • (1) Anti-Climb Over Optical Alarm
  • (10) HID MiniProx 5365 Card Readers
  • Guard Shack
    • 7′ x 13′ Building Size
    • 3′ 6″ Roof Overhang
    • 3′ Roof Overhang Above Door
    • (1) 36″ Storefront Door with Deadbolt/Pushbar
    • (2) Transaction Windows 36″ x 36″
    • (1) HVAC AC and Heat Pump
    • (2) LED Lighting
    • (1) Custom Counter Top
    • (1) Electrical Supplies for Guard Office
    • (1) HID MiniProx 5365 Card Reader
    • (1) Insulated Panels around the Bottom Half
    • (1) 1/4″ Tinted Glass around the Top Half

AutoCAD Equipment Location Detail

Equipment Information

- Previous Renditions -

Concept 6:

AG SERIES TURNSTILES AND ADA SWING GATE with
WITH RAIN COVERS AND GUARD SHACK

(3) AG-30 Full Height Turnstiles, Powder Coated
(1) AG-36 ADA Powder Coated over Galvanized Gate
(4) Plexiglass Rain Covers
(10) LED Canopy Lighting
(10) HID MiniProx 5365 Card Readers

* Guard Shack
(1) 36″ Storefront Door with Deadbolt and Pushbar
(1) Transaction Window 36″ x 36″ with Sliding Drawer
(1) HVAC AC and Heat Pump
(4) LED Lighting
(1) Custom Counter Top
(1) Electrical Supplies for Guard Office
(1) HID MiniProx 5365 Card Reader
(1) Insulated Panels around the Bottom Half
(1) 1/4″ Tinted Glass around the Top Half

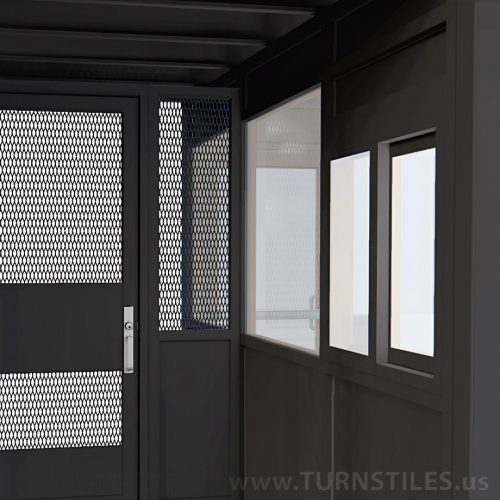

Guard Shack
View 1
Guard Shack
View 2

Plexiglass Rain Cover
AG30-T Single Turnstile
(shown on base)

Plexiglass Rain Cover
AG36-ADA and Fill Panel
(shown on base)
ELD REV C Page 1
ELD REV C Page 2
Placement 30 feet from edge of roadway

Concept 5:

AG SERIES TURNSTILES, ADA SWING GATE,
& CANOPY WITH GUARD SHACK

  • (4) AG-30 Full Height Turnstiles, Powder Coated
  • (1) AG-36 ADA Powder Coated over Galvanized Gate
  • (1) Powder Coated Anti-Reach Barrier
  • (1) 12′ Wide x 36′ Deep Canopy
  • (10) LED Canopy Lighting
  • (1) Equipment Rental
  • (10) HID MiniProx 5365 Card Readers
  • * Guard Shack
  • (1) 36″ Storefront Door with Deadbolt and Pushbar
  • (1) Transaction Window 36″ x 36″ with Sliding Drawer
  • (1) HVAC AC and Heat Pump
  • (4) LED Lighting for Canopy
  • (1) Custom Counter Top
  • (1) Electrical Supplies for Guard Office
  • (1) HID MiniProx 5365 Card Reader
  • (1) Insulated Panels around the Bottom Half
  • (1) 1/4″ Tinted Glass around the Top Half
ELD Page 1
ELD Page 2
Conduit Detail

Concept 4:

  • ~ 20′ x 16′ Enclosed Glass Canopy
  • ~ 8′ x 18′ Guard Shack
  • 8″ Brick Style Columns
  • Storefront Glass
  •  2 Automatic Glass Doors
  •  HVAC Mini-Split System
  • Two Single Turnstiles and One ADA Gate
  • Temperature Scan Verification / Facial Recognition Terminals
  • HID Prox Pro II 5455 Card Readers

Above: Shown with 2 doors on guard shack

Above: Shown with 1 relocated door

Concept 3:

  • ~ 16.9W x 15.9D
  • Enclosed Glass Canopy
  • Standard Posts and Storefront Glass
  •  T36-ADA Glass Double Doors on Front and Back
  •  HVAC Mini-Split AC
  • Two Single Turnstiles and One ADA Gate
  • Temperature Scan Verification / Facial Recognition Terminals
  • HID Prox Card Readers

Concept 2:

  • ~ 17.9W x 16.9D
  • Enclosed Glass Canopy
  • Brick Style Columns
  • Storefront Glass
  •  T36-ADA Glass Double Doors on Front and Back
  •  HVAC Mini-Split AC
  • Two Single Turnstiles and One ADA Gate
  • Temperature Scan Verification / Facial Recognition Terminals
  • HID Prox Card Readers

Concept 1:

  • ~ 16.9W x 24.9D
  • Enclosed Glass Canopy
  • Brick Style Columns
  • Storefront Glass
  • Two Single Turnstiles and One ADA Gate
  • Temperature Scan Verification / Facial Recognition Terminals
  • HID Prox Card Readers

We appreciate the opportunity to work with you on this project.
