Casino Turnstile Entrance
Hollywood Casino – Joliet, IL
Submitted to:
Hollywood Casino
Joliet, IL
Submitted by:
www.TURNSTILES.us, Inc.
February 2025 – Current
The team at TURNSTILES.us is honored to provide our Turnstile and Access Control Solutions to Hollywood Casino. Please find featured equipment information, photos, and project documentation below. We appreciate the opportunity to secure your facility.

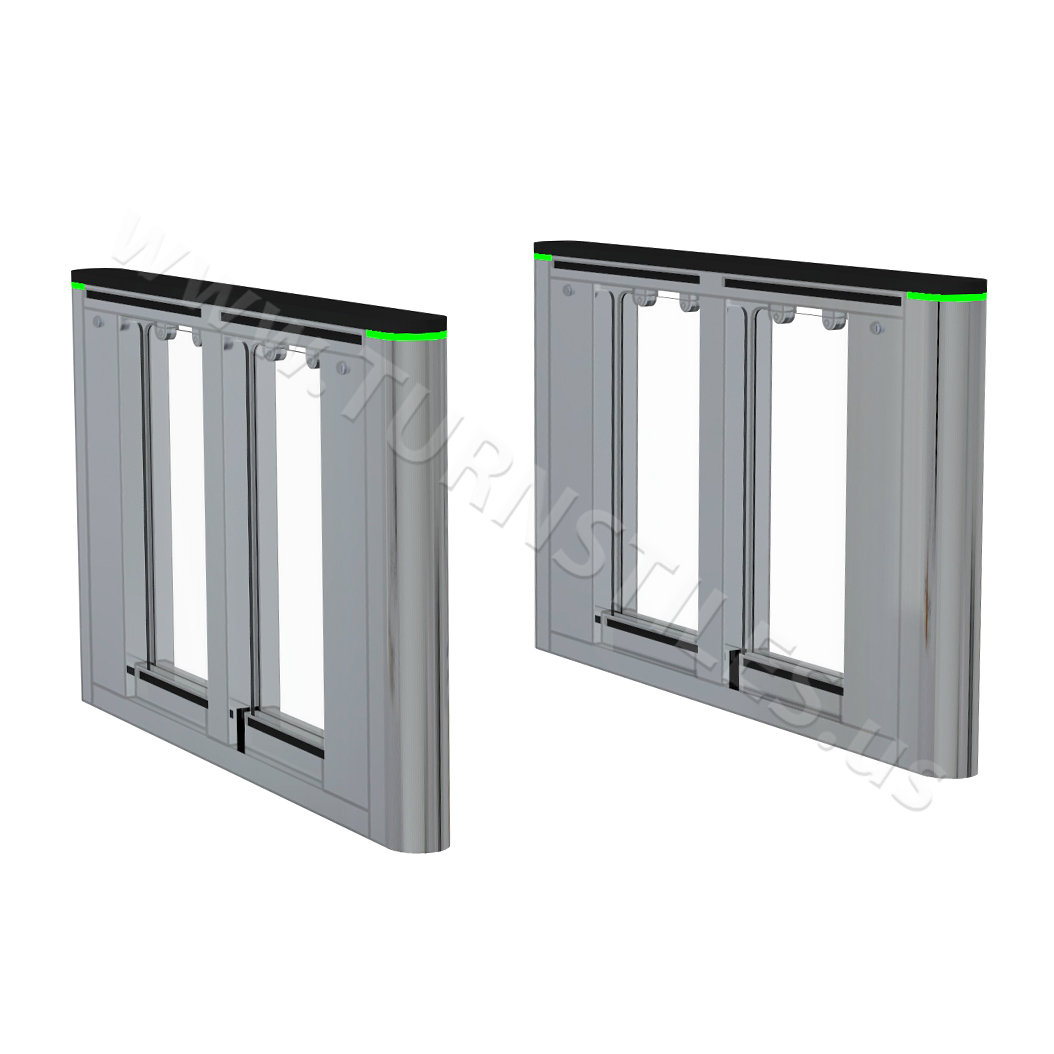

Optical Turnstile Entrance with Redundant Count
EQUIPMENT
(3) OTBF9000 Optical Turnstiles Barrier-Free (3-Lane Array)
(3) Redundant Counting Optical System
(1) 18 AWG 4 Conductor Shielded Plenum Cable – 500 ft.
EntraPASS
(1) EntraPASS Global Edition Server All-in-One Computer
(*) KT-400 Battery Back-up with Power Supply
SERVICES
Concept Illustration
AutoCAD Equipment Detail and Dimensions

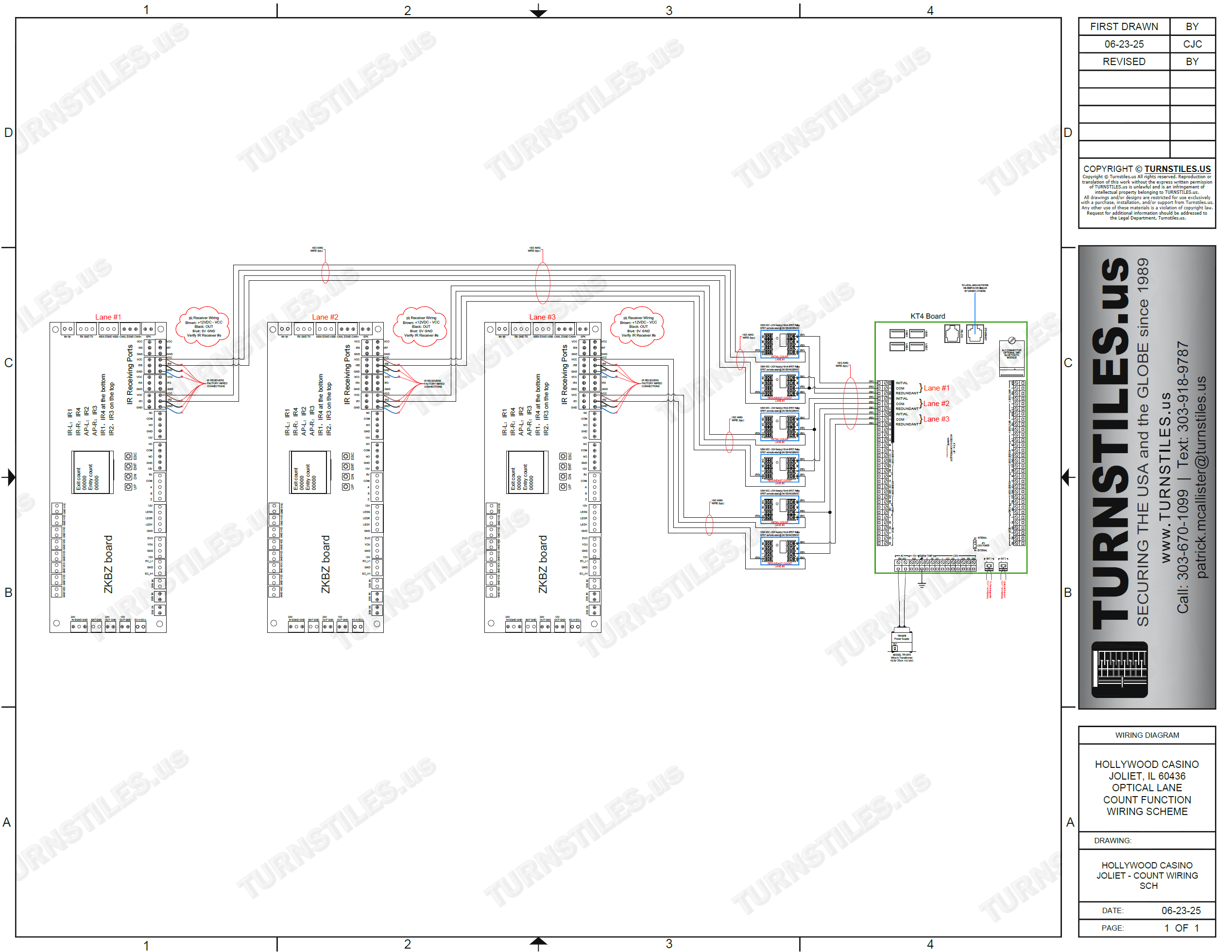

Point-to-Point Schematic
Remote Programming Assistance

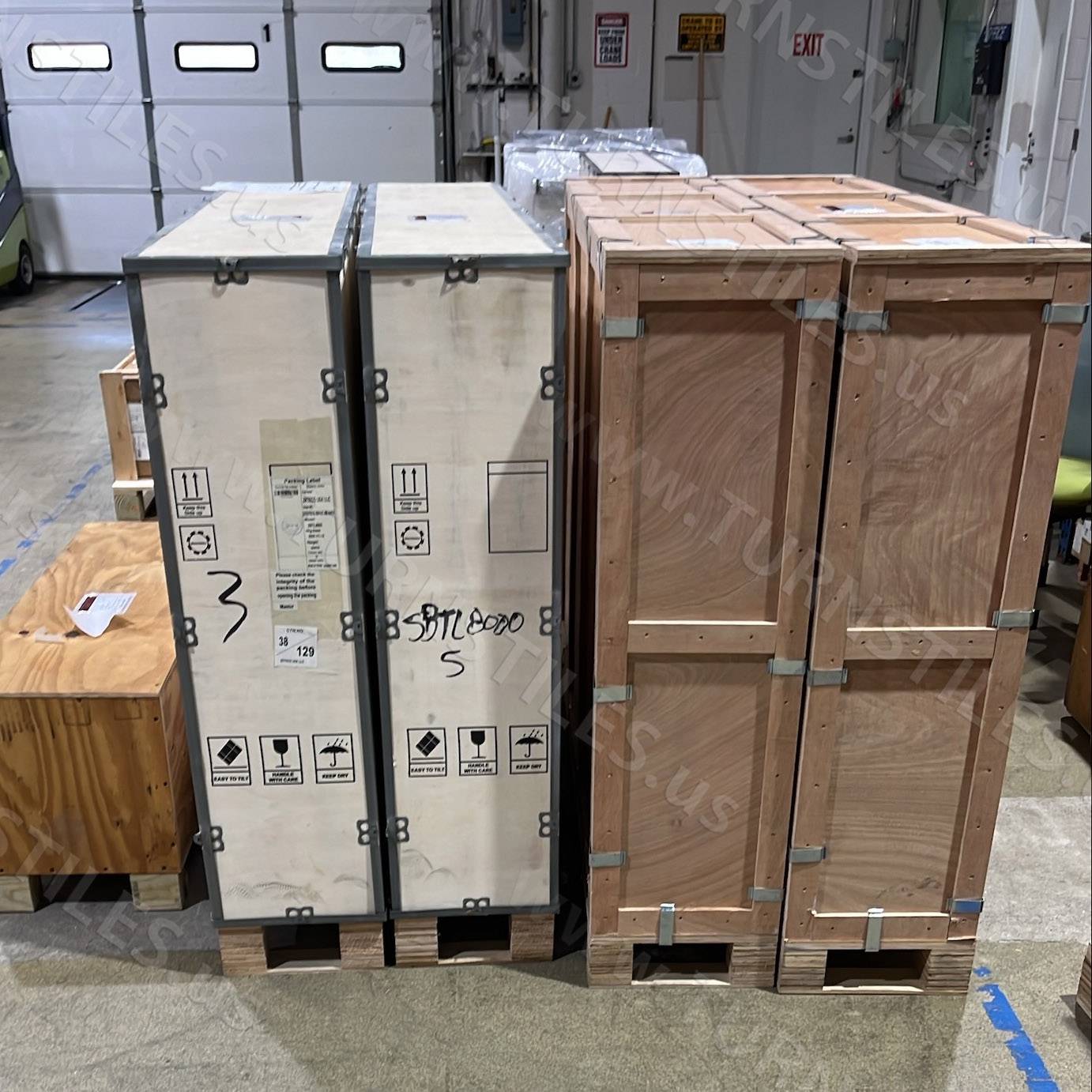

Shipping and Crating
Installation:
(2) Factory Installers (2) Days Travel
(*) Days of Field Labor
(*) Tool Rentals

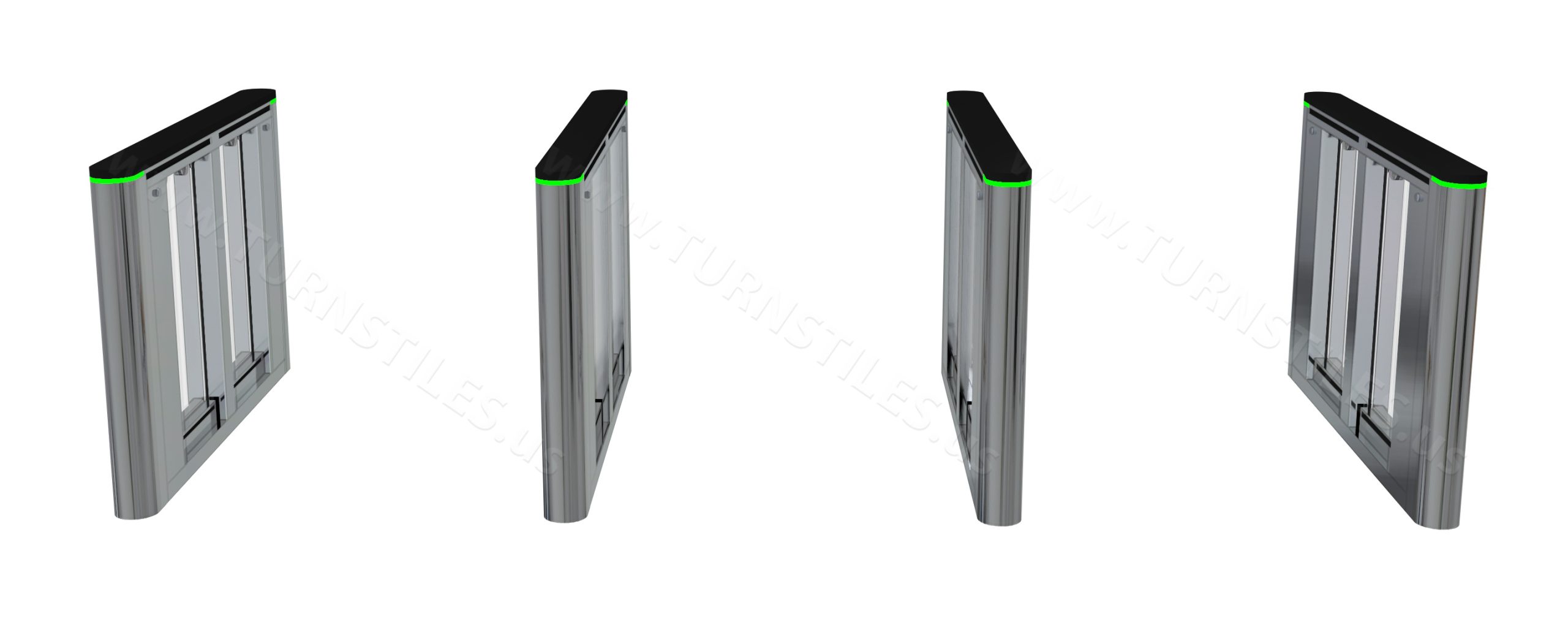

*NEW* Concept Illustration

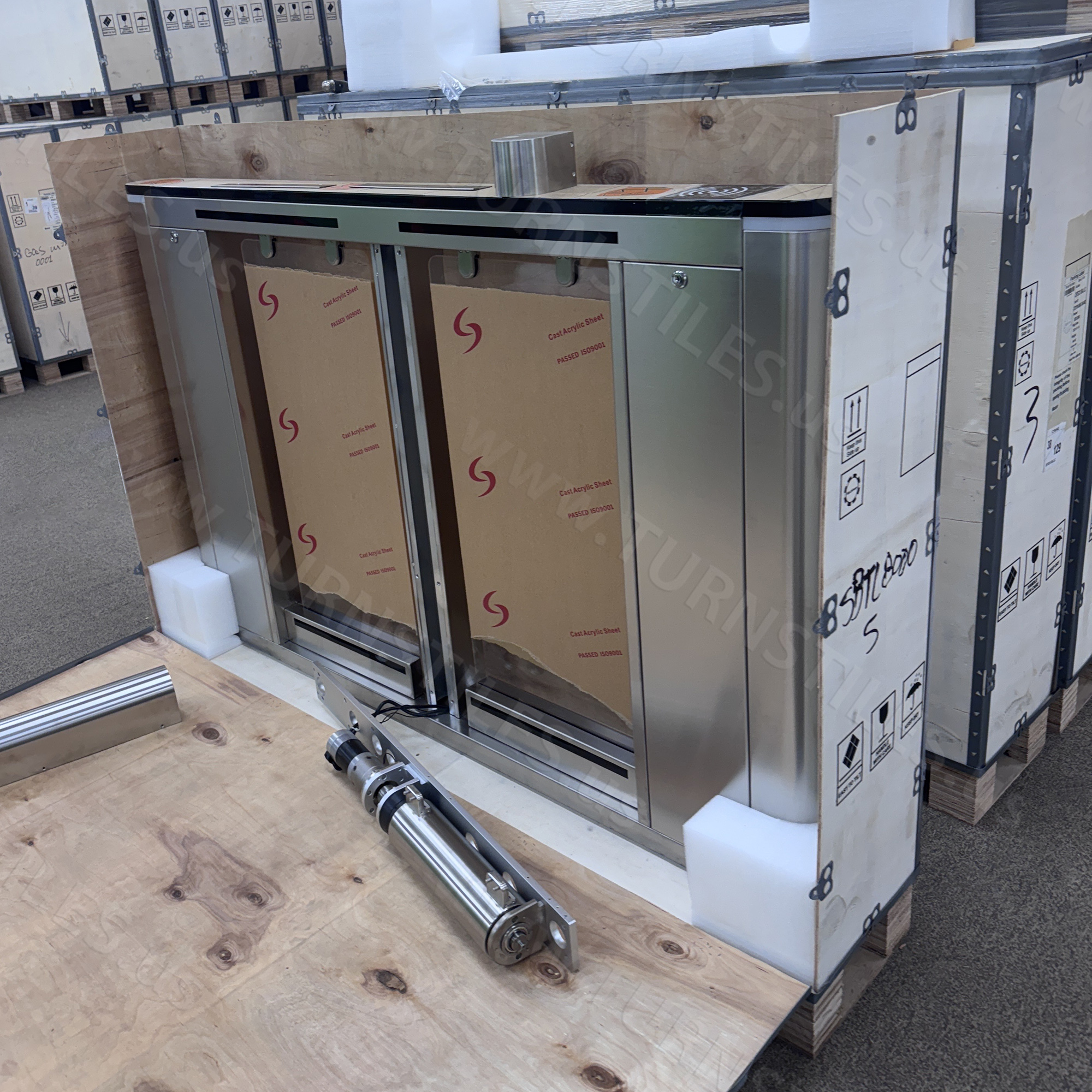

These units have the motor and doors removed, allowing the passage to be ADA compliant in width and to be mounted on existing power locations.
The optical sensors on the passages perform reporting, alarm, and redundant count functions, used with EntraPASS Global Edition Software.
Layout Drawings
Featured Equipment
Redundant Count Sensors
Sensor barriers are designed to detect the passage direction, protect the users, and detect illegal passages. Optical turnstiles typically have multiple IR Infrared sensors, invisible barriers that inform the MCP module about the user’s location in the passage lane. These can include anti-crush sensors in the middle, and also direction, safety level, and operation mode sensors.
A Redundant Count Sensor system can be added to provide a secondary occupancy count at the customer’s request.
With EntraPASS, this information and other reports can be collected and emailed daily.
Previous Concepts
* Concepts Below Not Used *Overlay of footprint of new turnstiles to existing power locations makes passage width no longer ADA *
Proposal #2025-303911
EQUIPMENT
(3) dGate SW/UW Swing Gate Optical Turnstile – Clear Low Glass Panels
(3) Redundant Counting Optical System
(3) Frosted Style Logos
(1) 18 AWG 4 Conductor Shielded Plenum Cable – 500 ft.
(4) Vellum Cabinet Footprint Template – 4 Pedestals
EntraPASS
(1) EntraPASS Global Edition Server All-in-One Computer
(3) KT-400 Battery Back-up with Power Supply
SERVICES
Concept Illustration
AutoCAD Equipment Detail and Dimensions
Point-to-Point Schematic
Remote Programming Assistance
Shipping and Crating
Installation:
(2) Factory Installers (2) Days Travel
(*) Days of Field Labor
(*) Tool Rentals
dGate Turnstile Installation Photos
