Security Entrance Buildings

Submitted to:
Justin J Peterson
Ahold Delhaize
Retail Business Services
Stop and Shop
Butner, North Carolina

Submitted by:
Patrick McAllister
www.TURNSTILES.us, Inc.
June – December 2022

The team at TURNSTILES.us is honored to provide our Turnstile Security Buildings to Ahold Delhaize. Please find the selected equipment information listed below. We appreciate the opportunity to secure ADUSA DC09 Butner, North Carolina.

ADUSA DC09 Butner, NC

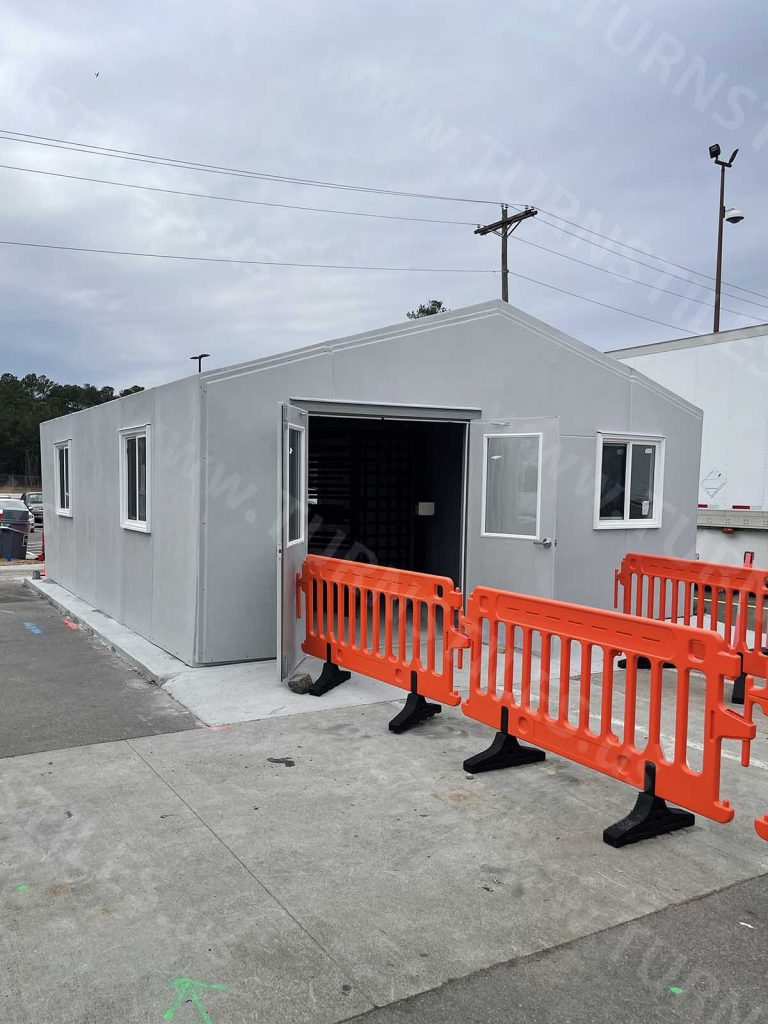

Installation Photos

Equipment Data - Butner, NC

Fiberglass Building

Security Fence

8ft Chain-Link (9-Guage Galvanized Link)
with Barbed Wire (2ft, 3 Row)
4500 PSI Concrete, 3 bags per post hole
(12' long - 3"diam posts, 6" holes, 48" recessed)

AutoCAD Details and Dimensions

Design Notes:
Self-supporting, modular building system is designed to withstand the maximum limits for wind and snow loads calculated according to the National Building Code of Canada and International Building Code. These maximum loads are: wind speed of 150 mph, snow loads of 50 lbs/sq.ft.
Modular Sections:
All component sections are sidewall and end wall panels. All component sections consist of a single molded piece made of solid fiberglass and have their own internal structural flange. Components are attached by the internal flanges using adhesive and steel fasteners.
Exterior Finish:
All exterior surfaces are orthopthalic polyester laminate with high quality ultra violet inhibitors and fire retardant fillers. Materials used meet the National Building Code of Canada and the International Building Code as approved for plastic material in construction.
Insulation:
Foam core panel R12, composed of 1″ polyiso insulation, interior fiberglass skin.
Caulking:
All exterior caulking is premium quality silicone sealant adhesive. All roof seams are taped with 4″ wide UV protected butyl roofing tape and sealed with a brush on silicone sealant coating.
Fastening:
All exterior fastening is 304 stainless steel and all interior fastening is zinc.
Base/Floor:
Building will be placed on concrete. Base provided by others.
Door /Window Schedule:
(1) 36″x84″ single fiberglass entry door with standard door hardware.
(2) 72″x84″ double fiberglass entry door with standard door hardware.
(3) 36″x36″ vinyl slider.

Dallas Entrance

* Dallas Entrance
(1) Estimated Security Fence: 145′
 — (75′ and 70′ segments)
(1) Skid with Auger and forks
(2) 1 yd 4500 PSI Concrete
(1) AG-30-TT Tandem Turnstile POG
(1) AG-36 ADA Gate POG
(1) Anti-Reach Barrier
(1) Climb over Inhibitor
(1) Fiberglass Security Building
(2) Sets of Double Doors
(1) Single Man Door
(1) Transaction Window
(2) Standard 3′ x 3′ Windows
(1) HVAC AC and Heat Pump
(4) LED Lighting
(1) Custom Counter Top
(1) Electrical Supplies

Freezer Entrance

* Freezer Entrance
(1) Estimated Security Fence: 680′
— (700′ minus shack (-20′))
(1) Skid with auger and forks rental
(1) 1 yd 4500 PSI Concrete
(1) AG Tandem Turnstile POG
(1) AG-36 ADA Gate POG
(1) Full Height Filler Barrier
(1) Anti-Reach Barrier
(1) Climb over Inhibitor
(1) Fiberglass Security Building
(2) Sets of Double Doors
(1) Single Man Door
(1) Transaction Window
(2) Standard 3′ x 3′ Windows
(1) HVAC AC and Heat Pump
(4) LED Lighting
(1) Custom Counter Top
(1) Electrical Supplies

Front Entrance

* Front Entrance Building
(1) AG-30-TT Tandem Turnstile POG
(1) AG-36 ADA Gate POG
(1) Anti-Reach Barrier
(1) Climb over Inhibitor
(1) Fiberglass Security Building
(2) Sets of Double Doors
(1) Single Man Door
(1) Transaction Window
(2) Standard 3′ x 3′ Windows
(1) HVAC AC and Heat Pump
(4) LED Lighting
(1) Custom Counter Top
(1) Electrical Supplies

Front Fence

*Front Entrance Fence
(1) Estimated Security Fence: 735′
— (570′ and 165′ segments)
(1) Skid with Auger and forks
(1) 1 yd 4500 PSI Concrete

Service and Installation

* Service
Shipping and Crating
Provide 2D PDF AutoCAD Equipment Detail and Dimensions
Provide Electrical Requirements Riser Diagram
Field Labor
(2) Factory Installers
(42) Days of Field Labor
(4) Days Travel

*Note: Fence Supplier Recommends adding 10-15% more linear feet than estimated to cover a margin of error during installation.
* Electricity and conduit to be brought to base of equipment by customer.
* Area beneath turnstiles shall be a flat even surface.

Previous Designs

Fiberglass Building Security Office w/ Double Workstation

Custom Guard Station

5/5

TURNSTILES.us Advantage

We are a One Stop Shop

  • We provide Turn-Key Service with Value-Added Engineering
  • We provide Access Control Elements integrated with the Turnstiles
  • 32 Years of Experience
  • Pride in Craftsmanship
Kennedy Tank - University of IL
Kraft Heinz - Fort Smith, AR
Stop and Shop - Assonet, MA
Brakebush Irving - Irving, TX

We appreciate the opportunity to work with you on this project.
