Description

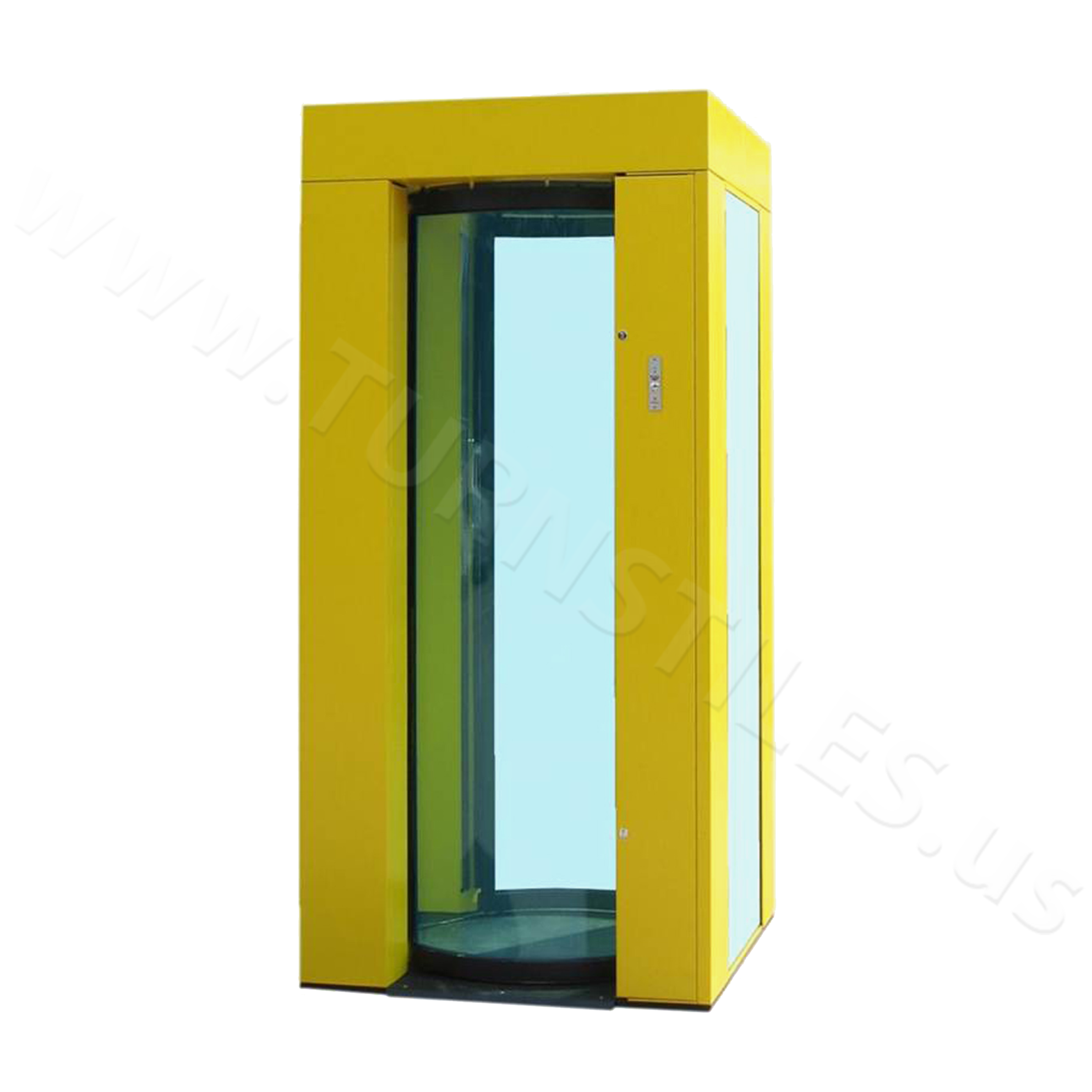

The Citadel Security Portal from TURNSTILES.us is a high‑security, full‑height interlocking door system designed for access control in sensitive or restricted areas. It functions as a biometric‑ready mantrap, enforcing strict entry protocols by verifying identity and securing both doors in sequence.
Constructed with durable materials and with bullet‑resistant glass, the portal is ideal for data centers, defense facilities, and any environment requiring controlled, one‑person‑at‑a‑time entry.
The system supports a wide range of integrations including card readers, biometrics, video intercoms, and emergency controls, with tamper detection and a programmable PLC logic controller. Available in ADA‑compliant configurations and multiple finishes, the Citadel is engineered for architectural compatibility and long‑term performance.
Data Sheet – Citadel Security Portal
FEATURES
- Multiple size configurations (narrow / standard / wide)
- Interlocking Full‑Height Doors: Only one door opens at a time
- Anti‑Tailgating Sensor System with true one‑person volumetric detection
- Designed for configuration with any access control system
- Top-hung curved sliding doors with recessed bottom guide
- Doors fitted with self-adjusted braking, speed control, and accident prevention detection
- Battery backup for uninterrupted operation during a power failure (100 up to 1,000 cycles)
- Digital display menu-guided command and setting console
- Intercom, voice prompts, and indicator lights
- Compatible with all types of access control systems
- CONSTRUCTION
• 20mm thick portal floor (no need for the floor to be recessed)
• Demountable powder-coated mild steel frame (for ease of transport)
• Demountable stainless steel frame (option)
• Sides fitted with bullet-resistant glass (steel sides on request) - DOOR COMPONENTS
• Automatic door operator (24VDC) with reversible option for manual opening in case of total power loss
• Doors fitted with bullet-resistant glass - INDICATORS AND LIGHTING
• LED traffic light
• Low-voltage ceiling downlight
ADDITIONAL OPTIONS
- Volumetric left object detection system (optional extra)
- Built-in metal detector (optional extra)

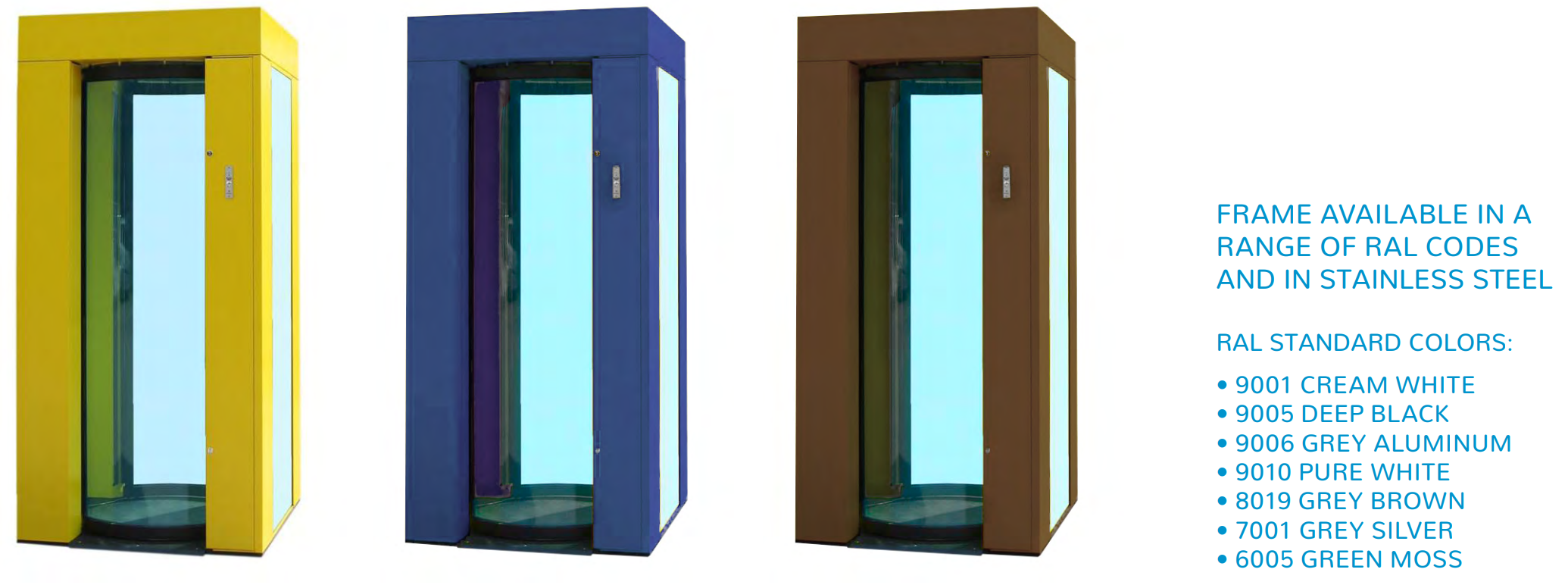

FINISH OPTIONS
- Structured powder coated mild steel (specify RAL code – standard)

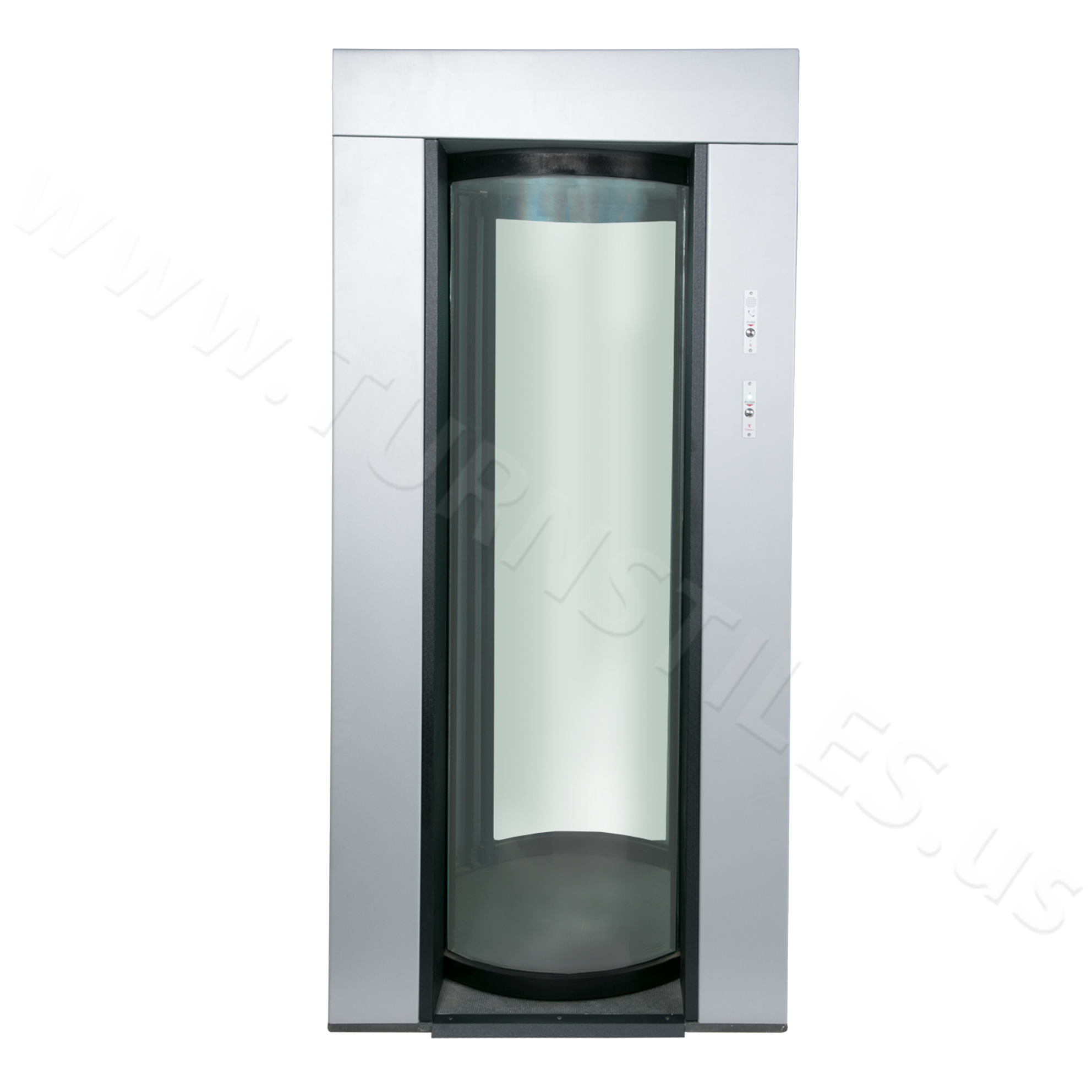

- 304 grade brushed stainless steel

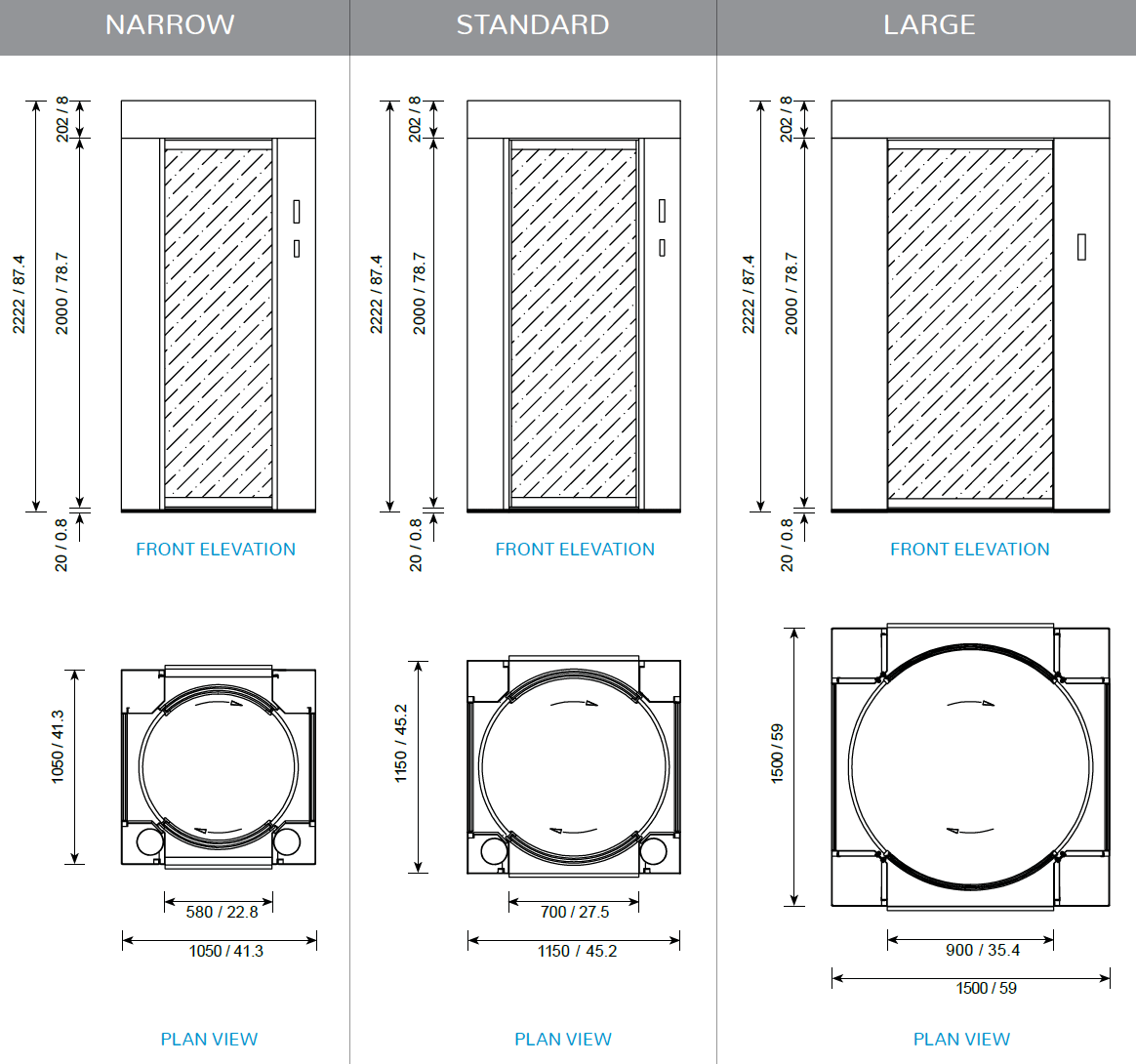

DRAWING & DIMENSIONS
APPLICATIONS
- Ideal in high-value or critical security areas
- Government and Military Installations
- Airports and Border Control Stations
- Data Centers and Server Rooms
- Financial Institutions
- Laboratories and Research Facilities
- Correctional and Psychiatric Institutions
INSTALLATION
- For interior and covered exterior installations
- Free standing structure which can be installed into a new or existing shopfront
- Fixing surface is to be level
Full-Service Installation available!
*Price is Equipment Only. Estimated shipping is calculated at checkout and final amount will be billed separately at time of shipment. Lead times apply.
*Final details will be signed off by client before fabrication. Contact us with any questions!
*Ships worldwide from our South Africa manufacturing center.
