Description
Multi-Function Communication Interface

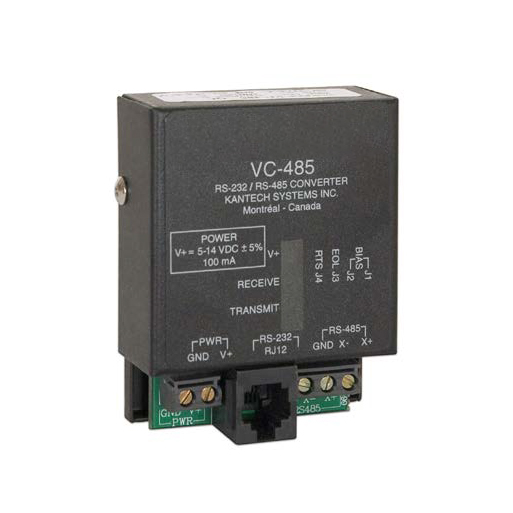

The VC-485 Communication Interface is an RS-232/RS-485 protocol converter primarily used to connect a PC to a KT-100/ KT-200/ KT-300 controller. The maximum bus length is 5 km (18,000 ft, when line repeater is used) and 1,200 m (4,000 ft) for EntraPASS when using Ethernet Grade 3, unshielded, two twisted pair cable (Belden # 1227A recommended). Two VC-485’s may be connected back-to-back to be used as a line repeater in order to extend the RS-485 communications bus.
FEATURES
- Converts RS-232 to RS-485
- Supports up to 32 KT controllers
- Uses UTP cable
- Powered by 5 VDC or 12 VDC
- Extends communication up to 1,200 m (4,000 ft)
- Extends communication up to 5,486 m (18,000 ft) by connecting two together
- Two VC-485s may be connected back-toback to extend the RS-485 communication bus
