Description
Network Connection Made Easy

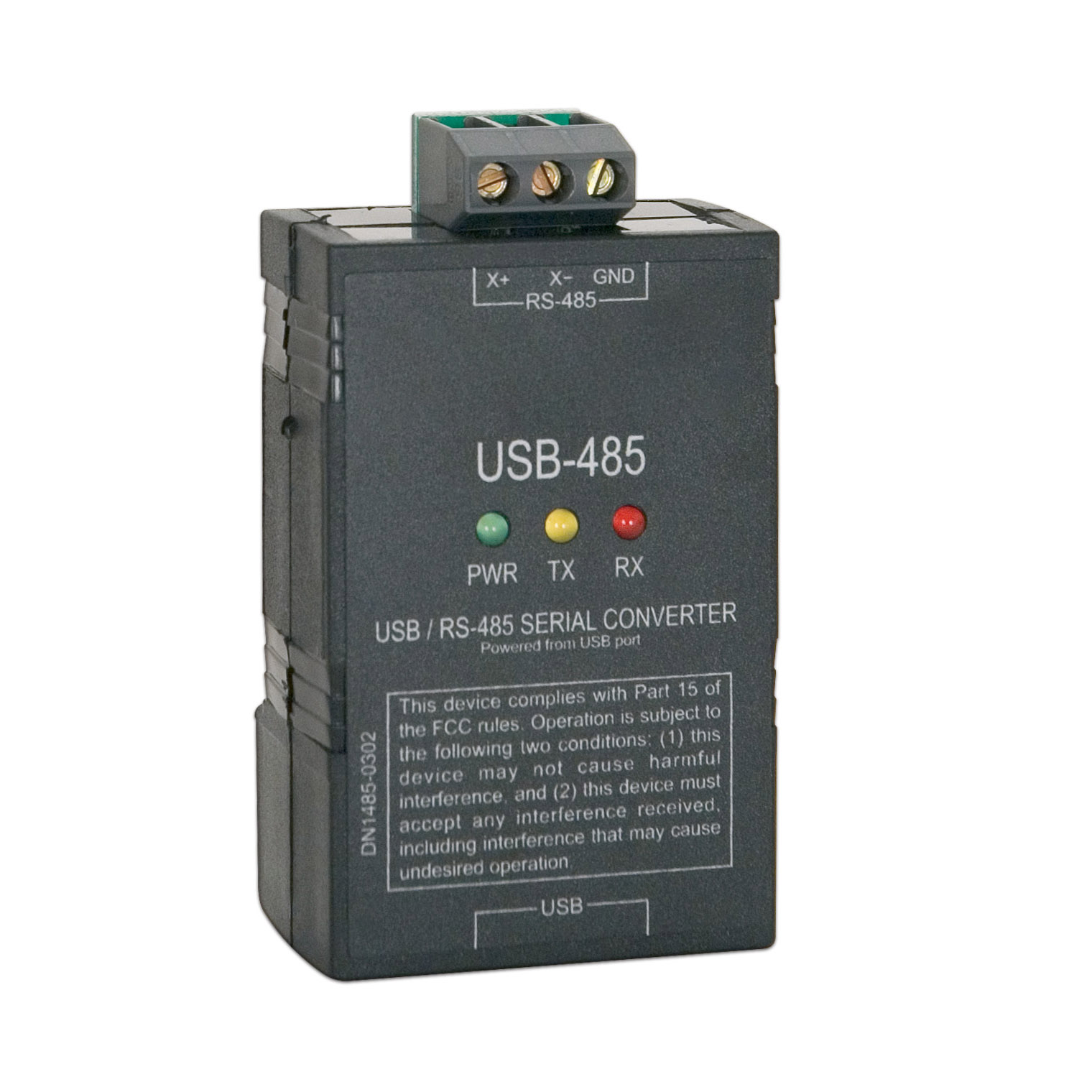

The USB-485 Communication Interface is a protocol converter used to connect a PC’s USB port to the RS-485 input on your KT controller KT-1/KT-200/KT-300/KT-400. The maximum bus length is 1,200 m (4,000 ft) when using an Ethernet Grade 3, unshielded, two twisted pair cable. Belden # 1227A is recommended. (Also please note the KT-300 is obsolete as of 2023. We recommend using the KT-400 in most cases.)
FEATURES
- Converts USB to RS-485
- Supports up to 32 Kantech controllers
- Uses unshielded twisted pair (UTP) communication cable
- Supports Windows Server 2008 R2 Standard/Enterprise, Windows Datacenter 2012 (X64), Windows 10 Enterprise, Windows 8.1 Enterprise x86 and x64, Windows 7 Pro
- Enterprise/Ultimate (32- and 64-bit versions)
- Powered by USB port
- Extends communication up to 1,200 m (4,000 ft)
