FIT Waist-High Tripod Turnstile

Please Login for Pricing

The FIT waist-high, three-arm (tripod) turnstile has a slim pedestal base and rotating arms that allow one person to pass at a time. It is a great, cost-effective option. This model stands out for being simple, versatile, and highly reliable in a unique and a small footprint, attractive design. The unit was specially developed to ease the integration with other onboard security peripherals.



Login or Sign Up

Description

The FIT waist-high, three-arm (tripod) turnstile has a slim pedestal base and rotating arms that allow one person to pass at a time. It is capable of integration with access devices such as a card reader, code reader, payment, or ticket machine. This unit presents versatility and ease of integration with other safety components, is suitable for outdoor environments when under shelter, and fits any budget.

Data Sheet  – FIT Tripod Turnstile

FEATURES

  • Reliable pedestal turnstile with three-arm swivel mechanism
  • Electromagnetic locks and optical sensors are used to activate the locks,
    preventing mechanical wear and increasing the life of the equipment.
  • Ease of integration with other access control technologies.
  • Versatile equipment, with excellent performance and low cost.
  • Slotted top cover for barcode reader and a stainless steel plate that
    allows configurations to mount display, keyboard, proximity card reader, or biometric reader.
  • The angle of opening of the arms (90º) allows smooth rotation and softens the impact on the
    person after the passage.
  • Black pedestal and rotator, steel arms

OPTIONS

  • Light Kit with LED Indicator Lights
  • Electronic counter for ticket registration.

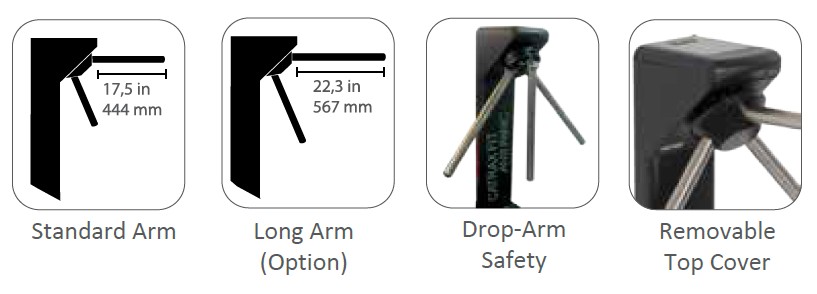

  • Anti-panic feature with disarming the arm (arm-that-falls).
  • Slot for barcode or magnetic card readers.
  • Card collector safe.

ACCESS CONTROL OPTIONS

  • Access control card model MCA – TCP / IP.
  • Barcode reader with slot for badge pass.
  • Multibeam barcode reader – entry approach.
  • 2D code reader (two-dimensional).
  • Wiegand / Abatrack proximity reader – HID / Indala / Acura.
  • Mifare reader.
  • Biometric reader, facial recognition

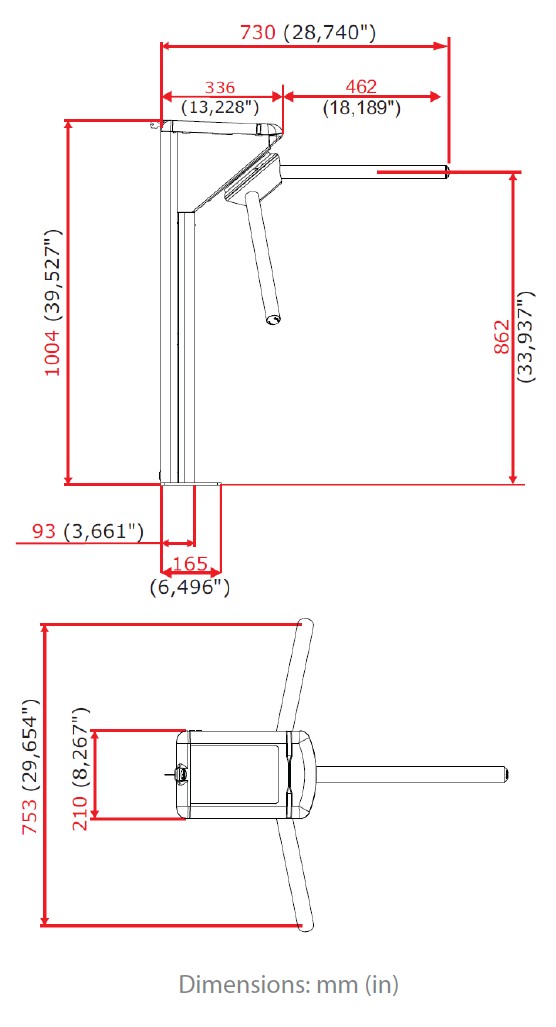

DRAWING & DIMENSIONS



INSTALLATION

Installation Services Available
See our portfolio of work Here



Additional information

Weight 160 lbs
