Description

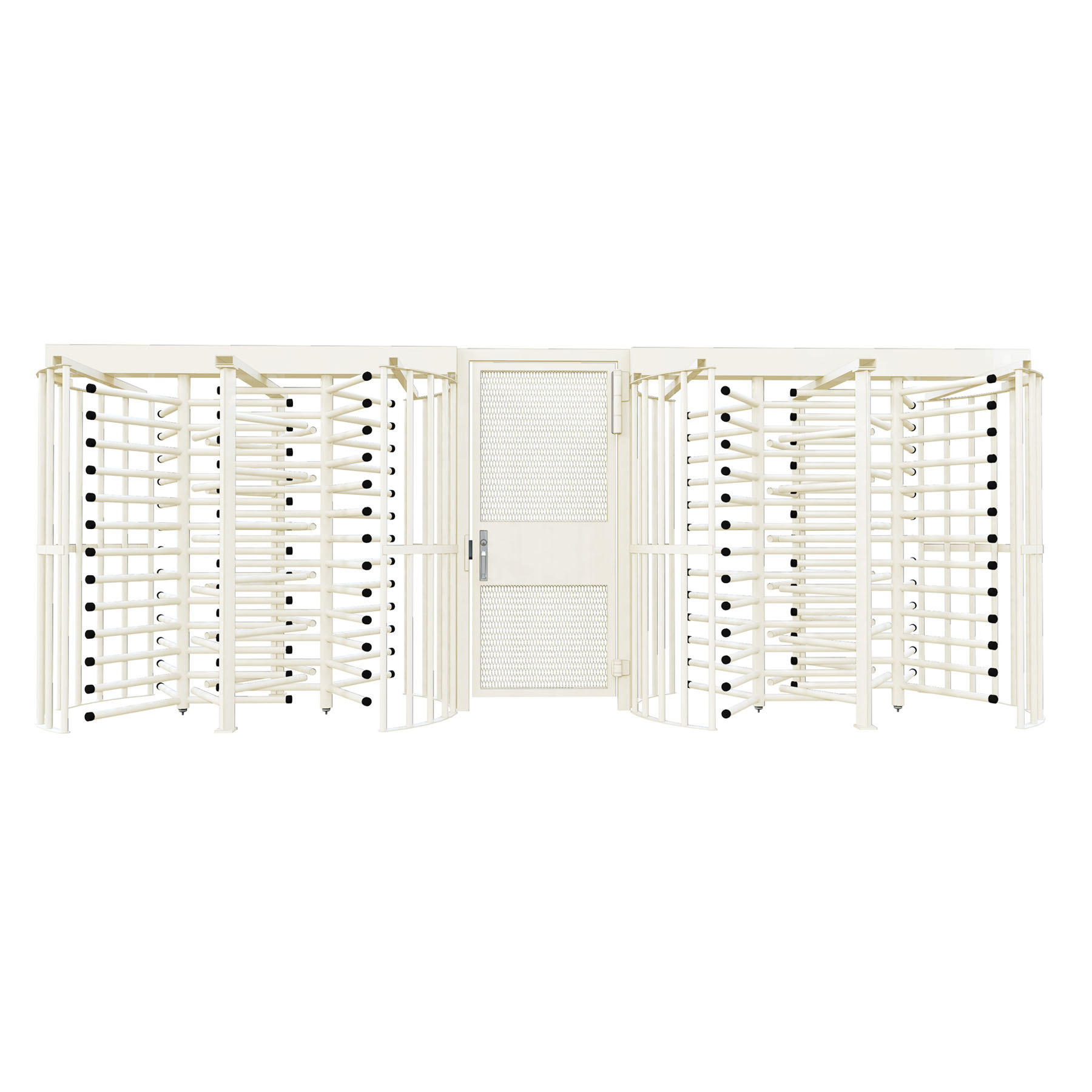

Full Height Turnstiles and ADA Gates are some of our most popular items and are frequently purchased together. This heavy-duty, high-security turnstile and ADA gate set provides controlled access when entering or exiting a facility and is compatible with our access control systems and accessories. The standard arrangement places the gate in the center of two turnstiles, for symmetry and stability. Choose more options below or contact us to customize your array.
FEATURES
- (QTY 2) Full-Height Tandem Turnstiles
- Electric 2-Way
- 30″ Passage Width
- 1.5″ Diameter Tubing
- Powder Coated Finish, choice of color (Upgrade to Powder Coated over Galvanized)
- Black End Caps
- Bidirectional Key Override
- Card reader mounting plates
- Tandem Turnstile Dimensions
- 59.1″ Depth
- 102″ Width
- 91″ Height
- Shipping Weight (alone): 1225lbs
- Shipping Dims (alone): 106 x 51 x 54in
- (QTY 1) Full-Height ADA Gate
- Strike Lock and Push Bar Exit
- 36″ Passage Width
- Powder Coated Finish, choice of color (Upgrade to Powder Coated over Galvanized)
- Security mesh infill
- Dimensions
- 3″ Depth
- 43.375″ Width (including frame)
- 91″ Height
- Shipping Weight (each): 490lbs
- Shipping Dims (alone): 105 x 51 x 54in
- (QTY 2) Anti-Reach Barriers
- COMBINATION Shipping Data
- HS430-T (2) & HS336-ADA-MS (1)
- Weight: 2940+lbs
- Turnstile and gate have channels for wiring between them
- Use on a fence line, in an entry or hall, indoors or outdoors
- Made in the U.S.A.
OPTIONS
- Add Accessories
- Upgrade Finish
- And More!
INSTALLATION
Each turnstile and gate is an individual piece, so they may be arranged in any configuration that best suits your space. The most common layout is two turnstiles flanking an ADA gate in the center. This setup provides visual symmetry, and the turnstiles help structurally support the gate. Additionally, a cable chase runs through all frames at the top, which makes side-by-side installation convenient. Please note that ADA code requires the accessible gate to be located within 10 feet of a turnstile, so the gate should remain within that range.
Above: Custom colors on our installation of 2 tandems and 1 gate.
Contact TURNSTILES.us for installation information.
See our turnstile installation portfolio here.
*Please note the price listed is equipment only, and freight will be charged separately. Please contact us for a freight quote.
