Description

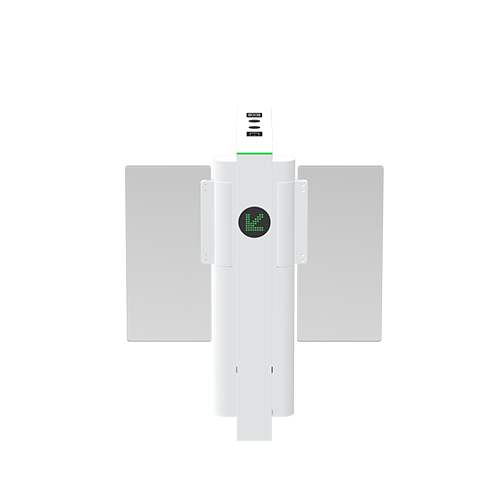

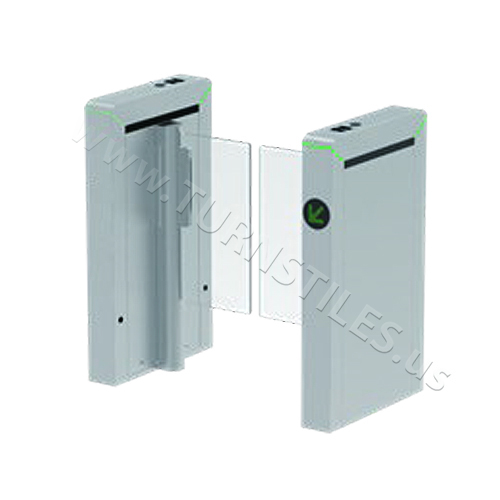

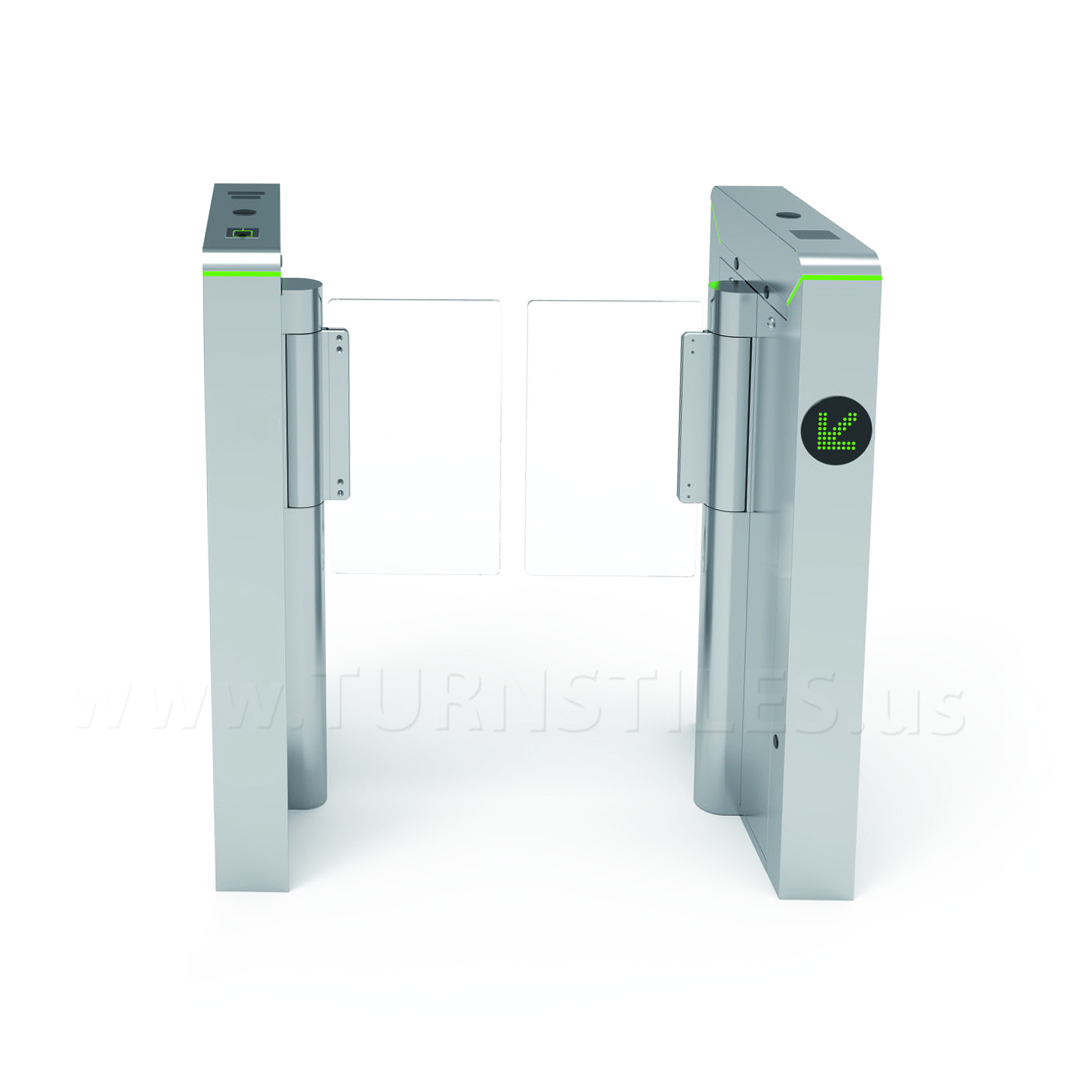

The MARS-S100 Compact Optical Turnstile combines sleek architectural styling with intelligent access control in one of the industry’s most space-efficient optical turnstile designs. Designed for modern office buildings, educational facilities, healthcare environments, and commercial entrances, the MARS-S100 provides smooth, secure pedestrian access while maintaining an open, welcoming appearance.

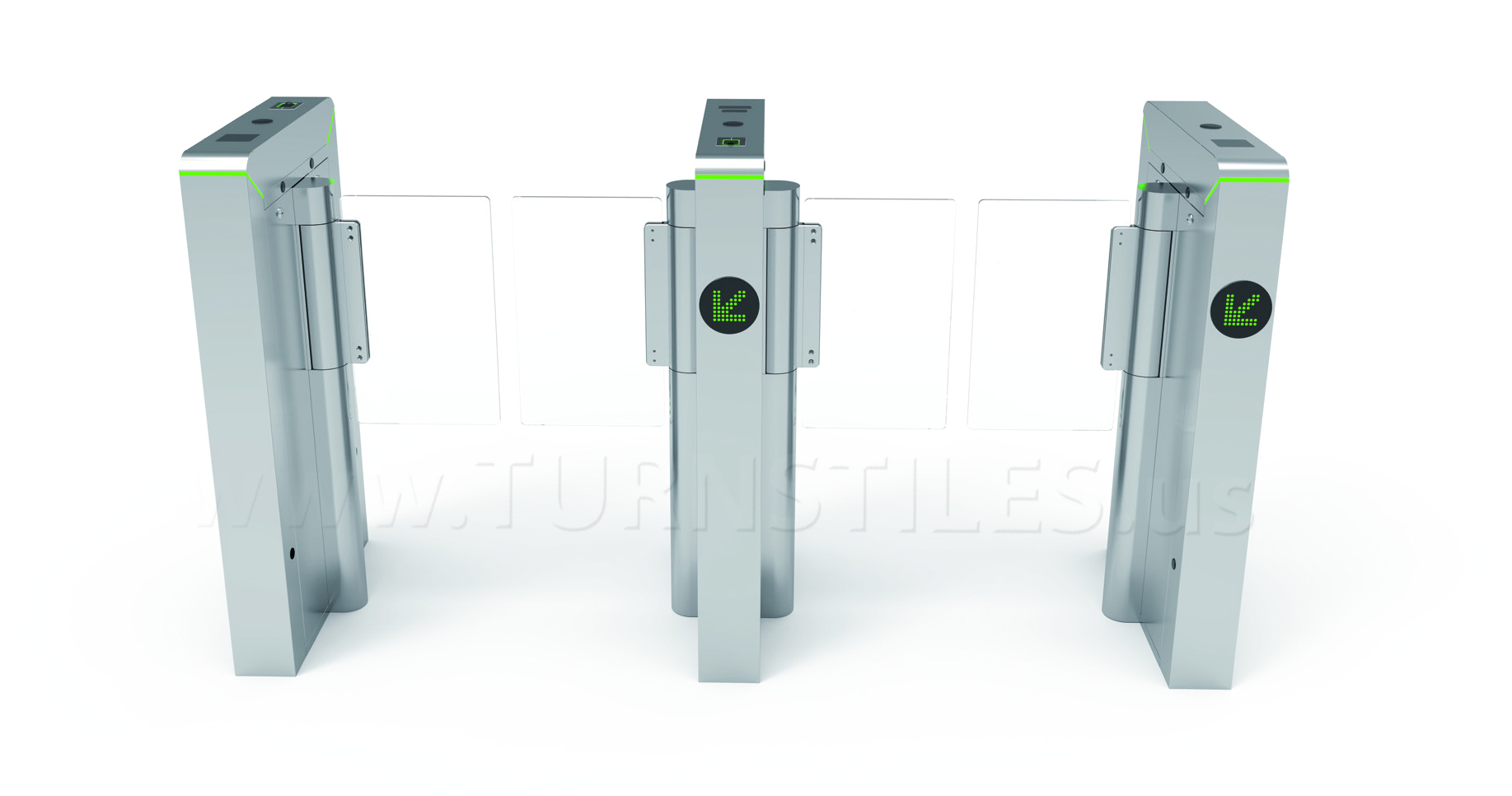

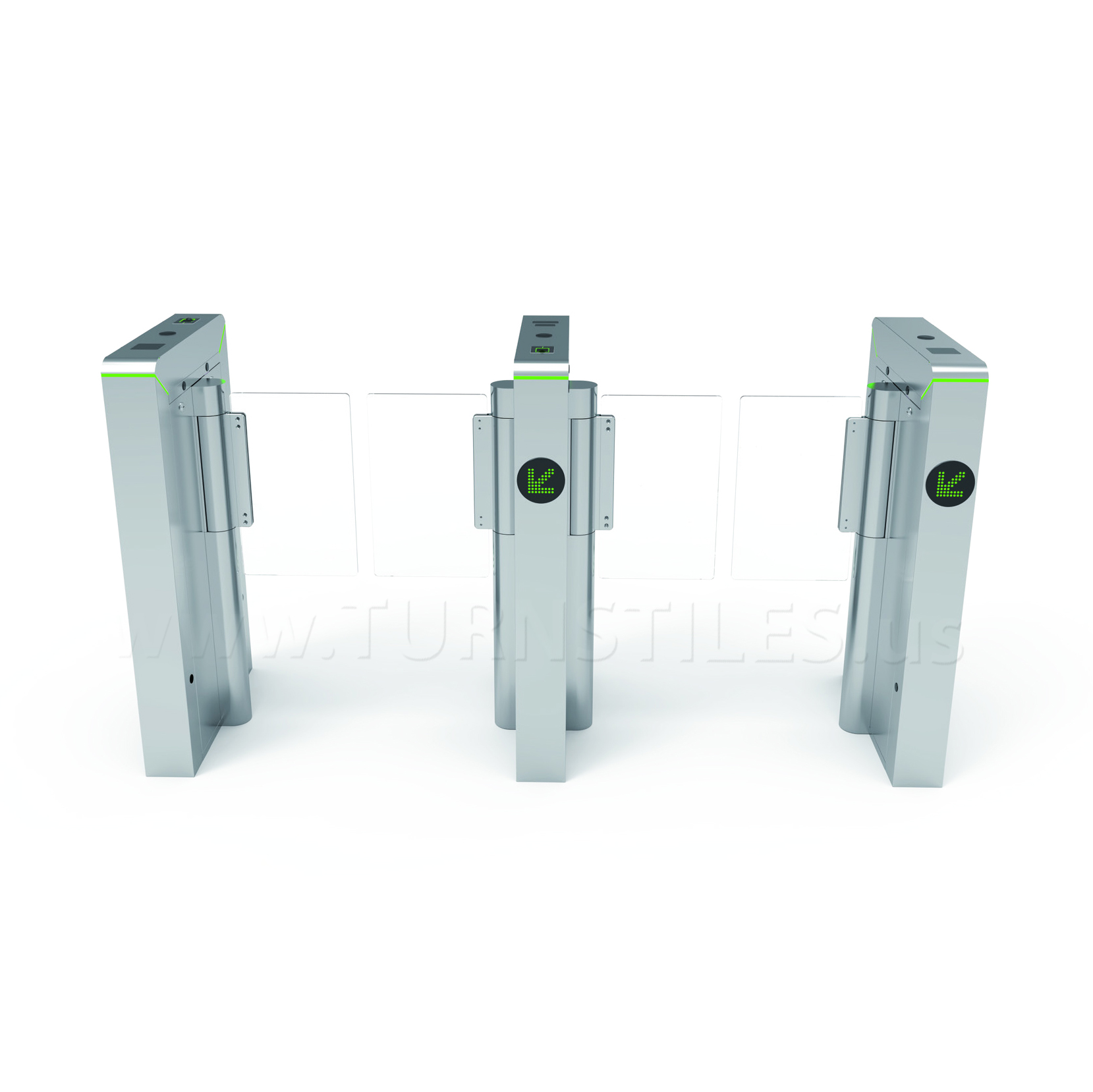

Its compact cabinet design allows installation in locations where traditional speed gates may not fit, making it an excellent solution for narrow lobbies and retrofit projects. The single-lane MARS-S100 may be installed individually or paired with additional lanes using the MARS-S120 expansion cabinet for wider entrance configurations.
Powered by a quiet DC brushless motor, the MARS-S100 delivers smooth swing barrier operation with intelligent infrared sensing to help prevent unauthorized entry, tailgating, and wrong-way passage. Emergency free-egress mode automatically unlocks the barriers during fire alarm activation or power loss for life safety compliance.
Designed for flexibility, the MARS-S100 integrates with virtually any modern access control system, including RFID card readers, QR code readers, biometric readers, mobile credentials, and visitor management platforms. A wide range of finish options and access technologies allows the system to be tailored to virtually any project.
Manufactured using durable welded steel construction with a premium powder-coated finish, the MARS-S100 is engineered for long-term reliability in high-traffic commercial environments.
DOCUMENTATION:
KEY FEATURES
- Compact footprint
- Elegant architectural design
- Up to 30 users per minute
- Brushless DC motor
- Four pairs of infrared safety sensors
- Anti-tailgating detection
- Wrong-way detection
- Anti-pinch safety protection
- Emergency free-egress
- Supports RFID, QR, fingerprint & facial recognition devices
- Access control system compatible
- ADA lane option
- Indoor or sheltered outdoor installation
OPTIONS

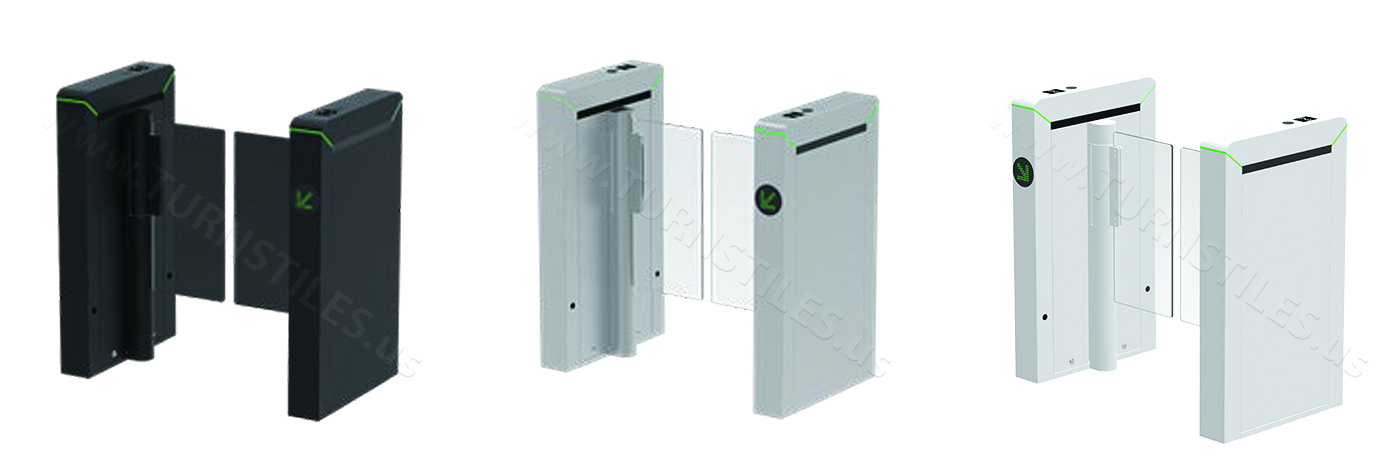

- Color Choice:

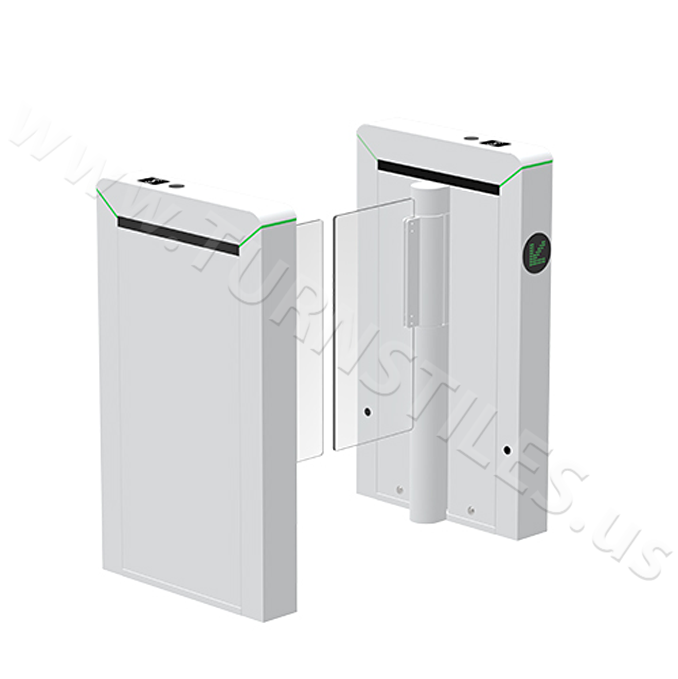

- Matte White

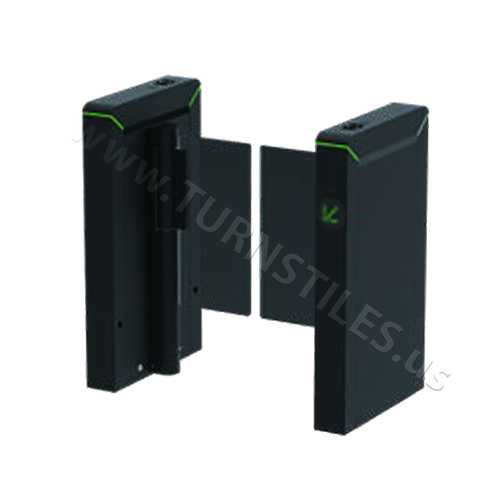

- Matte Black
- Stainless Steel

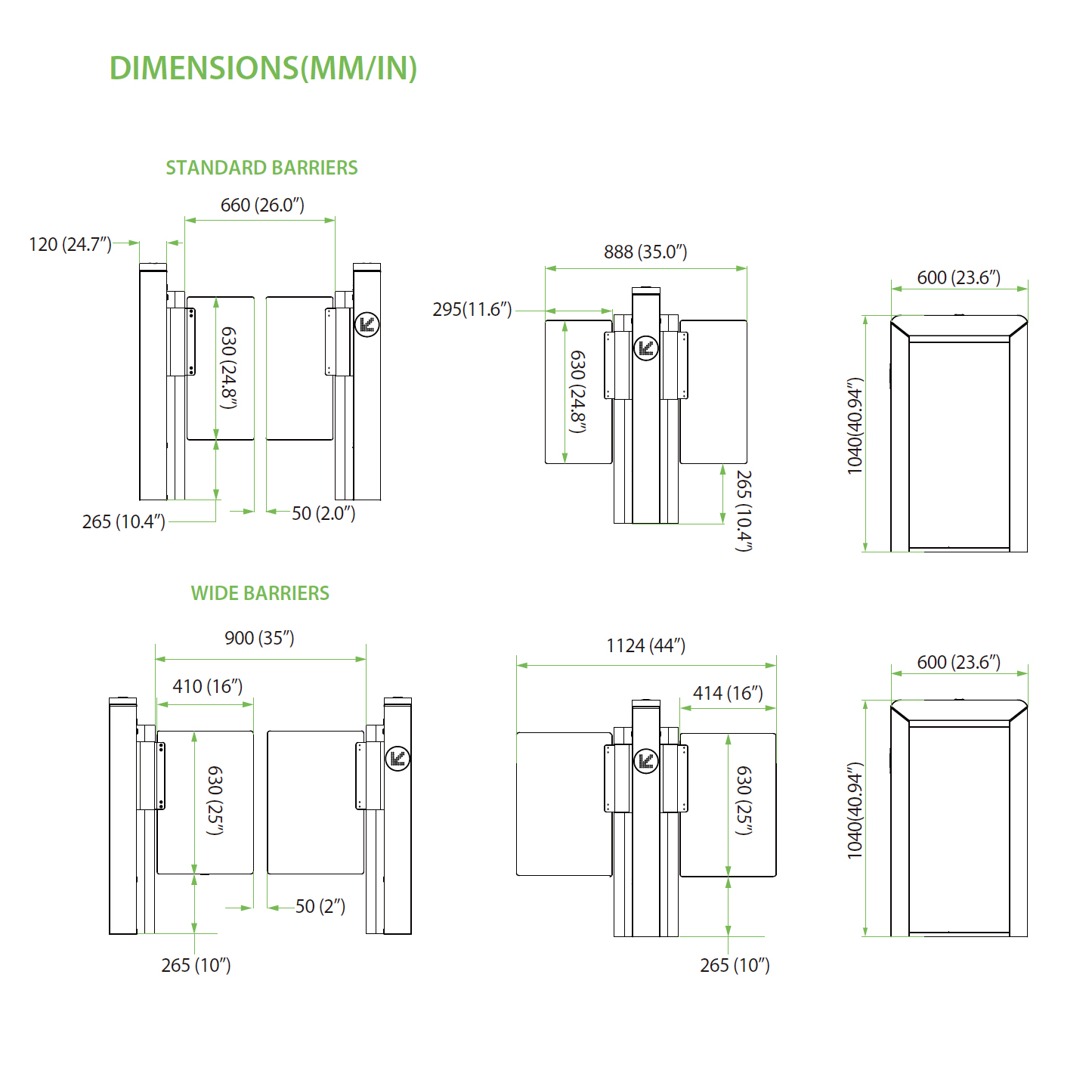

DRAWING & DIMENSIONS
SPECIFICATIONS
| Specification | Details |
|---|---|
| Power Requirements | AC 100 ~ 120V / 200 ~ 240V, 50 / 60Hz |
| Working Temperature | -28 °C ~ 60 °C |
| Working Humidity | 5% ~ 95% |
| Working Power | 50W running / 22W Stand by |
| Lane Width | Standard 600 mm / 23.6 in | ADA Width 900mm / 35 in |
| Audio Indicator | 60db, alarm volume adjustable, internal buzzer |
| Infrared Sensor | 4 pairs (high and low position) |
| Barrier Movement | Swing, speed 0.8seconds per movement (open/close timing) |
| MCBF | 5 Million Cycles |
| Drive Unit | Brushless DC Servo Motor |
| LED Indicator | Steady Red=Door closed / Steady Green= Normal use |
| Emergency Mode | Supported |
| Cabinet Dimensions (LxWxH) | 600 x 120 x 1040mm / 23.6 x 4.7 x 40.9 in |
| Dimension with Packing (LxWxH) | 762 x 730 x 1215mm/ 30 x 28.7 x 47.8in – 762 x 362 x 1215mm/ 30 x 14.3 x 47.8in |
| Package Weight | Varies by model |
| Net Weight | 50kg/110lbs 30kg/66lbs |
| Weight with Packing (kg) | 64kg / 141lbs 40kg / 88lbs |
| Cabinet Material | Cold Rolled Steel (Powder Coated) or Optional Stainless Steel Finish |
| Color Number | White RAL9003, Black RAL9005, or Stainless steel color |
| Barrier Material | Acrylic |
| Packing Material | Wooden Case |
APPLICATIONS
- Corporate Offices
- Commercial Buildings
- Healthcare Facilities
- Universities & Schools
- Government Buildings
- Financial Institutions
- Fitness Centers
- Data Centers
- Reception Areas
- Visitor Entrances
INSTALLATION

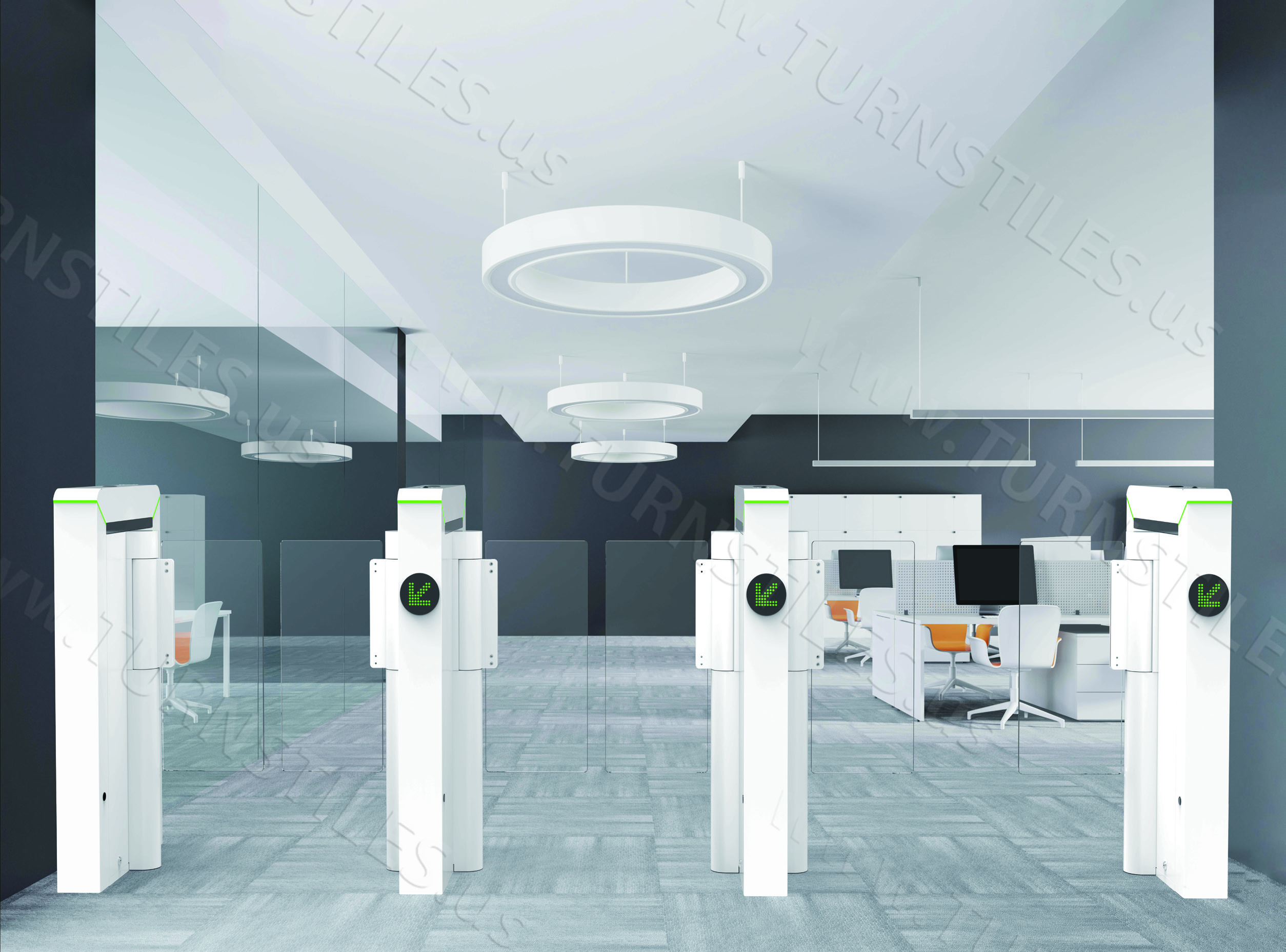

See product photos for installation examples. Installation Services are Available in your area!
