Description
Introducing the mTS1000 Bi-directional Tripod Turnstile – the ultimate access control solution for seamless entry and exit management. Crafted with durable SUS304 stainless steel housing, the mTS1000 ensures longevity in any environment, whether indoors or outdoors (if sheltered). Its compact design saves space and offers a cost-efficient solution for various settings. Featuring an LED pictogram, users benefit from clear directional guidance, enhancing ease of use. With a high throughput rate, the mTS1000 enables swift passage, optimizing traffic flow. Installation is a breeze, and emergencies are handled efficiently with the arm drop function, activated via wireless remote control. Customize your access control with additional options like Code/QR Reader, RFID Prox Card Reader, or Fingerprint Reader. Experience unparalleled convenience and security with the mTS1000 Bi-directional Tripod Turnstile – your trusted access control companion.
FEATURES
- 304 stainless steel housing
- Bi-directional tripod turnstile with arm drop function
- LED pictograms for intuitive user experience
- High throughput in both directions
- High quality at an affordable price
- Low power consumption
- Wide range of accessories
- Easy and simple installation process
- Easy to maintain and monitor
- Drop-arm safety function upon power-off
SPECIFICATIONS mTS1000
Power Requirements: AC 110V/220V, 50/60Hz
Power Consumption: Running: 40W; Standby: 10W
Operating Temperature: -18°F to 140°F (-28°C to 60°C)
Operating Humidity: 5% to 80% RH
Operating Environment: Indoor/Outdoor (when sheltered)
Speed of Throughput:
- RFID: Maximum 25 per minute
- Fingerprint: Maximum 20 per minute
Lane Width: 478 mm (18.75”)
Arm Length: 478 mm (18.75”)
Footprint: 250 × 138 mm (9.75” × 5.5”)
Dimensions (L × W × H): 798 × 750 × 950 mm (31.5” × 29.5” × 37.5”)
Package Dimensions (L × W × H): 380 × 450 × 1150 mm (15.0” × 17.75” × 45.25”)
Net Weight: 35 kg (79.4 lbs)
Weight with Packaging: 40 kg (89.0 lbs)
LED Indicator: Yes
Control System Input: Controlled by dry contact
Cabinet Material: SUS304 (optional SUS316)
Lid Material: Acrylic
Barrier Material: SUS304
Barrier Movement: Rotating
Emergency Mode: Yes (power-off drop-arm)
Security Level: Medium
MCBF (Mean Cycles Between Failure): 2 million cycles
Options / Accessories: Card box, remote control, QR reader
Certifications: CE, FCC
DRAWING & DIMENSIONS

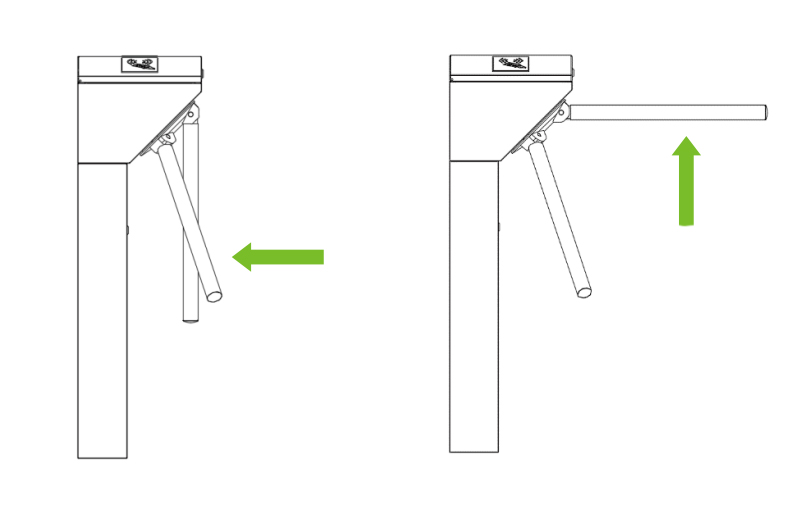

- The barrier arm can automatically drop during a fire alarm. This requires a signal from an external fire control relay, which connects to port J6 on the turnstile control board.
- When the arm of the mTS1000 is lowered, it fully retracts within the cabinet’s clearance.
- Fire Control Relay (FCR): The J6 port connects to the fire control relay/drop-arm. The relay can be installed anywhere inside the cabinet, as there is no designated mounting location. Refer to the installation guide for additional details.
INSTALLATION
Installation Services Are Available!
See our portfolio of work Here
*Please note: Freight is not included and will be billed separately. Contact us for a quote.
