Description

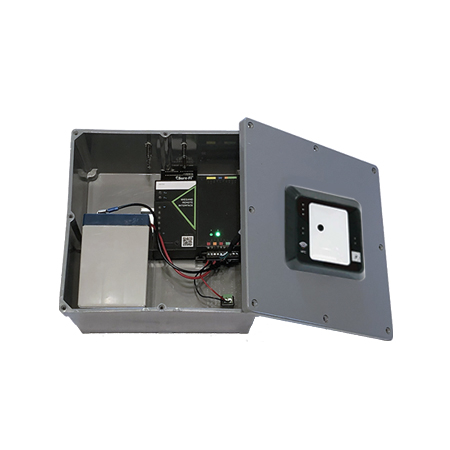

The Wiegand Wireless Portable Access Kit with QR Reader allows people to scan in code credentials easily for temporary and short-term access control requirements. The system can transmit Wiegand data and/or a relay signal up to one mile with obstructions and 50 miles plus line-of-sight. Save time and money with access control accessories from TURNSTILES.us.
Data Sheet – Wireless Weigand Bridge
Data Sheet- USA QR Code Reader
KIT INCLUDES:
- 1 – Portable Weigand Box
- 1 – Wiegand Wireless Bridge System with one Controller and one Remote Interface
- 2 – 12V 2.5A Output Power Supplies with 100-240, 277 VAC Input
- 2 – 6 foot power cords
- 1 – Sure-Fi Screwdriver
- 1- QR Code Reader
- 1 – Battery
- 1 – Power Supply
Features and Benefits
- Perfect for temporary structures and short-term access control requirements
- No need to run a wire or dig trenches to extend past the reach of your access control system
- Connect keypad to any existing Wiegand Access Control System
- Includes one Wiegand Wireless Bridge system
- Runs off of a battery (additional) for All Day Use. Plug in to charge overnight
- Range up to one mile through obstructions
- Up and running with ease in minutes
- Competitive with the true cost of wiring for all job types (easy and difficult wire pulls)
- Relays suitable for multiple applications, turnstiles, and door locks
Specifications
- Works with Any Wiegand protocol up to 64 Bits
- 1 Wiegand inputs
- 2 relay outputs (Wet or Dry)
- Request to exit input (REX)
- Door monitor input (DPS)
- OPERATING VOLTAGE:
12VDC (9VDC tp 15VDC) - OPERATING CURRENT (@12VDC):
0.08A (idle), 0.3A (transmit) - OPERATING POWER (@12VDC):
3.6 Watt (peak) - TRANSMIT POWER:
1 Watt (30dBm) - FREQUENCY BAND:
902 – 928MHz - CHANNELS:
72 (Frequency Hopping) - RECEIVER SENSITIVITY:
-133dBm - LINK BUDGET:
163dB - RANGE:
Up to 1 mile through obstructions and
50+ miles line-of-sight - ENCRYPTION:
AES128 - BATTERY BACKUP CONNECTION:
12V Sealed Lead Acid (SLA) type only - BATTERY CHARGE VOLTAGE:
13.75V maximum at standby - RELAYS:
2A 250VAC / 2A 250VDC wet or dry
NO, NC, COM (x2) - OPERATING TEMPERATURE:
-40 F to +185 F (-40 C to +85 C) - STORAGE TEMPERATURE:
-67 F to +257 F (-55 C to +125 C) - MOUNTING OPTIONS:
DIN (35mm x 7.5mm) or directly
mount with two screws
