ProCapture-X Fingerprint Access Control Reader

$ 1,200.00

Description

The ProCapture-X Fingerprint Access Control Reader is a POE fingerprint access control terminal with the most advanced SilkID technology, which not only possesses an outstandingly high identification rate towards dry, wet, and rough fingers, but also provides the utmost security with its live finger detecting capability. The device is designed in horizon style design and is equipped with a touch keypad, which provides a superior interaction experience. It also offers flexibility standalone installation or with any third-party access control panel that supports standard Wiegand signal. TCP/IP, RS485, and Wi-Fi (Optional) are available so that the device can be used in different networks.

Data Sheet – ProCapture-X

FEATURES

  • Modern Design & Interactive UI
  • Revolutionary SilkID Fingerprint Sensor
  • Multiple Verification Modes: Fingerprint / 125 kHz Card / PIN Password
  • Alive Finger Detection
  • Outstanding Performance With Dry, Wet and Rough Fingers
  • Can be used standalone or with Access Control Panel
  • Supports PoE (Power over Ethernet)
  • Wireless Network with optional Wi-Fi Connection
  • Size: 8″x 3.5″x1.15″

SPECIFICATIONS

Capacity:
Fingerprint: 20,000
Card: 50,000
Transaction: 500,000

Compatibility:
Wiegand Input Panels
Wiegand Output Readers
EntraPASS Global Software
ZKBioSecurity Software
ZKTeco Security Relay Box (SRB)

Hardware:
1.2GHz High-Speed CPU
Memory 128MB RAM / 256MB Flash
SilkID Fingerprint Sensor
2.4″ Touch Screen Display
Fi Voice & Indicator, Tamper Switch Alarm, Touch Keypad
POE(Standard IEEE 802.3at), Wireless doorbell (Optional)
Operating temperature 32 to 113 degrees F

Supported Accessories:
Door/Turnstile Lock Relay Output
Alarm Output/Auxillary Input
Exit Button/Door Sensor

Communication:
TCP/IP
RS485
Wiegand Input/Output
POE

Power:
Operating Voltage: 12V DC 3A
Current Draw: <2,000mA

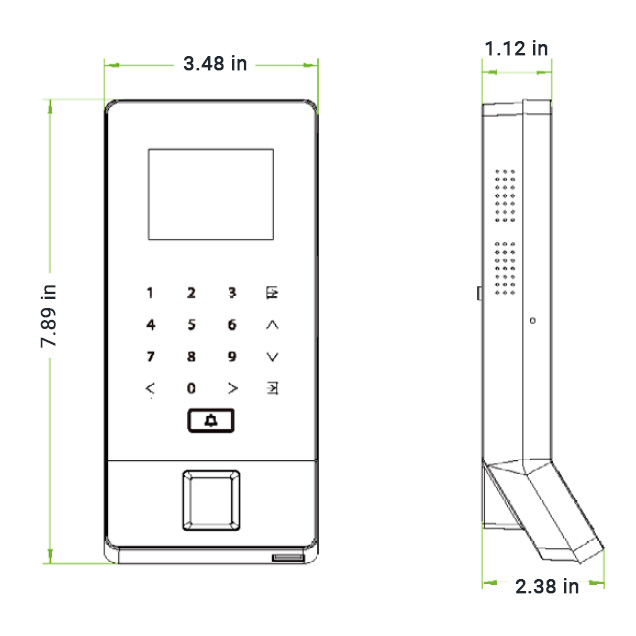

DIMENSIONS

Contact us for a quote



Additional information

Weight 2 lbs
Dimensions 10 × 8 × 8 in
