Modular Energy Platform for Gates, Turnstiles, Lighting & Security

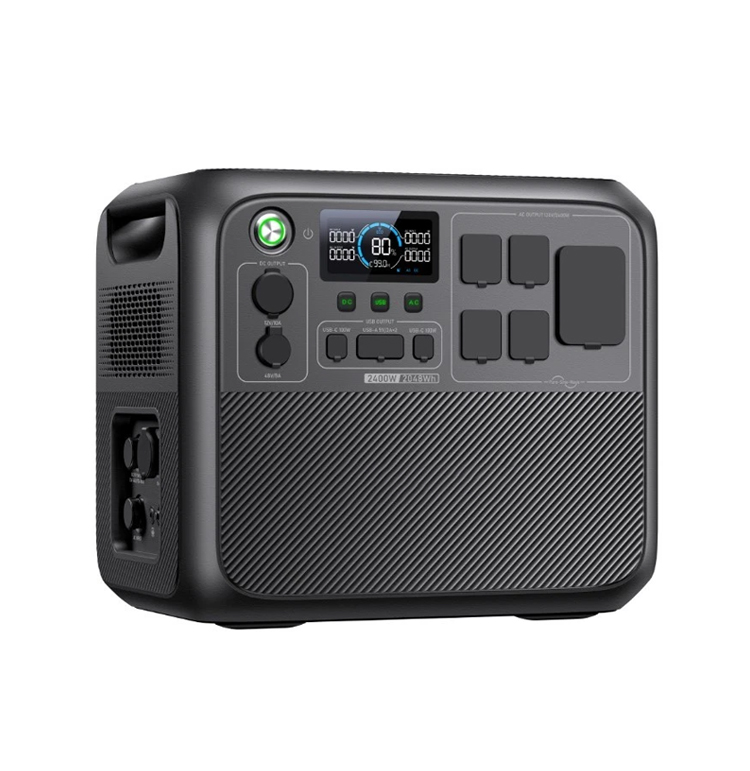

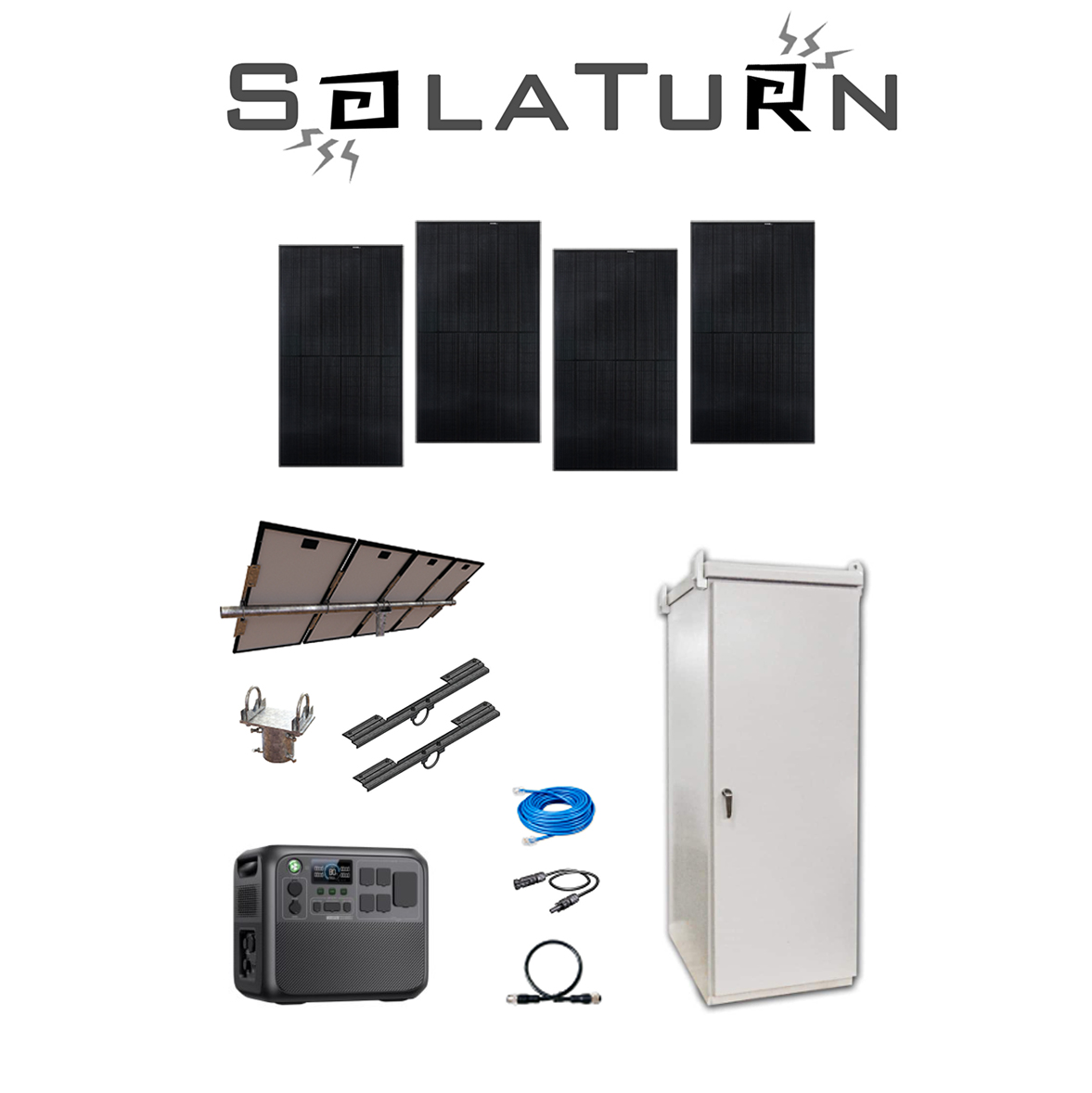

The SolaTurn Solar Power Station is a scalable, off-grid energy solution designed to power security entrances, turnstile systems, gates, access control equipment, lighting, and surveillance devices – anywhere reliable infrastructure is unavailable or optional autonomy is required.
Whether for a single-entry lane or a multi-device checkpoint, the SolaTurn system adapts to your project needs. Units are configurable with expansion batteries and solar panel arrays to extend runtime, support additional equipment, and achieve sustained 24/7 operation, even in remote or undeveloped locations.
Built to integrate with TURNSTILES.us hardware and control systems, each SolaTurn station offers clean, reliable energy for mission-critical functionality. Portable or permanent, indoor or outdoor, the SolaTurn delivers unmatched versatility in a rugged, all-in-one format.
SolaTurn Power Station – Data Sheet
SolaTurn Solar-Powered Turnstiles – Data-Sheet
SolaTurn Power Station – User Manual V3
Flexible, Field-Ready Design
- Modular battery platform, configurable to meet project size, usage load, and backup requirements
- Expandable solar panel configurations for environments with extended autonomy needs
- Compact, all-in-one enclosure options for easy transport, site placement, and maintenance access
- Compatible with full-height turnstiles, ADA gates, floodlights, access readers, and CCTV systems
- Can be combined with steel forklift bases and canopy systems for total off-grid installations
Built-In System Benefits
- Powers gates, turnstiles, lights, and access equipment from a single power source
- No trenching, wiring, or dependency on local grid power
- Built-in inverter, battery management, and charge controller (internal to the unit)
- Clean LiFePO₄ energy platform for long life, safety, and stable performance
- Ideal for temporary, mobile, or rapid-deployment scenarios as well as permanent installations
Applications
- Off-grid turnstile and gate installations
- Solar-powered access control projects
- Remote or undeveloped sites with limited infrastructure
- Emergency backup power for security lighting and control systems
- Construction site access and security
- Rural or infrastructure-limited locations
- Disaster response and emergency deployment
- Events, festivals, and temporary crowd control
Standard Unit Specs
- 2,048 Wh LiFePO₄ Battery (expandable up to ~8,192 Wh)
- 2,400 W continuous AC output | 3,600 W surge (Power Lifting Mode)
- ≤ 20 ms UPS switching time for seamless backup operation
- Up to 1,200 W solar input | Recharge to 80% in ~45 minutes with AC + solar
- Multiple Output Options:
- 4 × 120 V AC outlets
- 1 × 30 A NEMA TT‑30 RV port
- USB‑C (100 W), USB‑A, 12 V DC, wireless charging

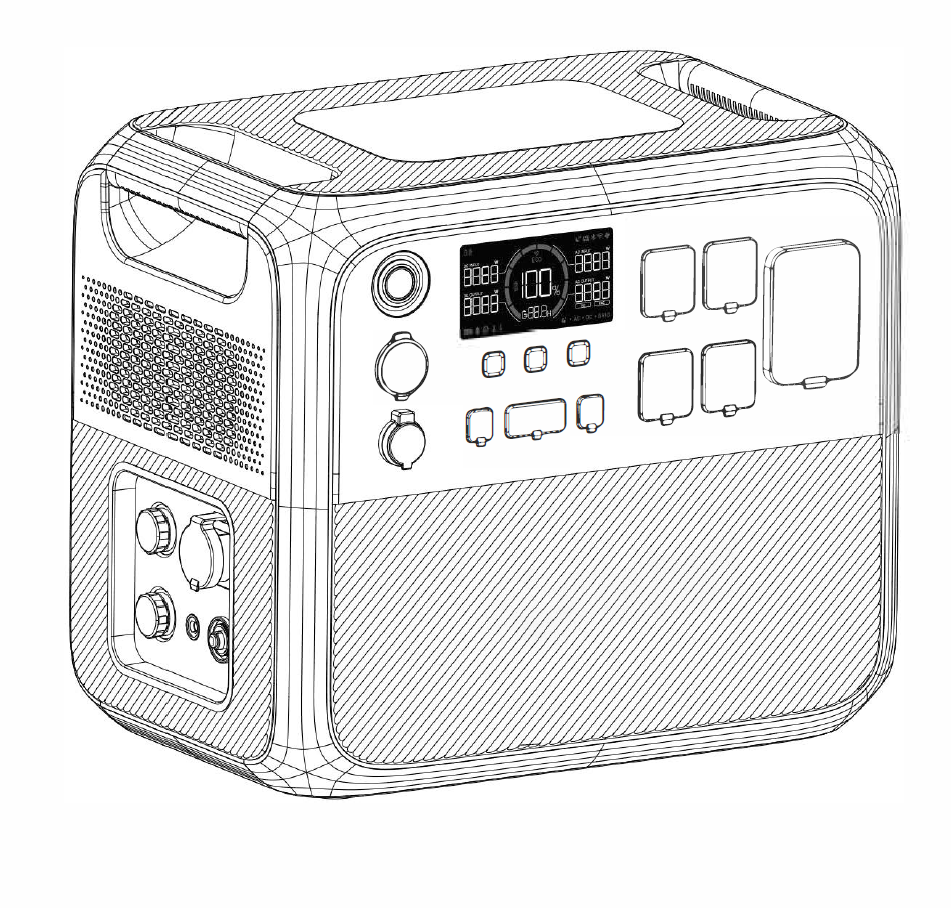

- Compact Form Factor: 16.5″ × 11″ × 14.4″ | ~62 lb
- Built-in MPPT charge controller and battery management system
- Supports up to two expansion batteries (optional B210 / B230 / B300 units)
