Description

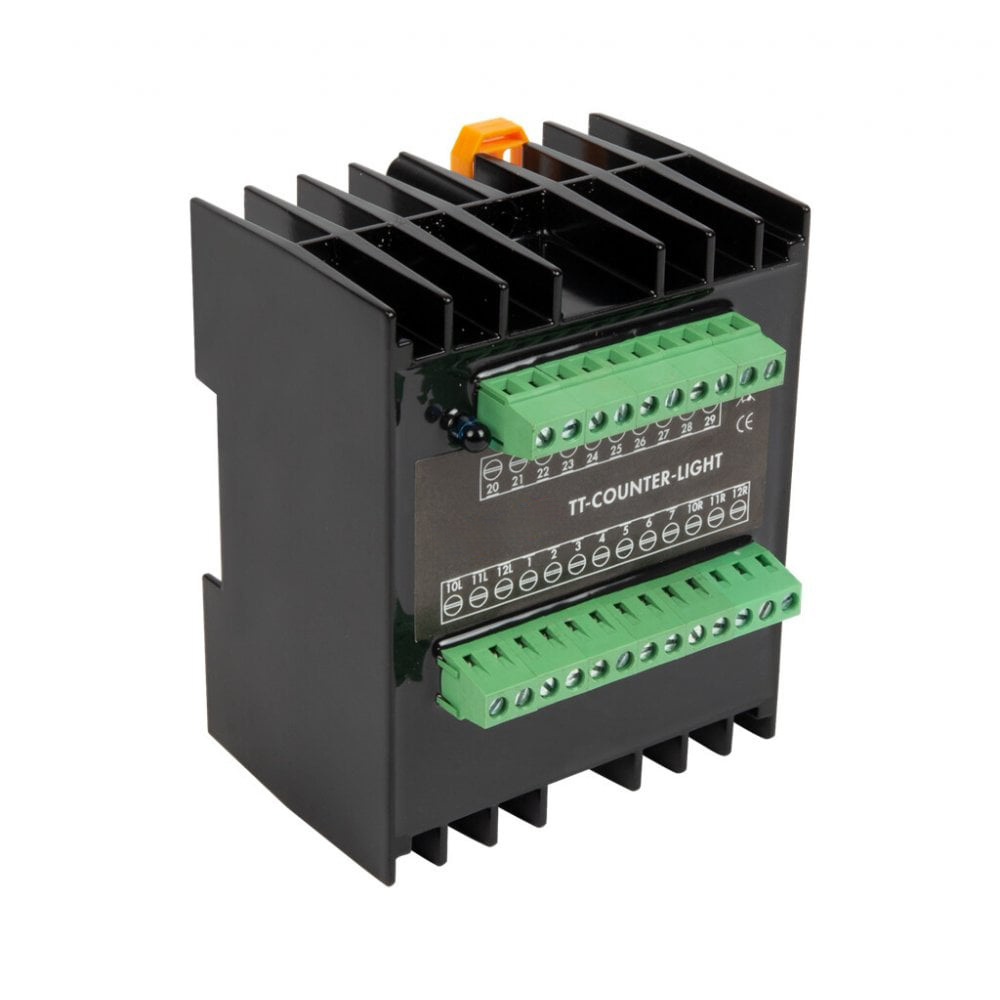

Enhance your turnstile system with the TT‑CL2 Counter & Passing Light Signals Module – a plug-and-play accessory designed for bi-directional use. This intelligent module integrates with a control unit and uses included reed contacts to detect rotation direction. It provides counting functionality through voltage-free contacts to monitor entries and exits, and controls passing lights via changeover circuits to offer clear visual guidance for users. Housed in a durable aluminum casing with integrated heat-dissipation fins, the TT‑CL2 delivers dependable performance in high-traffic environments.
Counter and Light Module is Compatible with multiple models of full-height turnstiles – including older models such as Robot, Philips, Burle & Dearborn.
FEATURES
- Compatible with control modules (TT‑FO32 and TT‑FC32 and more)
- Detects both clockwise and counterclockwise rotation via reed contacts
- Passing light control via NO/NC changeover contact (max 250 VAC / 30 VDC, 1 A)
- Counter contact delivers 0.5-second pulse per rotation (NO, max 250 VAC / 30 VDC, 1 A)
- Built-in heat-dissipating aluminum housing
- Bi-directional orientation
- Quick and easy plug-and-play installation
Specifications
- Part Number: TT‑CL2 (P00007502)
- Control Method: Reed contact detection
- Passing Light Output: Voltage-free NO/NC contact
- Counter Output: Voltage-free NO pulse (0.5 seconds)
- Max Contact Ratings: 250 VAC / 30 VDC, 1 A
- Housing: Powder-coated aluminum with thermal fins
Applications
- Perfect for environments that demand visual signaling and accurate traffic monitoring
- Stadiums and arenas
- Office lobbies and business centers
- Campuses and educational buildings
- Transit stations
- Entertainment venues
