Solar-Powered Portable Turnstile

Harder Mechanical Contractors - Portland, OR is pleased to provide our Custom Built Turnstile System with Access Control and Photo ID Badging to Harder Mechanical Contractors (and Air Products). Find selected equipment information below as well as fabrication photos as we build your product. Do not hesitate to contact us with any questions you may have. Thank you for choosing, Inc.


Equipment Data


(2) AG‐30 Tandem, Galvanized, Full Height Turnstiles
(2) 6′ x 10′ Turnstile Canopy
(2) 6′ x 10′ Portable Base
(8) 4′ x 10′ ADA Ramp
(6) Solar Panels
(1) EntraPASS Global Edition Workstation
(8) HID Prox Card Readers
(2) KT‐400 Door Controller
(2) KT‐ Battery and Power Supply
(8) Relay Base and Snaptrack
(1) Plenum Shielded Cable Wiring Package
(2) Logitech WebCam
(1) (500) Test Cards PVC
(1) EntraPASS Photo ID Printer
(1) Printer Ribbon for 1000 Cards
(1) HID ISO Prox Cards (1000)
(1) Sleeves for Proximity Cards (1000)
(1) Lanyards for Proximity Cards (500)
(1) Badge Clips for Proximity Cards (500)
(1) Shop Labor

Click the images for more information.

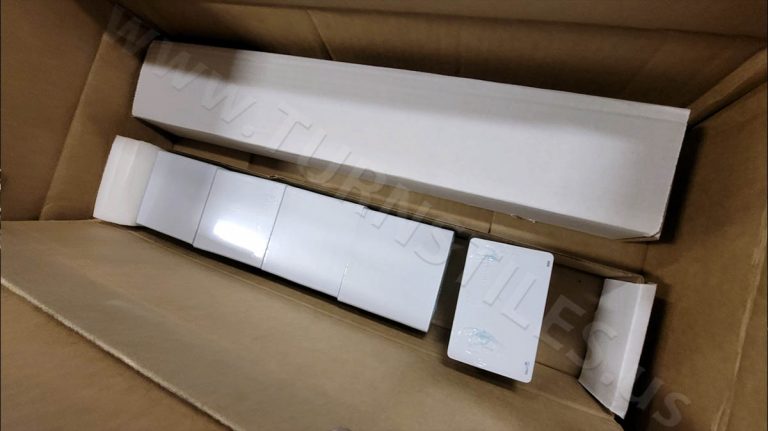

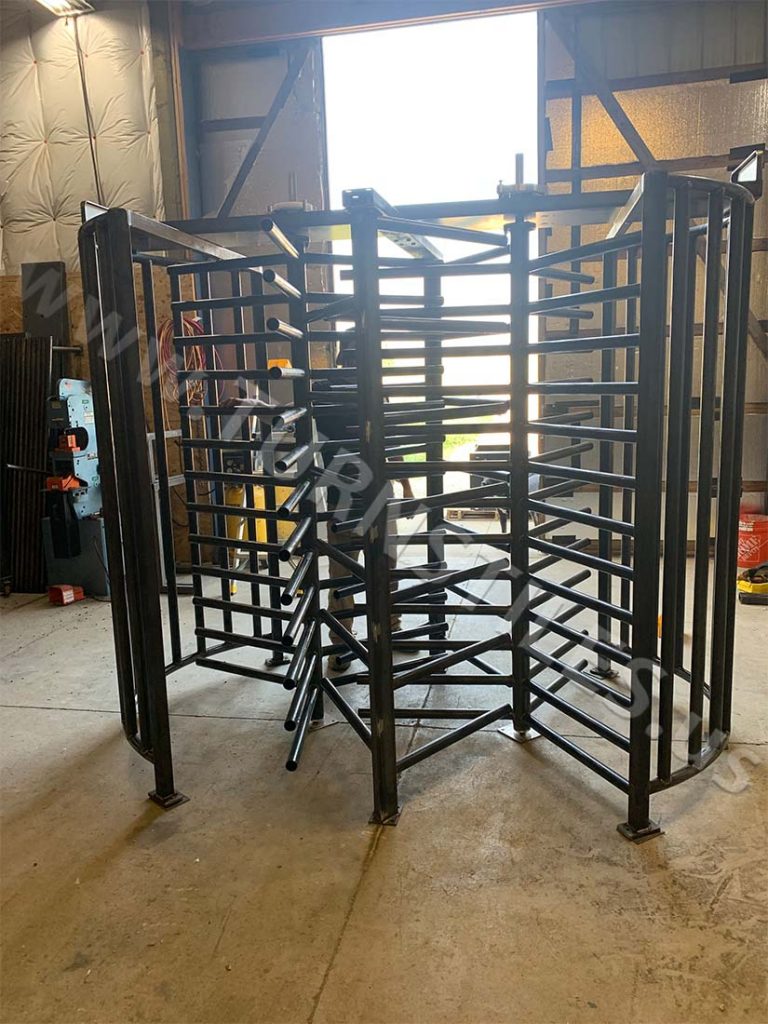

Fabrication Photos

- EntraPASS Connection -

On the server + redundant gateway, we need to open the following:

UDP: 18001 (firmware upgrade)

UDP: 18801 (communication with IP link/KT400)

TCP: 18802 (firmware upgrade)

TCP: 18802 (communication with IP link/KT400)

On the site with the KT400:

UDP: 18803 (broadcast and KT-finder)

UDP: 18810 (gateway communication)


Please ask them to forward the following ports with the respective protocols for the main server (and ideally for the redundancy server if possible):

18000 TCP (this is used for the EntraPASS Server software)
18101 TCP (this is used for the EntraPASS Workstation software)
18102 TCP (this is used for the EntraPASS Gateway software)
18103 TCP (this is used for the EntraPASS Smartlink software)
For potential future usage:
17999 TCP  (for the EntraPASS Mirror database)
18107 TCP (for the EntraPASS Video Vault)
8801 TCP (for the EntraPASS WEB software, which is a website-accessible version of EntraPASS Workstation)

- Notes -

*If you are using a cellular router for a remote turnstile, that router must have a VPN as part of its functionality (owner provided).
