EntraPASS Meal Tracking System
Atlantis Casino – Reno, NV
Submitted to:
Atlantis Casino
Reno, NV
Submitted by:
www.TURNSTILES.us, Inc.
October 2025 – Current
www.TURNSTILES.us is a professional organization dealing with the physical and electronic securing of building entrances with Turnstiles, Gates, EntraPASS Access Control Hardware, and Software since 1989. We are a U.S. Federal Government Contract Holder (GS 07F 9239S) and are registered with the U.S. Federal Government System for Award Management (#181428611).
TURNSTILES.us is honored to present our Waist-High Swing Gate Meal Tracking System to Atlantis Casino for the Employee Dining Room. Please find photos and project information below.

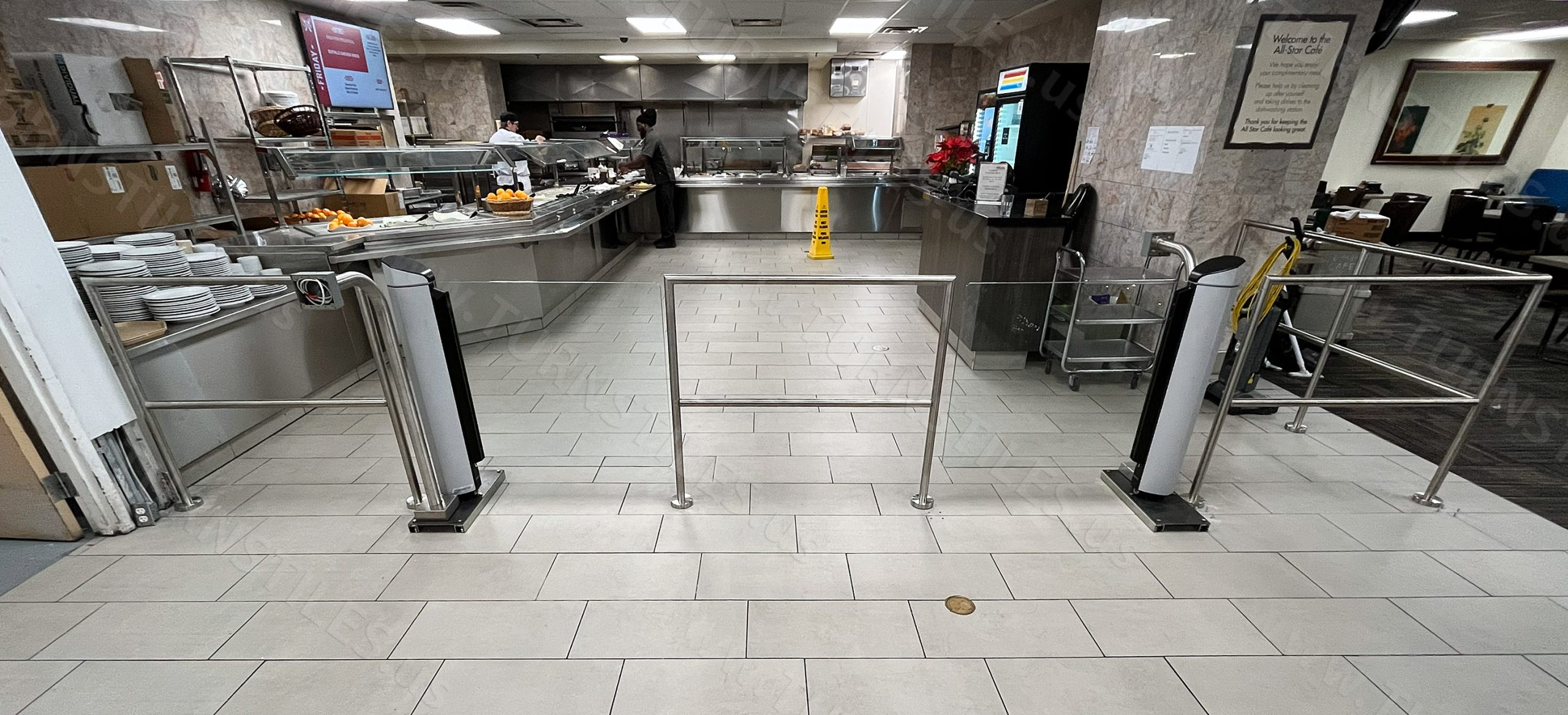

Installation Location Photo

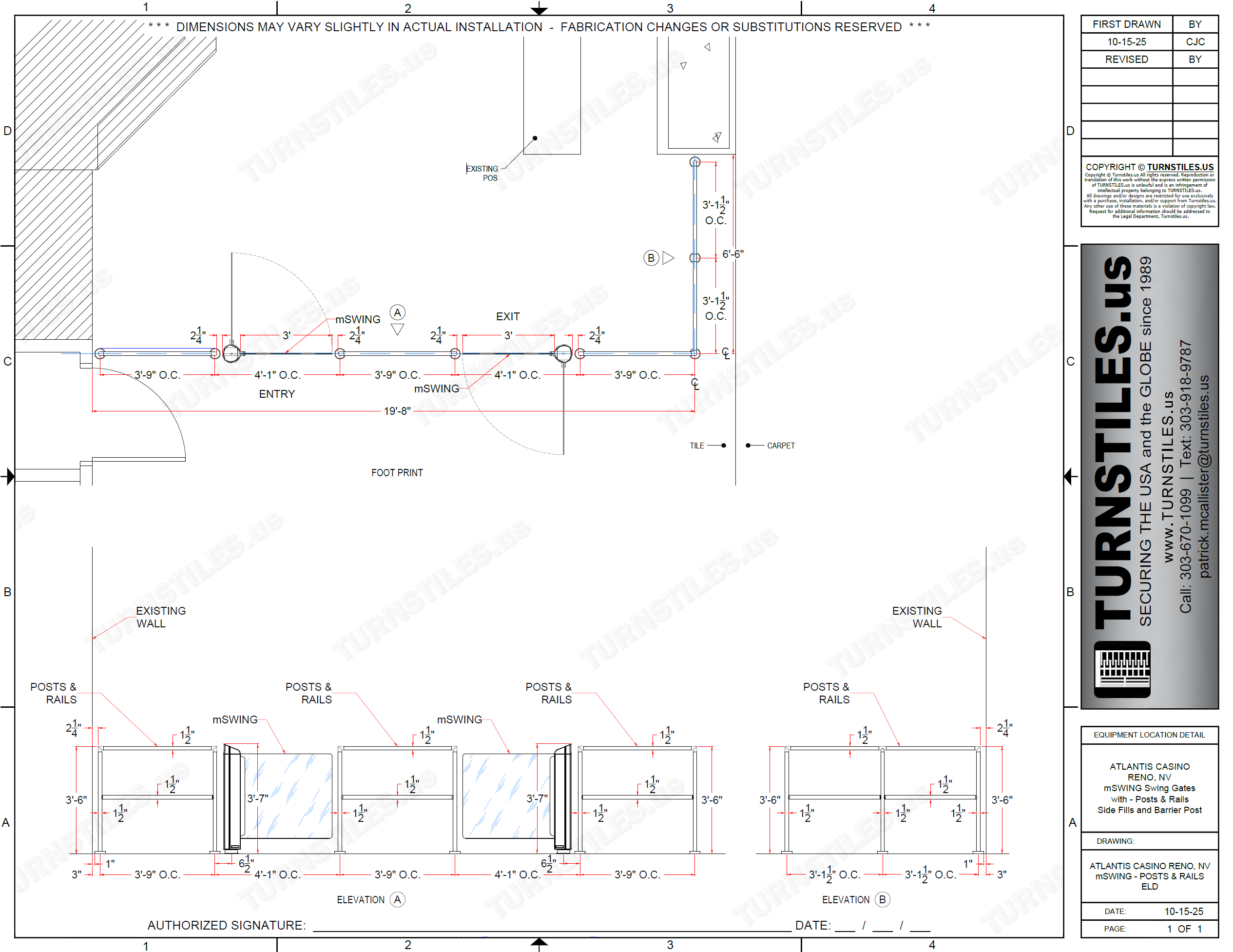

AutoCAD Equipment Location Detail
EntraPASS Meal Tracking System with mSwing
EQUIPMENT
(2) mSwing Illuminated Gates
– Standard-width glass panel (36″ ADA Compliant)
– Color RAL9006/RAL9005
– LED frame and floor illumination

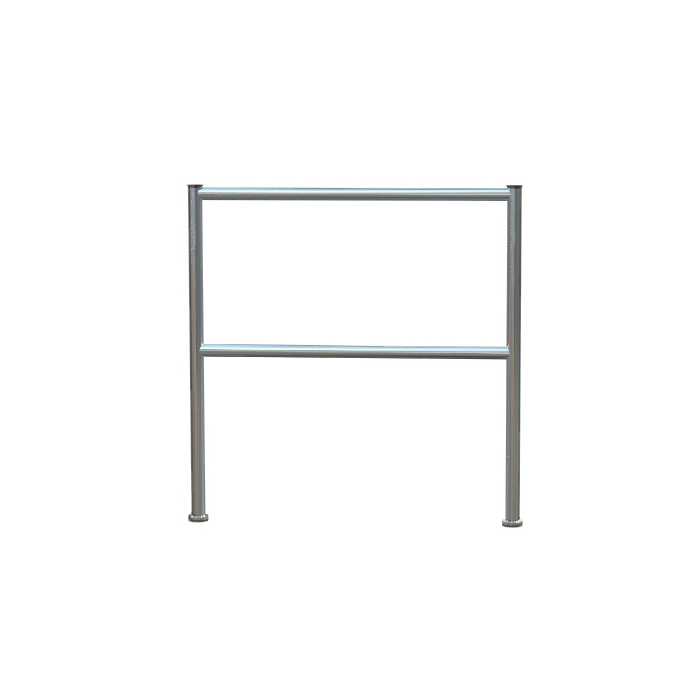

(1) Round Post and Railing Custom
(1) EntraPASS Global Edition Server
– Programmed Dell 27 All-in-One EC27250
(1) EntraPASS Global Edition SQL License
(1) EntraPASS Card Gateway
(1) KT4 Door Controller
– Battery and Power Supply
(2) QR500 Touchless QR Code and 2D Barcode Reader
(2) Relay, Base and Snaptrack
(1) Wiring Package, 18 awg 4 c Plenum Cable
SERVICE
AutoCAD Equipment Location Detail
Initial Database Programming
Remote Programming Assistance
Crating and Shipping
Field Labor (2) Factory Installers
(6) Days On Site, 2 Days of Travel
Meals and Hotel Rooms Supplied by Casino
Installation In-Scope:
– Unpacking, assembly, and installation of turnstiles
– Landing low-voltage hardware and cabling
– Programming and training to be completed via remote sessions.
Out of Scope:
– Conduit, Concrete work, Electrical work

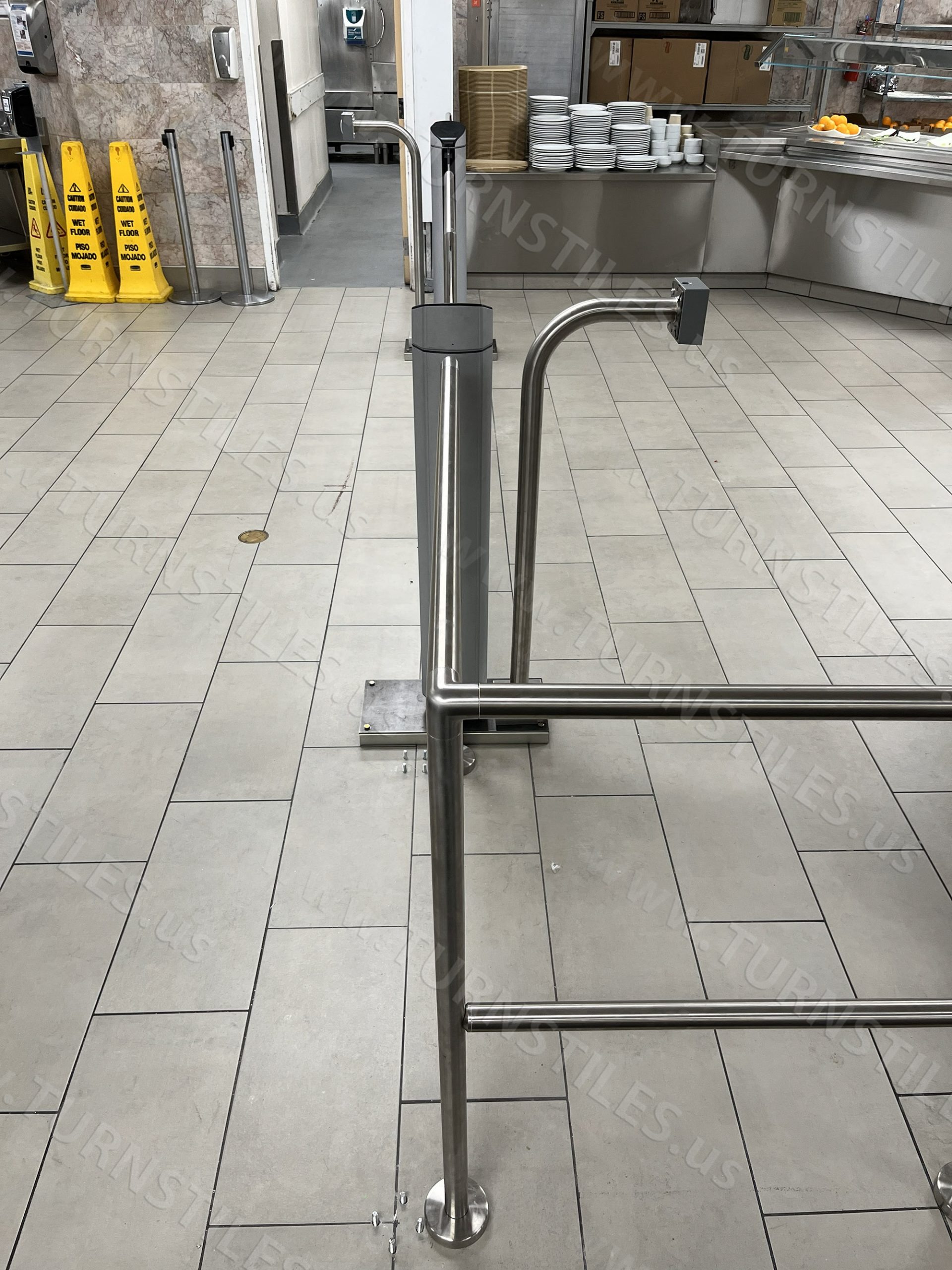

mSwing Illuminated Gates with Post and Rail
EntraPASS Global Edition Meal Tracking System
The EntraPASS Meal Tracking System (MTS) is designed for facilities with employee cafeterias to help manage their food budgets. MTS combines the latest hardware and software technologies to provide an effective pay-per-entry food line. This core system can be scaled to serve all of your dining room management needs.
How It Works
The Meal Tracking System setup includes a server with EntraPASS Software in the Food Service Administrator’s office or another secure location. The database is loaded to this server, along with any reporting functions the facility requires. Additional computers can be set up for new employee intake into the system or for other Administrators.
Employee information is linked to a numbered card (or other ID method) which will be their meal card. At the beginning of each food line to be monitored, a scanner is installed and connected to a turnstile. As the identification is scanned, data is transmitted to the server.
If the visitor has been through the line already during that mealtime, the turnstile stays locked and passage is denied. If this is their first visit during that mealtime, access is granted. Additional options include temporary cards or tickets that may be issued to guests. Pay-per-ticket kiosks can also be installed for anyone to purchase a meal ticket and enter the line.
- Monitor the movement of people through the meal service area
- No card required when using fingerprint or other biometric ID
- Allow or deny access based on defined parameters
- Better manage operations by prohibiting theft
TURNSTILES.us Advantage
We are a One Stop Shop
- Decades of Experience & Pride in Craftsmanship
- We provide Turn-Key Service with Value-Added Engineering
- We provide Access Control Elements integrated with the Turnstiles
- U.S. Federal Government GSA Contract Holder
