ON-MSCSG Mechanical Self-Closing Swing Gate

Please Login for Pricing

The ON-MSCSG Mechanical Self-Closing Swing Gate is a durable and cost efficient way to help secure an entrance or exit. When accompanied with our modular posts and rails they create the right solution. These single direction gates can also be customized in length to accommodate most openings.

  • Entry-level
  • Rounded corners
  • One way swing
  • Standard Size (35″ overall, 31″ passage)
  • ADA-Compliant Size (choose 40″ overall, 36″ passage)
  • Can be used in double lane opening arrangements (no return-post required)



Login or Sign Up

Description

The ON-MSCSG Mechanical Self-Closing Swing Gate is a durable and cost efficient way to help secure an entrance or exit. When accompanied with our modular posts and rails they create the right solution. These single-direction gates can also be customized in length to accommodate most openings.

Swing gates are a popular alternative to turnstiles, to control how customers enter and exit your premises. The added security of new electric locking and unlocking gates has opened up new applications. These locking gates come standard with an emergency breakaway feature that allows them to meet any building and fire code regulations.



DOCUMENTATION

  1. Data Sheet
  2. AutoCAD Equipment Dimensional Detail
  3. AutoCAD Illustration Parts List
  4. Architectural Specification for all ON-Series Gates



APPLICATION

  • Ideal for hospitals, schools, shops, airports, seaports, travel stations, ticket and toll stations
  • Authorized personnel only entrances, dedicated areas, factories, offices
  • Sports facilities, show facilities, exhibition halls, theatres, cinemas
  • Integrate access control, time and attendance tracking, video security
  • Includes universal signage white ABS sign panel and channels.
  • Will meet your facility’s safety protocols

FEATURES

  • Available in your choice of finish
  • Cost efficient way to reduce store theft
  • Can accommodate most openings with single or double lane openings
  • Custom gate arm lengths can be fabricated up to 38″. Overall width of gate takes up an additional 4″ for the mounting plate, and consider an extra 1″ finger space for installation. If using two gates in double ‘saloon style’ opening, we recommend leaving 2″ space between the gates, and no more than 4″ space.
  • Hydraulic arm closure with 90 degree swings in one direction
  • Allows for Left hand or Right hand operation. The direction is set during fabrication.
  • Adjustable top cap assembly for speed closing control
  • Breakaway mechanism in case of emergency
  • Internal shock absorbers for soft opening and closing
  • One way passage only. (Two-way passage models include GR1, BR1-U, BR5500-ADA, FP500-ADA, EX200-ADA, EX100-ADA and others)

OPTIONS

  • Add electric locking / unlocking. This is set during fabrication. In the electric version, activation is achieved by supplying a dry contact input or 12 volt pulse, either through a push button, access control software, or photo eye sensor (sold separately).



MATERIALS

  • All materials meet the ASTM standards as set forth by the materials industry.
  • The gate post is constructed out of 14 gauge DOM tube.
  • Breakaway mechanisms are made with all heat treated component parts.
  • Arm closing: controlled by shock absorber for soft closing.
  • Adjustable top cap assembly for speed closing control.
  • Anchor bolts are hidden by a ‘beauty ring’ cover which snaps over the floor mounting flange.



FINISH CHOICES

  • Mirror chrome
  • Satin chrome

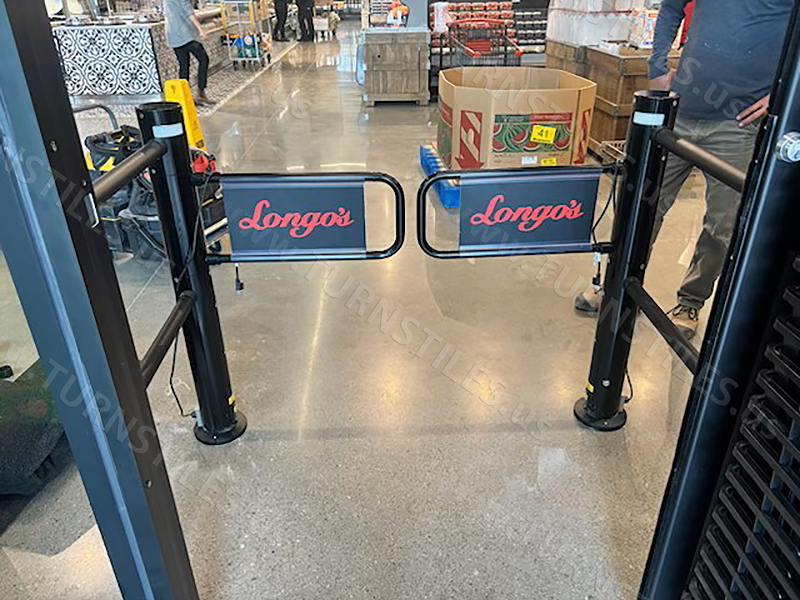

INSTALLATIONS

*Contact TURNSTILES.us for a shipping quote.

See our Turnstile Installation Portfolio



Additional information

Weight 115 lbs
Dimensions 18 × 8 × 41 in
