Description
The ideal solution for controlled manual vehicular access. It has a slim footprint, is designed to be a fit-and-forget solution, and can be exported worldwide.

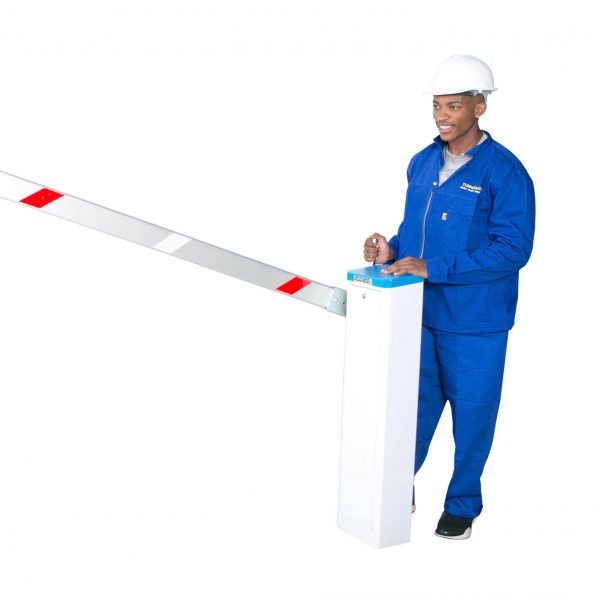

Data Sheet – TUS-VLM Manual Boom Gate Vehicle Barrier
FEATURES
- The ideal solution for controlled manual vehicular access
- Slim footprint
- Available Configurations
- With choice of barrier arm length: 9.8ft, 11.5ft, 13ft, 14.8ft, 16.4 ft, 18ft, 19.7ft (3m, 3.5m, 4m, 4.5m, 5m, 5.5m, 6m)
- Octagonal anodized aluminum barrier arm
- Spring counterbalance system for easy lowering and raising
- Ergonomic handle design
- Sealed deep groove ball bearings
- Lockable by a padlock in both the open and closed positions
- Rubber buffer contact in open and closed positions
- Factory settings need no further adjustment
- Designed for the harshest of conditions
- Unaffected by dust, dirt, and moisture
- Standard powder-coated white cabinet and blue lid
- Cabinet weight: Approx 130 lbs
- Arm Barrier weight: ~ 1lb per foot
- Exported worldwide
OPTIONS
- Access Control Terminals
- Integrated Readers/Scanners/Credential Access
- Additional Finish Options:
• Mild steel with UV-resistant exterior grade powder coat finish (white base and blue lid)
• 3CR12 with UV resistant exterior grade powder coat finish (white base and blue lid)
• 304 grade brushed stainless steel
• 316 grade brushed stainless steel
DIMENSIONS
*If adjusting the manual ‘weight’ it takes to operate the arm:
To support the arm, the rubber stoppers may be tightened:
INSTALLATION
Installation Services Are Available!
See our Portfolio of Work Here
*Please note that freight is not included and will be charged separately. Worldwide freight is available by sea/air/ground. Contact TURNSTILES.us for a personalized quote.
