www.TURNSTILES.us is an organization dealing with the physical and electronic securing of building entrances with Turnstiles, Mantraps, EntraPASS Access Control Hardware, and Software since 1989.
The team at TURNSTILES.us is honored to provide our Optical Turnstiles to FAU. Please find featured equipment information, photos, and project documentation below. We appreciate the opportunity to secure your facility.

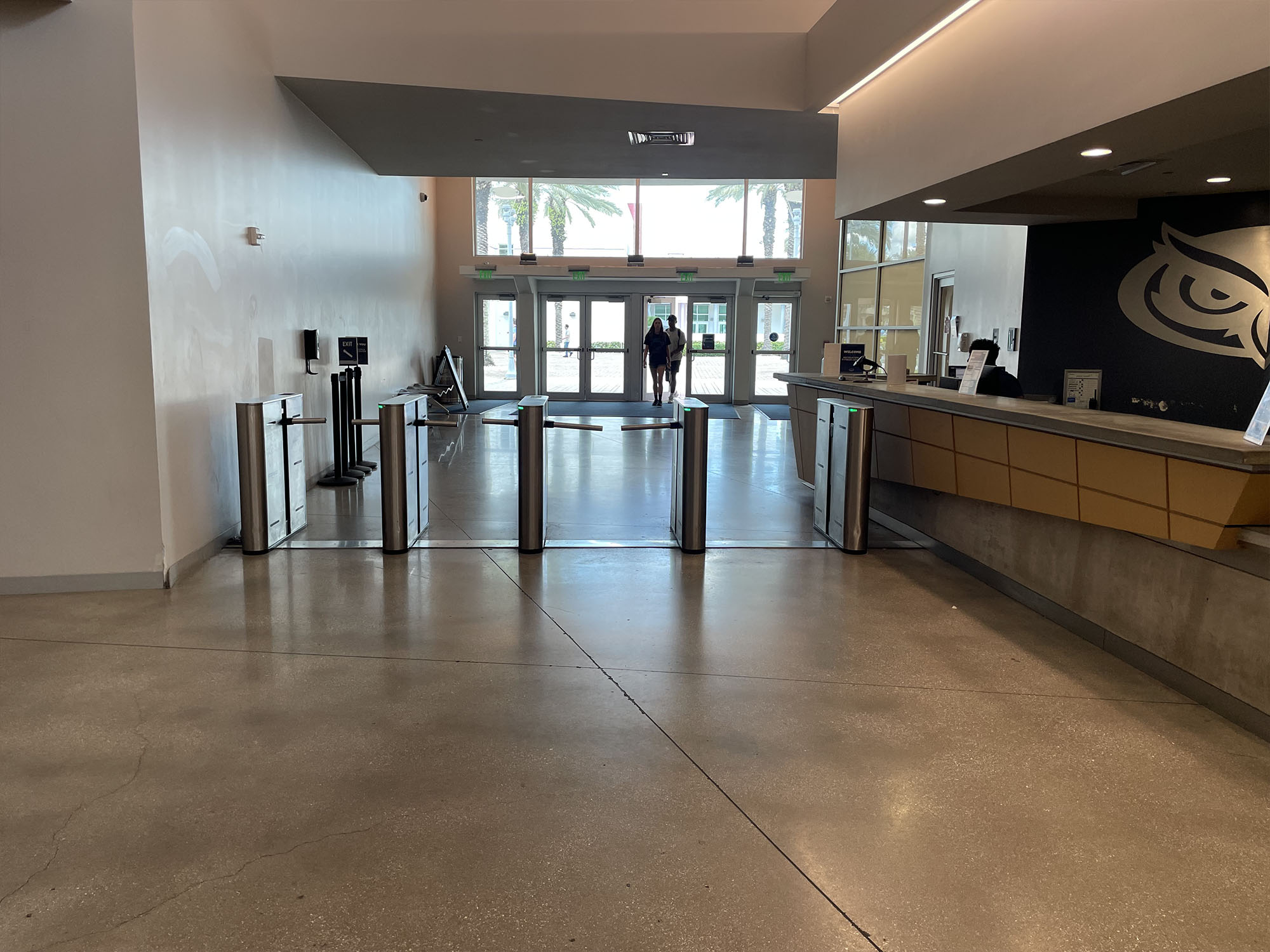

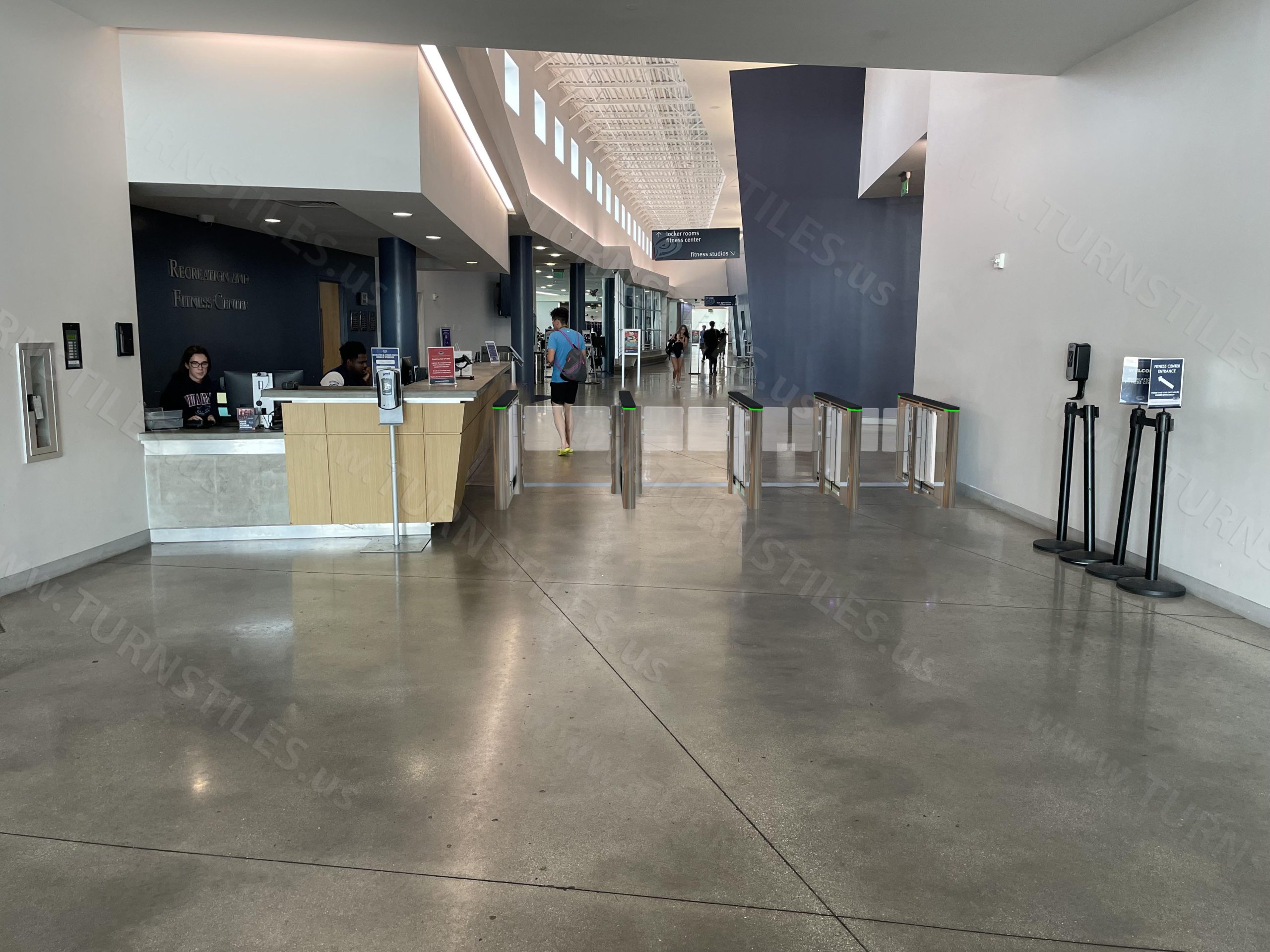

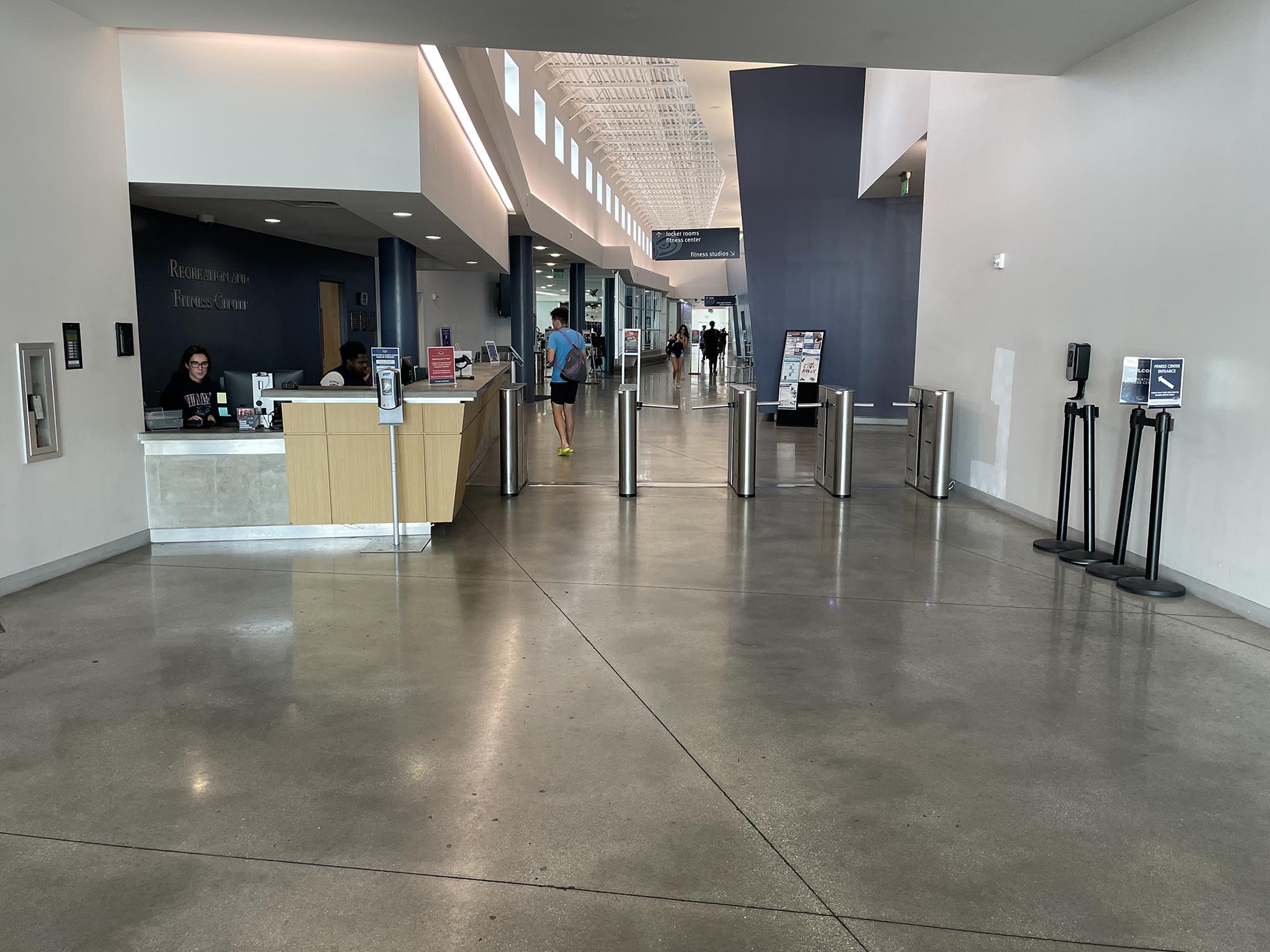

Location Photos – Existing Turnstiles to be Replaced

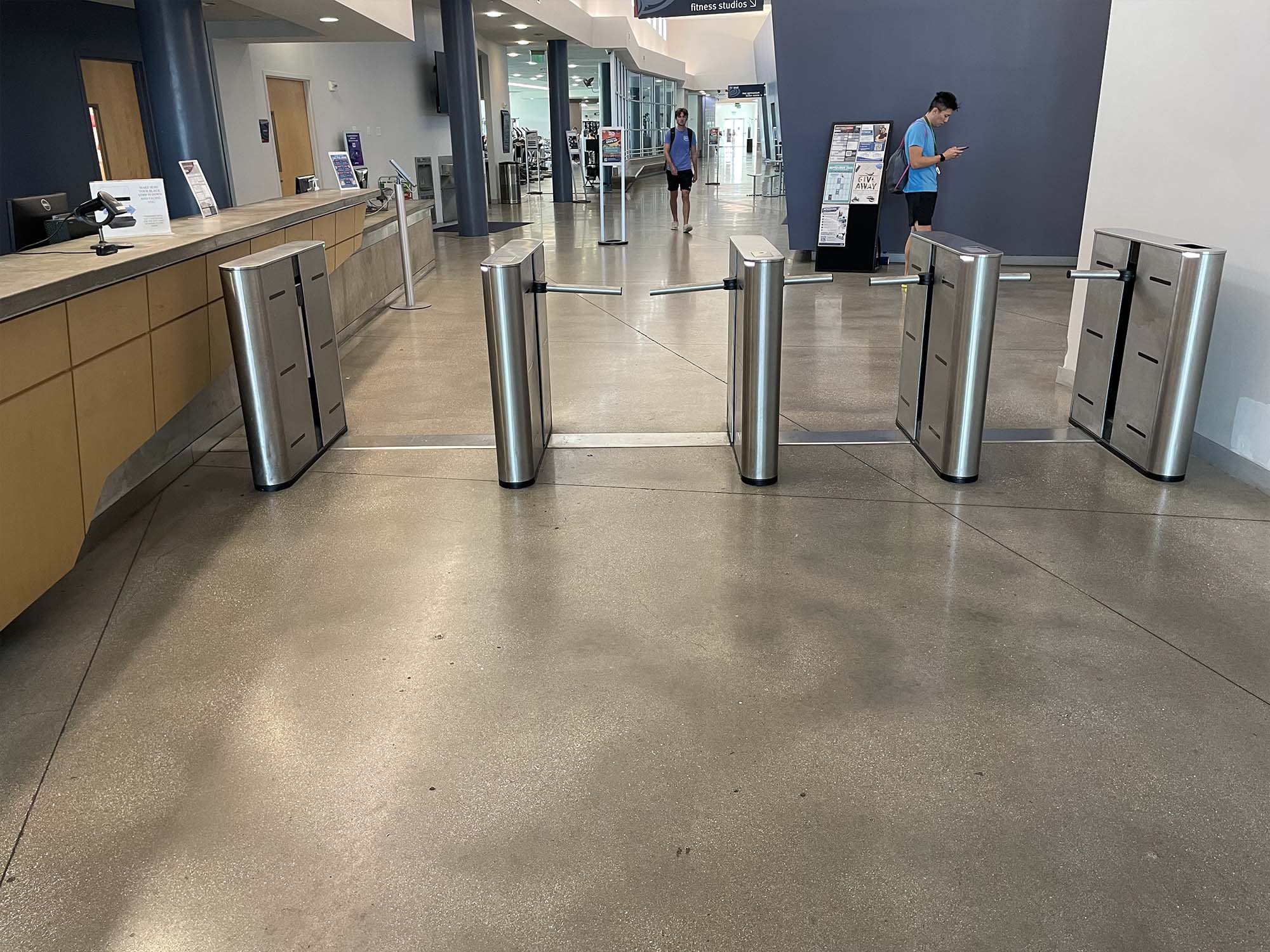

Waist-High Optical Turnstile Entrance
EQUIPMENT
(1) Optical Swing Turnstile – Master Lane 1
(3) Optical Swing Turnstiles – Center Pedestals
(2) Lanes are ADA Compliant Width, 2 Standard
(*) Panels are all standard height
(1) Custom base plate 2 ADA / 2 Standard (187.4“ x 88.6”)
(1) Remote Lane Controller
(1) Dell Touchscreen Panel

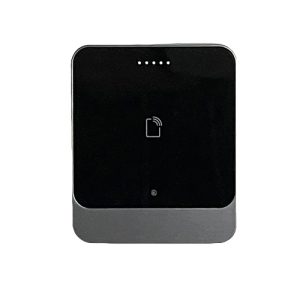

(4) EP20 Readers
(*) Readers entry mounted onto turnstiles – Credentials Supported HID Prox, EM, Bluetooth, QRCode Plus 125kHz
SERVICES
(1) Mounting and Commissioning of Readers

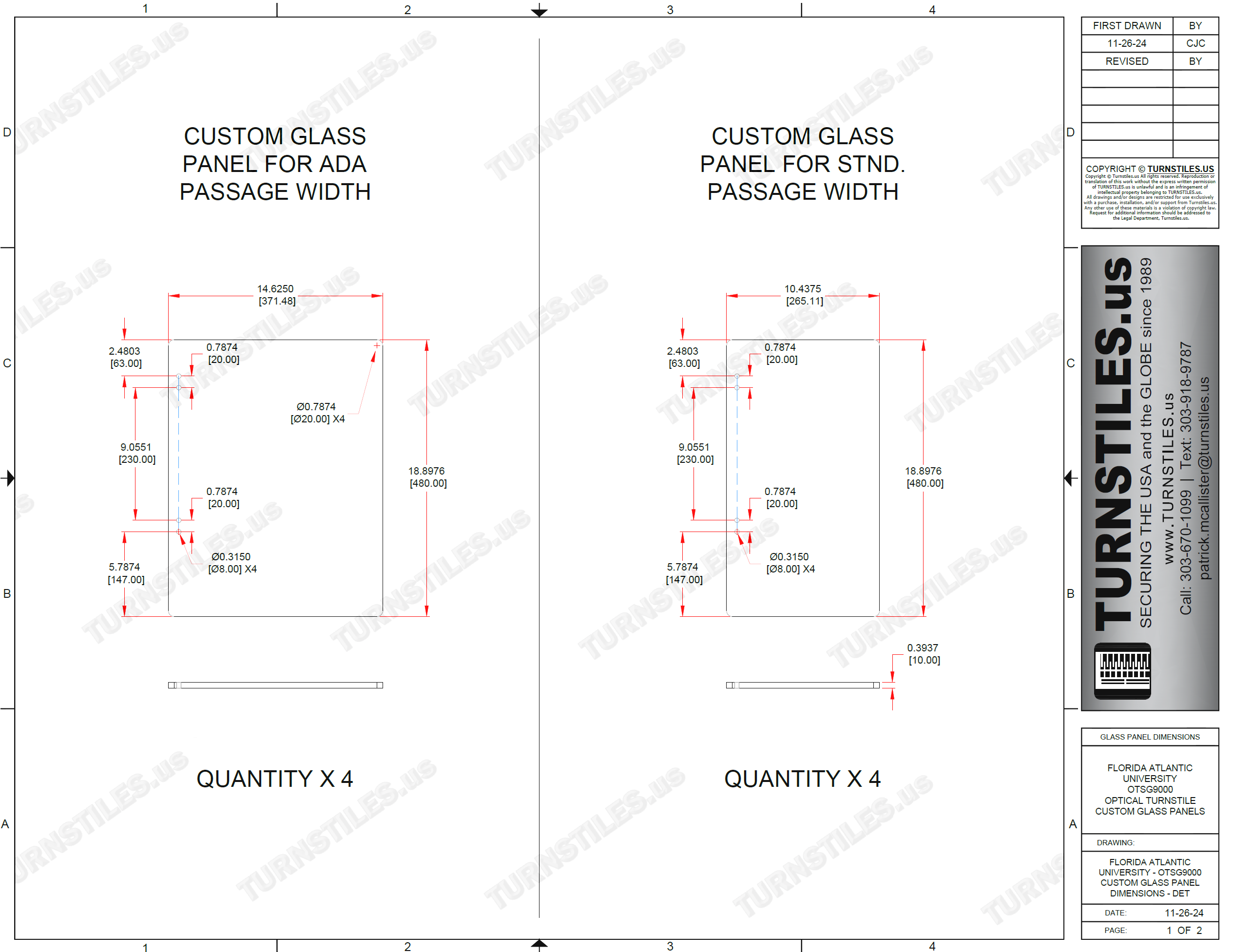

(1) Equipment Detail and Dimensions
(1) Equipment Location Detail

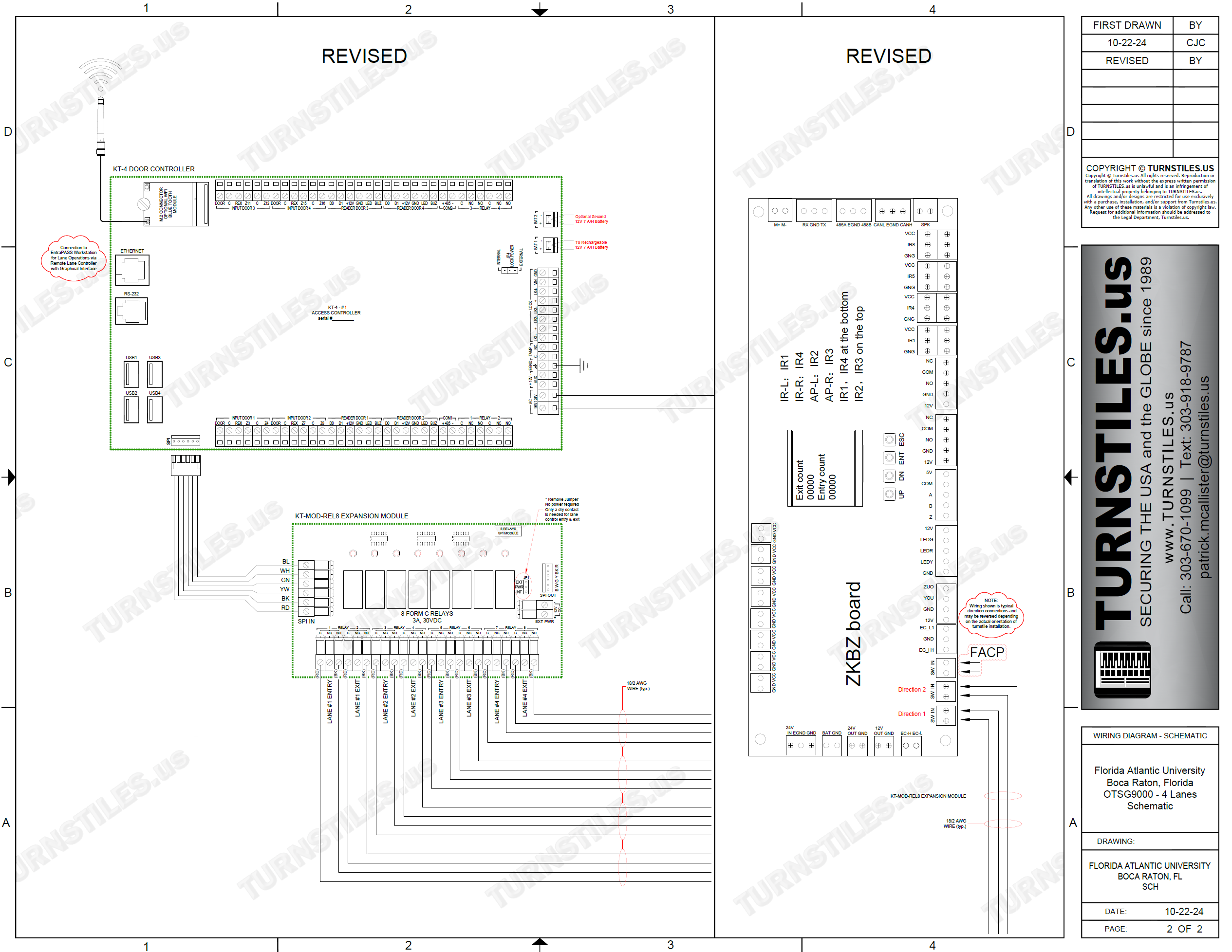

(1) Point-to-Point Schematic

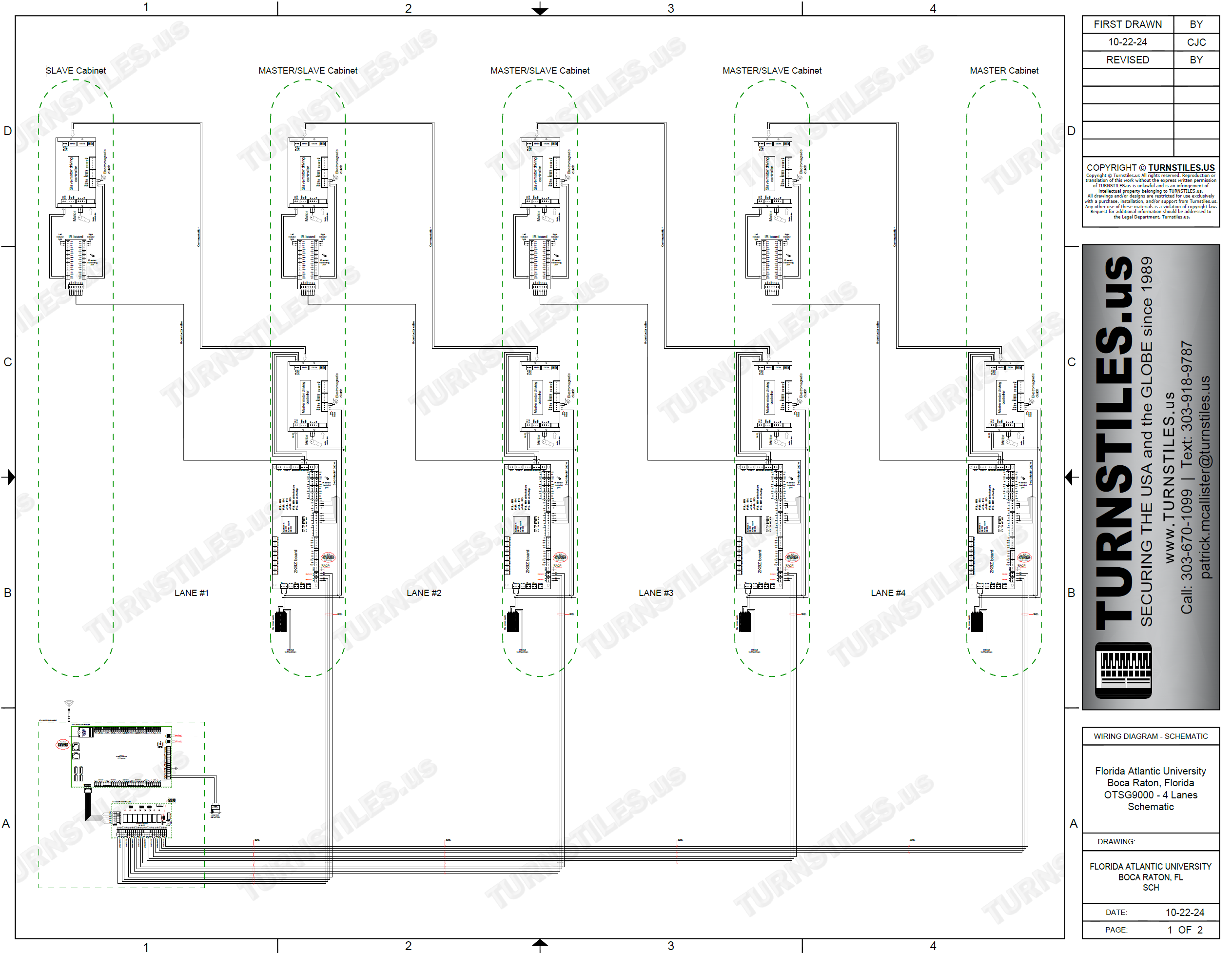

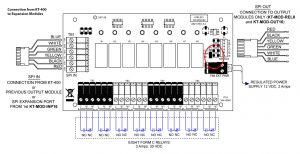

(1) Wiring Diagram
(1) Concept Illustration
Programming and integration assistance
Shipping and Crating
Installation Option: Scope TBD
(2) Factory Installers
(7) Days of Field Labor

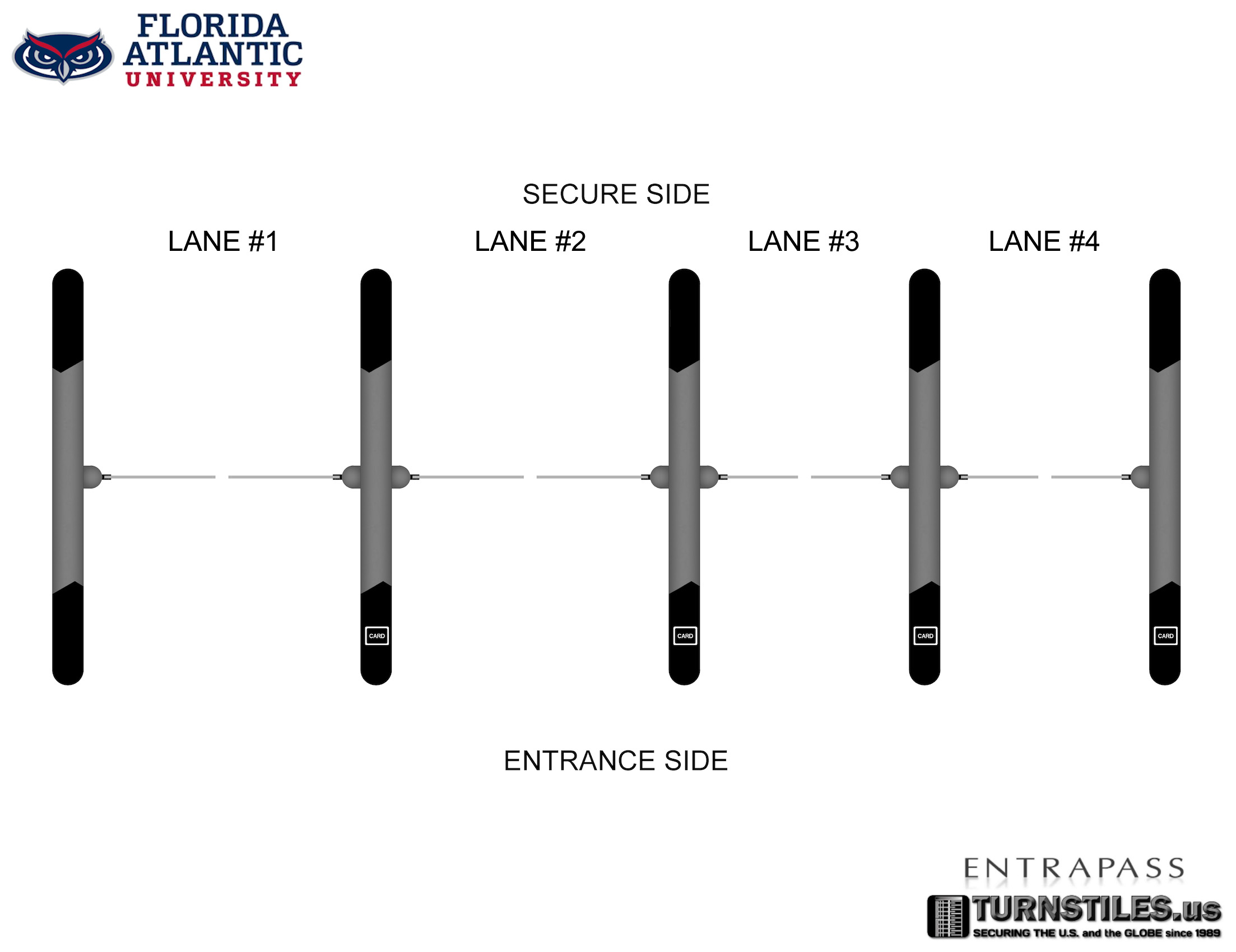

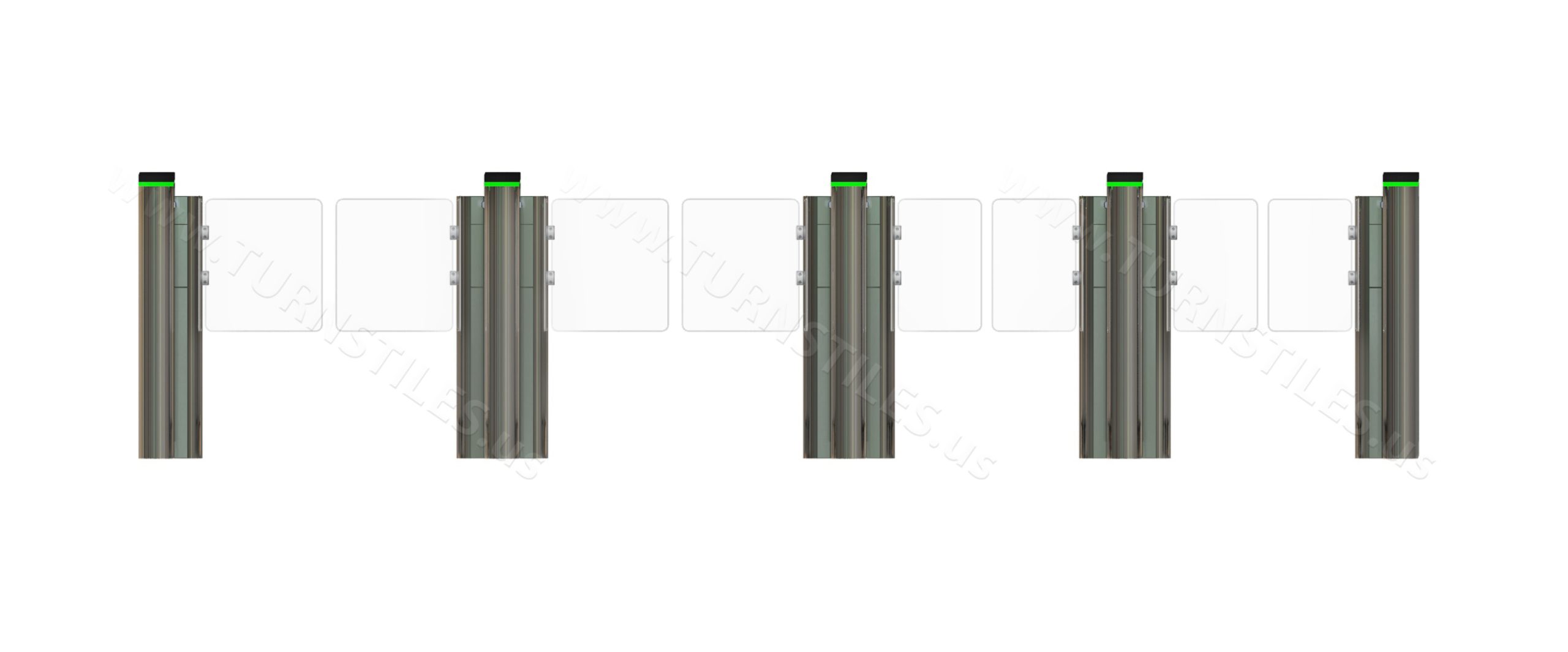

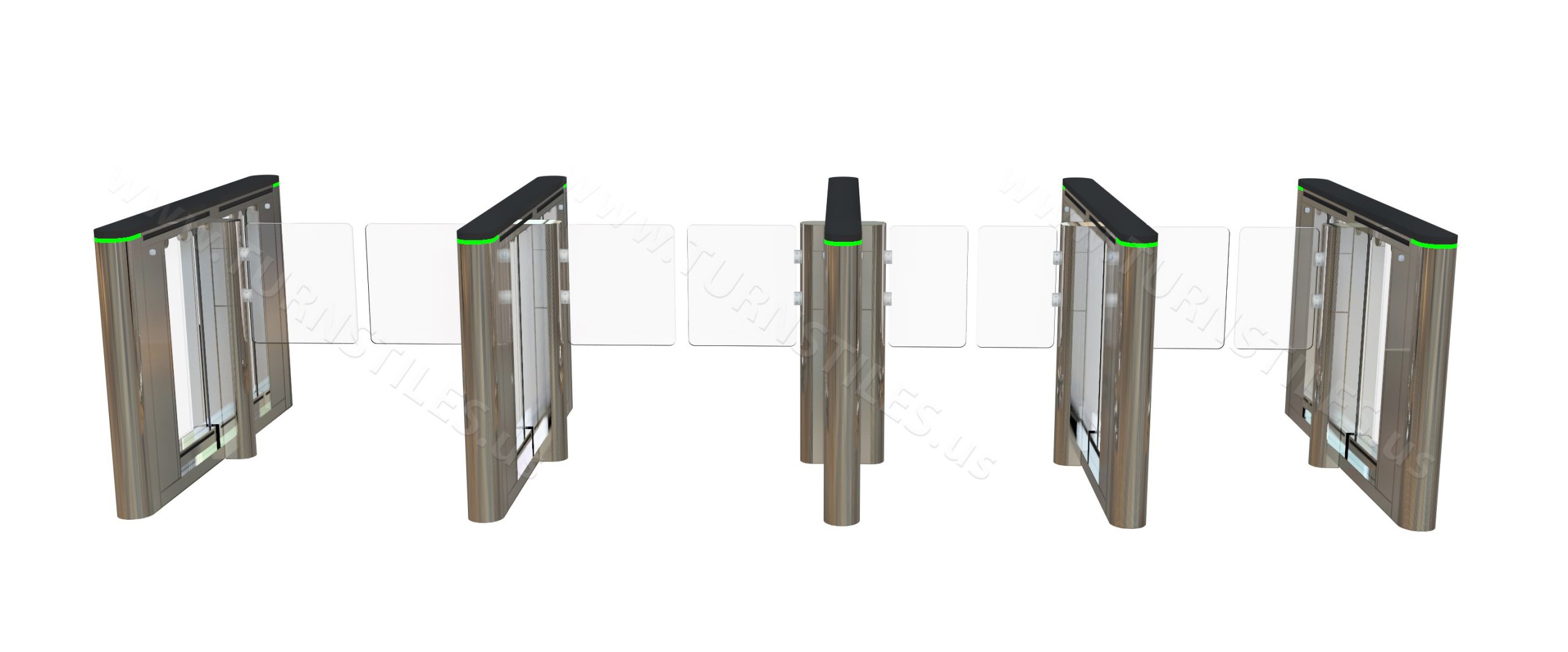

Concept Images

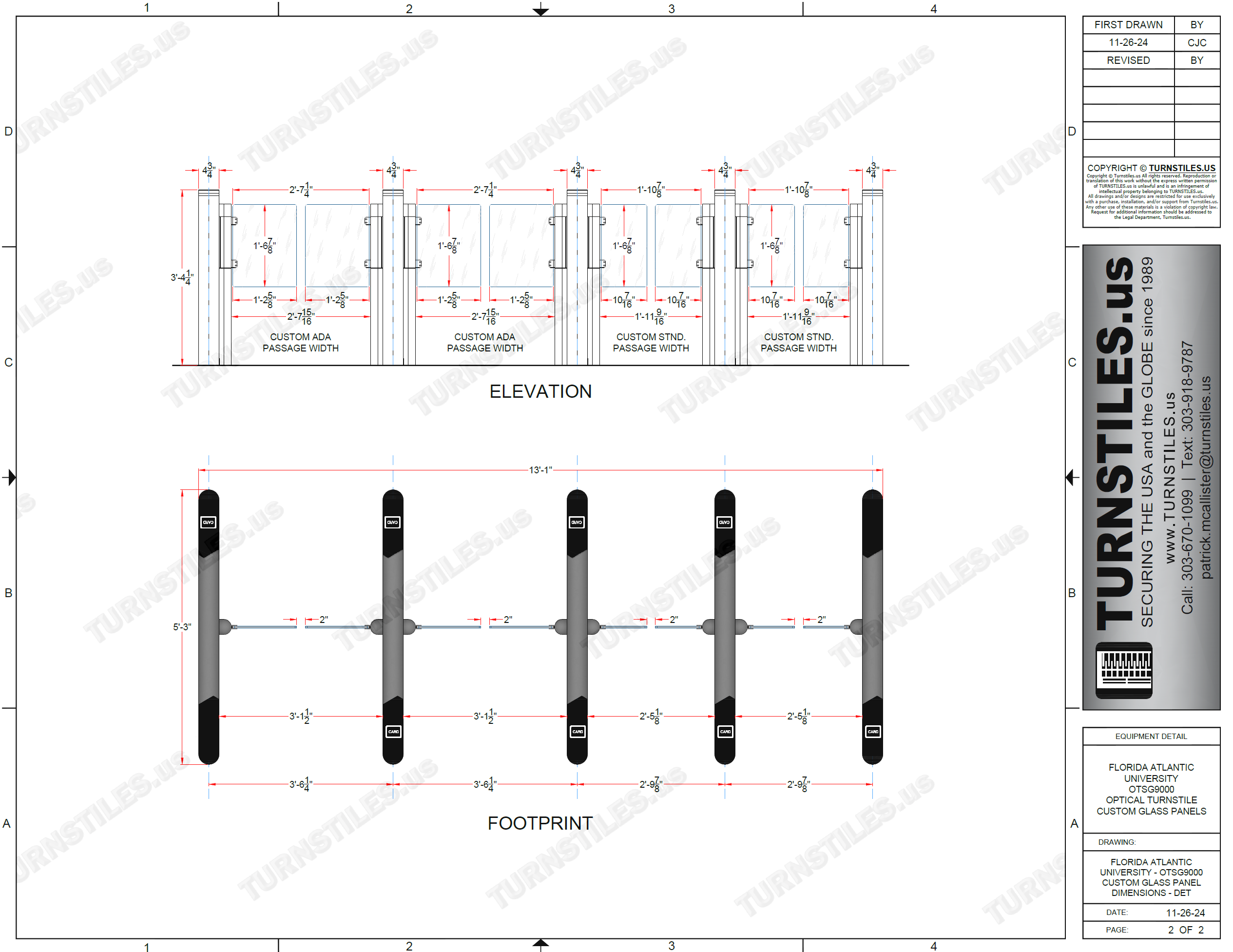

TOTAL EQUIPMENT WIDTH
2-ADA/2-STD = 168.4″ = 14′
FINISHED OPENING: 14’1″ MINUS SLANT OF DESK: 13′ 7 1/4″
Equipment Data
OTSG9000/SBTL8000 Optical Turnstiles
The OTSG9000/SBTL8000 series is a group of swing barrier turnstiles that are compact and designed for smooth & silent operation with very little power draw. The acrylic barriers are normally held in a locked position. Users can be granted access through the turnstile with your choice of access control method.
- Infrared Sensor: 10 pairs
- Lane Width: Standard 26inch (660mm), or ADA 36inch (900mm)
- Traffic Throughput: Up to 40 passages per minute
- SUS304 stainless steel casing
- Bi-directional operation control
- LED passage indicator in both directions
TURNSTILES.us Advantage
We are a One Stop Shop
- We provide Turn-Key Service with Value-Added Engineering
- We provide Access Control Elements integrated with the Turnstiles
- Over 36 Years of Experience
- Pride in Craftsmanship
