AG-48-ADA-VB Full Height ADA Gate with Vertical Bars

Please Login for Pricing

This extra-wide 48″ full-height ADA Gate is designed with security and simplicity in mind. Ideal to place next to one of our Full Height Turnstiles with hardware to attach, It can be configured a number of ways. Select a finish and lock type. It can have an electric door strike with a panic bar, magnetic lock, double-magnetic lock, or a typical door handle with key. Matching fence and filler panels are also available.

Login or Sign Up

Description

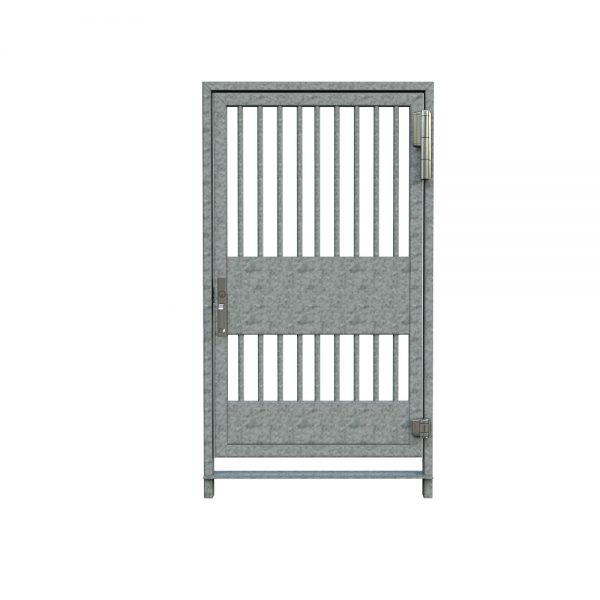

The Outlaw AG-48-ADA-VB is a full height, extra-wide 48″ steel gate with a vertical bar infill. AG Series gates are designed with security and simplicity in mind. Ideal to place next to one of our Full Height Turnstiles with hardware to attach, It can be configured a number of ways. A door strike with a panic bar, magnetic lock with a push to exit button, or a typical door handle with a key and mortise lock. With tough welded steel or stainless-steel construction, a #9 mesh to resist tampering, and a heavy-duty fully adjustable hydraulic self-closing hinge, this gate is sure to stand the test of time. It can be seamlessly fitted with turnstiles, card readers, counters, cameras, EntraPASS Access Control Software, and more. Matching fences and filler panels are also available.

Data Sheet – AG Series Full-Height ADA Gates

Color and Finish Chart

Production Sheet – Swing Gates

STANDARD FEATURES

  • 48″ Extra-wide passage width
  • Vertical Steel Bar Infill
  • Comes fully assembled
  • Durable galvanized finish (upgradeable)
  • All stainless-steel hardware
  • Internal wiring chase for access control wiring
  • Right- or left-hand swing
  • Pull/Rim Exit, Standard Hardware:
    • Weatherized rim exit device (push bar)
    • Locinox mammoth 180 self-closing hinge
  • Dimensions
    • 91″ Tall (7’7″)
    • 4′ Wide Passage
    • 4’7.5″ Wide Frame

HARDWARE

  • Pull/Rim Exit  (Standard Hardware):
    • Detex Weatherized v40 series panic bar
    • Detex 03an pull trim

Additional Options:

  • Pull/Strike/Rim Exit:
    • Detex Weatherized v40 series panic bar
    • Detex 03an pull trim
    • Trine en850 electric strike
  • Handle/Maglock/Sense bar:
    • Securitron DSB sensebar
    • Securitron m62 maglock
    • Pull handle
  • Electric Rim Exit
    • Von Duprin 99 rim exit device
    • Von Duprin 996l Electric trim
    • ADA Gate Operator
    • Detex A019 or TORXUN gate operator



ADDITIONAL OPTIONS



FINISH OPTIONS

Finish Options:

  • Galvanized Steel (Standard)
  • Powder Coated (Choose color. Custom color by RAL# www.ralcolor.com)
  • Powder Coated over Galvanizing (Choose color)
  • Stainless Steel

Base Materials Used:
-4”x2” 11 gauge rectangular tube
-3”x2” 14 gauge rectangular tube
-11 gauge formed sheet metal
-#9 flattened Expanded Sheet metal
–Stainless steel construction available



INSTALLATION

Installation services are available now! See our portfolio here.





Shipping is not included and will be charged separately. Contact us for a personalized quote!
