IX-DA Audio & Video Door Station

Please Login for Pricing

Login or Sign Up

Description

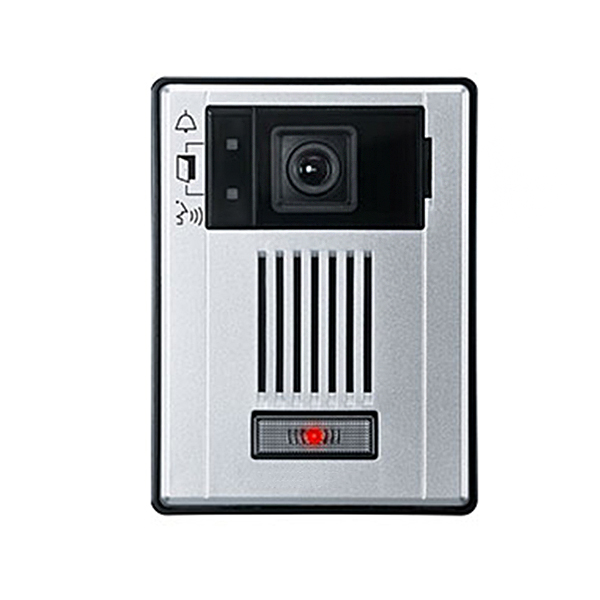

The IX-DA is an IP audio/video door station terminal for the IX Series. This surface mount unit connects to a PoE network using CAT-5e/6 cable. The IX-DA will call up to 20 IX-MV masters or Instances of the IX MOBILE. The door station features a form C contact for door release, a 600-ohm output for paging or an amplified speaker, and a contact input.

Data Sheet – IX-DA Audio & Video Door Station

Installation Manual – IX-DA Audio & Video Door Station



FEATURES

  • 802.3af PoE, Class 0
  • White LED for low light illumination
  • Single contact output (door release, external signaling)
  • Single trigger input
  • 600Ω audio output
  • IP55 rated, weather-resistant

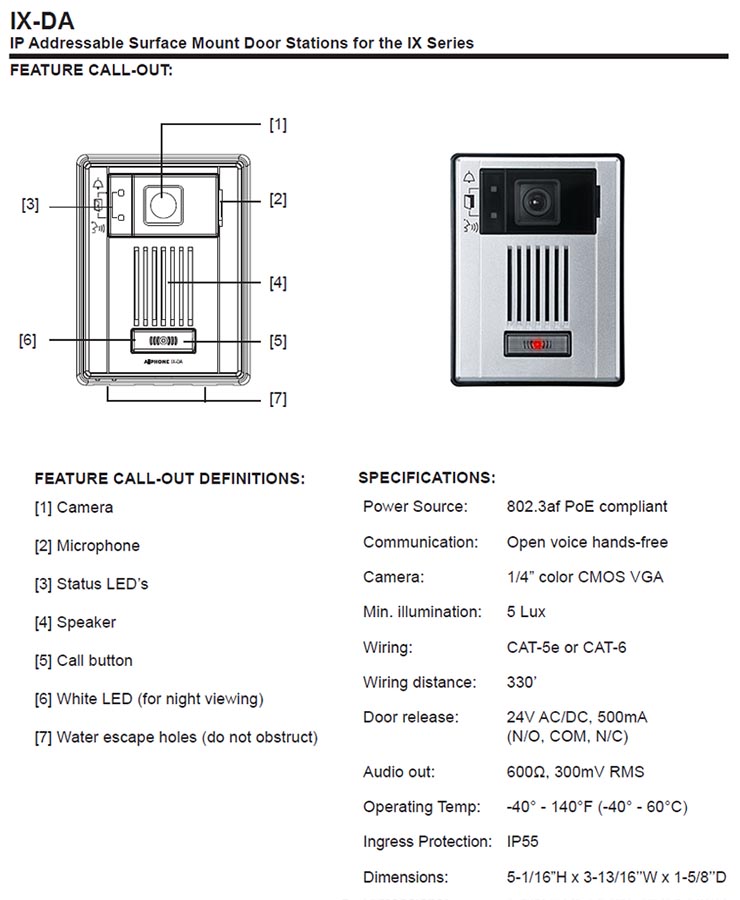

SPECIFICATIONS

Power Source
Power Over Ethernet (802.3af)
Network Interface
Hardwired Stations: 10 BASE-T / 100 BASE-TX Ethernet (RJ-45)
Network Protocols
IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP
Bandwidth Usage
Audio (G.711): 64Kbps x 2 for communication
Video (H.264): 24Kbps ~ 2,048Kbps
Communication
Hands‑free
Camera
Type: 1/4″ color CMOS VGA
Video Stream
ONVIF Profile S
Door Release

Protection Rating
IP55

Temperature Rating
-40° to 140° F

Wire Type
CAT‑5e or CAT‑6
Wire Distance
330′

INSTALLATION

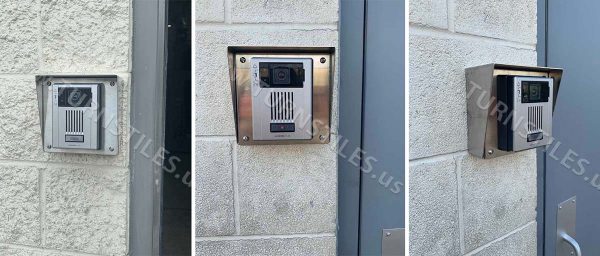

This Door Station is shown Mounted on a Doorway with a TURNSTILES.us Stainless Steel Covered Box

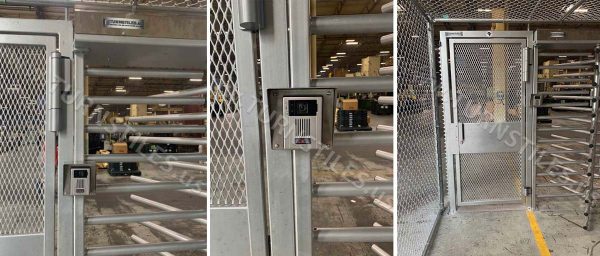

This Door Station is shown Mounted on a Turnstile/Door Frame with a TURNSTILES.us Stainless Steel Covered Box



TURNSTILES.us INCLUDES

  • Programming and Video Systems Integration with selected options from Turnstiles.us and EntraPASS.com
  • 1 Year of Telephone and Scheduled Remote Desktop Support



*Freight is additional. Please contact us for a personalized quote.
