Description
The IX Series is a network-based communication and security system featuring video entry security, internal communication, internal communication, and paging. All units and apps in the systems can unlock doors remotely on a network, assist onsite visitors from an offsite location, broadcast emergency announcements, and communicate using a PoE network. The IX-MV is an IP addressable video master station with a 3.5″ color LCD monitor. It can be wall or desk mounted (desk stand included). The IX-MV offers handset (duplex) and hands-free (VOX/PTT) communication and calls up to 500 other IX units. It connects directly to a network using CAT-5e/6 cable. This station requires an 802.3af compliant power-over-ethernet network.
Data Sheet – IX Series Audio & Video Intercom Systems
Literature – IX Series Audio & Video Intercom Systems
Operation Manual – IX MV Audio & Video Intercom Master Station
Web Setting Manual – IX MV Audio & Video Intercom Master Station

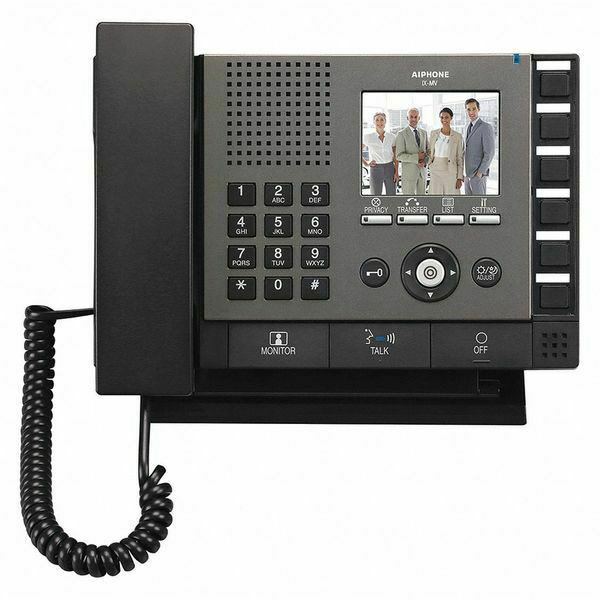

IX-MV MASTER STATION
- IX-MV Original IX Series Video Master Station
- PoE Connection
- 500 station address book capacity (Scalable over 500)
- Hands-free communication with handset for privacy
- Wall or desk mount
- One of the most powerful intercom systems in the security industry
- The IX Series integrates some features controllable through Modules including:
- Programmed Alerts
- Automatic intercom call-in to security following failed card swipe
- Video + Audio Streaming
- Monitor activity at IX Series video stations on an OnGuard display
- Intercom Station Status
- Perform system health checks and easily identify offline stations
- View which stations are idle, queued, or in communication
- Event logging
- Review station event history
- Review error logs

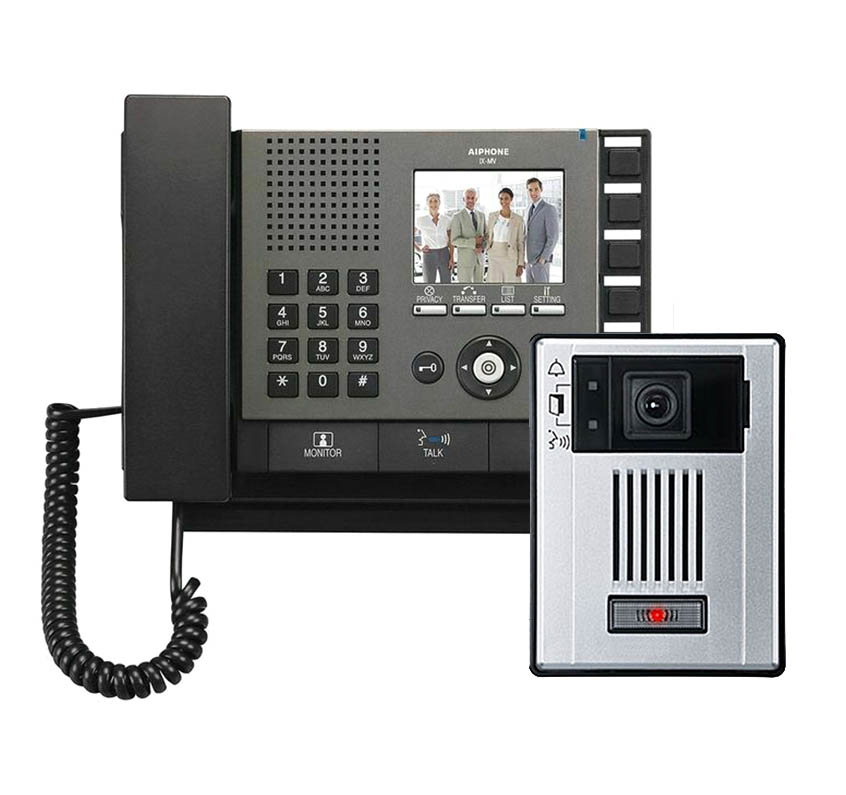

Companion IX-DA DOOR STATIONS
The IX-DA Door Station is an IP audio/video terminal for your secured door or entry. It communicates by intercom with the IX Series Master Station. This surface mount unit connects to a PoE network using CAT-5e/6 cable. The IX-DA will call up to 20 IX-MV masters or Instances of the IX MOBILE. The door station features a form C contact for door release, a 600-ohm output for paging or an amplified speaker, and a contact input.
Product – IX-DA Audio & Video Door Station
Data Sheet – IX-DA Audio & Video Door Station
Installation Manual – IX-DA Door Stations

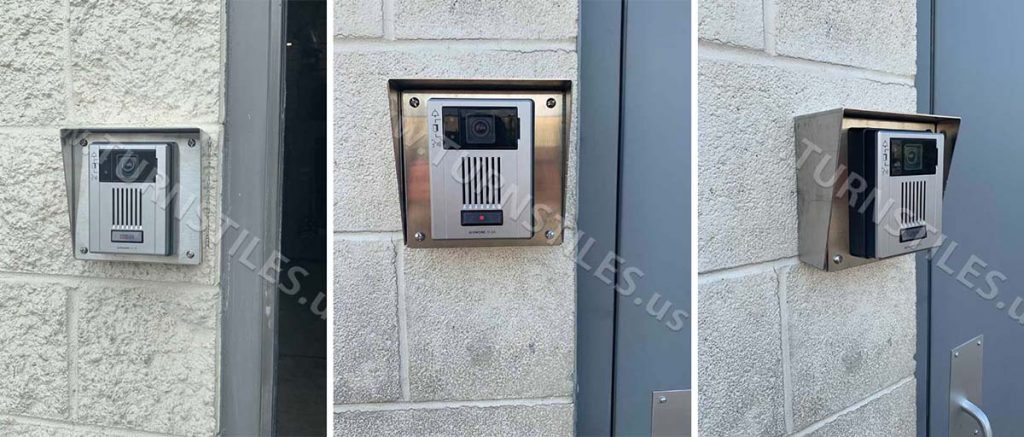

This Door Station is shown Mounted on a Doorway with a TURNSTILES.us Stainless Steel Covered Box

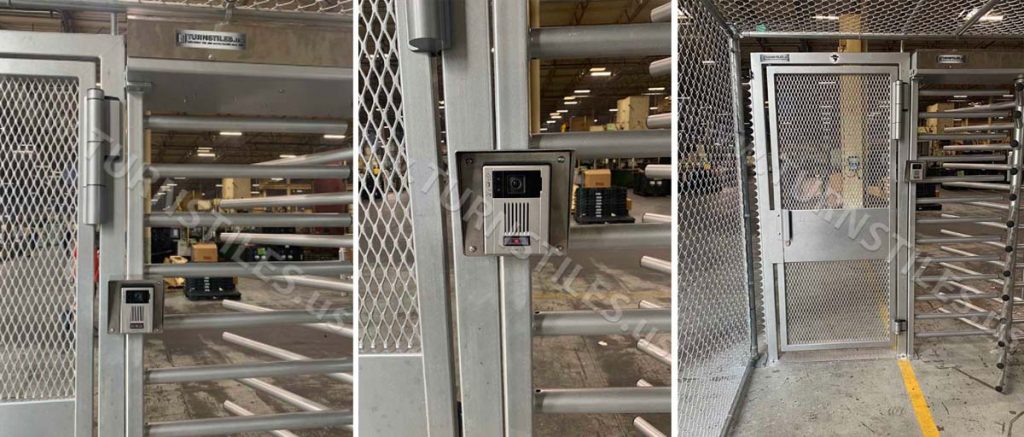

This Door Station is shown Mounted on a Turnstile/Door Frame with a TURNSTILES.us Stainless Steel Covered Box
TURNSTILES.us INCLUDES
- Programming and Video Systems Integration with selected options from Turnstiles.us and EntraPASS.us
- 1 Year of Telephone and Scheduled Remote Desktop Support
*Freight is additional. Please contact us for a personalized quote.
