IX-EA Audio & Video Door Station (Replaces IX-DA)

Please Login for Pricing

The IX-EA is a one gang surface mount, IP Audio-Video Intercom. The IX-EA is SIP compliant, ONVIF Profile S compliant, and is capable of streaming video through ONVIF and RTSP. The IX-EA is compatible with all IX and IXG series devices.



Login or Sign Up

Description

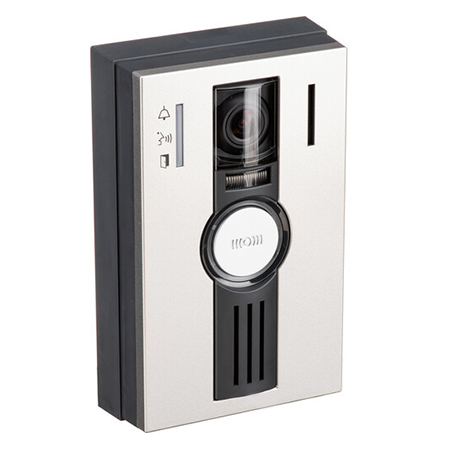

The IX-EA is a surface mount weather-resistant IP video door station. It connects to a network using Cat-5e/6 cable and is SIP compliant. The station is equipped with a 1.23 megapixel fixed color camera. The camera angle can be vertically adjusted using a lever on the back of the station. The video can be streamed to 3rd party devices using ONVIF Profile S or RTSP. Audio and video can be captured on a microSD™ card. The IX-EA can be programmed to call up to 20 different stations with three different call level selections. The station has a 600Ω output that can be used for paging or communication.

There is one contact output that can be programmed to trigger during door release, when the 600Ω output is used or based on the status of the station. There is one input that can be used to trigger an outgoing call or answer a call/ page. Sound files can be uploaded for custom messages to be played during certain functions (door release, call placed, communication start, error message, etc.). The station has audible and visual indications for calling, communication, and door release.

Data Sheet



FEATURES



  • SIP compliant
  • 802.3af PoE compliant
  • White LED for low light illumination
  • ONVIF Profile S compliant
  • Camera vertical adjustment +13º, 0º, or -8º (manual)
  • Slot for microSD™ card (not provided by Aiphone)
  • Weather resistant
  • 1 contact output
  • 1 trigger input
  • 600Ω audio output



SPECIFICATIONS



  • Power Source: PoE (IEEE 802.3af class 0)
  • Power Draw: 5.18W max
  • Camera: ⅓” CMOS 1.23 megapixel
  • Min. illumination: 5 lux
  • Audio Codec: G.711 (µ-law, A law), G.722
  • Video Codec: H.264/AVC, Motion JPEG
  • Volume: 73dB-96dB
  • Port Security: IEEE 802.1X
  • Operating Temp: 14° ~ 140°F (-10° ~ 60°C)
  • Dimensions: 6-5⁄16″ H x 3-15⁄16″ W x 1-3⁄4″ D

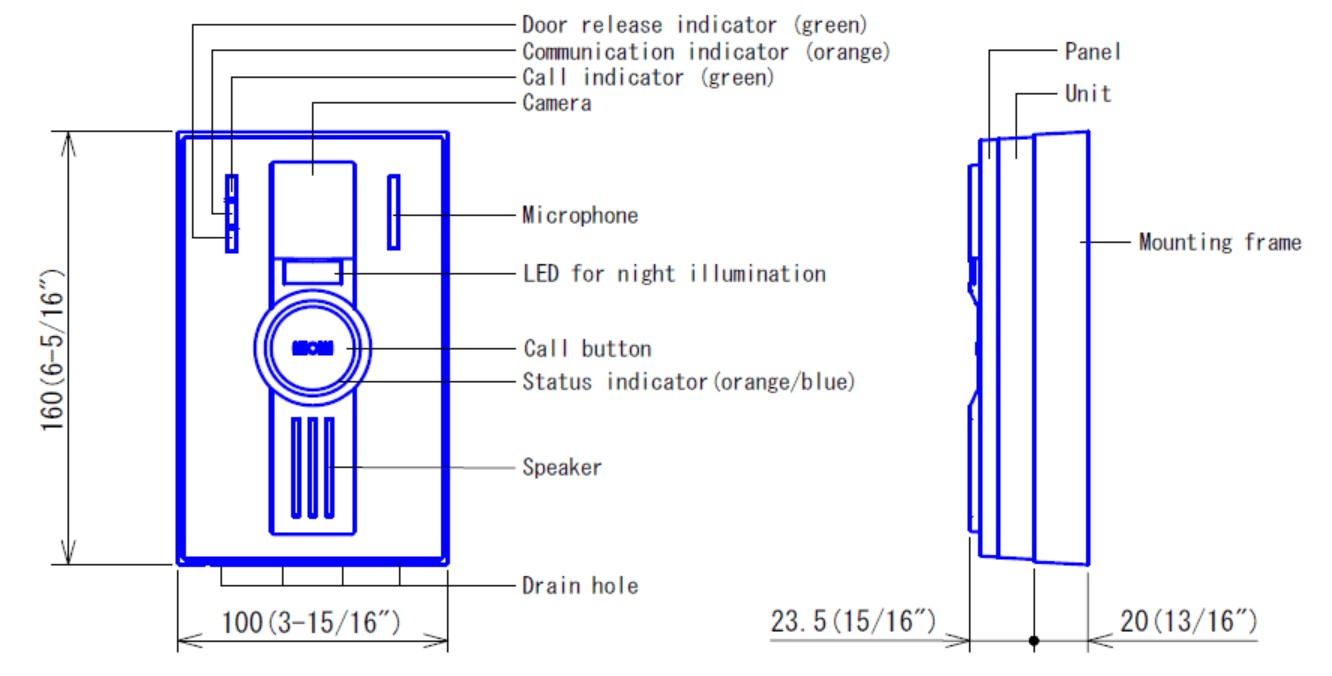

DRAWING & DIMENSIONS
