Description
For wheelchairs, bicycles, and goods deliveries

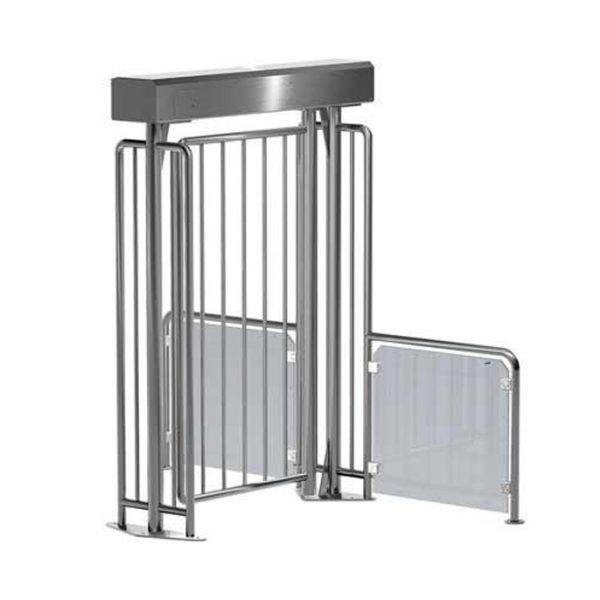

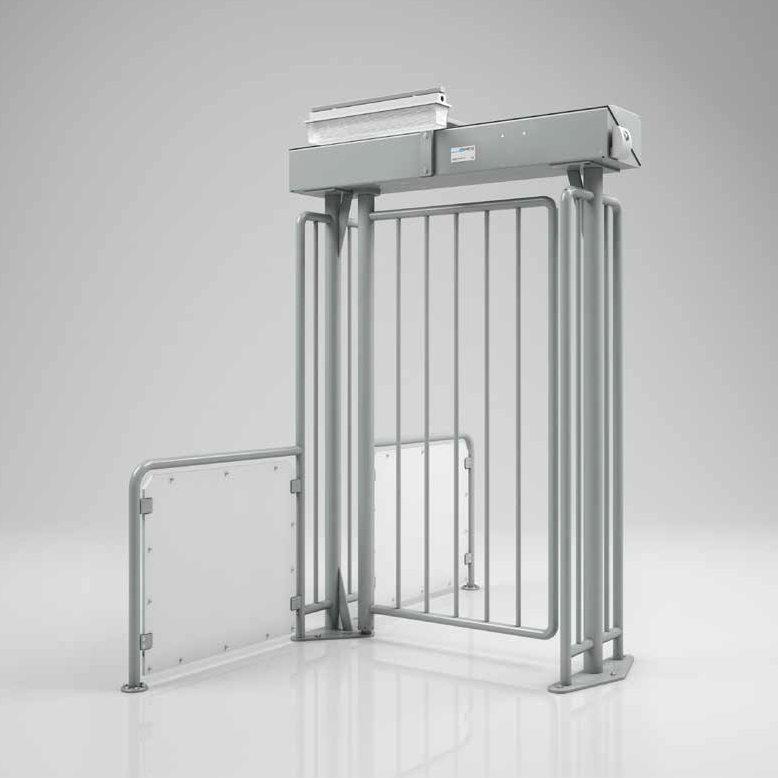

MPG swing gates are the optimum barrier solution when a large passage opening is required in indoor or outdoor access points. It can be free-standing or used in combination with an MPT turnstile. The swing gate has an opening angle of 90° in both directions and can be controlled by most access control systems. As an option, the swing gate can be expanded with a single- or double-sided induction loop that reliably detects the presence of bicycles and wheelchairs. Thanks to its advanced drive technology, the swing gate is energy-efficient, maintenance-free, and quiet. Low-impact forces and sensitive contact detection ensure user safety and compliance with strict industry standards. With a variety of material options, interlocks, and supplementary attachments, MPG swing gates can be individually adapted to the desired purpose.
Data Sheet
Production Sheet – ADA Swing Gate
FEATURES
- Fully-motorized operation
- Controlled access for cyclists and wheelchair users
- Sensitive impact detection for maximum safety
- Induction loop sensor for detection of bicycles and wheelchairs (optional)
- Low electricity consumption thanks to the maintenance-free motor
- Meets industry safety standards
- Interior or Outdoor Use
OPTIONS
- Material: Powder-coated galvanized steel in standard or special colors; stainless steel 1.4751
- Sensors: Single-sided/double-sided induction loop to detect wheelchairs and bicycles
- Reaction to power failure: Free access or auto-locking on power failure
- Attachments: Illumination, base frame, base mounting set, roof, extension column, gate end display (GED)
TECHNICAL DATA
| MPG Motorized Pedestrian Gate | MPG 162 | MPG 172 |
| Installation | in combination with turnstile system | free-standing |
| Voltage | 110 – 240 VAC, 50/60 Hz | 110 – 240 VAC, 50/60 Hz |
| Power consumption | 85 W (incl. interlock) | 85 W (incl. interlock) |
| Duty cycle | 100% | 100% |
| Opening/closing time | approx. 3 s | approx. 3 s |
| Passage width | 1087mm / 42.7 in | 1070mm / 42.1 in |
| Enclosure rating | IP 43 | IP 43 |
| Dimensions (L x W x H) | 57.1 * 19.6 (excl. guide bar) *87.9in (1451*500*2235 mm) | 63.8 * 19.6 (excl. guide bar) *87.9in (1623*500*2235 mm) |
| Weight | approx. 220 kg / 485 lb | approx. 250 kg / 551 lb |
| Temperature range | −25 to +50 °C | −25 to +50 °C |

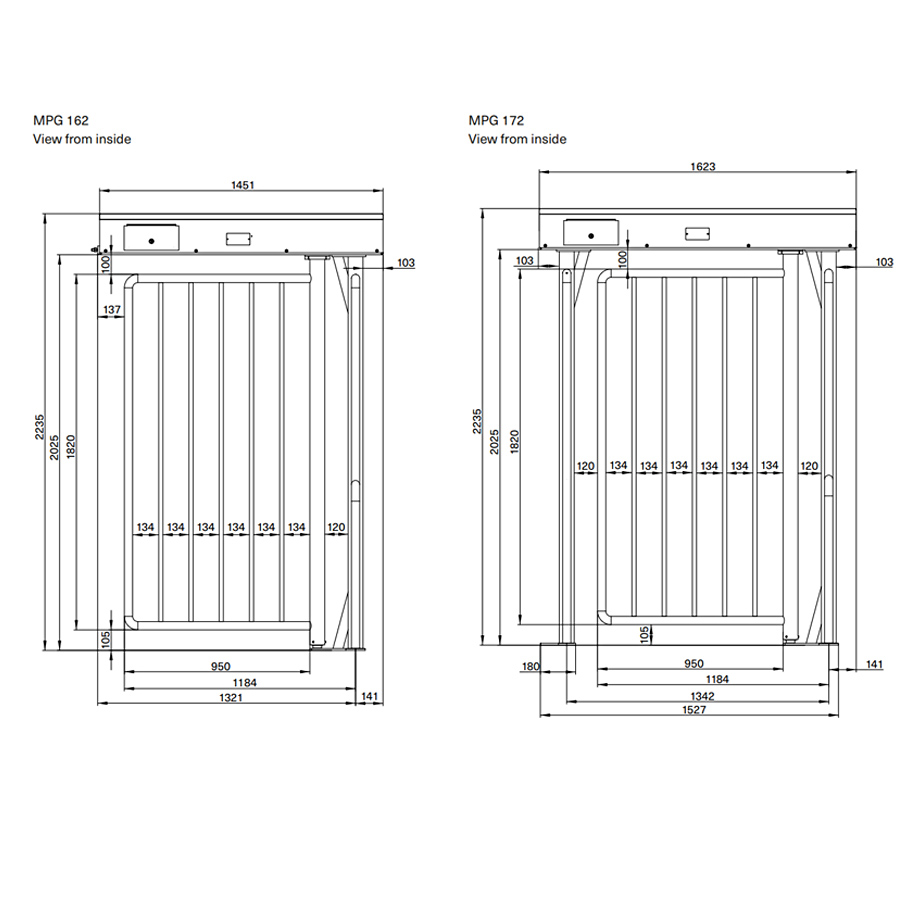

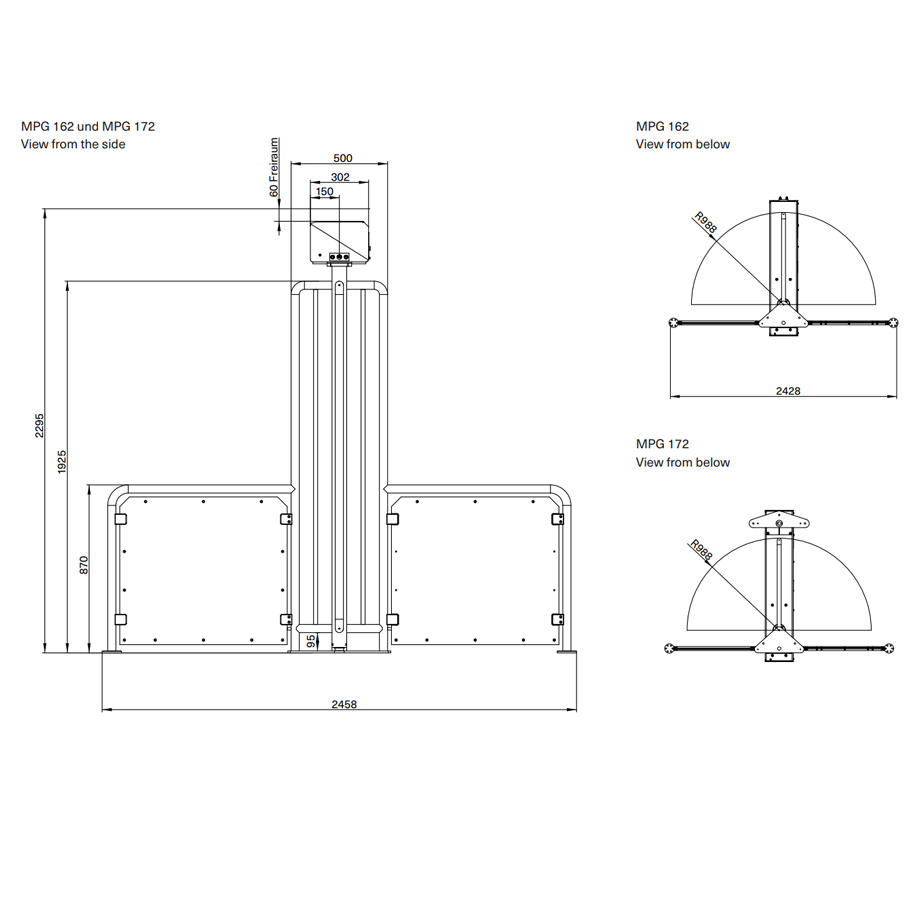

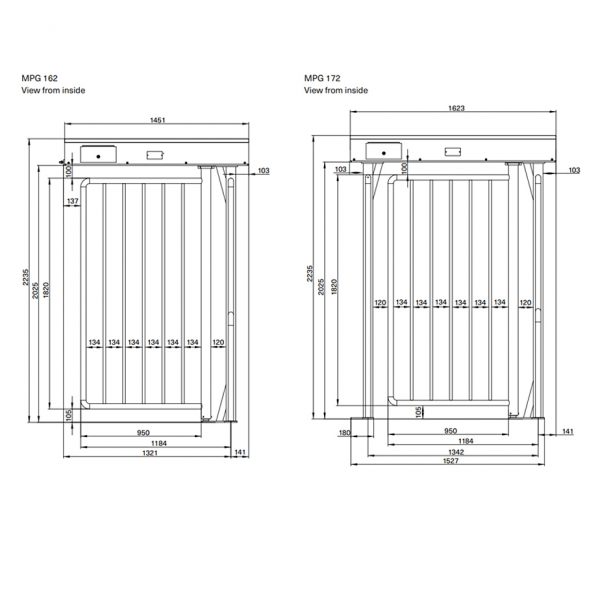

DRAWING & DIMENSIONS

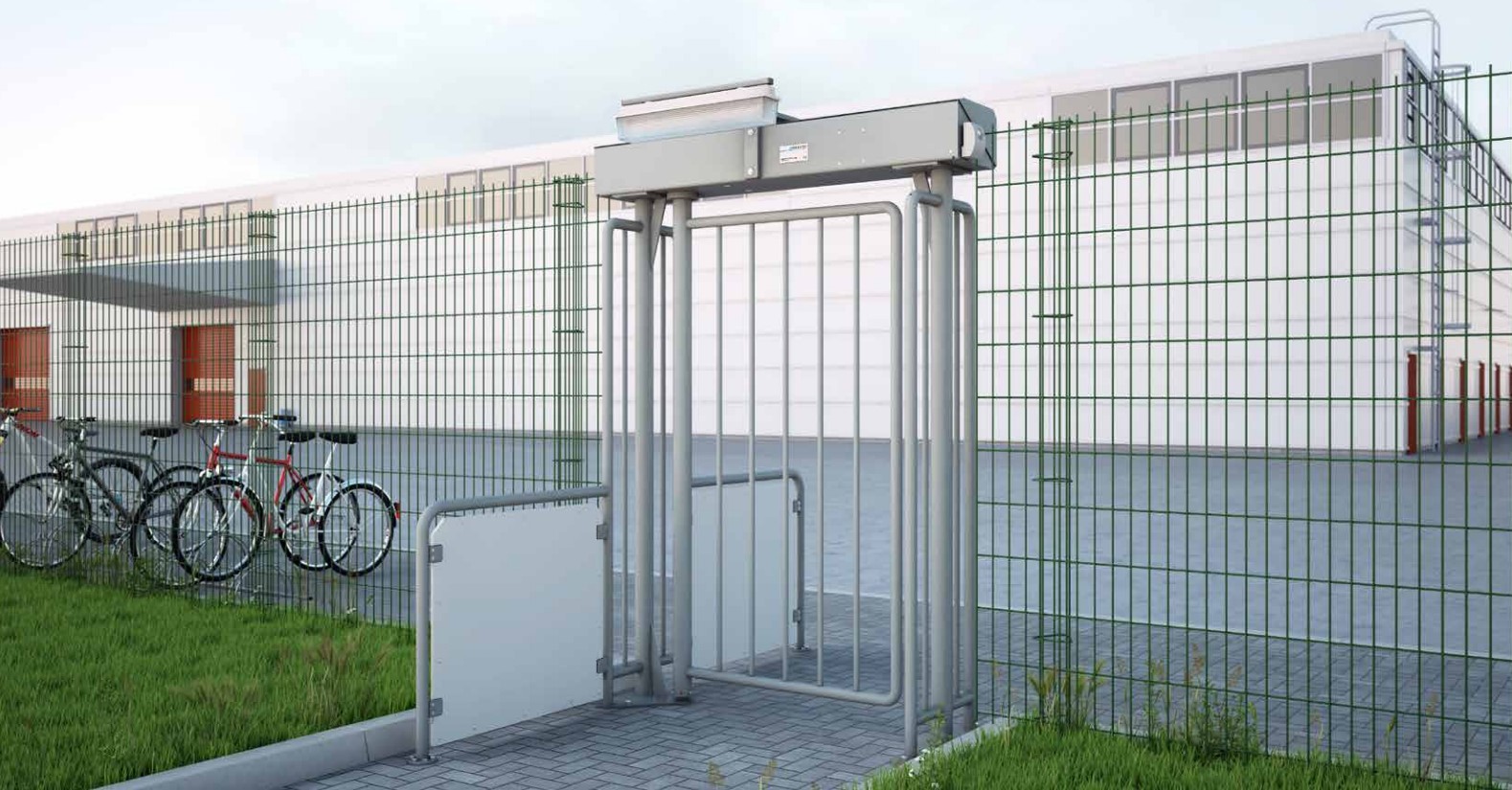

INSTALLATION
