Description
The MSS Swing Gate is a sleek, single-lane, cost-effective solution for controlling access to secure areas. Designed for both functionality and aesthetics, it allows users to pass through quickly and safely, ensuring smooth, silent operation with minimal power consumption. Its modern design, available in stainless steel or white finish, seamlessly integrates into any environment, making it an ideal choice for office buildings, retail stores or any entrance requiring gates. The gate features an acrylic panel that is normally held in a locked position. When triggered by an external signal from an access control system, the barrier swings open to allow passage. Users can be granted access through the turnstile by using a compatible reader (sold separately). The MSS also includes built-in sensors to detect a person passing through and can be programmed to automatically open upon exit.

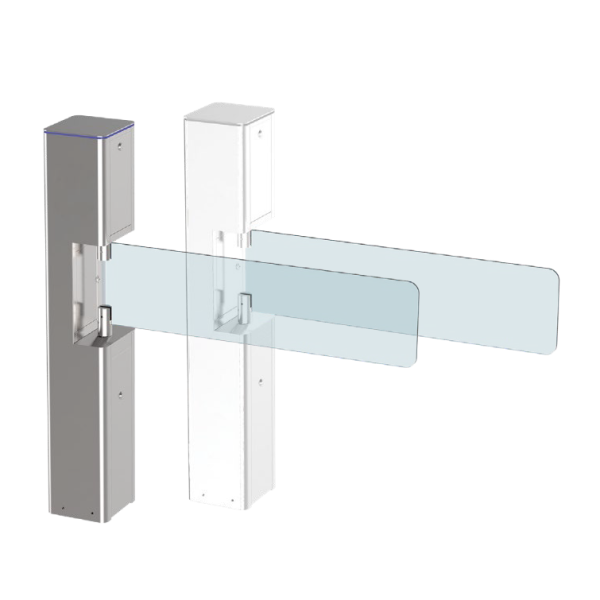

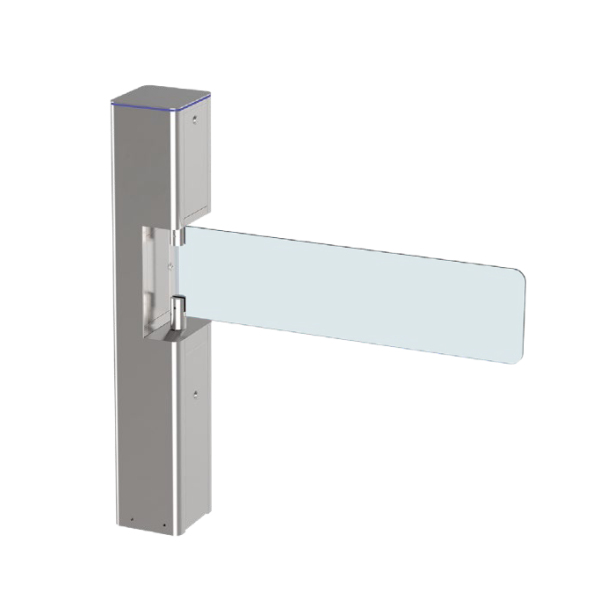

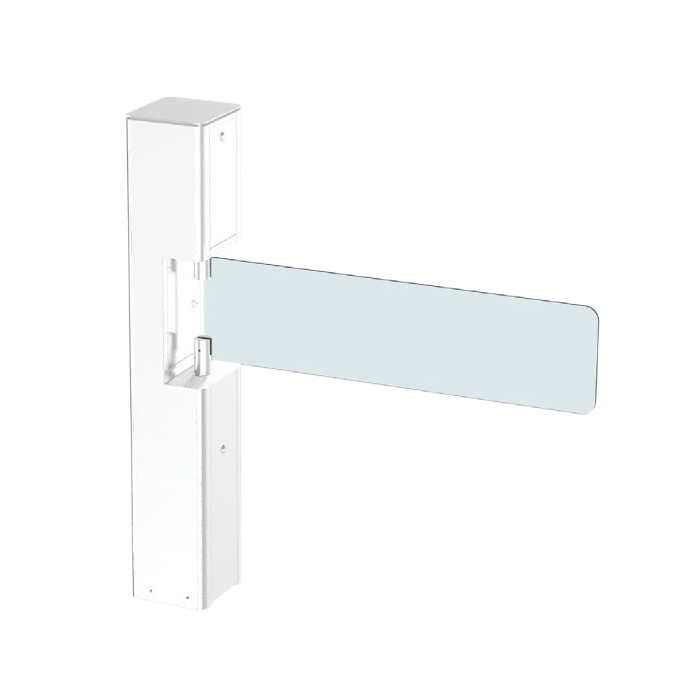

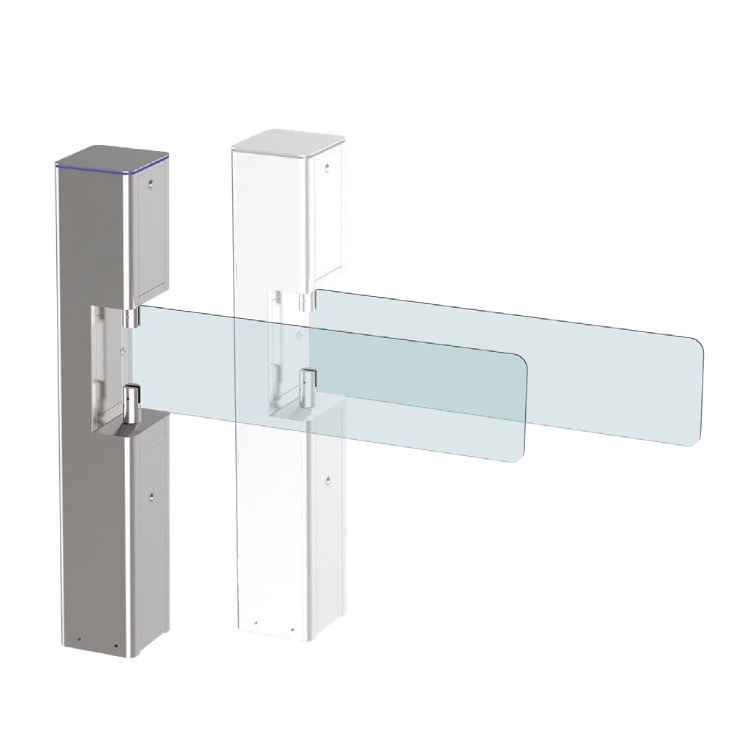

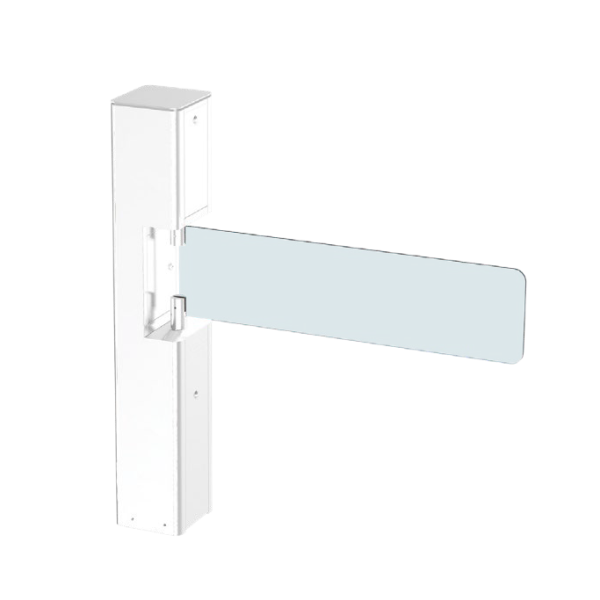

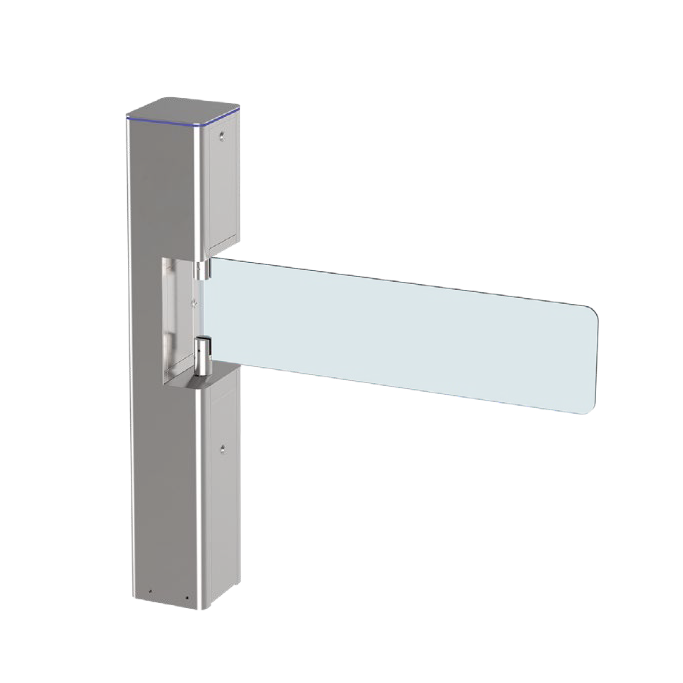

The standard configuration includes a clear acrylic barrier, but a stainless steel hoop option is also available. The MSS is available in both stainless steel and white finishes, with custom powder-coated colors or vinyl wraps available upon request to match any design aesthetic. Additionally, the barrier is offered in two sizes: a standard pedestrian lane and an ADA-compliant width, ensuring versatility for different space requirements.
Data Sheet – MSS Swing Barrier Turnstile
FEATURES
- Durable: Stainless Steel Housing,
- Compact: Slim design with smooth and silent operation
- Convenient: Easily integrate your access control reader of choice for an easy, secure entrance experience
- Bi-directional swinging gate
- Push-Button Input (for connecting a button control)
- High quality at an affordable price
- Low power consumption
- Cold rolled steel cabinet (silver) with option of powder-coated finish (white)
- Field-Selectable Entry and/or Exit directions (180-degree rotation).
- Barrier arm can be pushed open in the direction of egress with less than 5 pounds of force when the locking mechanism is disengaged.
- When connected to the Fire Alarm System the barrier will open and remain open in the direction of egress to allow users free exit during fire emergencies.
- During complete power loss the gate barrier will go slack and will be free to open with the push of a hand. If code required, systems can be set to open the barrier in the direction of egress in the event of a power outage.
- Motion sensor is positioned for wheelchair detection
- Option of Card Reader Mounting
- Option of Barrier Acrylic (standard) or Stainless Steel Bar
SPECIFICATIONS
- Power Supply: 24V DC 1.5A (typical)
- Temperature: 32°F to 104°F (0-40°C)
- Power Consumption: 9W (standby), 30W (operation)
- Operating Humidity: 5% – 80%
- Working Environment: Indoor/Outdoor if sheltered for climate & weather
- Material: Cold rolled steel cabinet
- Gate Dimension (LxWxH): 41” x 8” x 38” standard
- Lane Width: 28” or 36” meets ADA-compliance
- Gate Weight: 57.3 lbs. (26kg)
- Package Weight: 99.2 lbs. (45kg)
- Gate Dimension w/ Packaging (LxWxH): 44.1” (1120.14mm) x 14.2” (360.68mm) x 17.3” (439.42mm)

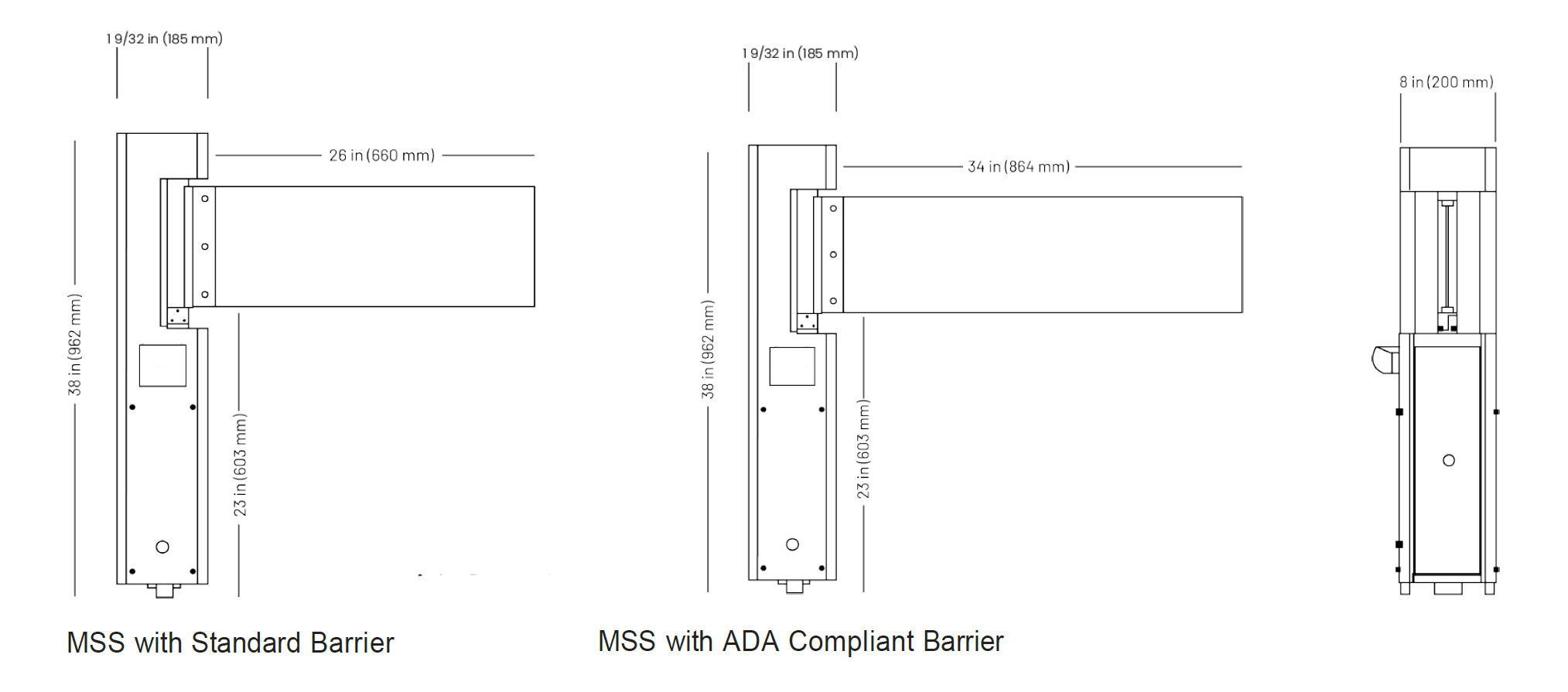

DRAWING & DIMENSIONS
