Description
The SG100 is a durable yet stylish self-closing swing gate. This round corner gate is available in a standard ADA-compliant lane width, but can easily be modified to fit your needs. Furthermore, custom rails can be added to fill any remaining open space. The SG100 is our least expensive and best-selling gate because it offers great value at a reasonable price.
The SG100 Swing Gate is our most accessible and budget-friendly entrance solution – a versatile, post-style gate built for everyday reliability. Crafted with stainless steel tubing and rounded corners, it’s designed to harmonize with both modern architecture and rugged use cases. The SG100 features a generous 36” ADA-compliant clear opening, ideal for providing authorized entry to individuals with disabilities, carts, deliveries, and other non-turnstile traffic.
With a clean one-way swing and self-closing heavy-duty hinge, the SG100 stands strong in retail stores, schools, libraries, gyms, cafeterias, and anywhere cost-effective control meets daily use. This gate adapts to your needs with a wide range of options, from electric locks to custom widths and color matching.
Production Sheet for Manufacturing
*Required Form: Please submit with your order*
FEATURES
- 36″ ADA clear lane width (standard)

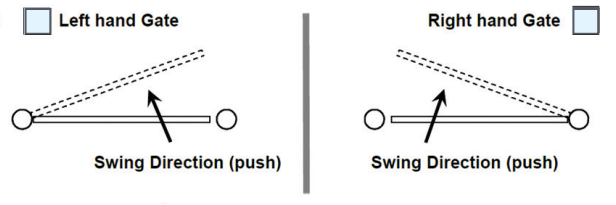

- One-way 90° swing
- Self-closing heavy-duty hinge with adjustable tension
- Stainless steel post and 2″ gate tubing with rounded corners
- Decorative 7″ baseplate flange cover
- Durable ¼” thick stainless base plate
- Interior or exterior rated
- Matching stop post and strike plate included
- Fully compatible with TURNSTILES.us access systems
- Built for retail, educational, institutional, and fitness environments
ADDITIONAL OPTIONS
- Electromagnetic Strike Lock – Integrates with nearly all access control systems
- Includes Power Supply – Standard 115VAC input / 24VDC output (UL recognized)
- Fail-Safe Option – Free passage during power failure
- Custom Widths – Sized from 20″ to 60″ at no additional cost
- Custom Colors & Signage – Branded or instructional visuals available
- Wall Mount Option – For spaces that require direct-to-wall configuration

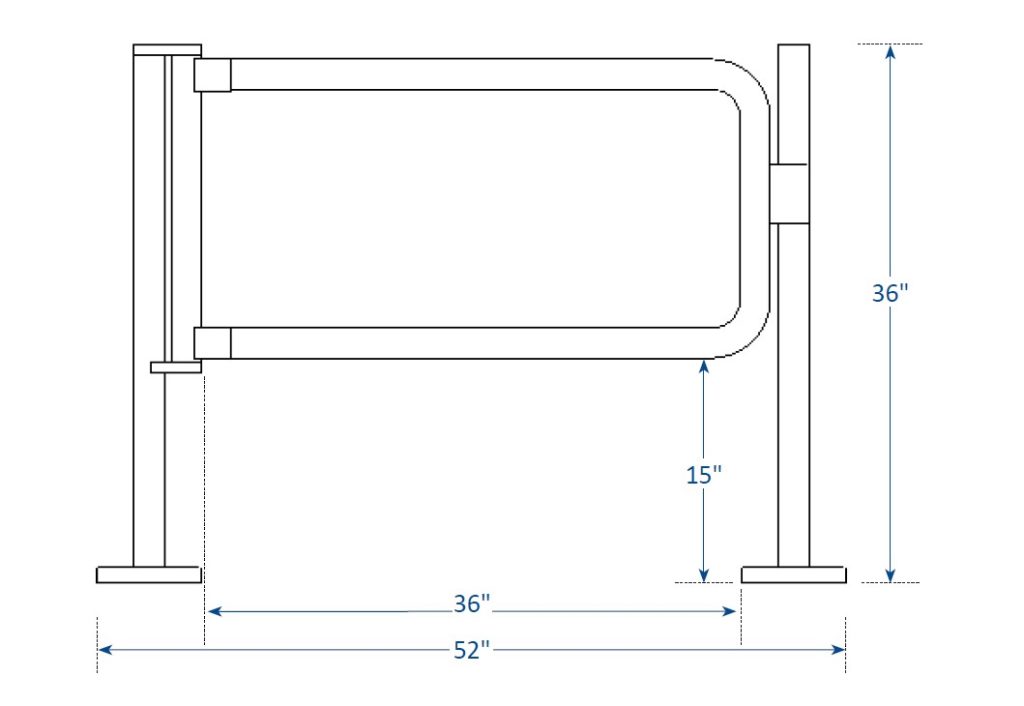

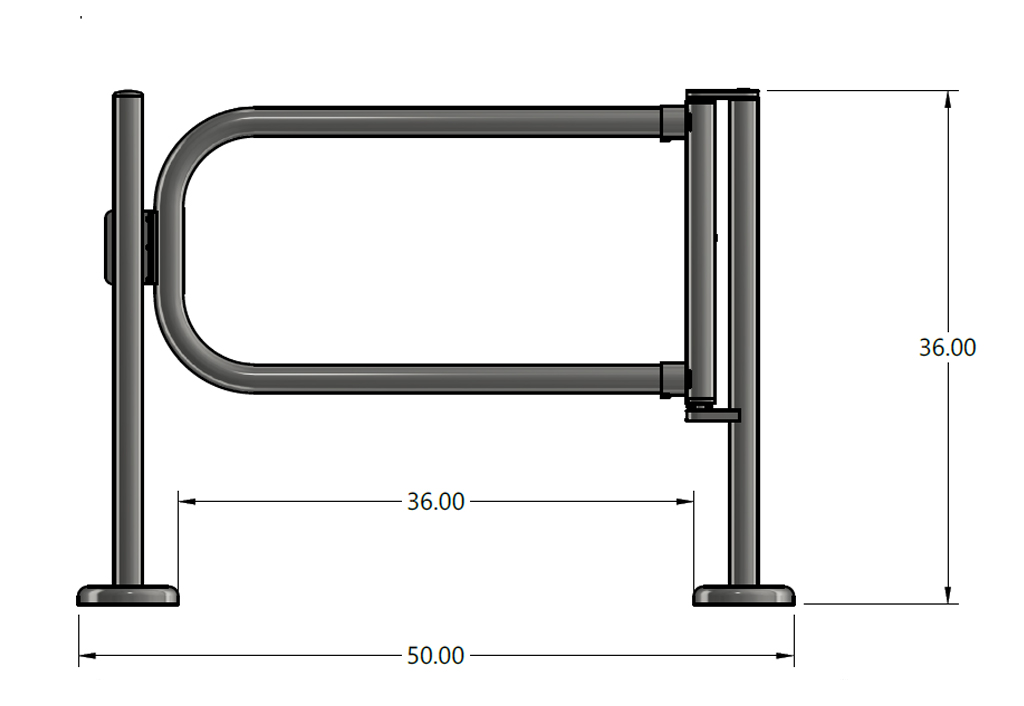

DRAWING & DIMENSIONS

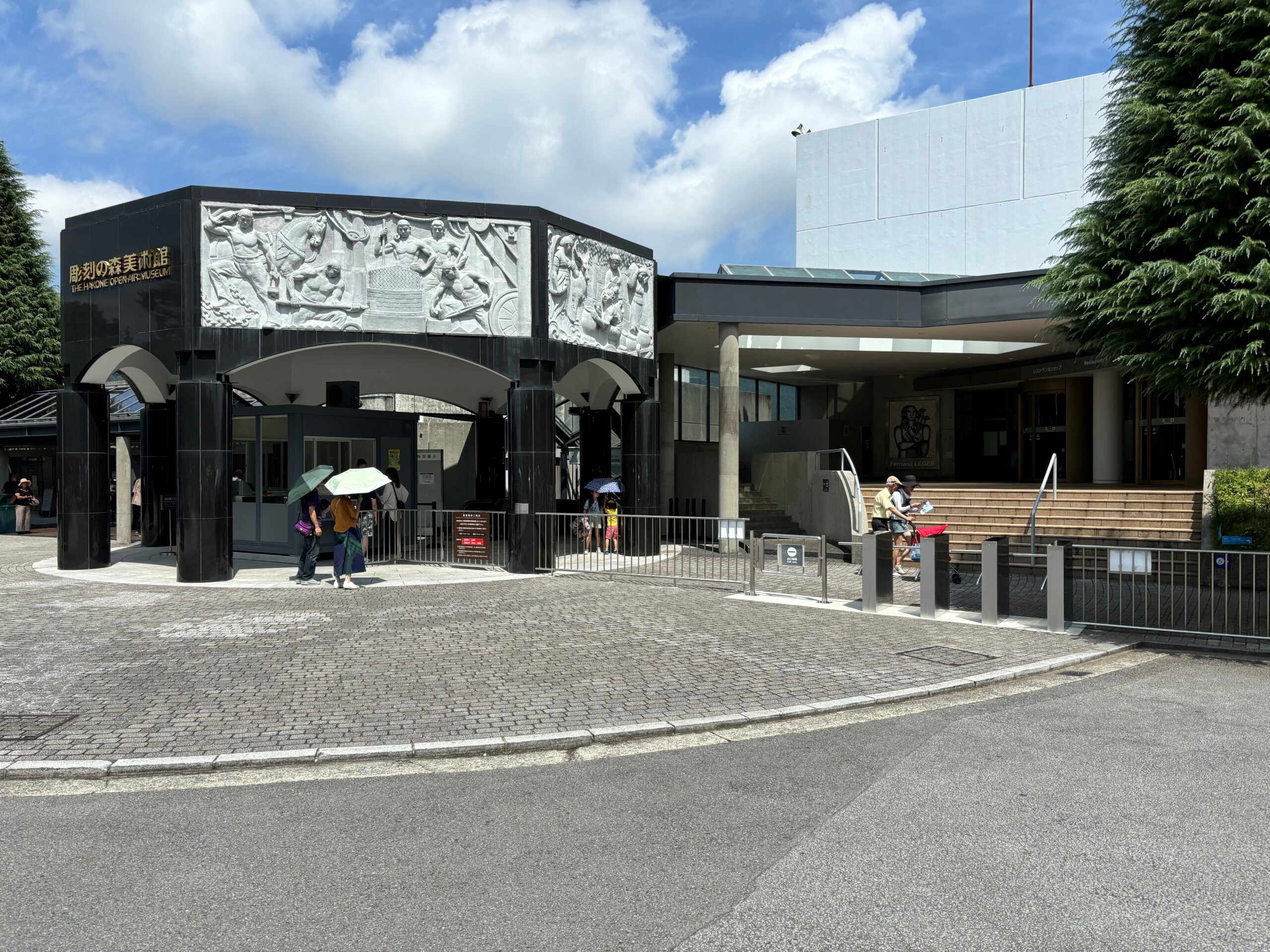

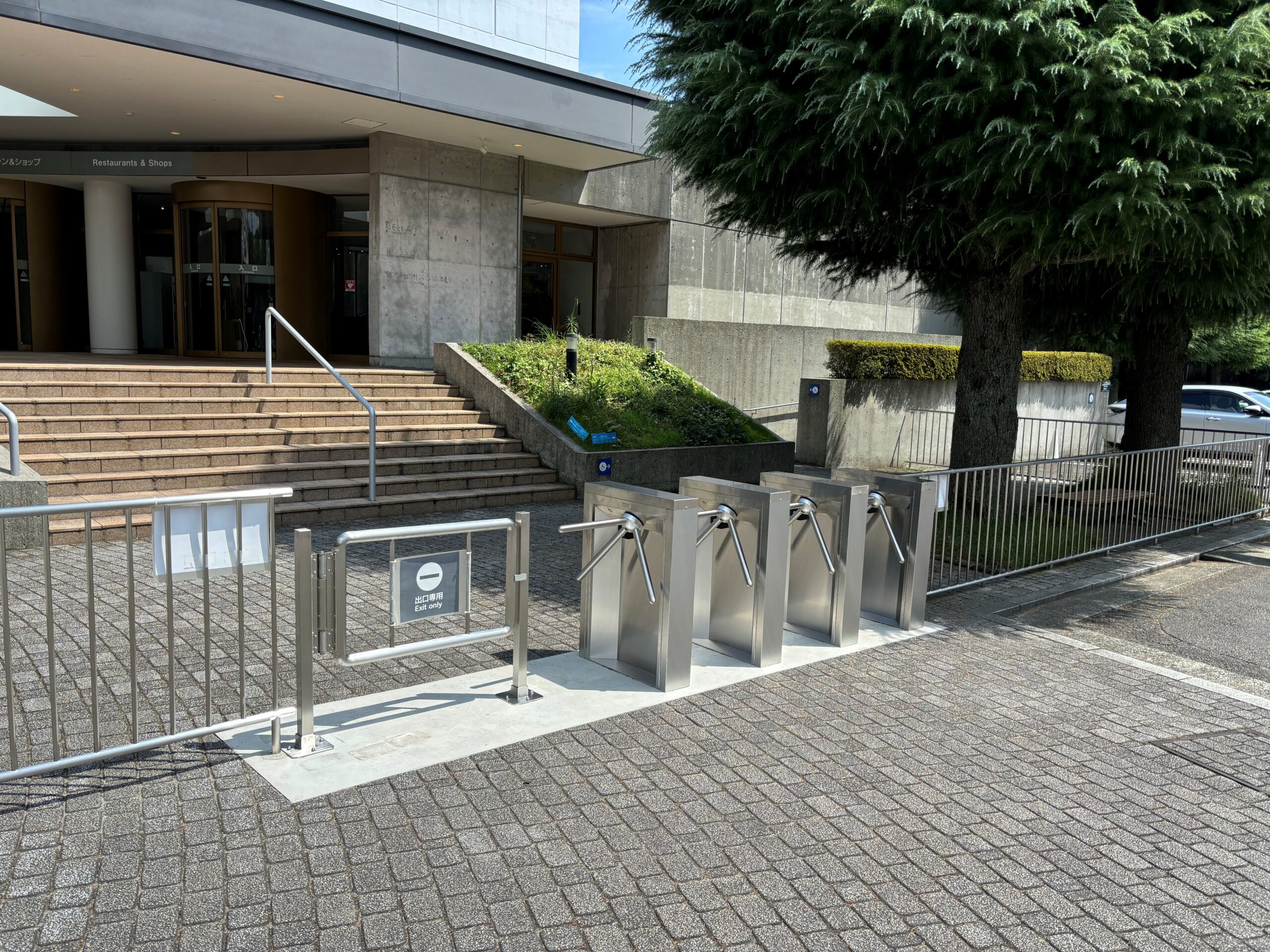

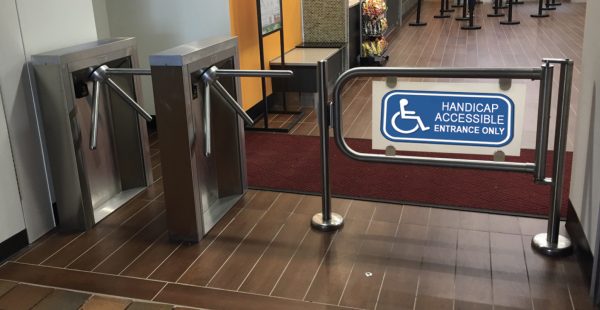

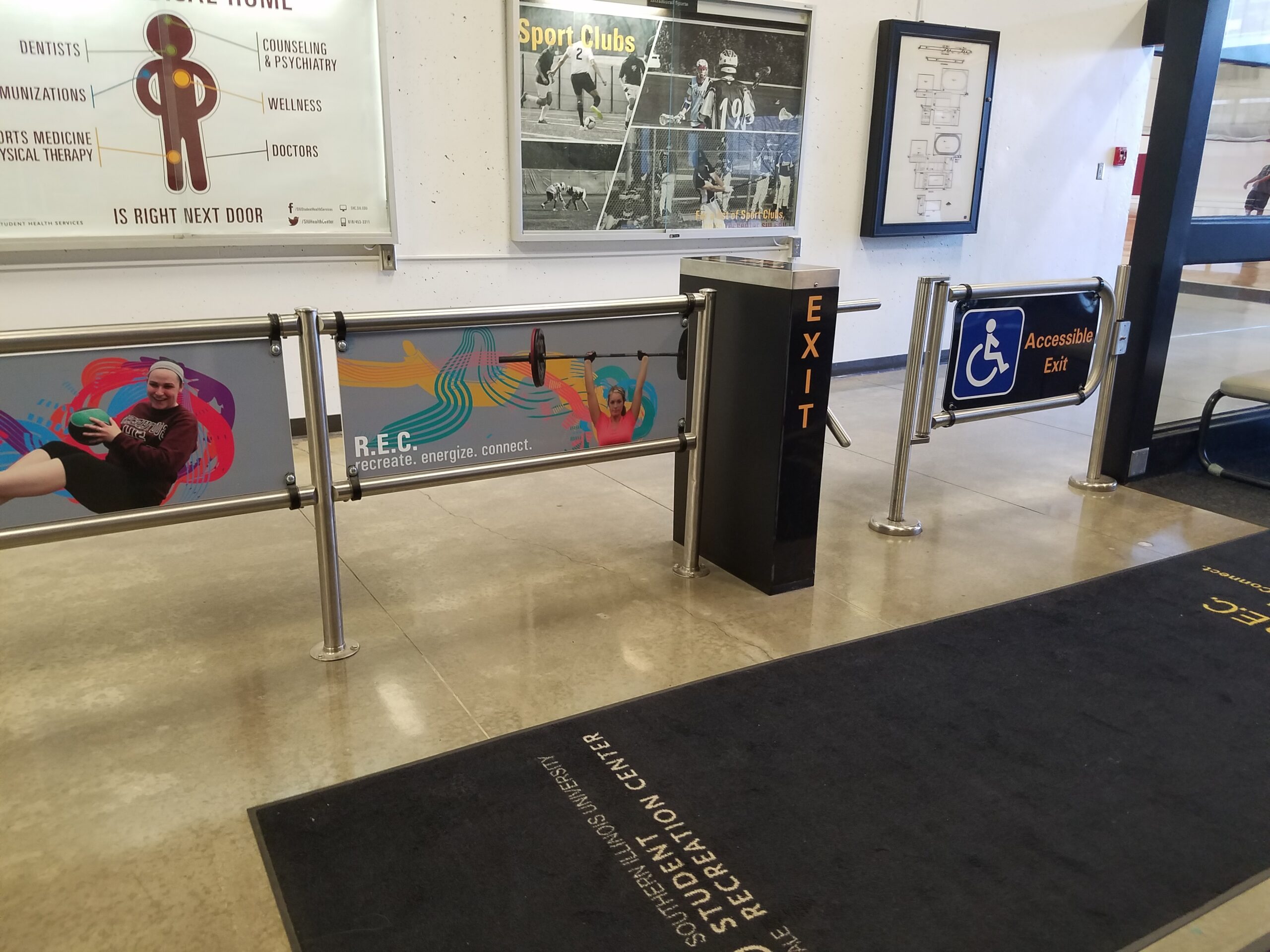

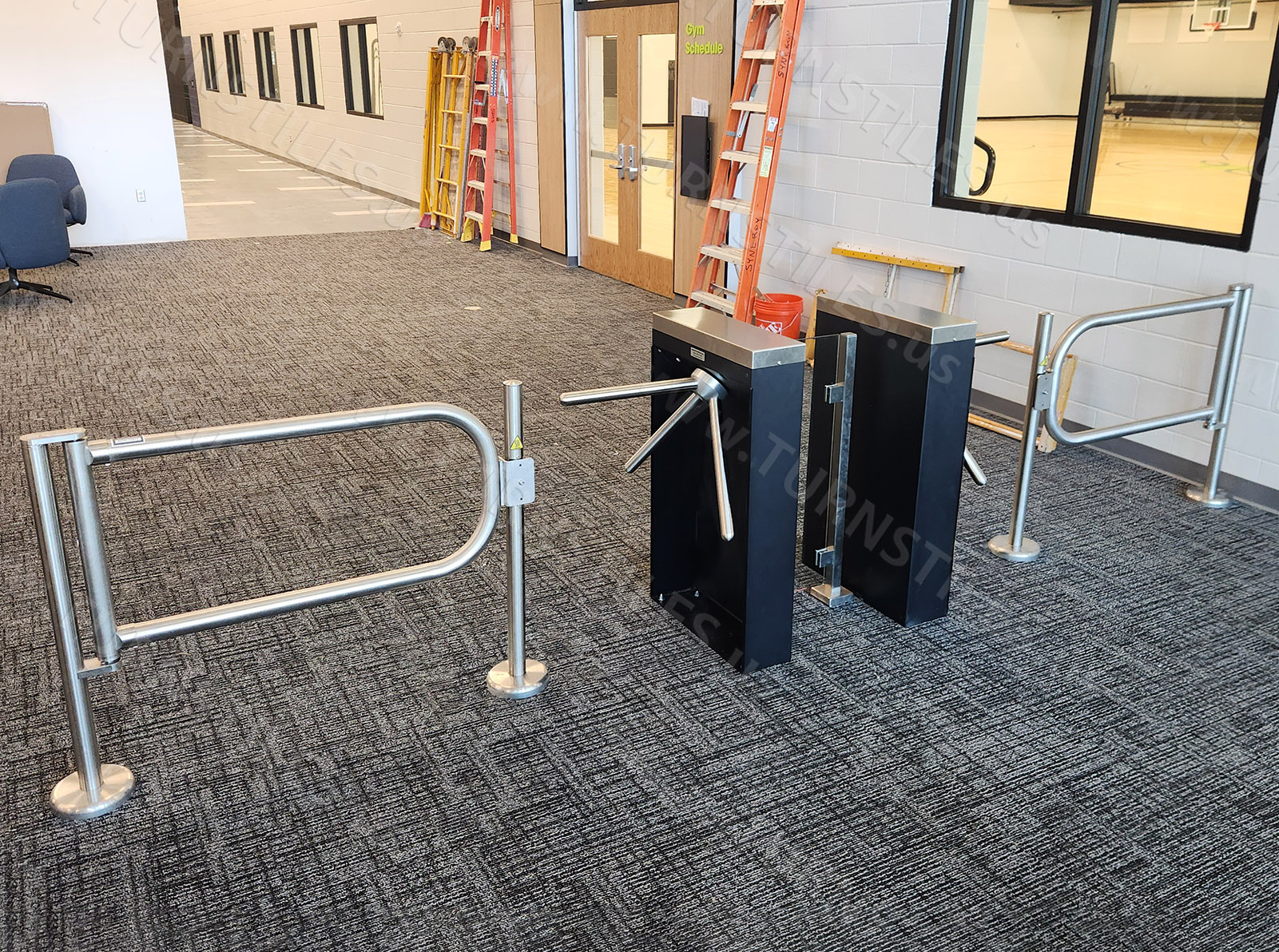

INSTALLATIONS
