Description
The Trident Waist High Turnstile is engineered for high-volume pedestrian access in environments demanding durability, reliability, and clean design. Ideal for both prestige and industrial applications, this turnstile performs equally well in office lobbies, stadiums, libraries, fitness centers, colleges, and amusement venues.
Available in single or double-lane configurations, the Trident features the ultra-reliable Rotalok electromechanical locking system, providing bidirectional, secure rotation with zero routine maintenance. Combined with its hydraulic damping system, the turnstile operates with ultra-quiet motion and minimal mechanical stress, making it one of the smoothest and most reliable models in the industry.
Crafted for both interior and exterior installations, the Trident is available in multiple finishes, featuring integrated wireways, reader mounting points, and optional accessories. Its modular, bolt-together design ensures simplified transport and installation.
Data Sheet – Trident Waist High Turnstile

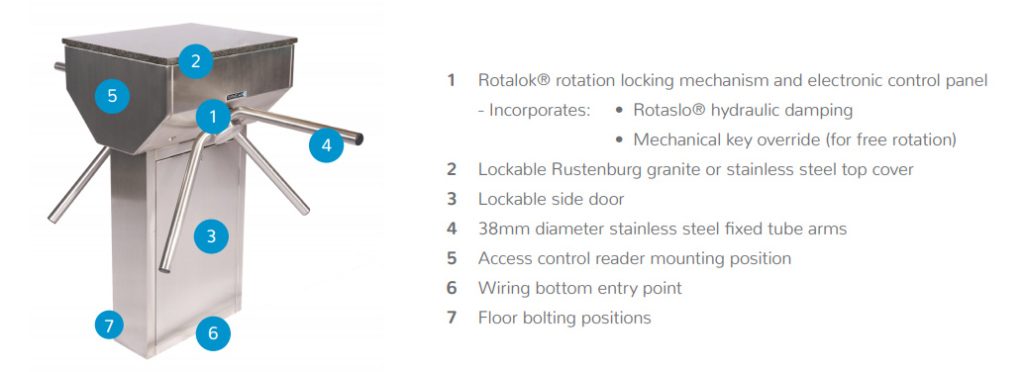

FEATURES
- Available in Single or Double Turnstile models
- Rotalok® Locking Mechanism: Electromechanical, 20+ years tested
- Rotaslo® Hydraulic Dampening: Smooth, ultra-quiet rotation
- Anti-Trap® Safety System: No lock-up in power failure
- Fail-Safe / Fail-Secure: Configurable per direction
- Modular Bolt-Together Design: Easy to transport/install
- Maintenance-Free: No routine service required
- Zinc-Plated + Stainless Options: For corrosion resistance
- 10-Year Mechanical Warranty, 1-Year Electrical Warranty
- Access Control Integration: Wires concealed, reader mounting built-in
SPECIFICATIONS
- Rotation Direction: Bi-directional (electric), uni-directional (manual override), or free spin
- Arm Diameter: 38mm / 1.5in stainless steel fixed tube
- Power: 220V AC (110V optional), 50/60Hz
- Logic Voltage: 24V DC (12V optional)
- Duty Cycle: 100%
- Weight: Single – 150 lbs | Double – 252 lbs

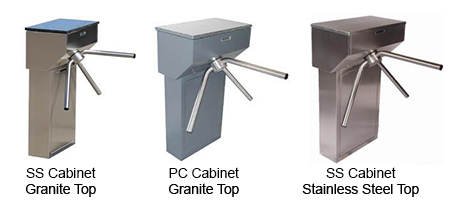

FINISH
- Finish Options:
- 304 grade brushed stainless steel
- 316 grade brushed stainless steel
- Powder-Coated Steel (standard color is charcoal blue hammertone)
- Other colors are available upon request
- Top Cover Options:
- Stainless Steel
- Lockable Rustenburg Granite
APPLICATION
- Interior and Exterior use
- Office Buildings & Corporate Lobbies
- Stadiums & Arenas
- Colleges, Libraries, Schools
- Fitness & Recreation Centers
- Amusement Parks & Attractions
- Public Transit Points

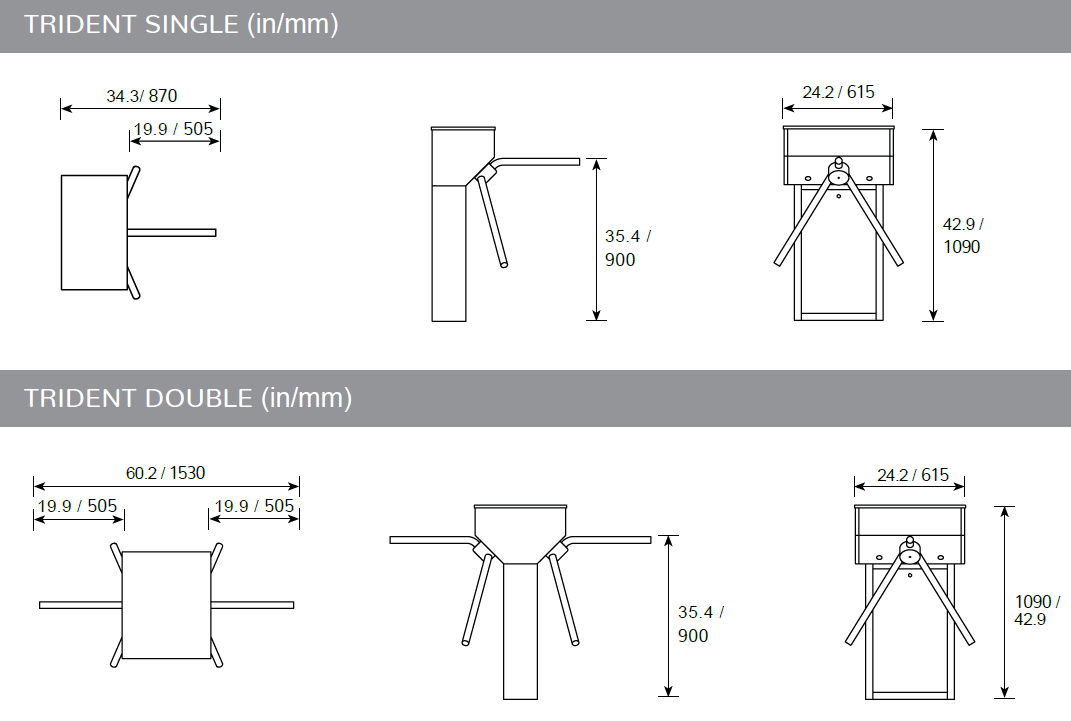

DRAWING & DIMENSIONS
INSTALLATION
Price is Equipment Only. Estimated shipping is calculated at checkout and final amount will be billed separately at time of shipment. Lead times apply.
Final details will be signed off by client before fabrication. Contact us with any questions!
Ships worldwide from our South Africa manufacturing center.
