UVC-Aire Curtain System for Air Purification

$ 5,175.00

The UVC-Aire offers a variable speed air curtain in a stainless-steel case. ¾ HP motors run continuously on low speed to provide a constant stream of purified air. Low-speed operation of the unit has been proven to inactivate/kill up to 99% of Coronavirus pathogens passing through the air curtain. The UVC-Aire is ideal for healthcare, retail, gyms, restaurants, and other facilities looking to provide an added layer of protection against airborne germs.

60” UVC Light System For Air Purification Electrically Heated Air Curtain
MODEL UVC-260-E

Description

The UVC-Aire offers a variable speed air curtain in a stainless-steel case. ¾ HP motors run continuously at low speed to provide a constant stream of purified air. Low-speed operation of the unit has been proven to inactivate/kill up to 99% of Coronavirus pathogens passing through the air curtain. The UVC-Aire is ideal for healthcare, retail, gyms, restaurants, and other facilities looking to provide an added layer of protection against airborne germs. Proudly Made in the USA.

Data Sheet – UVC-Aire Germicidal Light System for Air Purification



FEATURES

  • Germicidal light fixture and air curtain
  • The perfect addition to Turnstile Canopies or EntraBOX Systems

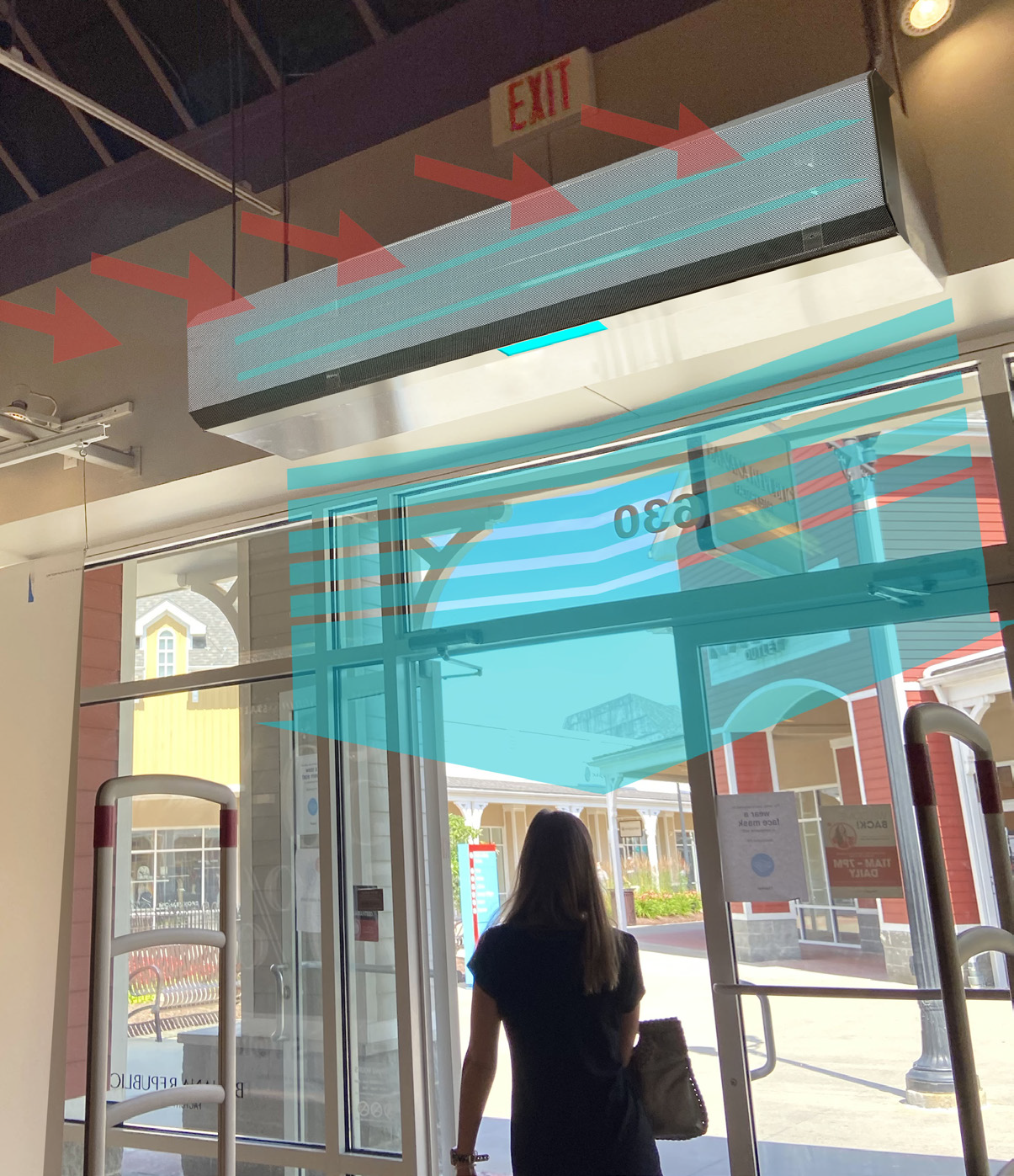

  • 5ft long fixture mounts over the doorway
  • The fixture runs continuously in sterilization mode (low speed), even when the door is closed, to provide constant air purification.
  • The unit will ramp up to the set speed when the door opens.
  • Adjustable speed, ¾ HP ECO Motors offer up to 72% energy savings over PSC motors.
  • Fully-assembled and available in full-foot increments from 36” up to 168” (emitters are installed in the field).
  • Includes unit-mounted cleanable filter and disconnect switch for safe and secure maintenance and emitter replacement.
  • Environmental separation, temperature control, pest control, and air purification.

APPLICATION

  • UV-C light kills up to 99 percent of all airborne coronavirus pathogens as they pass through the air curtain (rates vary by the unit’s size and speed setting).
  • Releases no harmful ozone back into the air.
  • UV-C lights inactivate bacteria and viruses without the need for HEPA-based filtration, which only traps germs without inactivating them.
  • Ideal for healthcare, retail stores, restaurants, gyms, and other facilities requiring a safe and effective method of separating environments, blocking insects, controlling climates, and killing germs.
  • Uses the strongest output UVC emitters on the market to achieve the highest airborne inactivation rates possible.
  • Available as a stand-alone unit or as a retrofit extension to fit previously installed air curtains.

SPECIFICATIONS

UVC-2-60E | Performance Table
Electric Heat
MODEL Nozzle
Width (in.)
Max. FPM
at Nozzle
Avg. FPM Max. CFM CFM at Nozzle Outlet Velocity Uniformity Number
of Motors
Motor HP mbtu
/ Hour
Temp.
Rise (˚F)
Weight (lbs)
UVC-2-60E 60 4218 3315 5050 3812 94% 2 3/4 15 13 147





Please note, listed prices are for equipment only. Shipping charges are separate.

Additional information

Weight 48 lbs
Dimensions 72 × 24 × 24 in
