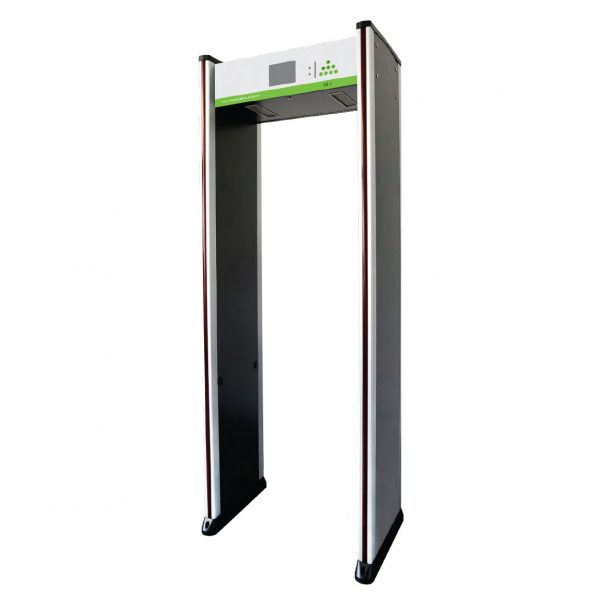

WMD318 Walk Through Metal Detector (18-Zone)

Please Login for Pricing

WMD318 is a Walk Through Metal Detector with 18 overlapping detection zones. Installation is made easy with only four pieces to assemble.

Login or Sign Up

Description

WMD318 is a Walk Through Metal Detector with 18 overlapping detection zones. Installation is made easy with only four pieces to assemble, and optional casters are available for ease of mobility. Only ​​​​​​authorized personnel can access the controls & settings. This unit has a 5.7 inch LCD screen, sensitivity adjustment, and is harmless to heart pacemakers, pregnant women, magnetic storage media, etc. Applications include airports, banks, travel hubs, schools, government offices, and more.

Data Sheet – WMD318



FEATURES

  • Detects up to eighteen (18) over-lapping zones
  • Sensitivity for each zone is adjustable in increments 1- 255
  • 5.7 inch (14.5 cm) LCD screen
  • Infrared remote control
  • Sound & LED alarms located on both sides clearly indicate precisely where metal is detected.
  • Automatically counts people and alarms
  • Secure operation. Only authorized personnel can access the control panel.
  • Easy assembly: Ships with only 2 pieces, cables and 8 screws. Simple to follow instructions.
  • Completely safe to operate and walkthrough. Harmless to heart pacemakers, pregnant women, magnetic storage media, etc.
  • Durable fire-retardant construction
  • No need for manual calibration. The unit runs self-diagnostics and re-calibrates with each power-on
  • Modular design makes parts replacement and maintenance simple and easy.

SPECIFICATIONS

  • Power supply: 85 ~264V AC
  • Working temperature: -4 F to 122 F
  • Working frequency: 4KHz~8KHz
  • Standard external size: 87(H) x 32(W) x 23(D) inches
  • Standard internal size: 79(H) x 28(W) x 20(D) inches
  • Package Dimensions for Door Panel: 89 x 26 x 10 inches
  • Package Dimensions for Control Unit: 31 x 15 x 10 inches
  • Gross weight: 155 lbs



Additional information

Weight 155 lbs
Dimensions 10 × 26 × 89 in
